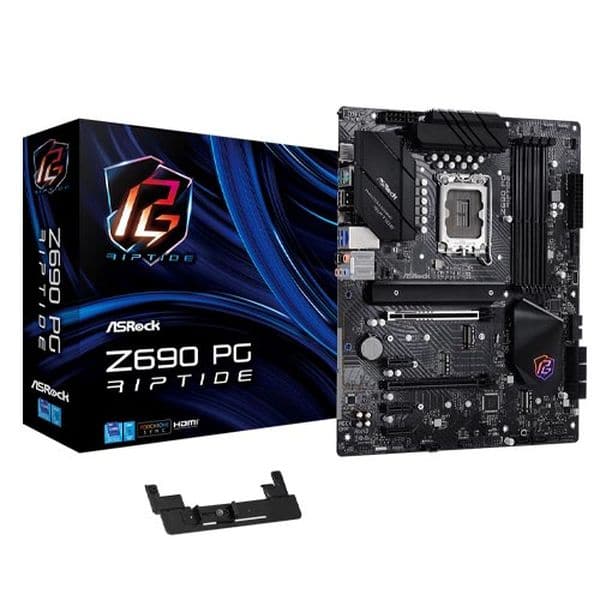

ASROCK Z690 Phantom Gaming Riptide DDR4 Intel Motherboard
MPN ASROCK-Z690-PG-RIPTIDE · Brand ASROCK · ATX
The ASRock Z690 Phantom Gaming Riptide DDR4 is an ATX motherboard for 12th Gen Intel LGA1700 CPUs, featuring PCIe 5.0, a 13-phase Dr.MOS power stage, Killer 2.5G LAN, three M.2 slots, and eight SATA ports
Inclusive of GST · GST invoice available
Overview
The ASRock Z690 Phantom Gaming Riptide is an ATX-form-factor motherboard built on the Intel Z690 chipset, designed for 12th Generation Intel Core, Pentium, and Celeron processors installed in the LGA1700 socket. It targets gaming enthusiasts who want access to the PCIe 5.0 interface and a comprehensive storage ecosystem without stepping up to a premium flagship price tier. At the heart of its power delivery sits a 13-phase Dr.MOS design rated at 55 A per phase, paired with premium 60 A power chokes and a 2 oz copper PCB to keep temperatures in check under sustained loads. The motherboard accepts up to four DDR4 DIMMs across two channels, supporting a native speed of DDR4 3200 and overclocked profiles up to DDR4 4800, with a maximum installed capacity of 128 GB. Expansion options are generous. The primary x16 slot runs PCIe 5.0 at full x16 bandwidth, while the secondary x16 slot operates at PCIe 4.0 x4. Three PCIe 3.0 x1 slots round out the layout. Storage connectivity is equally well equipped: two Hyper M.2 sockets (M2_1 and M2_2) run PCIe Gen4 x4 at up to 64 Gb/s, a third Ultra M.2 socket (M2_3) supports both PCIe Gen3 x4 and SATA3, and eight SATA 6 Gb/s ports provide legacy drive support. SATA RAID modes 0, 1, 5, and 10 are supported natively. Networking is handled by a Killer E3100 controller delivering 2.5 Gigabit Ethernet (10/100/1000/2500 Mbps), and a Key-E M.2 slot accommodates an optional WiFi 6E module or Intel CNVi card. Audio comes from a Realtek ALC897 codec with 7.1-channel HD output enhanced by Nahimic Audio software. The rear panel includes one USB 3.2 Gen2x2 Type-C (20 Gb/s), two USB 3.2 Gen2 Type-A (10 Gb/s), two USB 3.2 Gen1 Type-A, two USB 2.0 ports, one HDMI output, optical S/PDIF out, and a BIOS Flashback button. Front-panel connectivity adds a USB 3.2 Gen1 Type-C header plus four USB 3.2 Gen1 and four USB 2.0 ports. Polychrome RGB sync is supported via one RGB header and three addressable RGB headers. An ASRock Graphics Card Holder is included in the box alongside two SATA data cables, M.2 screws, I/O shield, and a Quick Installation Guide. Verifiable Specifications: - Chipset: Intel Z690 - Socket: LGA1700 (12th Gen Intel Core / Pentium / Celeron) - Form Factor: ATX (12.0 in x 9.6 in) - Memory: 4x DDR4 DIMM, dual channel, up to 128 GB, DDR4 3200 native / 4800 OC - Power Phases: 13-phase Dr.MOS (55 A per phase) - PCIe: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 (x16 slot), 3x PCIe 3.0 x1 - M.2: 2x Hyper M.2 PCIe Gen4 x4 (64 Gb/s), 1x Ultra M.2 PCIe Gen3 x4 / SATA3 - SATA: 8x SATA 6 Gb/s; RAID 0/1/5/10 - LAN: Killer E3100 2.5G Ethernet - Audio: Realtek ALC897, 7.1 CH HD - USB (rear): 1x USB 3.2 Gen2x2 Type-C (20 Gb/s), 2x USB 3.2 Gen2 Type-A (10 Gb/s), 2x USB 3.2 Gen1 Type-A, 2x USB 2.0 - Video Output: 1x HDMI - RGB: 1x RGB header, 3x ARGB headers - OS: Windows 11 / 10 64-bit - Certifications: FCC, CE, ErP/EuP ready
Datasheet

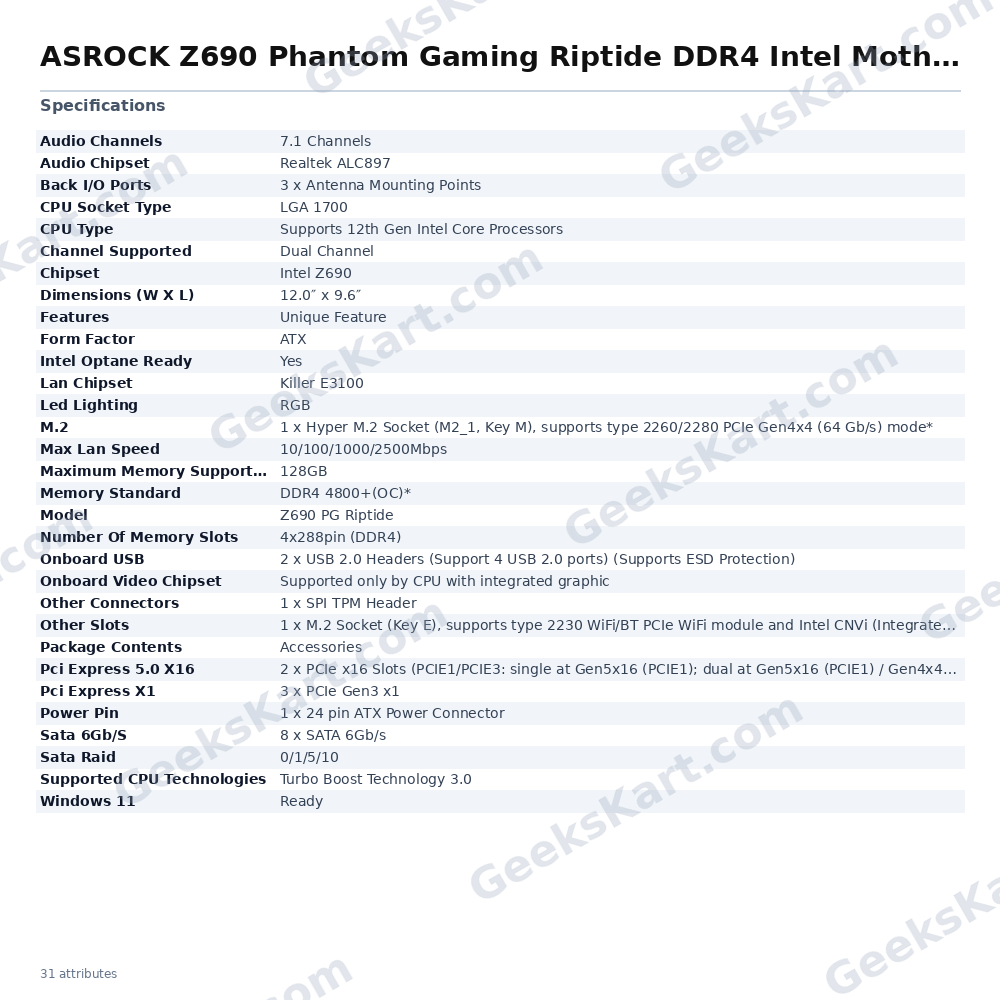

| Form Factor | ATX |
|---|---|
| Chipset | Intel Z690 |
| CPU Type | Supports 12th Gen Intel Core Processors |
| M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Model | Z690 PG Riptide |
| Features | Unique Feature |
| Power Pin | 1 x 24 pin ATX Power Connector |
| Sata Raid | 0/1/5/10 |
| Sata 6Gb/S | 8 x SATA 6Gb/s |
| Windows 11 | Ready |
| Lan Chipset | Killer E3100 |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) |
| Led Lighting | RGB |
| Audio Chipset | Realtek ALC897 |
| Max Lan Speed | 10/100/1000/2500Mbps |
| Audio Channels | 7.1 Channels |
| Back I/O Ports | 3 x Antenna Mounting Points |
| Pci Express X1 | 3 x PCIe Gen3 x1 |
| CPU Socket Type | LGA 1700 |
| Memory Standard | DDR4 4800+(OC)* |
| Other Connectors | 1 x SPI TPM Header |
| Package Contents | Accessories |
| Channel Supported | Dual Channel |
| Dimensions (W X L) | 12.0″ x 9.6″ |
| Intel Optane Ready | Yes |
| Pci Express 5.0 X16 | 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3))* |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number Of Memory Slots | 4x288pin (DDR4) |
| Maximum Memory Supported | 128GB |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
