ASROCK Z790 Steel Legend Wifi DDR5 Intel Motherboard
MPN ASROCK-Z790-STEEL-LEGEND-WIFI · Brand ASROCK · ATX
The ASRock Z790 Steel Legend WiFi DDR5 is an ATX motherboard for Intel LGA1700 (12th/13th Gen) with PCIe Gen5 M.2, Wi-Fi 6E, 16+1+1 power phases, and support for up to 128GB DDR5 memory
Inclusive of GST · GST invoice available
Overview

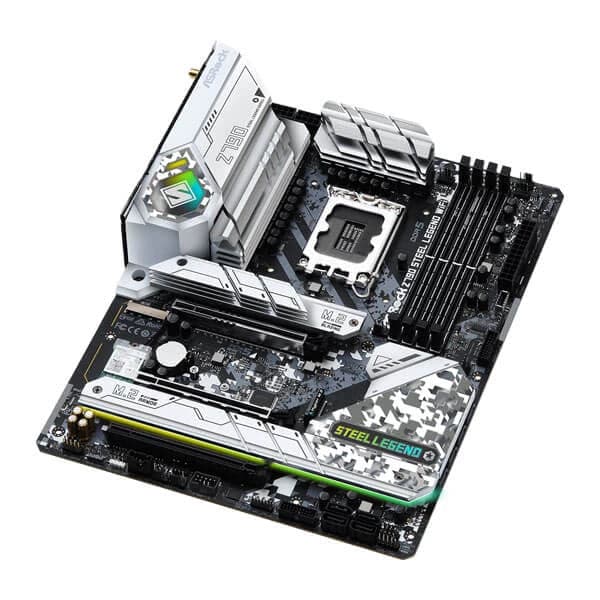

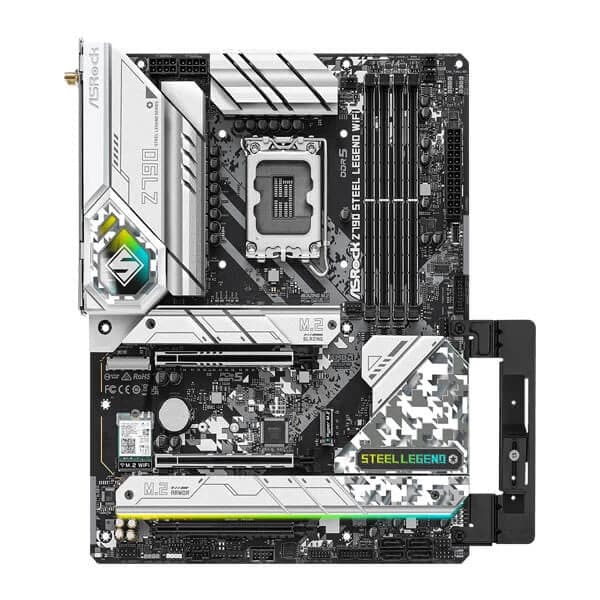

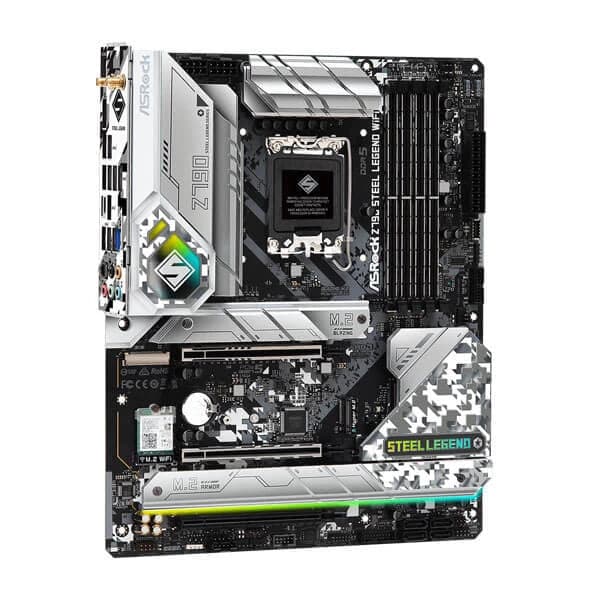

The ASRock Z790 Steel Legend WiFi is a full-size ATX motherboard built on Intel's Z790 chipset and designed for 12th and 13th Generation Intel Core processors using the LGA1700 socket. It is a capable platform for enthusiast builders and content creators who want robust power delivery, fast storage, and wireless connectivity in one package. At its core, the board features a 16+1+1 power phase design using 60A Smart Power Stage (SPS) MOSFETs for the VCore and GT domains. This design is complemented by Nichicon 12K Black capacitors and a 6-layer, 2oz copper PCB, which together contribute to stable voltage delivery across sustained workloads. Two 8-pin 12V ATX CPU power connectors are included to support demanding processors. Memory support is handled by four DDR5 DIMM slots in a dual-channel configuration, accommodating up to 128GB of non-ECC unbuffered DDR5 memory. The board supports Intel XMP 3.0 profiles, with overclocking capability rated to 7200MHz and above in OC mode. Storage is a standout area: one Blazing M.2 slot (M2_2) operates at PCIe Gen5 x4 for up to 128GB/s throughput, and four additional Hyper M.2 slots run at PCIe Gen4 x4. Eight SATA3 connectors are also present, and the board supports RAID 0, 1, 5, and 10 for SATA devices and RAID 0, 1, and 5 for NVMe. Expansion slots include one PCIe 5.0 x16, one PCIe 4.0 x16, and one PCIe 3.0 x16 slot, covering current and previous-generation graphics cards and add-in cards. Connectivity includes an 802.11ax Wi-Fi 6E module with tri-band support (2.4/5/6GHz), 2x2 MU-MIMO, and Bluetooth; a Realtek Dragon RTL8125BG 2.5G wired LAN controller; a front-panel USB 3.2 Gen2x2 Type-C header (20Gbps); rear USB 3.2 Gen2 Type-A and Type-C ports; and twelve USB 3.2 Gen1 ports spread across rear and front headers. Display outputs support integrated graphics via HDMI 2.1 (up to 4K 60Hz), DisplayPort 1.4 with DSC (up to 8K 60Hz), and eDP 1.4. Audio is handled by a Realtek ALC897 codec with 7.1-channel HD audio and Nahimic Audio software. RGB is managed through one RGB LED header and three addressable LED headers, controlled via ASRock Polychrome SYNC software. Verifiable Specifications: - Chipset: Intel Z790 - CPU Socket: LGA1700 (12th and 13th Gen Intel Core) - Memory: 4x DDR5 DIMM, max 128GB, DDR5 up to 7200+(OC), XMP 3.0 - Form Factor: ATX, 12.0 x 9.6 in (30.5 x 24.4 cm) - PCB: 6-layer, 2oz copper - Power Phases: 16+1+1, 60A SPS - Storage: 1x PCIe Gen5 x4 M.2, 4x PCIe Gen4 x4 M.2, 8x SATA3 - Wireless: 802.11ax Wi-Fi 6E (2.4/5/6GHz), Bluetooth - LAN: Realtek Dragon RTL8125BG 2.5GbE - Audio: Realtek ALC897, 7.1 CH HD, Nahimic Audio - Rear I/O USB: 1x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C, 8x USB 3.2 Gen1 - Display: 1x HDMI 2.1, 1x DisplayPort 1.4, 1x eDP 1.4 - BIOS: 256Mb AMI UEFI - OS: Windows 10 64-bit / Windows 11 64-bit - Warranty: 3 years

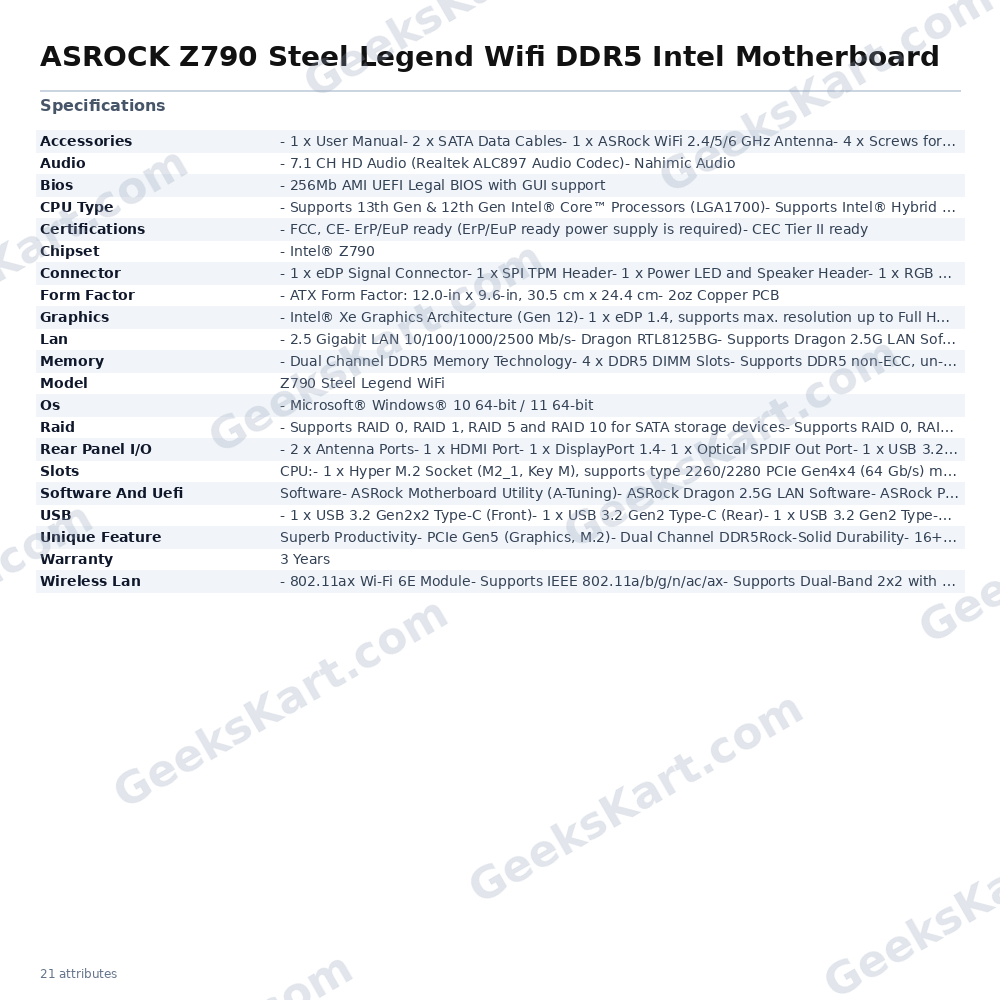

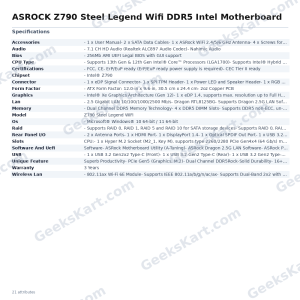

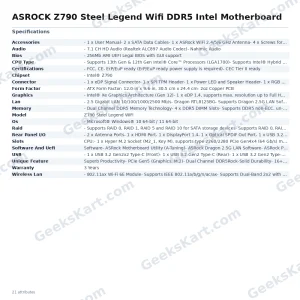

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – Intel® Z790 |
| CPU Type | |
| Os | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control |
| USB | – 1 x USB 3.2 Gen2x2 Type-C (Front)- 1 x USB 3.2 Gen2 Type-C (Rear)- 1 x USB 3.2 Gen2 Type-A (Rear)- 12 x USB 3.2 Gen1 (8 Rear, 4 Front)- 3 x USB 2.0 (3 Front) |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio |
| Model | Z790 Steel Legend WiFi |
| Slots | CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 8 x SATA3 6.0 Gb/s Connectors |
| Memory | – Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)- Max. capacity of system memory: 128GB- Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12)- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Connector | – 1 x eDP Signal Connector- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

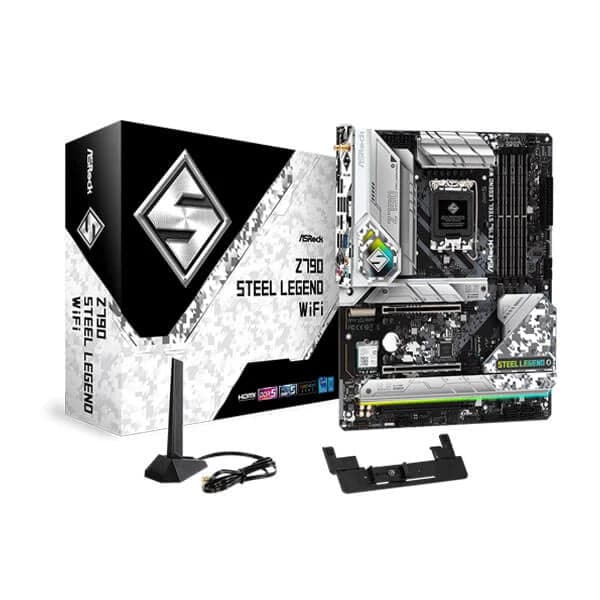

| Accessories | – 1 x User Manual- 2 x SATA Data Cables- 1 x ASRock WiFi 2.4/5/6 GHz Antenna- 4 x Screws for M.2 Sockets- 1 x Graphics Card Holder |
| Wireless Lan | – 802.11ax Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax- Supports Dual-Band 2×2 with extended 6GHz band support*- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth + High speed class II- Supports MU-MIMO |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)- CEC Tier II ready |

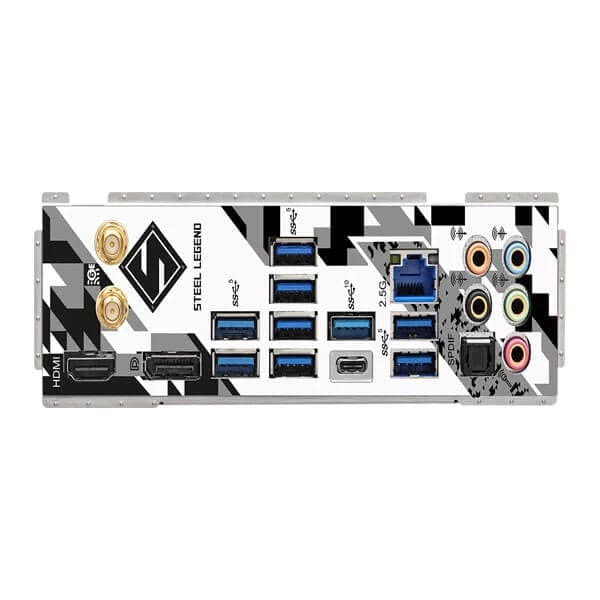

| Rear Panel I/O | – 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)- 8 x USB 3.2 Gen1 Ports- 1 x RJ-45 LAN Port- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Unique Feature | Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5Rock-Solid Durability- 16+1+1 Power Phase, 60A SPS for VCore+GT- Flexible Integrated I/O Shield- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity- 2.5G LAN, 802.11ax Wi-Fi 6E ModuleEZ Update- ASRock Auto Driver Installer EZ Troubleshooter |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash- ASRock Easy RAID Installer |
