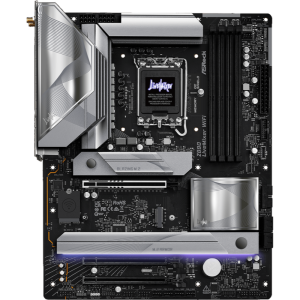

ASROCK Z890 Live Mixer WIFI DDR5 Intel Motherboard
MPN ASROCK-Z890-LIVE-MIXER-WIFI · Brand ASROCK · ATX
The ASRock Z890 Live Mixer WiFi is an ATX motherboard for Intel Core Ultra Series 2 processors (LGA1851) featuring PCIe 5.0, quad DDR5 slots up to 256 GB, Wi-Fi 7, dual Thunderbolt 4 ports, and an 18+1+1+1+1 SPS power phase design
Inclusive of GST · GST invoice available
Overview

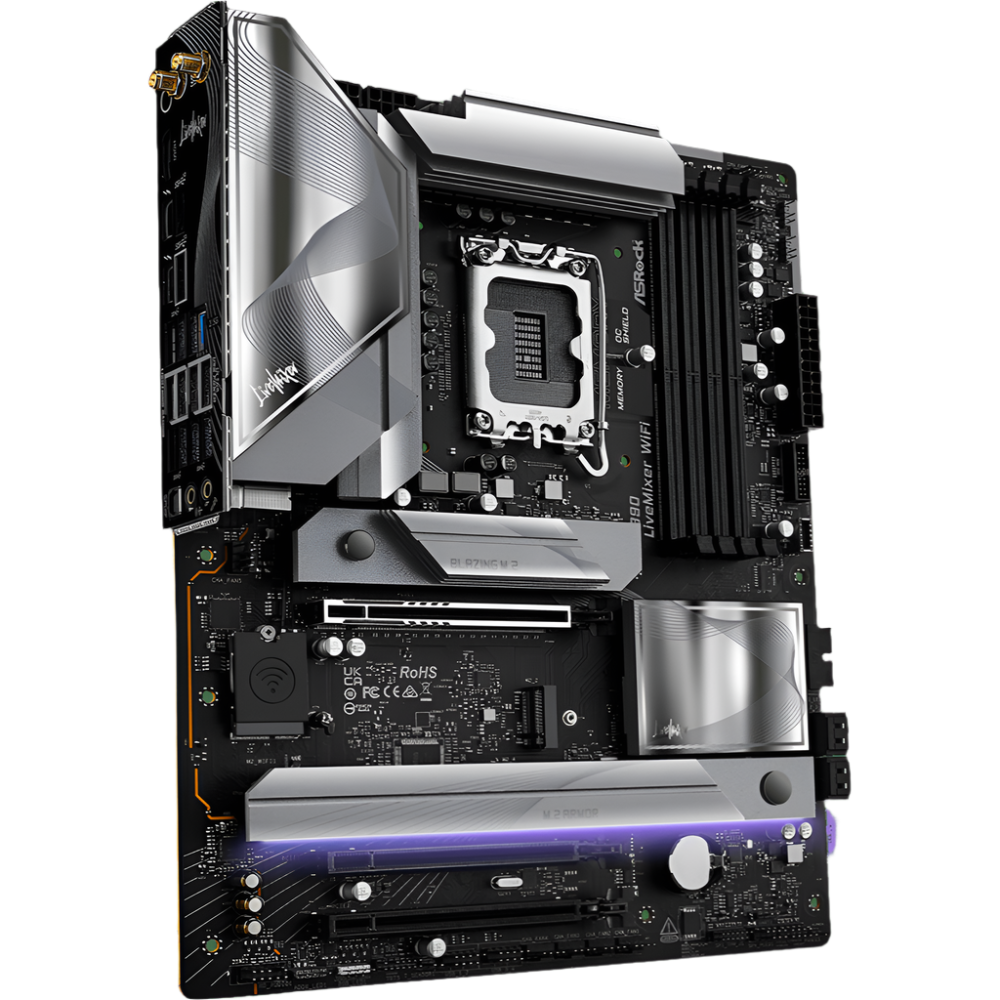

The ASRock Z890 Live Mixer WiFi is a full-size ATX motherboard (305 mm × 244 mm) built on the Intel Z890 chipset with the LGA1851 socket, designed to support Intel Core Ultra Processors (Series 2) including Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost, and Adaptive Boost Technology. An integrated NPU in compatible processors enables dedicated AI acceleration tasks directly on the platform. Power delivery is handled by an 18+1+1+1+1 power phase design using Smart Power Stage (SPS) Dr.MOS technology rated at 80A for VCore, GT, and SA rails. This configuration is paired with ASRock's proprietary 20K Black capacitors, rated for 20,000 hours of operational lifespan at 1,000 µF capacitance — up from 560 µF in previous designs — delivering lower ripple and a more stable output current under sustained loads. Two 8-pin Hi-Density Power Connectors provide the headroom needed for heavy overclocking workloads, while a 2-oz copper PCB supports efficient signal integrity and thermal management. Memory support spans four DDR5 DIMM slots in dual-channel configuration, capable of holding up to 256 GB of non-ECC, unbuffered DDR5 memory with XMP 3.0 profiles and overclocking headroom up to DDR5-9466+ (OC). CUDIMM support is also included. ASRock's Memory OC Shield reduces electromagnetic interference during high-frequency memory operation. Storage options are generous: one Blazing M.2 slot (PCIe Gen 5×4, up to 128 Gb/s), one Hyper M.2 slot (PCIe Gen 4×4, up to 64 Gb/s), two additional Hyper M.2 chipset slots (PCIe Gen 4×4), and four SATA3 6 Gb/s connectors. RAID 0/1/5/10 is supported across both SATA and NVMe M.2 devices. The primary PCIe slot runs at PCIe 5.0 ×16. Connectivity is a clear strength of this board. Wireless networking is handled by an 802.11be (Wi-Fi 7) 2×2 module supporting 2.4 GHz, 5 GHz, and 6 GHz bands with 320 MHz channel bandwidth and Bluetooth 5.4. Wired networking uses a Dragon RTL8125BG controller for 2.5 Gigabit LAN. The rear I/O includes two Thunderbolt 4 Type-C ports (40 Gb/s each, supporting USB4 and up to 8K 60Hz display output), two USB 3.2 Gen2 Type-A ports, ten USB 3.2 Gen1 ports, and an HDMI 2.1 port (4K 120Hz). An optical S/PDIF output and gold-plated audio jacks complement the Realtek ALC1220 7.1-channel HD audio codec with Nahimic audio software. Front-panel connectivity includes one USB 3.2 Gen2×2 Type-C header (20 Gb/s), two USB 3.2 Gen1 headers, and two USB 2.0 headers. RGB lighting is accommodated through one addressable RGB header and three ARGB headers, managed via ASRock Polychrome SYNC software. Verified Specifications: - Chipset: Intel Z890 - Socket: LGA1851 (Intel Core Ultra Series 2) - Form Factor: ATX, 305 mm × 244 mm - Memory: 4× DDR5 DIMM, up to 256 GB, DDR5-9466+ (OC), XMP 3.0 - Primary M.2: PCIe Gen 5×4 (128 Gb/s) - Additional M.2: 3× PCIe Gen 4×4 (64 Gb/s each); one also supports SATA3 - SATA: 4× SATA3 6 Gb/s - PCIe Slots: 1× PCIe 5.0 ×16, 2× PCIe 4.0 ×16 (×4 mode) - LAN: 2.5 Gb Ethernet (Dragon RTL8125BG) - Wi-Fi: 802.11be Wi-Fi 7, Bluetooth 5.4 - Rear USB: 2× Thunderbolt 4 Type-C (40 Gb/s), 2× USB 3.2 Gen2 Type-A, 10× USB 3.2 Gen1 - Display: HDMI 2.1 (4K 120Hz), Thunderbolt 4 (8K 60Hz / 5K 120Hz) - Audio: Realtek ALC1220, 7.1 CH HD, Nahimic - VRM: 18+1+1+1+1 phase, 80A SPS - PCB: 2-oz copper, server-grade low-loss - BIOS: 256 Mb AMI UEFI with Flashback Button - Accessories: 2× SATA cables, 2× tri-band Wi-Fi antennas, 1× thermistor cable
Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | – Intel® Z890 |
| CPU Type | |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| USB | CPU: – 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 2 x USB 3.2 Gen2 Type-A (Rear) – 14 x USB 3.2 Gen1 (10 Rear, 4 Front) – 4 x USB 2.0 (Front) |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahimic Audio |
| Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Memory | Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)* – Supports Clocked Unbuffered DIMM (CUDIMM) – Max. capacity of system memory: 256GB – Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* – 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | – Intel® Xe LPG Graphics Architecture – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* |
| Connector | – 1 x Thermistor Cable Header – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Accessories | – 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 1 x Thermistor Cable |
| Wireless Lan | – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe/be – Supports 2.4GHz/5GHz/6GHz* frequency band – Supports 320MHz channel bandwidth with 6GHz* frequency band – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO |

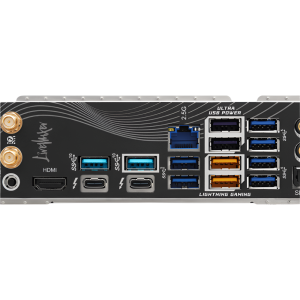

| Rear Panel I/O | – 2 x Antenna Ports – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) – 10 x USB 3.2 Gen1 Ports** – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability – Server-Grade Low-Loss PCB – 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor – Memory OC Shield – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) for VCore Ultrafast Connectivity – 2.5G LAN, 802.11be Wi-Fi 7 Module – ASRock Lightning Gaming Ports EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter |
| Software And Uefi | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |
