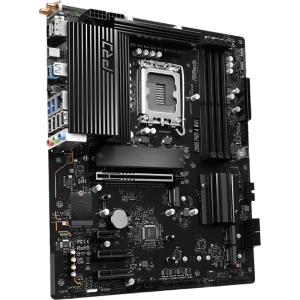

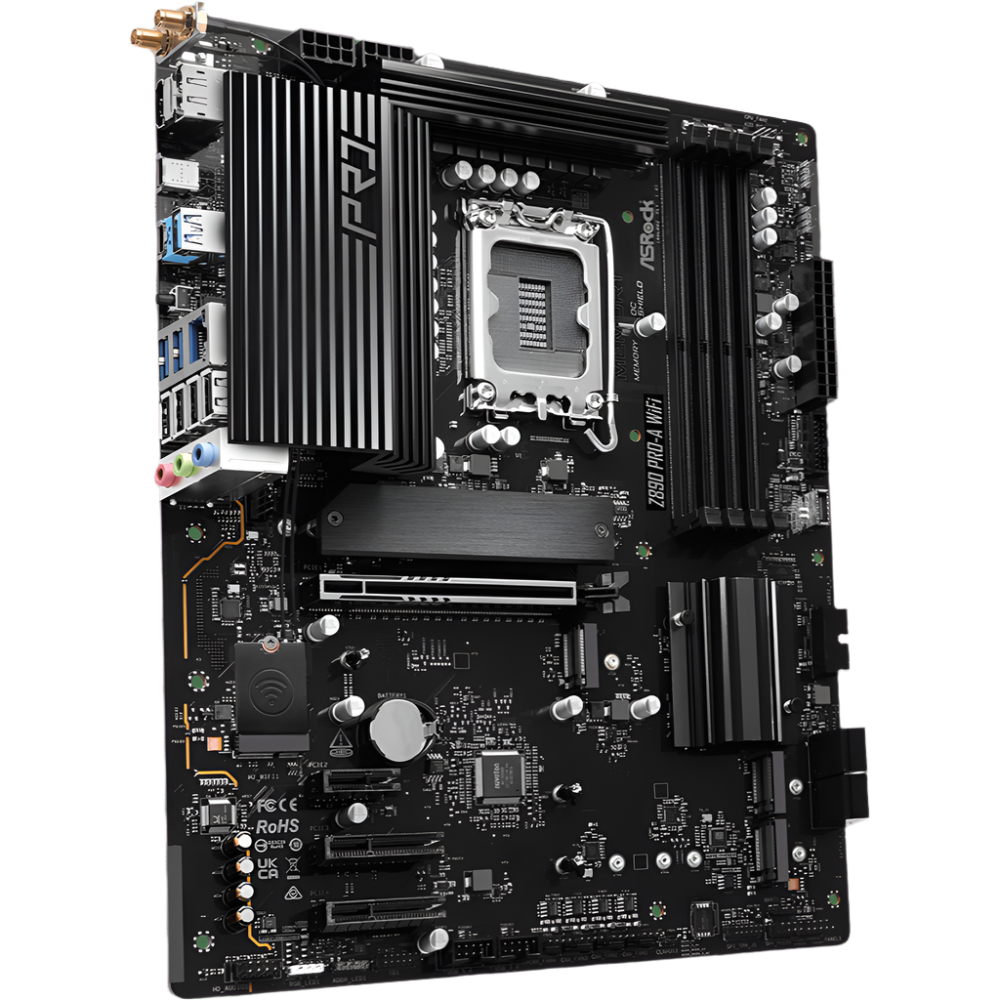

ASROCK Z890 Pro A WIFI DDR5 Intel Motherboard
MPN ASROCK-Z890-PRO-A-WIFI · Brand ASROCK · ATX
The ASRock Z890 Pro A WiFi DDR5 ATX motherboard supports Intel Core Ultra Series 2 processors (LGA1851) with PCIe 5.0, four DDR5 slots up to 256 GB, Wi-Fi 6E, dual Thunderbolt 4 ports, and a 16+1+1+1+1 Dr. MOS power delivery system
Inclusive of GST · GST invoice available
Overview

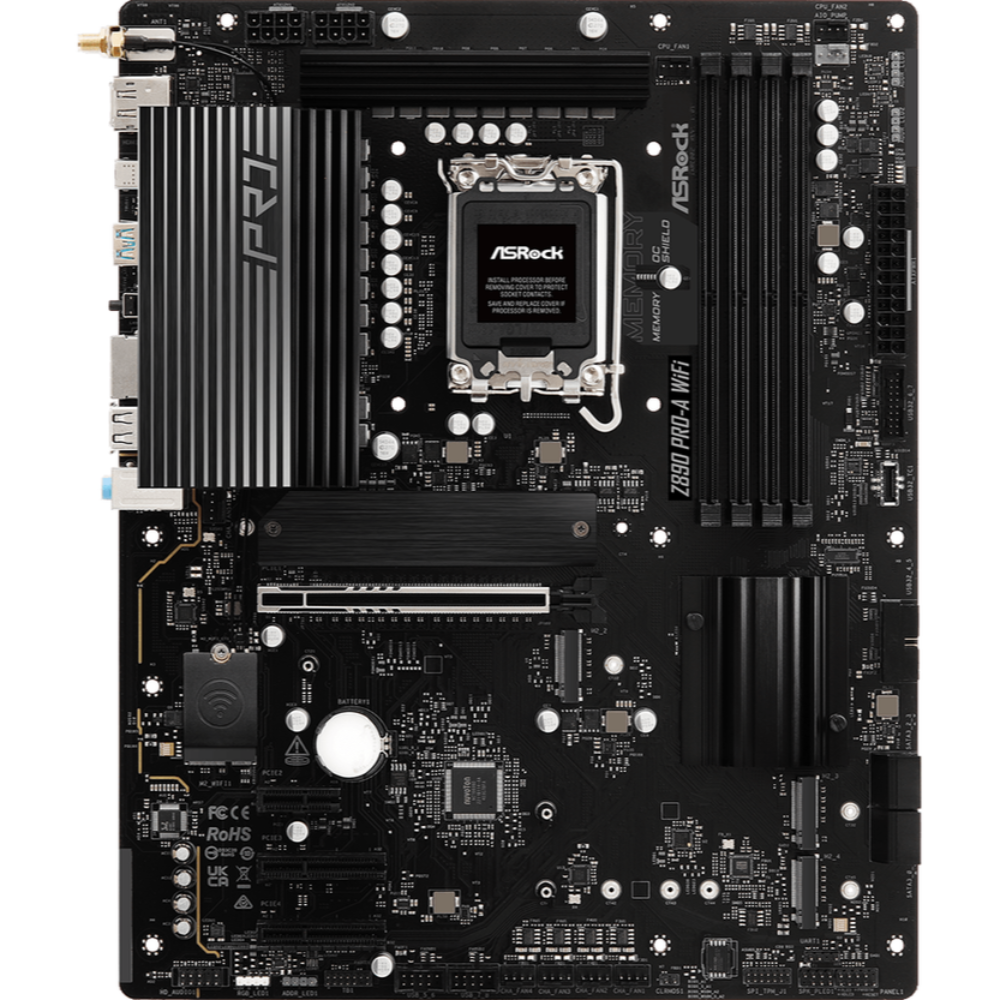

The ASRock Z890 Pro A WiFi is a full-size ATX motherboard built around Intel's Z890 chipset and the LGA1851 socket, designed to support Intel Core Ultra Processors (Series 2) with Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT). An integrated NPU provides dedicated AI acceleration for compatible workloads. At the heart of the power delivery is a 16+1+1+1+1 phase design using Dr. MOS integrated power stages, which combine the high-side and low-side MOSFETs and gate driver into a single package for improved thermal performance and higher per-phase current delivery. Dual Hi-Density 8-pin 12V CPU power connectors are rated to handle greater current than conventional connectors, supporting stable operation under heavy overclocking. A 2oz copper PCB aids signal integrity and thermal dissipation, while 1000uF capacitors reduce voltage ripple for a cleaner power supply to the processor. Memory support spans four DDR5 DIMM slots with a maximum capacity of 256 GB. The board supports DDR5 non-ECC unbuffered memory up to 9066 MHz (OC) and CUDIMM, and is compatible with Intel XMP 3.0 profiles. The ASRock Memory OC Shield reduces electromagnetic interference around memory slots to improve stability at high frequencies. Storage options include one Blazing M.2 (M2_1) running at PCIe Gen5 x4 for up to 128 Gb/s, two Hyper M.2 sockets operating at PCIe Gen4 x4 (64 Gb/s each), one Hyper M.2 socket that also supports SATA3, and four SATA3 6.0 Gb/s connectors. RAID 0, 1, 5, and 10 are supported for both SATA and NVMe devices. The primary PCIe slot runs at PCIe 5.0 x16 for the graphics card. Connectivity includes a Wi-Fi 6E module (802.11a/b/g/n/ac/ax/axe, 2x2 MIMO, 2.4/5/6 GHz), Bluetooth 5.3, and a Dragon RTL8125BG 2.5 Gigabit LAN controller. The rear panel features two Thunderbolt 4 Type-C ports (40 Gb/s), one USB 3.2 Gen2 Type-A port, two USB 3.2 Gen1 ports, four USB 2.0 ports, HDMI 2.1 (4K 120Hz), DisplayPort 1.4 (8K 60Hz), and a BIOS Flashback button. Audio is handled by a Realtek ALC897 codec delivering 7.1-channel HD audio with Nahimic Audio support. Verified Specifications: - Socket: LGA1851 | Chipset: Intel Z890 - Form Factor: ATX, 12.0 x 9.6 in (30.5 x 24.4 cm) - Memory: 4x DDR5 DIMM, up to 256 GB, up to 9066 MHz (OC), XMP 3.0 - Storage: 1x PCIe Gen5 x4 M.2, 2x PCIe Gen4 x4 M.2, 1x PCIe Gen4 x4/SATA3 M.2, 4x SATA3 6.0 Gb/s - PCIe: 1x PCIe 5.0 x16, 2x PCIe 4.0 x4, 1x PCIe 4.0 x1 - USB (Rear): 2x Thunderbolt 4 Type-C, 1x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1, 4x USB 2.0 - Display: HDMI 2.1 (4K 120Hz), DisplayPort 1.4 (8K 60Hz) - LAN: 2.5 GbE (Realtek Dragon RTL8125BG) - Wireless: Wi-Fi 6E (802.11axe), Bluetooth 5.3 - Audio: Realtek ALC897, 7.1 CH HD, Nahimic Audio - BIOS: 256 Mb AMI UEFI with GUI

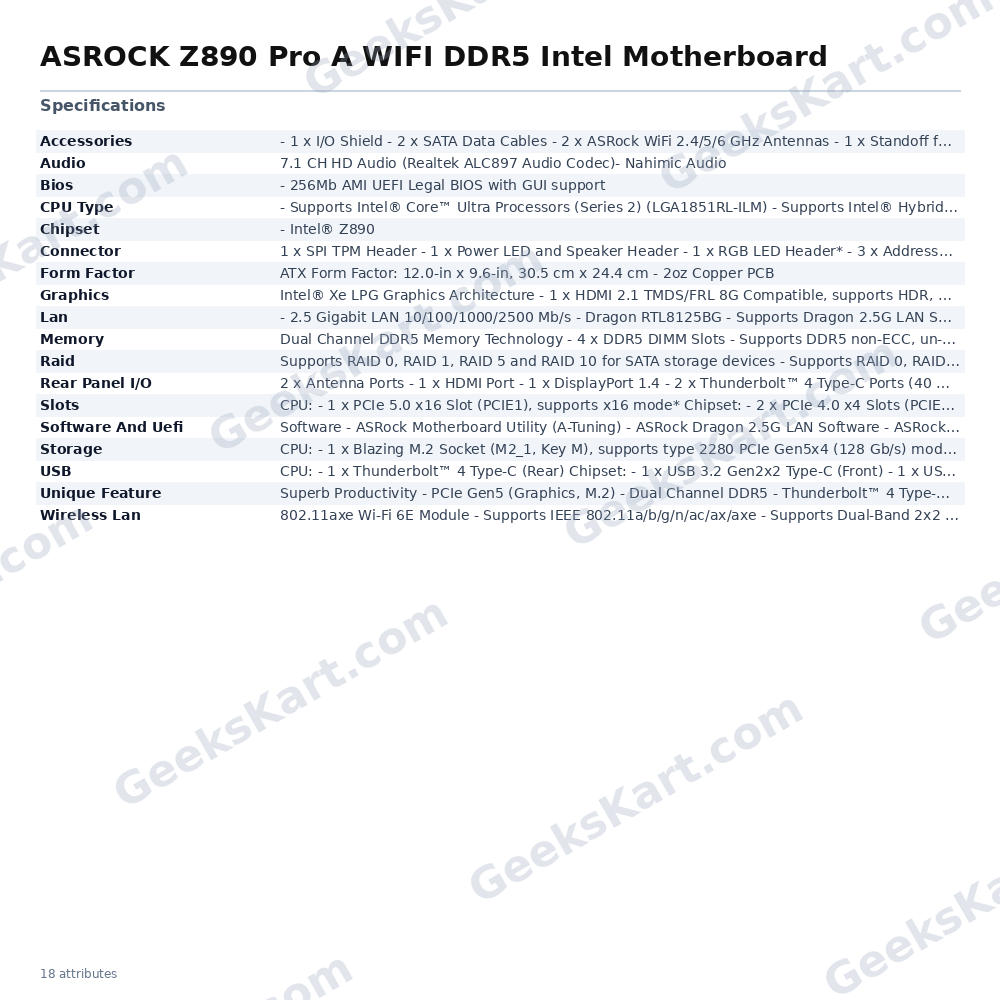

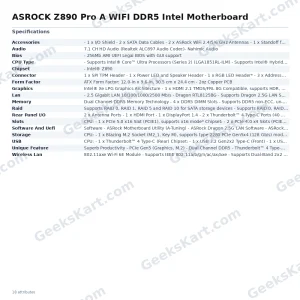

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | – Intel® Z890 |
| CPU Type | |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| USB | CPU: – 1 x Thunderbolt™ 4 Type-C (Rear) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 1 x USB 3.2 Gen2 Type-A (Rear) – 6 x USB 3.2 Gen1 (2 Rear, 4 Front) – 8 x USB 2.0 (4 Rear, 4 Front) |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio |
| Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode* – 1 x PCIe 4.0 x1 Slot (PCIE2)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Memory | Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)* – Supports Clocked Unbuffered DIMM (CUDIMM) – Max. capacity of system memory: 256GB – Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* – 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | Intel® Xe LPG Graphics Architecture – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Connector | 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 1 x 24 pin ATX Power Connector – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

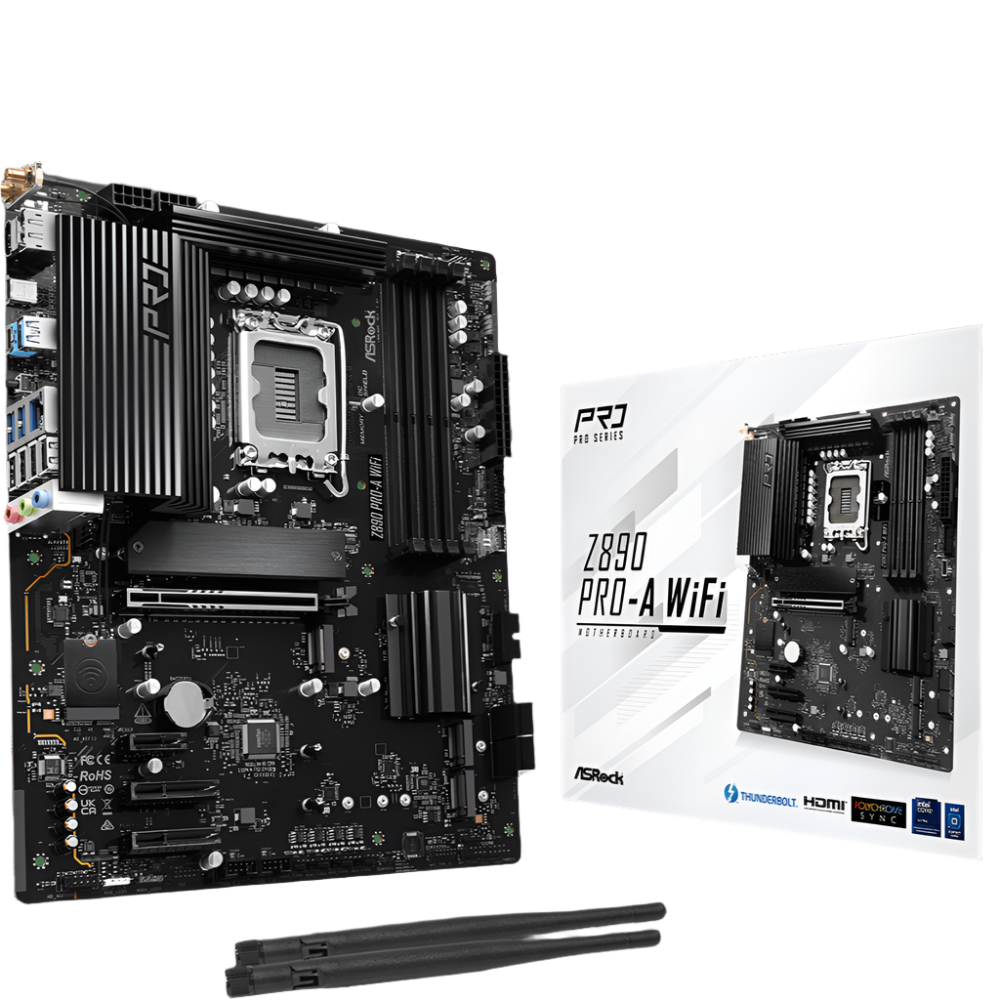

| Accessories | – 1 x I/O Shield – 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 1 x Standoff for M.2 Socket |
| Wireless Lan | 802.11axe Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe – Supports Dual-Band 2×2 with extended 6GHz band* support – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.3 – Supports MU-MIMO |

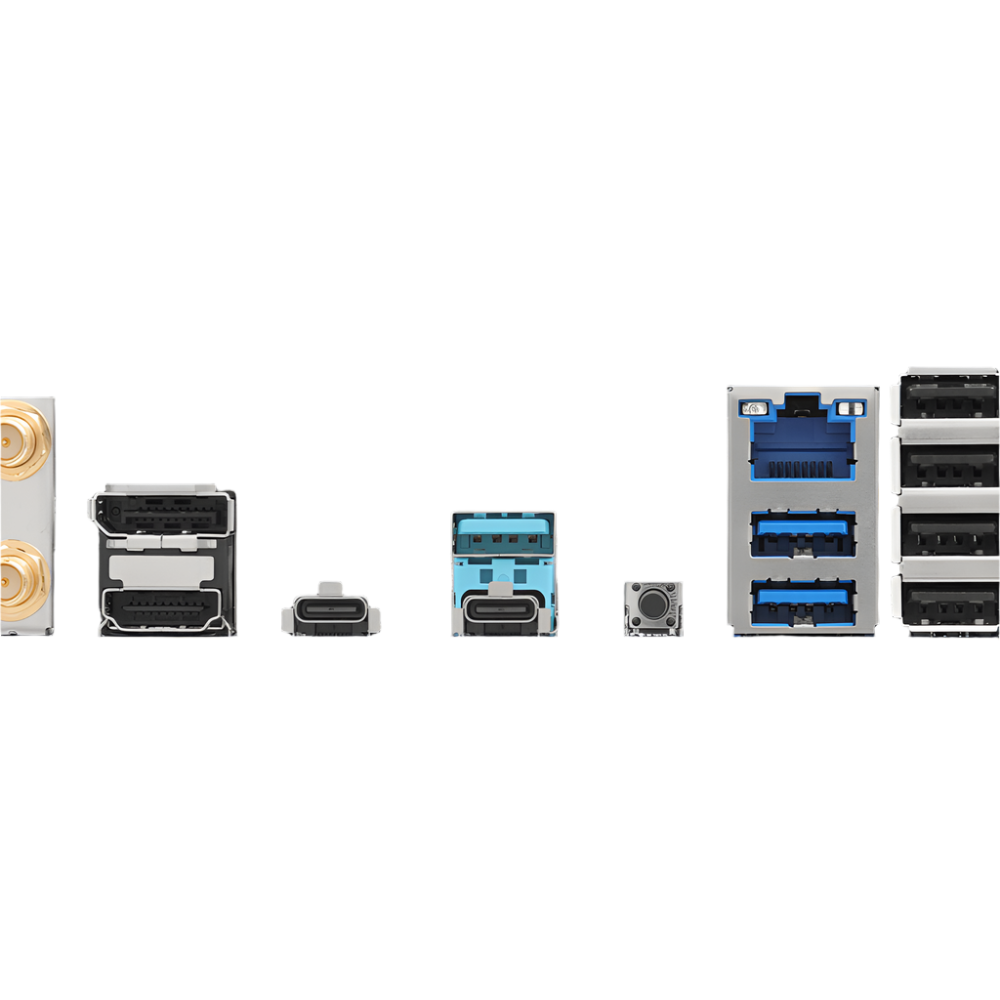

| Rear Panel I/O | 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 2 x USB 3.2 Gen1 Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability – 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT with Enlarged Heatsink Armor – Memory OC Shield – Flexible Integrated I/O Shield Ultrafast Connectivity – 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter |
| Software And Uefi | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |
