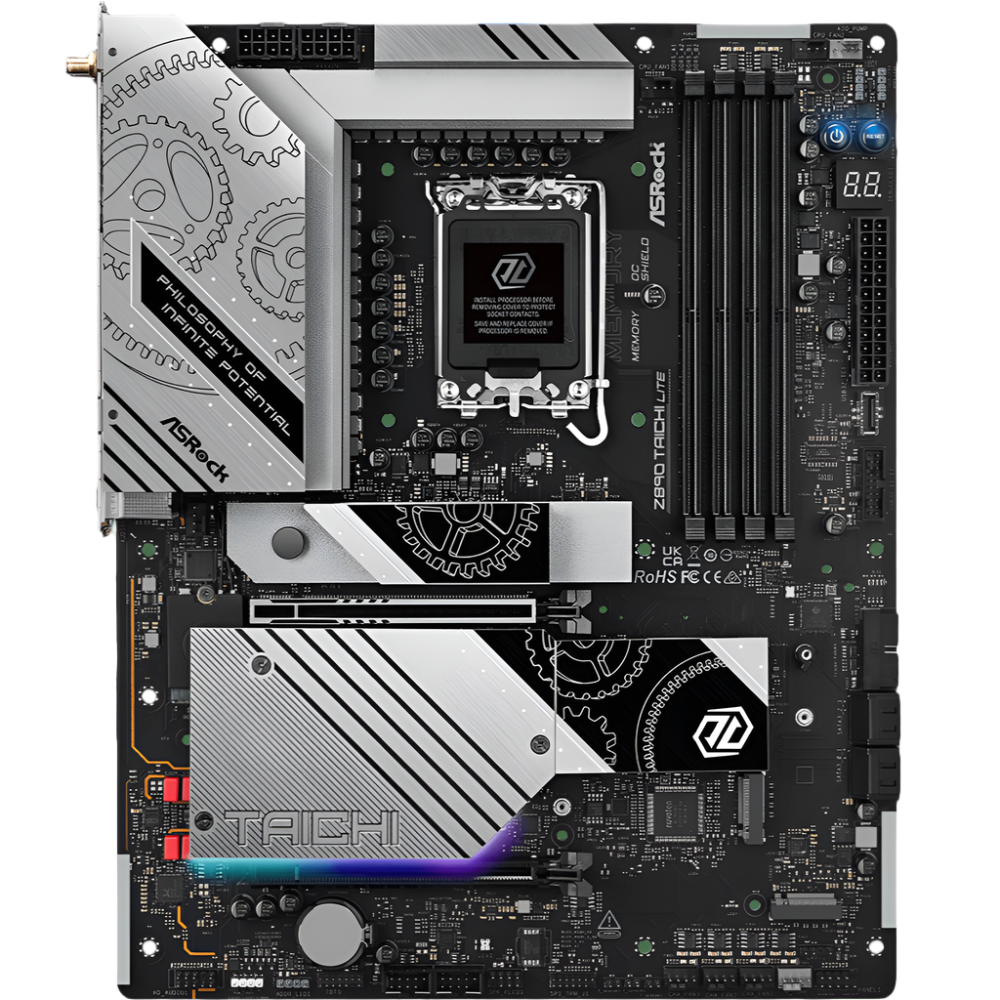

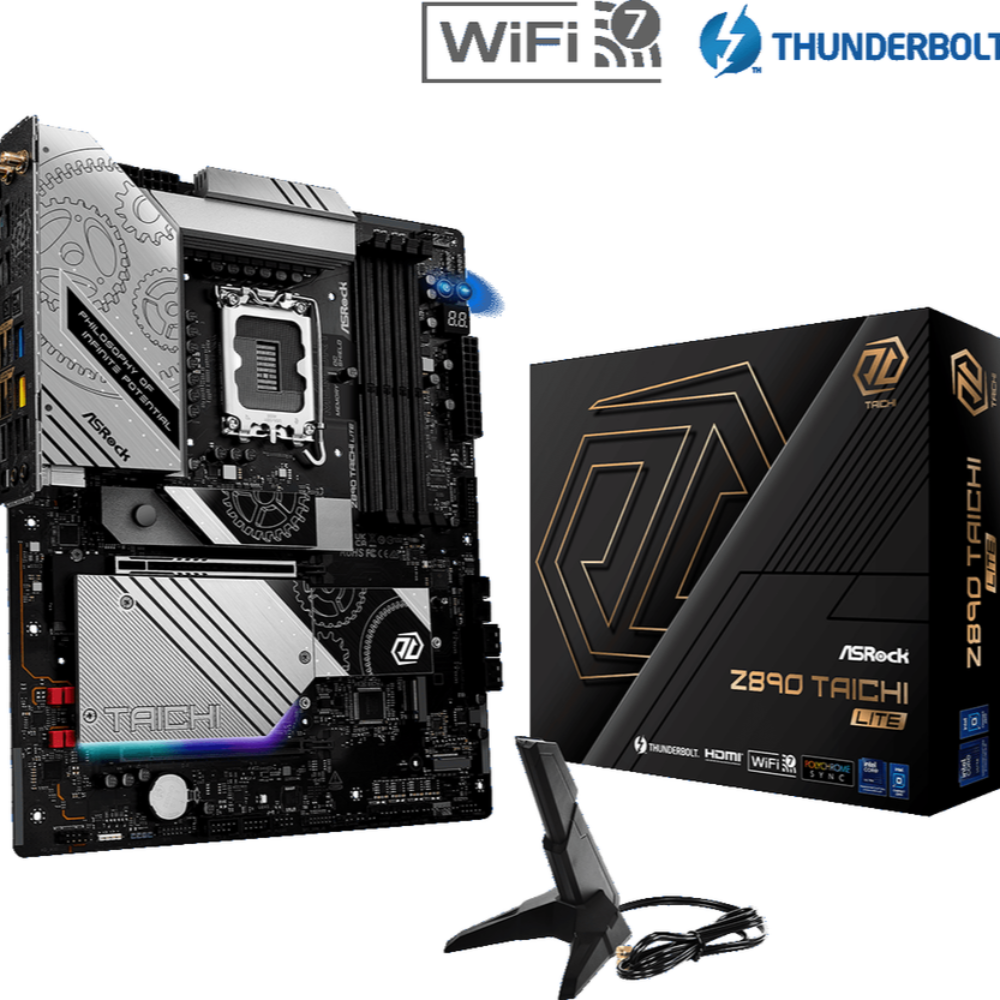

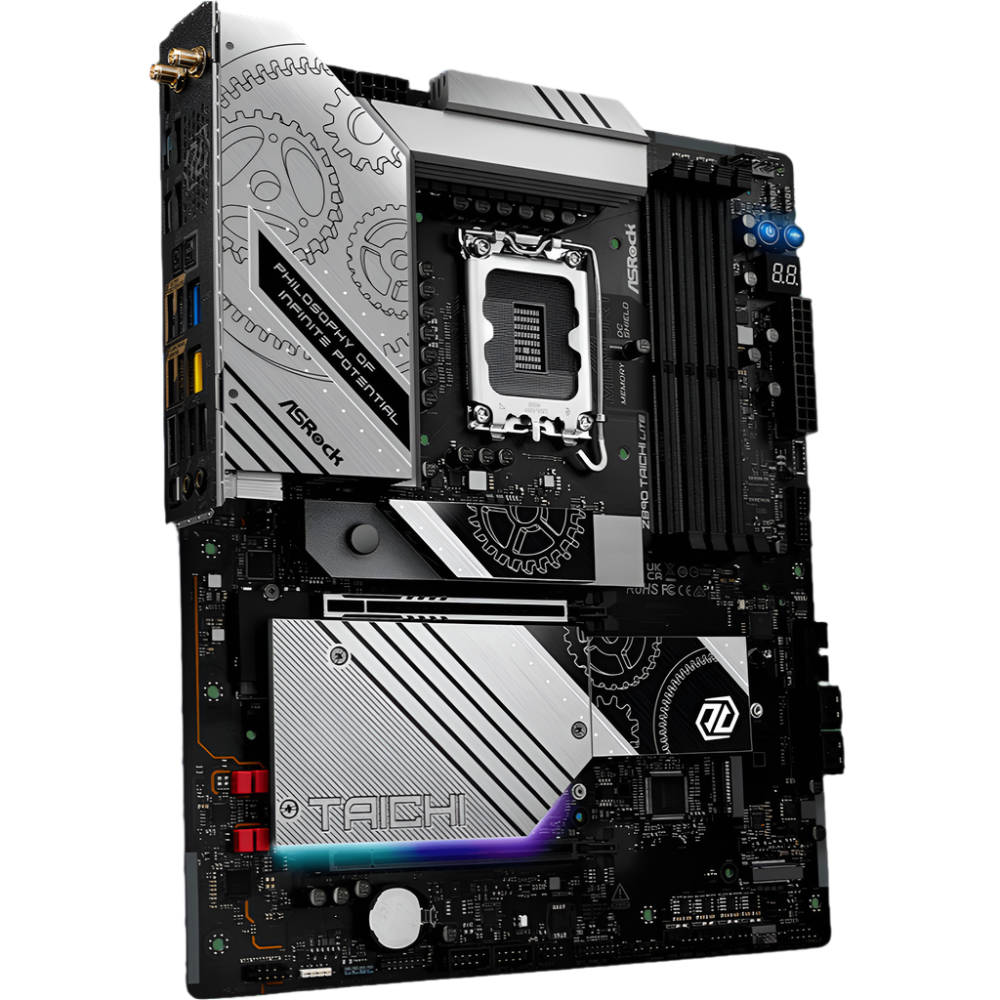

ASROCK Z890 Taichi Lite WIFI DDR5 Intel Motherboard
MPN ASROCK-Z890-TAICHI-LITE · Brand ASROCK · ATX
The ASRock Z890 Taichi Lite WiFi is an ATX motherboard for Intel LGA1851 (Core Ultra Series 2) featuring PCIe 5.0, six M.2 slots, Wi-Fi 7, dual LAN (5GbE + 2.5GbE), and dual Thunderbolt 4 ports for enthusiast-grade performance
Inclusive of GST · GST invoice available
Overview
The ASRock Z890 Taichi Lite WiFi is a full-size ATX motherboard built around Intel's Z890 chipset, designed to support Intel Core Ultra Series 2 processors in the LGA1851 socket. It brings together a robust power delivery system, next-generation connectivity, and thoughtful thermal management into a platform that targets enthusiasts and overclockers alike. At the heart of its power architecture is a 20+1+2+1+1 phase design using Smart Power Stage (SPS) Dr.MOS components rated at 110A for VCore. Paired with 20K-rated conductive polymer capacitors at 1000uF capacitance, the board is designed to deliver stable, low-ripple power under sustained heavy loads. Two 8-pin Hi-Density CPU power connectors supplement the standard 24-pin ATX connector to handle the increased current demands of overclocked configurations. Memory support spans four DDR5 DIMM slots capable of holding up to 256GB of non-ECC unbuffered RAM, with speeds reaching DDR5-9600 via overclocking. The board supports Intel XMP 3.0 profiles as well as Clocked Unbuffered DIMMs (CUDIMM). ASRock's patented Memory OC Shield reduces electromagnetic interference around the DIMM slots to improve stability at high frequencies. Storage options are comprehensive: one Blazing M.2 slot (M2_1) operates at PCIe Gen5 x4 for up to 128 Gb/s throughput, while five additional Hyper M.2 slots support PCIe Gen4 x4 (up to 64 Gb/s each), with one also accommodating SATA3. Four SATA3 ports round out the storage connectivity. RAID 0, 1, 5, and 10 are supported for both SATA and NVMe arrays. Connectivity is a standout: dual rear Thunderbolt 4 Type-C ports deliver 40 Gb/s each for data and display (up to 8K 60Hz), while a front-panel USB 3.2 Gen2x2 Type-C header reaches 20 Gb/s. Wired networking offers both a 5 Gigabit (Realtek RTL8126) and a 2.5 Gigabit (Dragon RTL8125BG) port. The integrated Wi-Fi 7 module (802.11be, 2x2) covers 2.4 GHz, 5 GHz, and 6 GHz bands with 320 MHz channel support and MU-MIMO, complemented by Bluetooth 5.4. Audio is handled by a Realtek ALC4082 codec delivering 5.1-channel HD audio, augmented by an ESS SABRE9219 DAC rated at 130dB SNR for rear outputs, WIMA capacitors, and a front headphone amplifier supporting headsets up to 600 Ohms. The PCB itself is an 8-layer design using server-grade low-loss material and 2oz copper inner layers, supporting the signal integrity demands of PCIe 5.0 graphics and storage. XXL aluminum heatsinks cover the VRM, PCH, and all M.2 areas. BIOS Flashback allows firmware updates without a CPU or RAM installed. Verifiable Specifications: Socket: LGA1851 | Chipset: Intel Z890 | Form Factor: ATX (12.0 x 9.6 in / 30.5 x 24.4 cm) | Memory: 4x DDR5 DIMM, max 256GB, DDR5-9600+(OC), XMP 3.0 | PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode) | M.2 Slots: 6 total (1x PCIe 5.0 x4, 5x PCIe 4.0 x4) | SATA: 4x SATA3 6Gb/s | USB Rear: 2x TB4 Type-C (40Gb/s), 4x USB 3.2 Gen2 Type-A (10Gb/s), 4x USB 3.2 Gen1, 2x USB 2.0 | LAN: 5GbE (RTL8126) + 2.5GbE (RTL8125BG) | Wi-Fi: 802.11be Wi-Fi 7, BT 5.4 | Display: HDMI 2.1 (4K 120Hz), 2x TB4 (8K 60Hz) | Audio: Realtek ALC4082, ESS SABRE9219 DAC (130dB SNR) | Power Phases: 20+1+2+1+1 | PCB: 8-layer, 2oz copper, server-grade low-loss

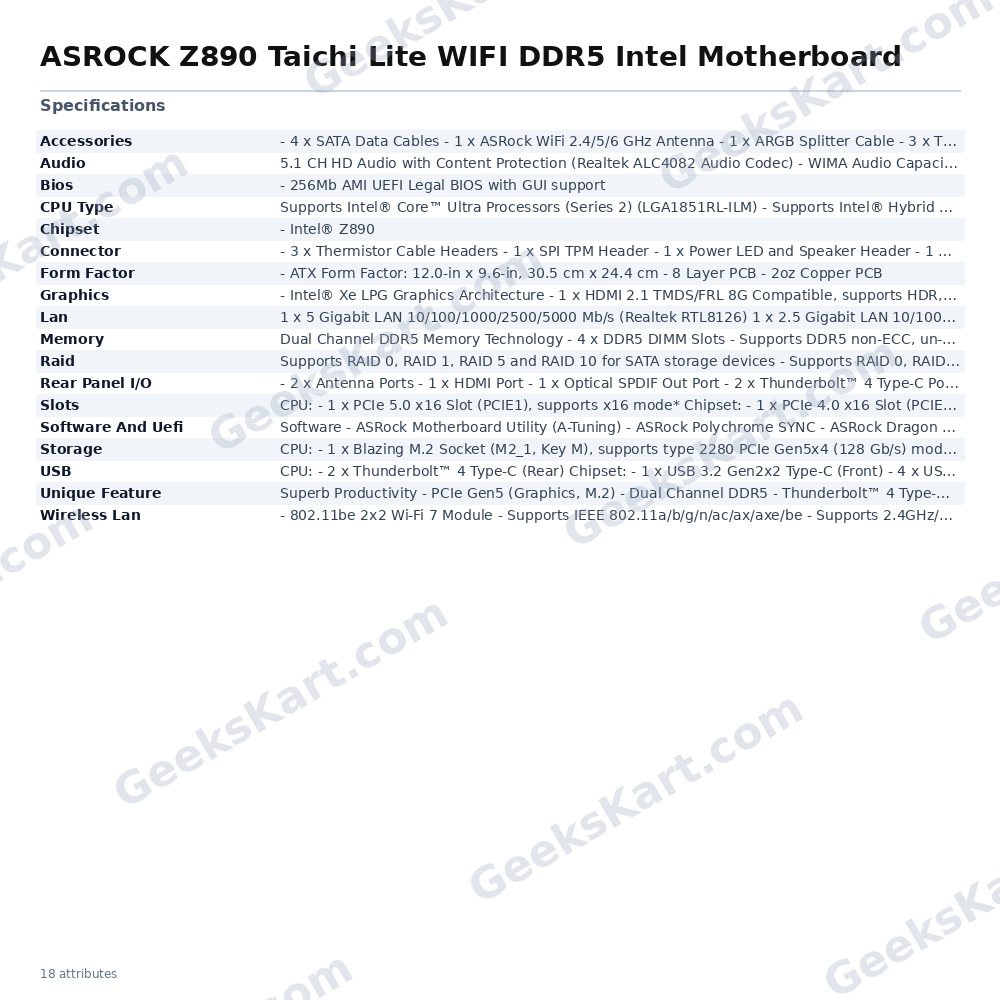

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | – Intel® Z890 |
| CPU Type | |
| Lan | 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126) 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| USB | CPU: – 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 4 x USB 3.2 Gen2 Type-A (Rear) – 8 x USB 3.2 Gen1 (4 Rear, 4 Front) – 6 x USB 2.0 (2 Rear, 4 Front) |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) – WIMA Audio Capacitors (For Rear Outputs) – ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) – Individual PCB Layers for R/L Audio Channel – Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) – Nahimic Audio |
| Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Memory | Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 9600+(OC)* – Supports Clocked Unbuffered DIMM (CUDIMM) – Max. capacity of system memory: 256GB – Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | – Intel® Xe LPG Graphics Architecture – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* |
| Connector | – 3 x Thermistor Cable Headers – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** – 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button with LED |
| Accessories | – 4 x SATA Data Cables – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 1 x ARGB Splitter Cable – 3 x Thermistor Cables – 2 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets |
| Wireless Lan | – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe/be – Supports 2.4GHz/5GHz/6GHz* frequency band – Supports 320MHz channel bandwidth with 6GHz* frequency band – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO |

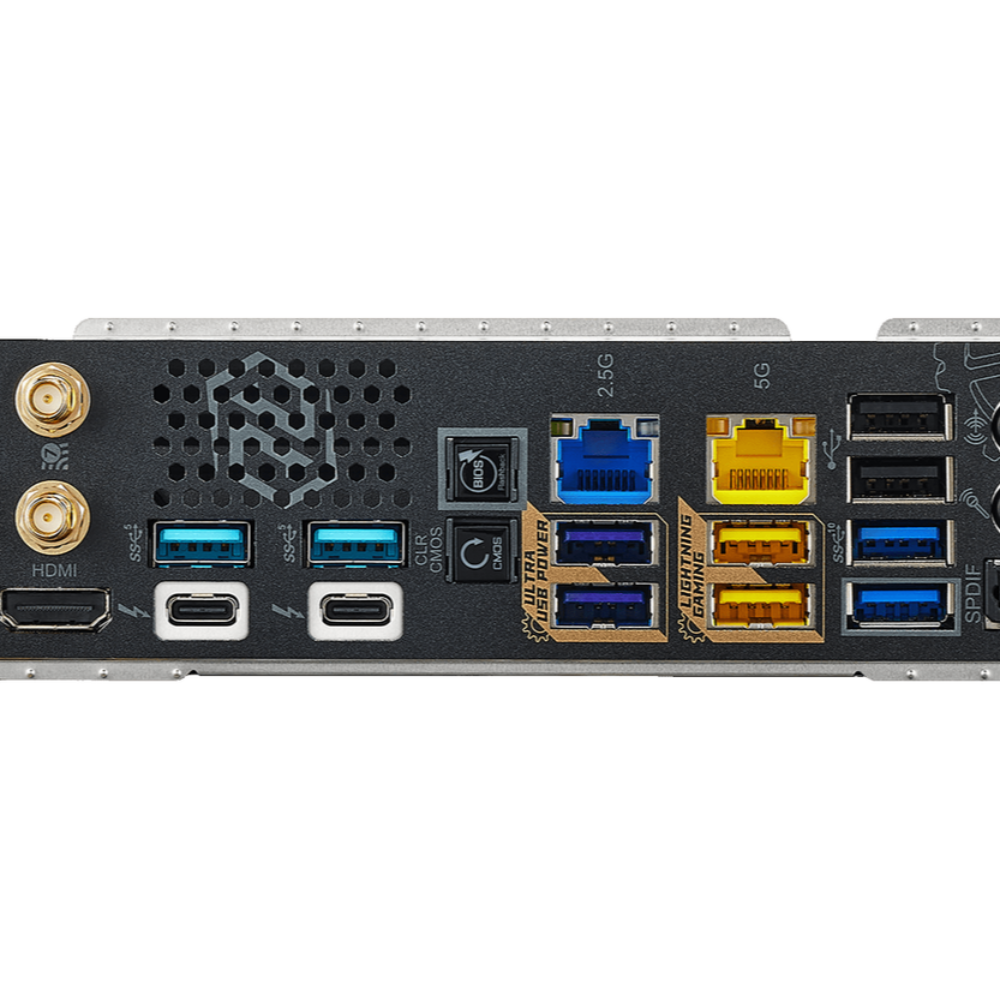

| Rear Panel I/O | – 2 x Antenna Ports – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* – 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)** – 4 x USB 3.2 Gen1 Ports** – 2 x USB 2.0 Ports – 2 x RJ-45 LAN Ports – 1 x Clear CMOS Button – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability – Server-Grade Low-Loss PCB – 20+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor – Memory OC Shield – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity – 5G LAN, 2.5G LAN, 802.11be Wi-Fi 7 Module – ASRock Lightning Gaming Ports EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer |
| Software And Uefi | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Polychrome SYNC – ASRock Dragon 2.5G LAN Software* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |
