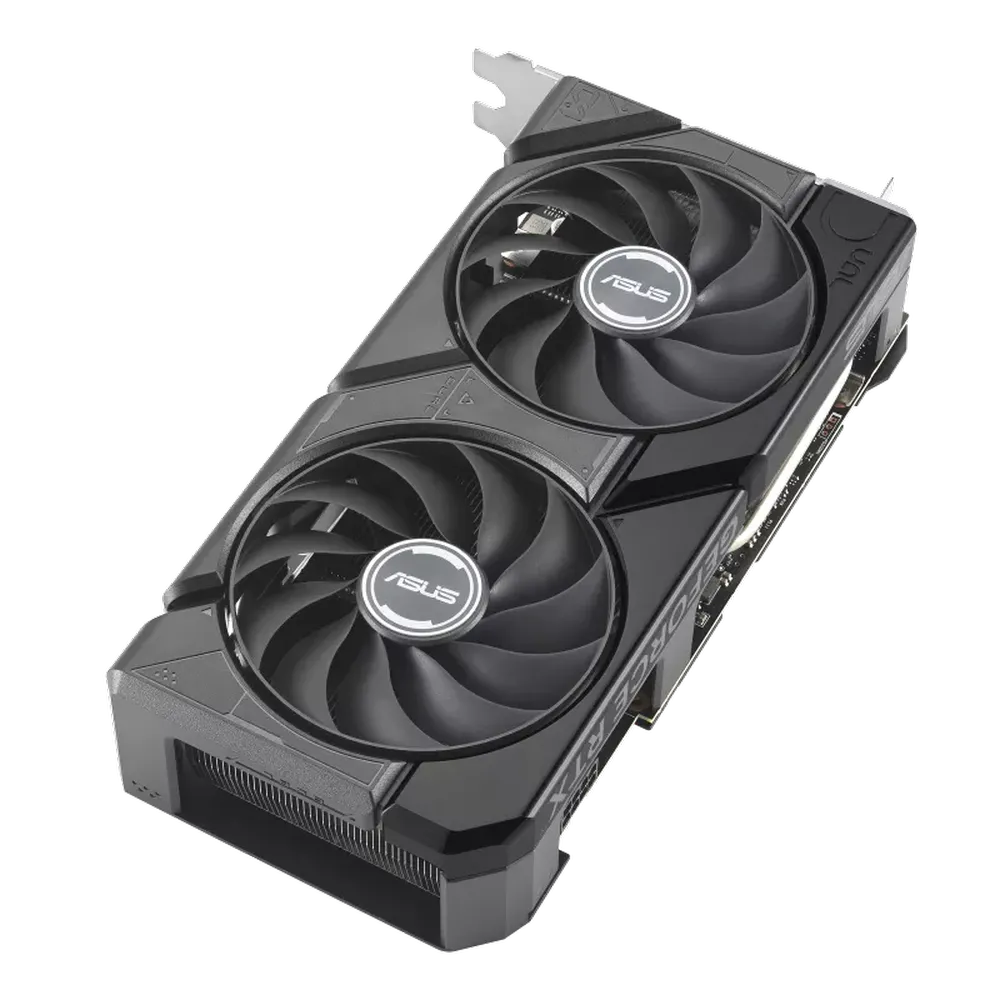

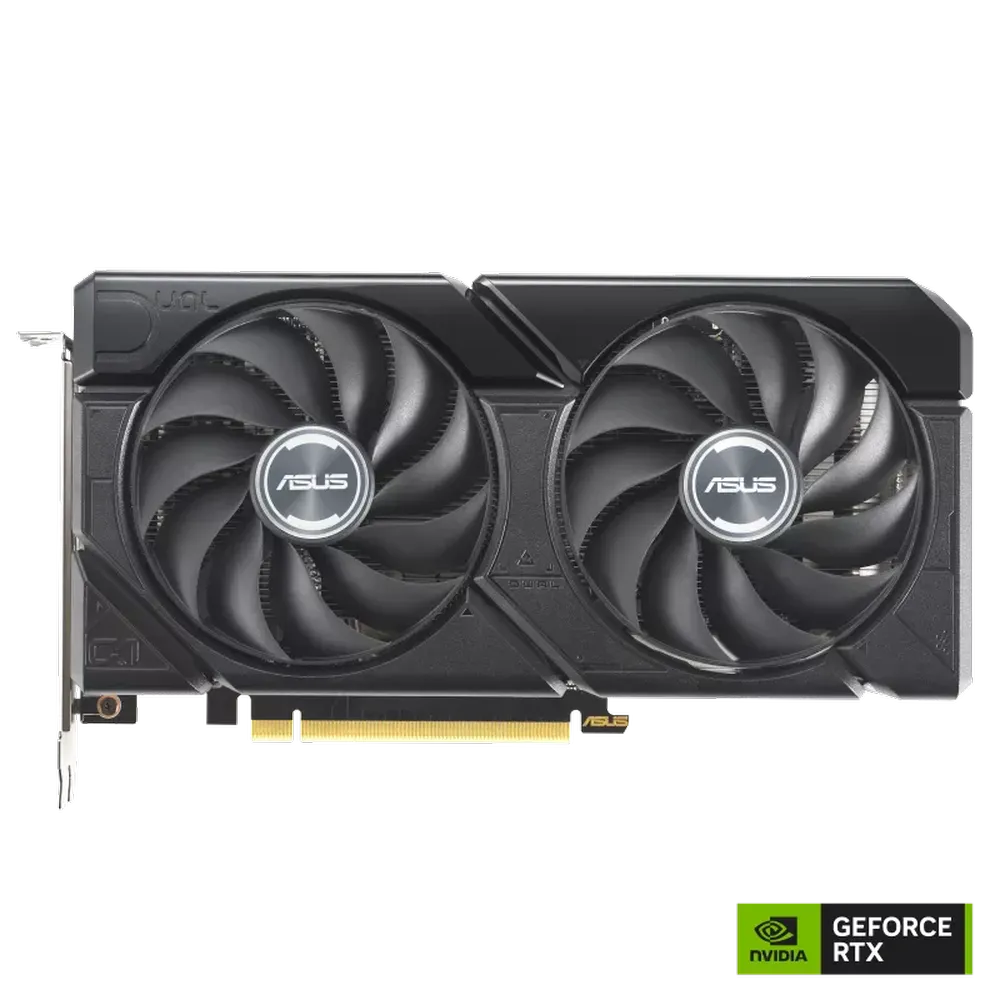

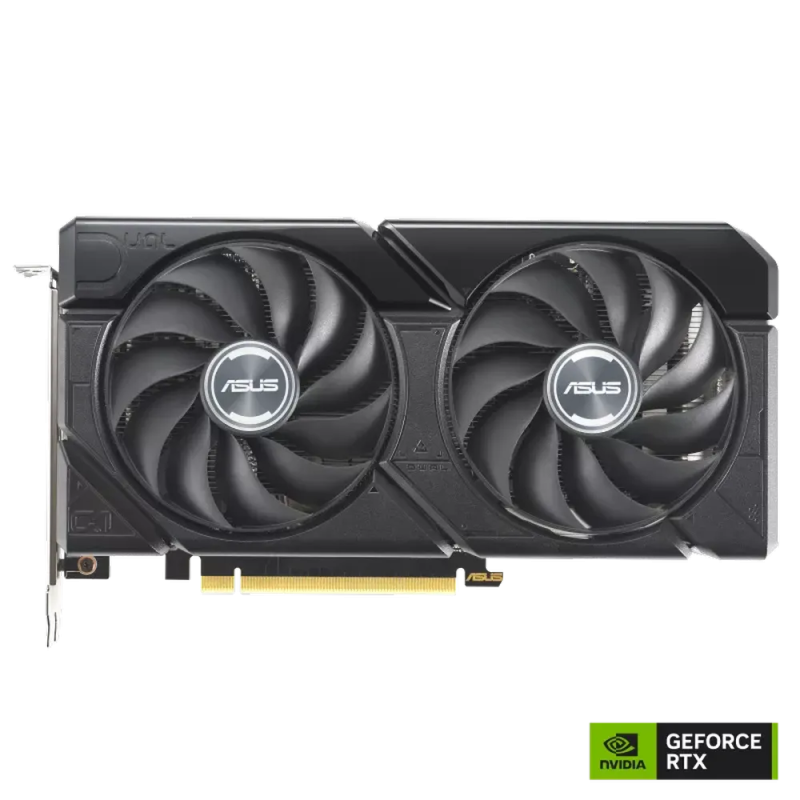

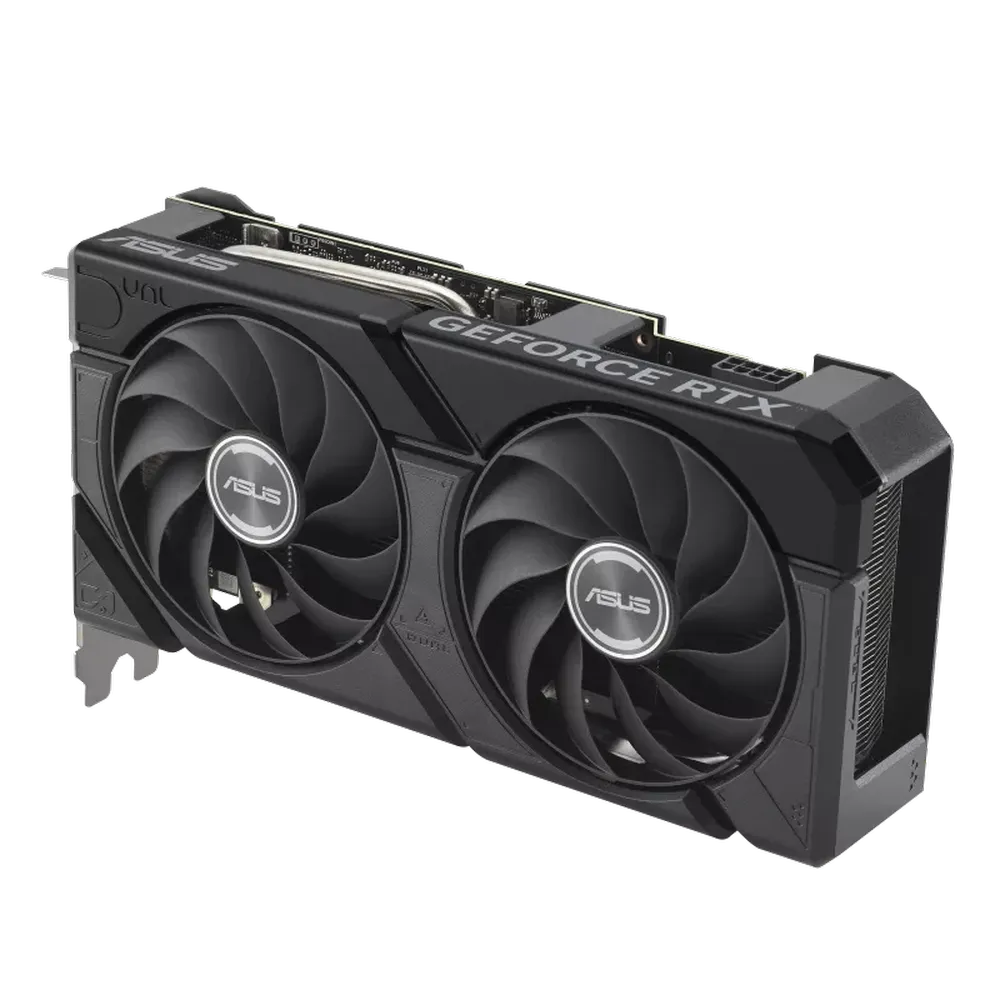

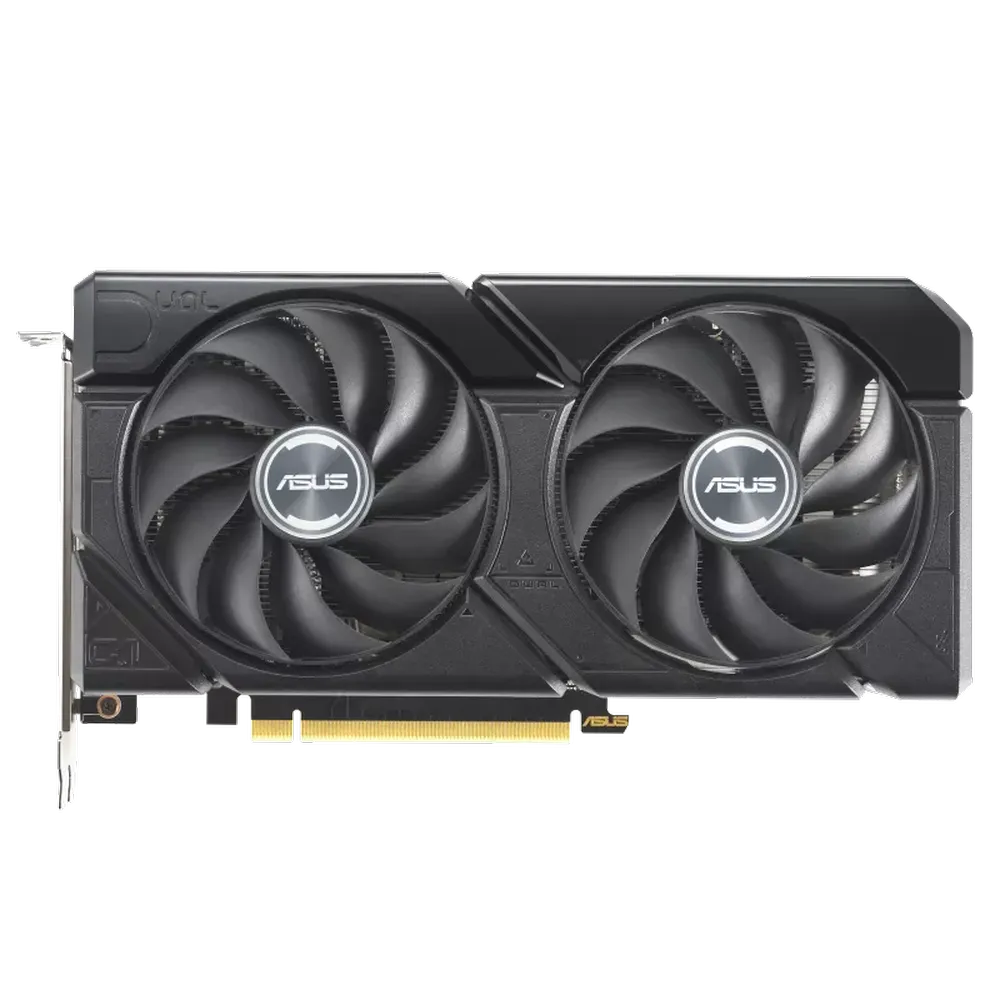

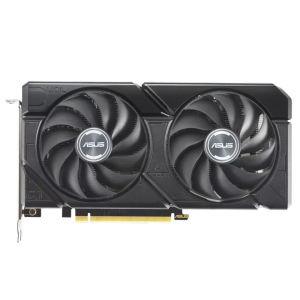

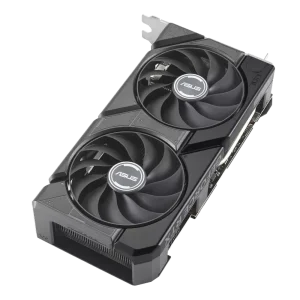

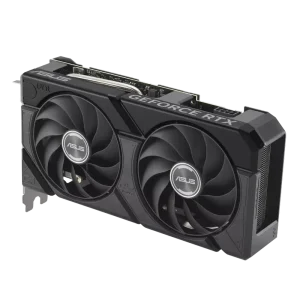

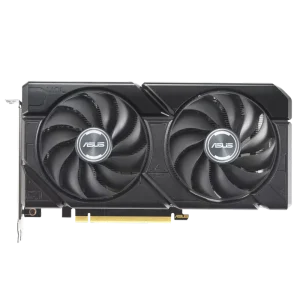

ASUS Dual GeForce RTX 4060 Evo OC Edition 8GB Nvidia Graphic Card
MPN 90YV0JC7-M0AA00 · Brand ASUS
Features of ASUS Dual GeForce RTX 4060 Evo OC Edition 8GB Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering 3rd Generation RT Cores: Up to 2x ray tracing performance OC edition: Boost Clock 2535 MHz (OC Mode)/ 2505 MHz (Default Mode) Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. 0dB techno
Inclusive of GST · GST invoice available
Overview
Features of ASUS Dual GeForce RTX 4060 Evo OC Edition 8GB
Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2x ray tracing performance
OC edition: Boost Clock 2535 MHz (OC Mode)/ 2505 MHz (Default Mode)
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
0dB technology lets you enjoy light gaming in relative silence.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
A protective backplate secures components during transportation and installation.
Auto-Extreme Technology uses automation to enhance reliability.
The ASUS Dual GeForce RTX 4060 Evo OC Edition 8GB Nvidia Graphics Card provide immersive Experience For the Gaming.

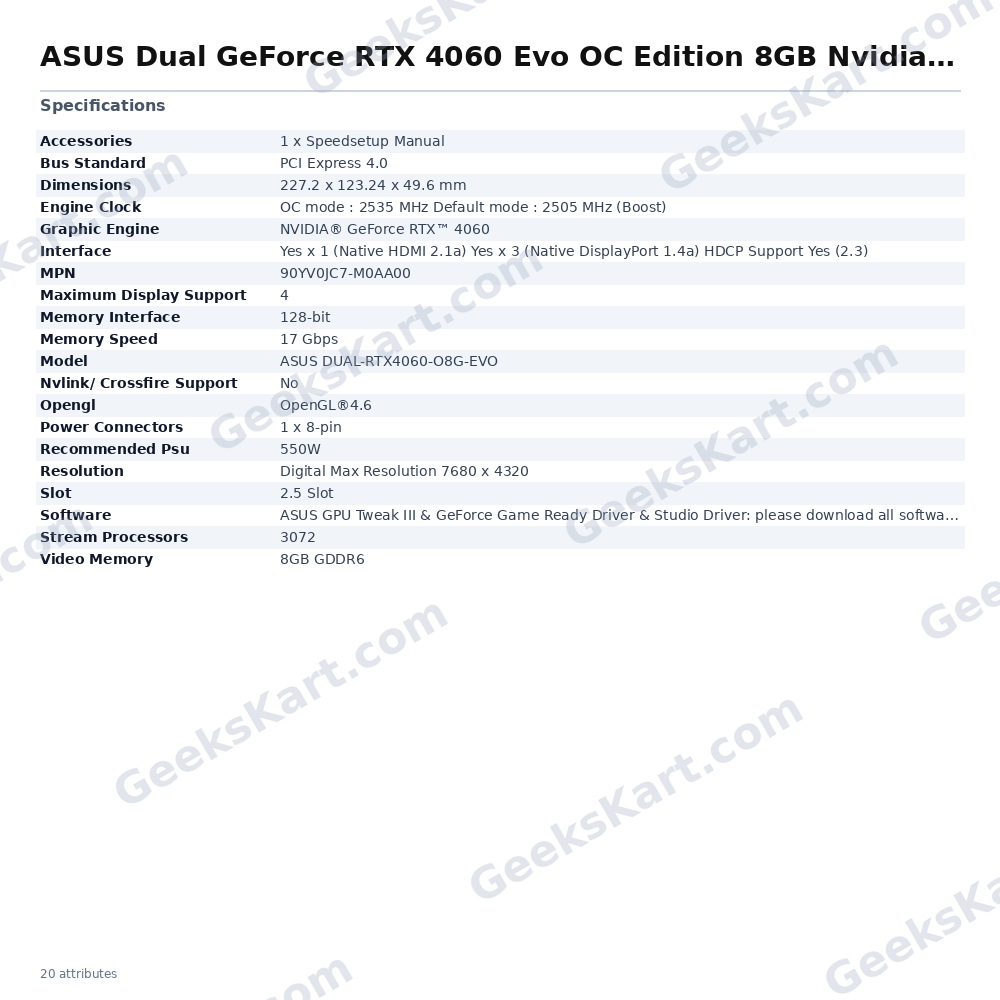

Specifications of ASUS Dual GeForce RTX 4060 Evo OC Edition 8GB
| Model | ASUS DUAL-RTX4060-O8G-EVO |
| Part No | 90YV0JC7-M0AA00 |
| Graphic Engine | NVIDIA® GeForce RTX™ 4060 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 8GB GDDR6 |
| Engine Clock | OC mode: 2535 MHz Default mode: 2505 MHz (Boost) |
| Stream Processors | 3072 |
| Memory Speed | 17 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 1 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Speedsetup Manual |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 227.2 x 123.24 x 49.6 mm |
| Recommended PSU | 550W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
| Note | *** Image use for reference only *** Features, Price, Specifications are subject to change without notice. |
Datasheet
| Memory Speed | 17 Gbps |
|---|---|
| Interface | Yes x 1 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Recommended PSU | 550W |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Slot | 2.5 Slot |
| Model | ASUS DUAL-RTX4060-O8G-EVO |
| Opengl | OpenGL®4.6 |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site |
| Dimensions | 227.2 x 123.24 x 49.6 mm |
| Accessories | 1 x Speedsetup Manual |
| Bus Standard | PCI Express 4.0 |
| Engine Clock | OC mode : 2535 MHz Default mode : 2505 MHz (Boost) |
| Video Memory | 8GB GDDR6 |
| Graphic Engine | NVIDIA® GeForce RTX™ 4060 |
| Memory Interface | 128-bit |
| Power Connectors | 1 x 8-pin |
| Stream Processors | 3072 |
| Maximum Display Support | 4 |
| Nvlink/ Crossfire Support | No |
