ASUS Dual GeForce RTX 5060 OC 8GB Nvidia Graphic Card

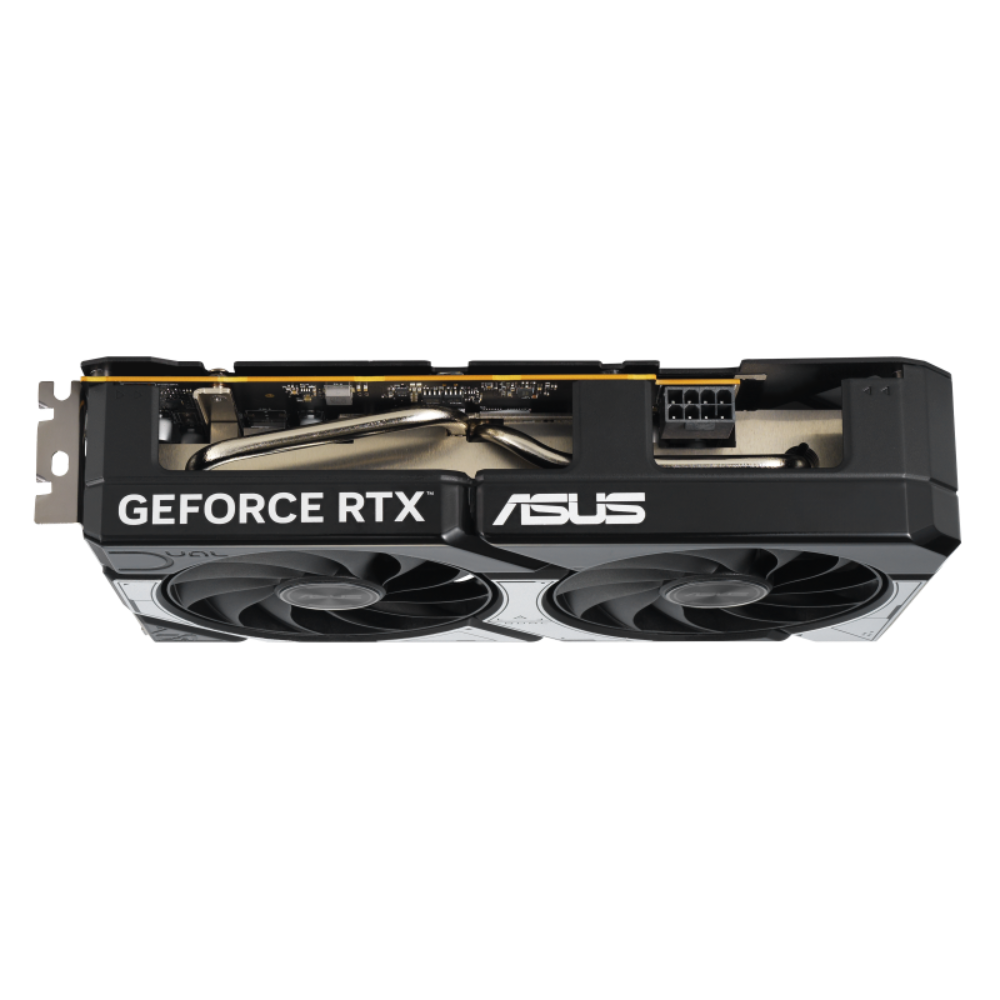

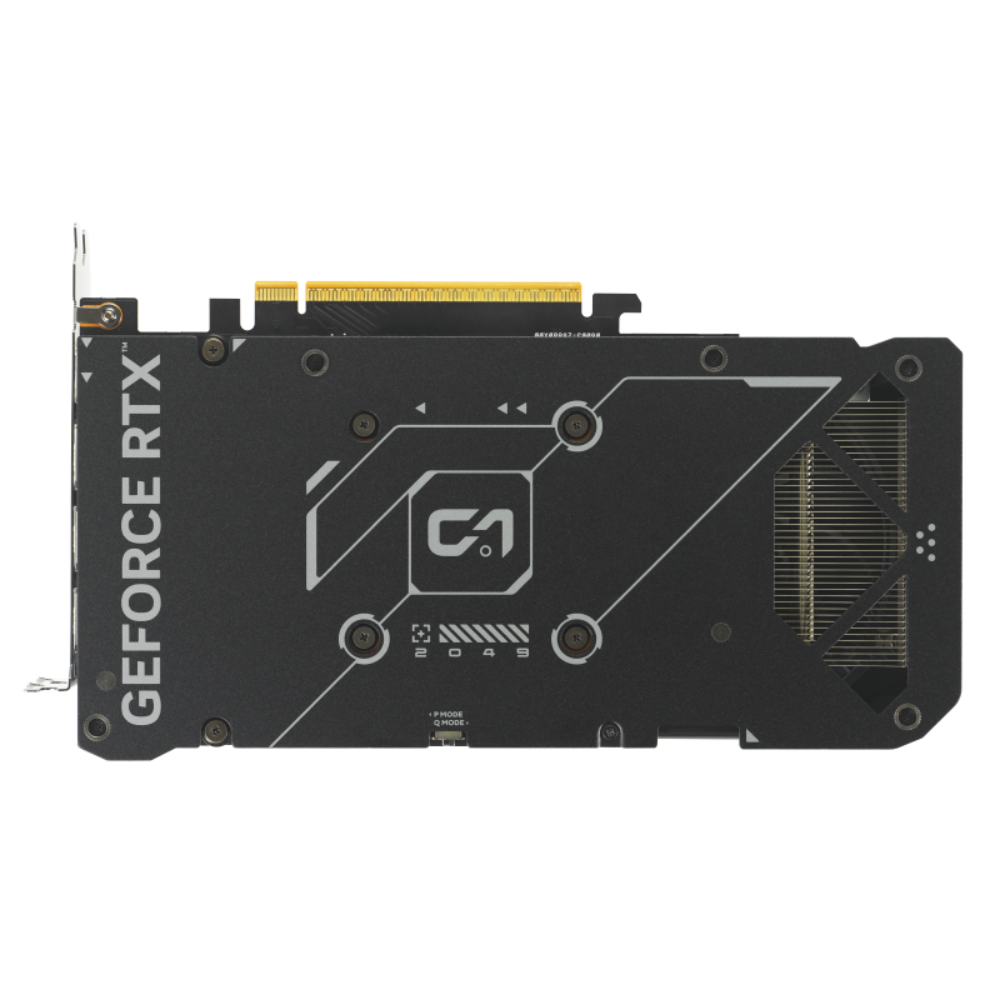

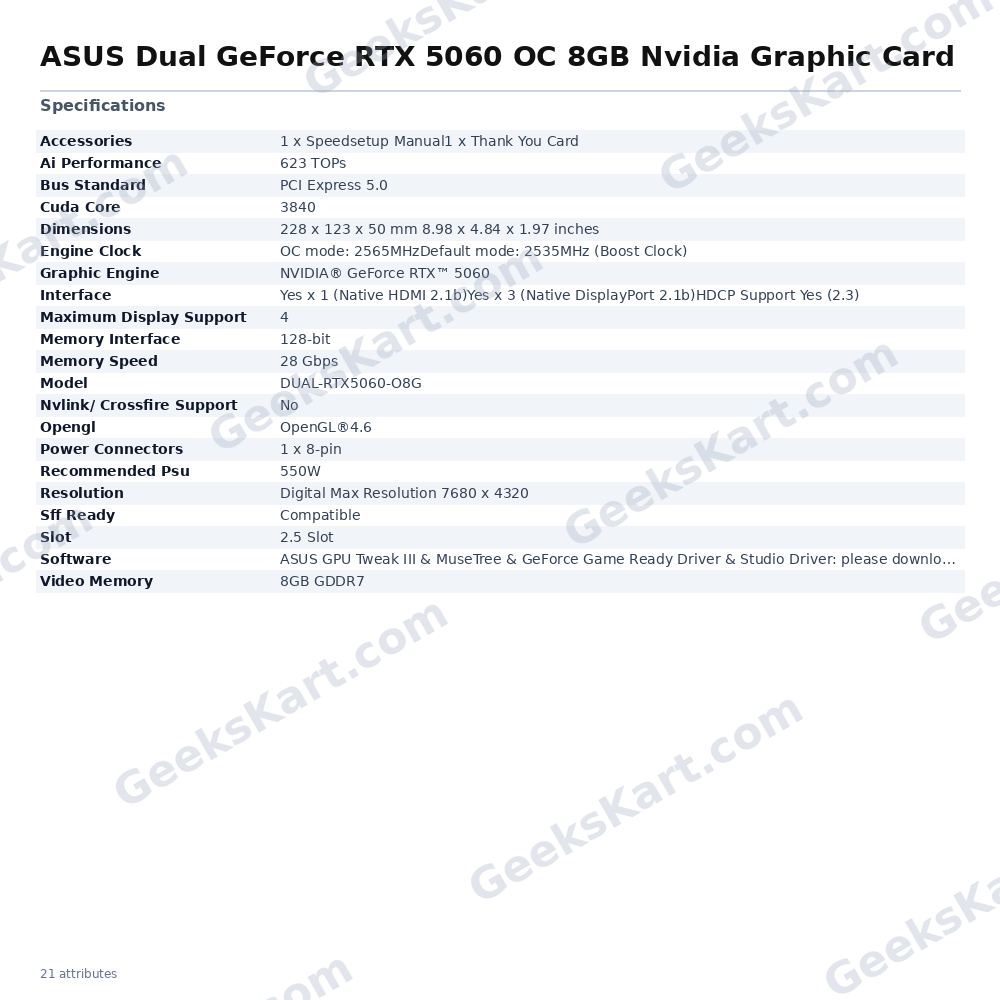

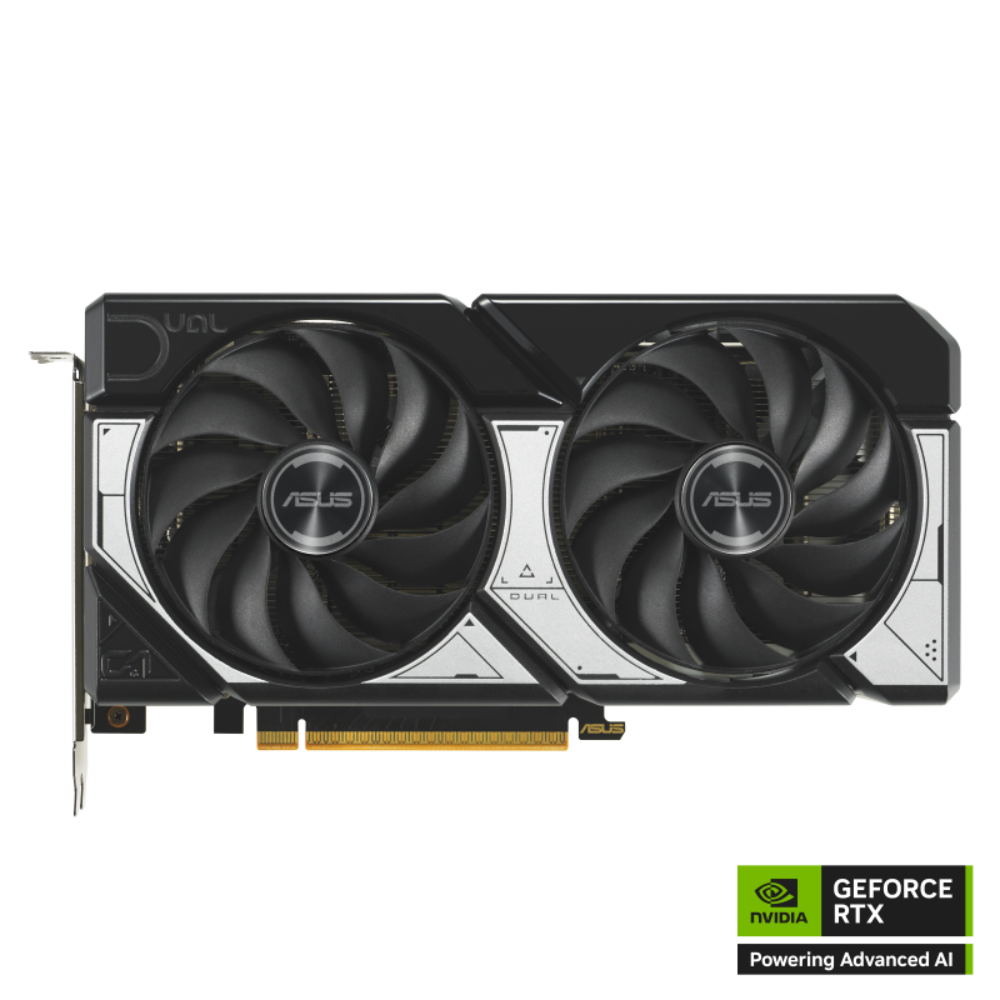

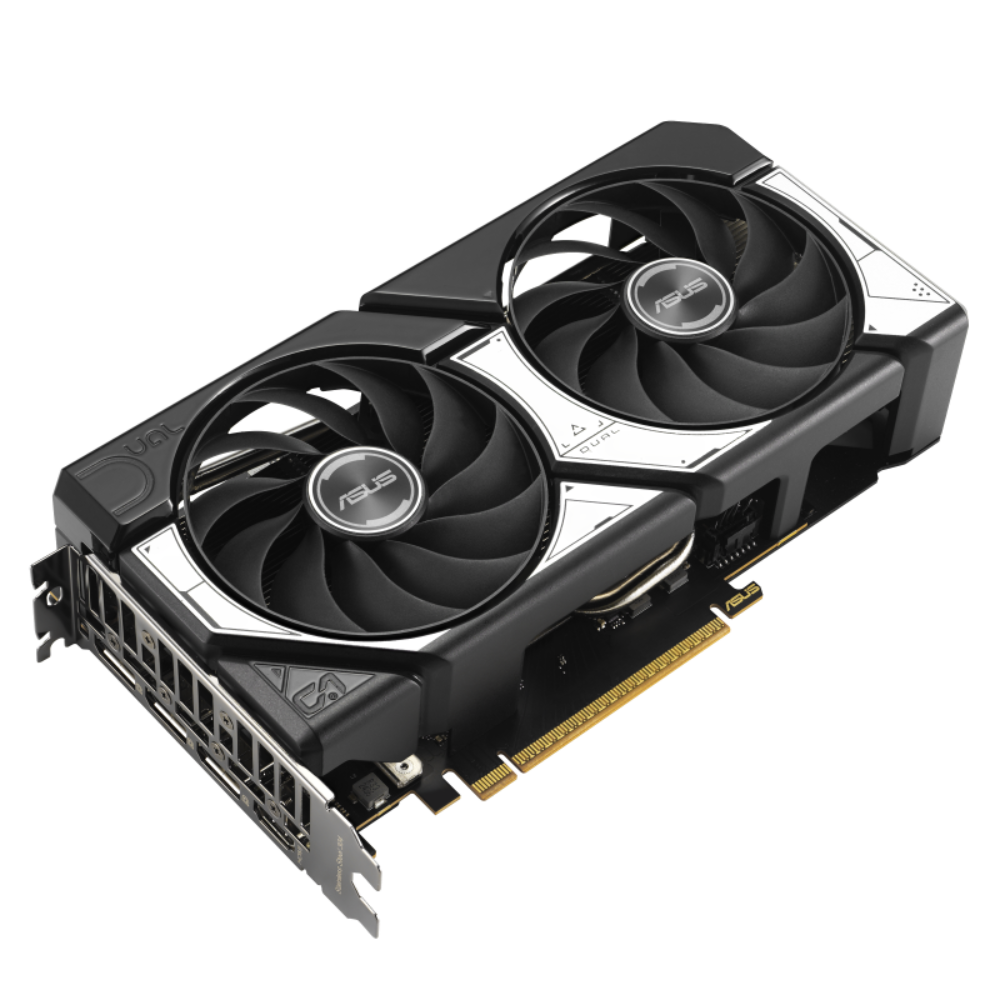

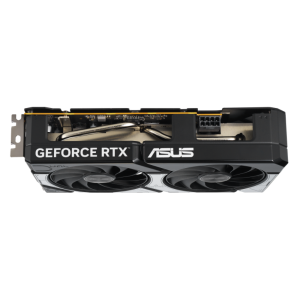

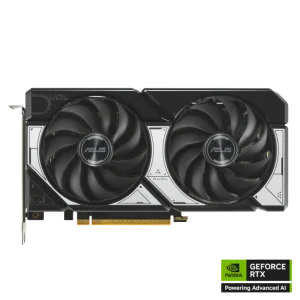

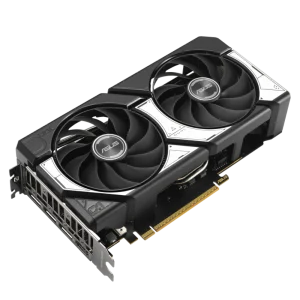

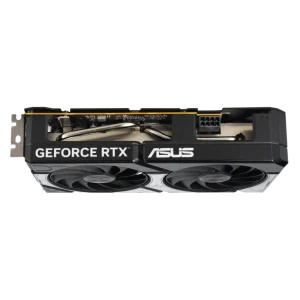

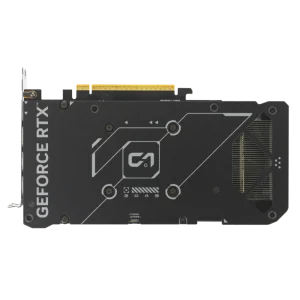

The ASUS Dual GeForce RTX 5060 OC Edition (model DUAL-RTX5060-O8G) brings NVIDIA’s RTX 5060 GPU into a thoughtfully engineered 2.5-slot package that suits both compact small-form-factor systems and standard ATX builds. At its core sits the GeForce RTX 5060 graphics processor paired with 8 GB of GDDR7 memory running at 28 Gbps across a 128-bit interface, delivering fast frame rates and responsive gameplay across a wide range of titles. Cooling is handled by two Axial-tech fans, a design carried over from ASUS’s higher-tier cards. Each fan uses a smaller hub to accommodate longer blades, while a barrier ring increases downward airflow toward the heatsink. A vented backplate supplements this by allowing additional heat to escape from the rear of the card. ASUS’s 0dB Technology automatically stops the fans when GPU temperature falls below 50 °C during light workloads, reducing noise during everyday use. The card ships with Dual BIOS support, giving users a physical switch to toggle between Performance mode — which runs a more aggressive fan curve to prioritise lower temperatures — and Quiet mode, which favours reduced acoustic output. Both modes share the same power target; further customisation is possible through the included ASUS GPU Tweak III software. Build quality is addressed through several hardware-level features: Auto-Extreme automated single-pass soldering minimises thermal stress during manufacturing; ASUS GPU Guard adhesive secures all four PCB corners; a reinforced metal backplate adds structural rigidity; and a 304 stainless-steel mounting bracket resists corrosion and flex. On the software and platform side, the RTX 5060 supports NVIDIA DLSS 4, including Multi Frame Generation and enhanced Ray Reconstruction via fifth-generation Tensor Cores, as well as full ray tracing. The card is rated at 623 AI TOPs and connects via PCI Express 5.0. Display output covers up to four monitors simultaneously through one native HDMI 2.1b and three native DisplayPort 2.1b outputs, with HDCP 2.3 support and a maximum digital resolution of 7680 × 4320. Key Verified Specifications: — GPU: NVIDIA GeForce RTX 5060 — CUDA Cores: 3840 — Video Memory: 8 GB GDDR7 — Memory Speed: 28 Gbps — Memory Interface: 128-bit — Boost Clock (OC mode): 2565 MHz | Default mode: 2535 MHz — AI Performance: 623 TOPs — Bus Interface: PCI Express 5.0 — Display Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1b — Max Resolution: 7680 × 4320 — Max Displays: 4 — Slot Width: 2.5-slot — Dimensions: 228 × 123 × 50 mm — Power Connector: 1× 8-pin — Recommended PSU: 550 W — SFF-Ready: Yes — OpenGL: 4.6 — NVLink / CrossFire: Not supported
