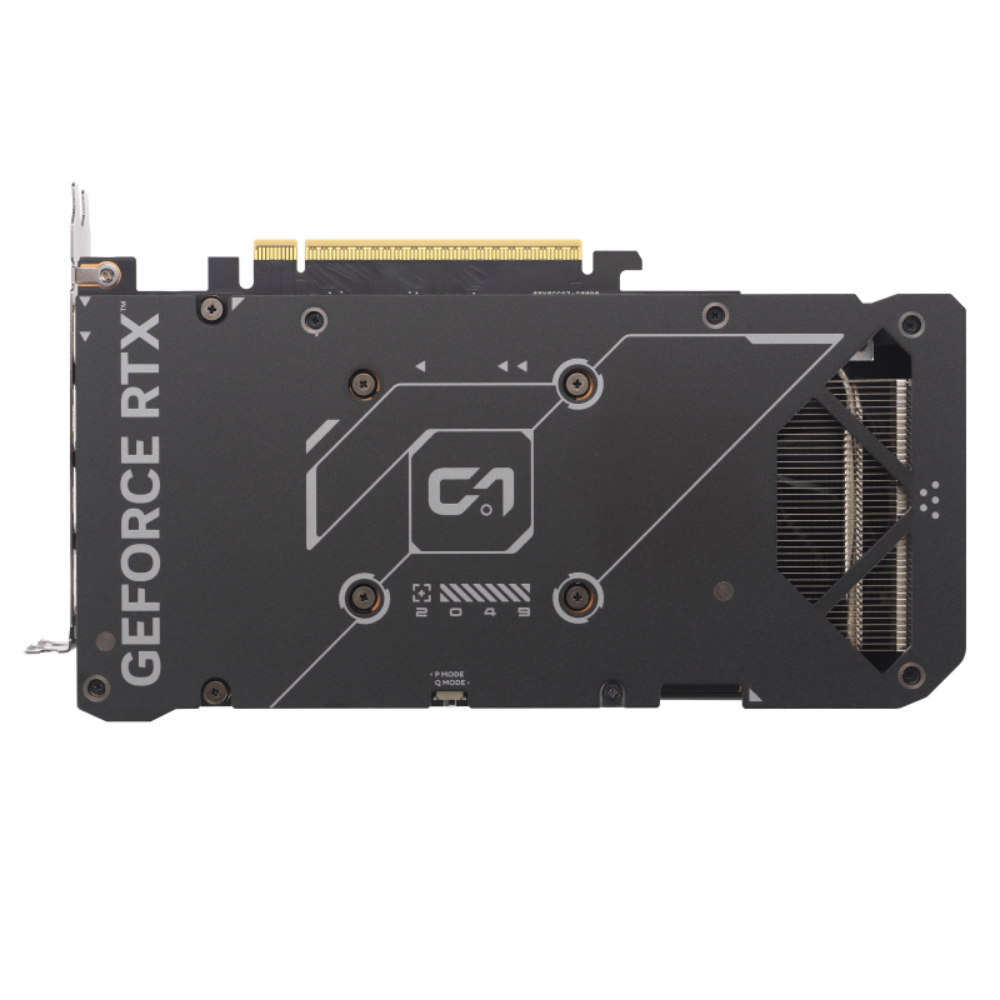

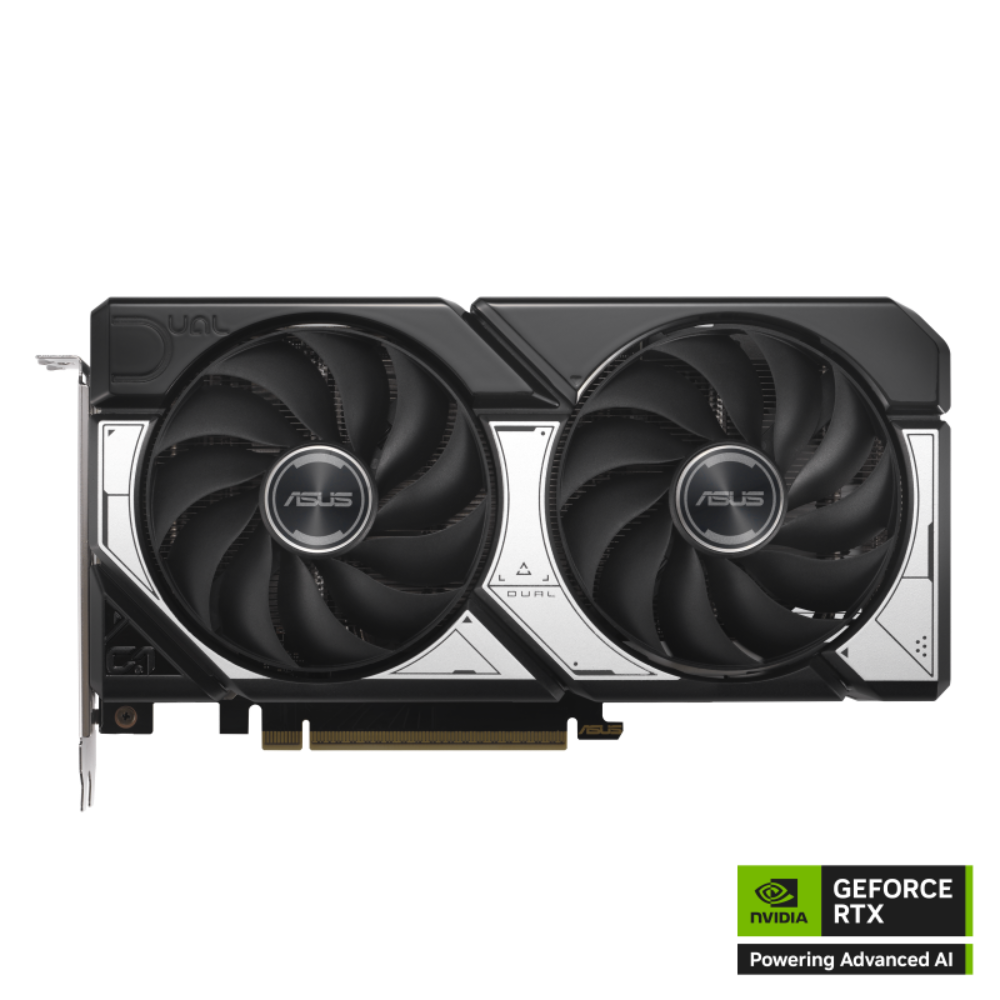

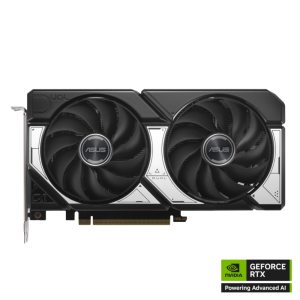

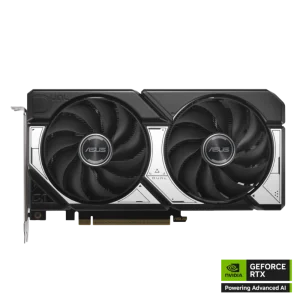

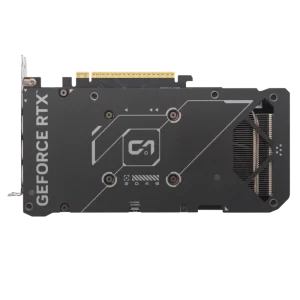

ASUS Dual Geforce RTX 5060 Ti OC Edition 16GB NVIDIA Graphic Card

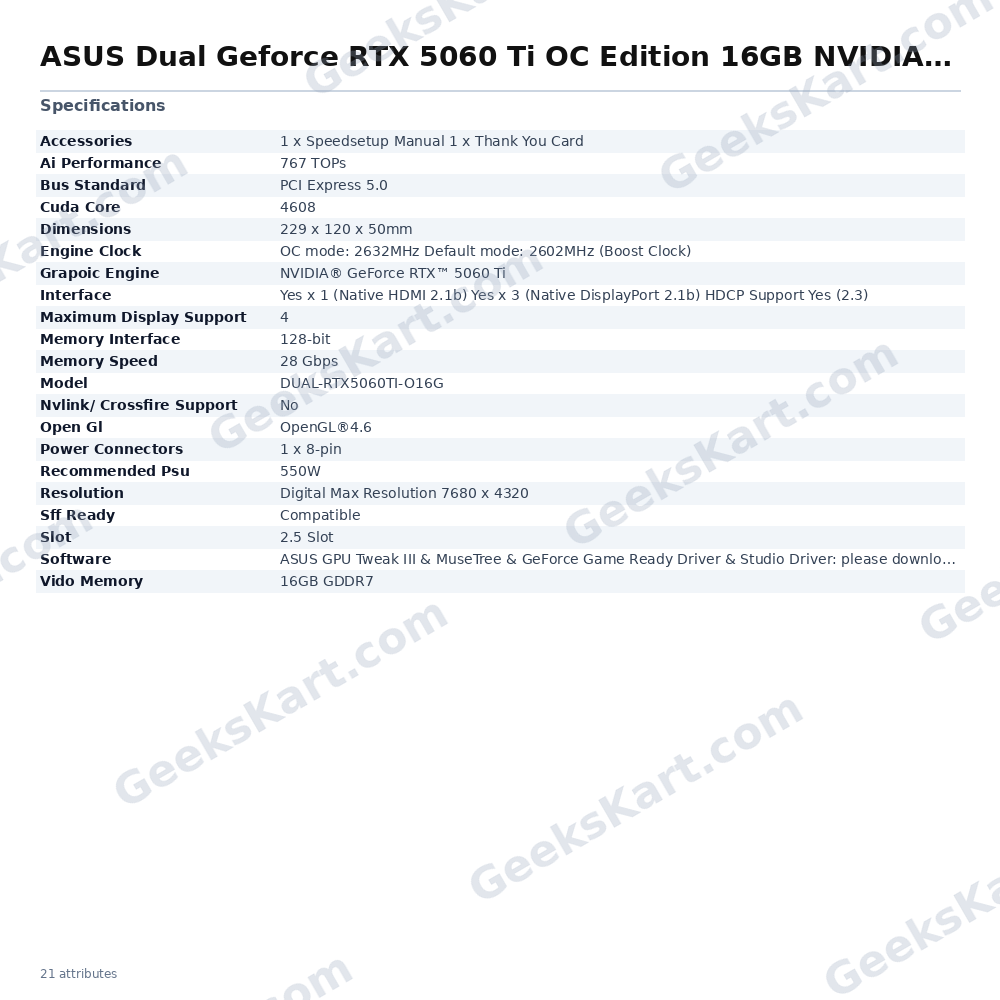

The ASUS Dual GeForce RTX 5060 Ti OC Edition 16GB is a compact, high-performance graphics card built on the NVIDIA GeForce RTX 5060 Ti GPU. It targets gamers and content creators who need serious graphical throughput in a space-efficient package. With a 2.5-slot form factor measuring 229 x 120 x 50 mm, it is certified SFF-Ready and fits comfortably inside small-form-factor and mid-tower chassis alike. At the heart of the card sits the RTX 5060 Ti with 4608 CUDA cores, fifth-generation Tensor Cores supporting FP4 precision and DLSS 4, and fourth-generation Ray Tracing Cores designed for Mega Geometry workloads. The 16 GB GDDR7 frame buffer runs across a 128-bit memory bus at 28 Gbps, delivering a rated AI throughput of 767 TOPs. The OC mode boost clock is set at 2632 MHz, with the default mode boost at 2602 MHz. Thermal management is handled by two Axial-tech fans featuring a smaller hub for longer blades and a barrier ring that increases downward air pressure onto a carefully engineered heatsink and heatpipe array. Dual-ball fan bearings provide enhanced longevity compared to sleeve-bearing alternatives. When GPU temperature drops below 50°C under light loads, the 0dB Technology mode halts all fans entirely for silent operation. A vented backplate supplements airflow and helps guard against thermal throttling during sustained workloads. A Dual BIOS switch lets users toggle between Performance mode — which applies a more aggressive fan curve — and Quiet mode, which prioritises lower noise at medium temperatures. Advanced users can fine-tune fan profiles and clock offsets through ASUS GPU Tweak III software. Connectivity covers four displays simultaneously via one native HDMI 2.1b port and three native DisplayPort 2.1b ports, with HDCP 2.3 support and a maximum digital resolution of 7680 x 4320. The card connects to the host system over PCI Express 5.0 and draws supplemental power through a single 8-pin connector; ASUS recommends a minimum 550 W system power supply. NVLink and AMD CrossFire are not supported. Manufacturing follows ASUS Auto-Extreme Technology, a single-pass automated soldering process that reduces thermal stress on components. Verified Specifications: • GPU: NVIDIA GeForce RTX 5060 Ti • CUDA Cores: 4608 • Video Memory: 16 GB GDDR7 • Memory Interface: 128-bit • Memory Speed: 28 Gbps • OC Mode Boost Clock: 2632 MHz | Default Mode Boost: 2602 MHz • AI Performance: 767 TOPs • Bus Interface: PCI Express 5.0 • Display Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1b (max 4 displays) • Max Resolution: 7680 × 4320 • HDCP: 2.3 • Slot Width: 2.5-slot • Dimensions: 229 × 120 × 50 mm • Power Connector: 1× 8-pin • Recommended PSU: 550 W • OpenGL: 4.6 • NVLink/CrossFire: Not supported • Model Number: DUAL-RTX5060TI-O16G (90YV0MH0-M0AA00)
