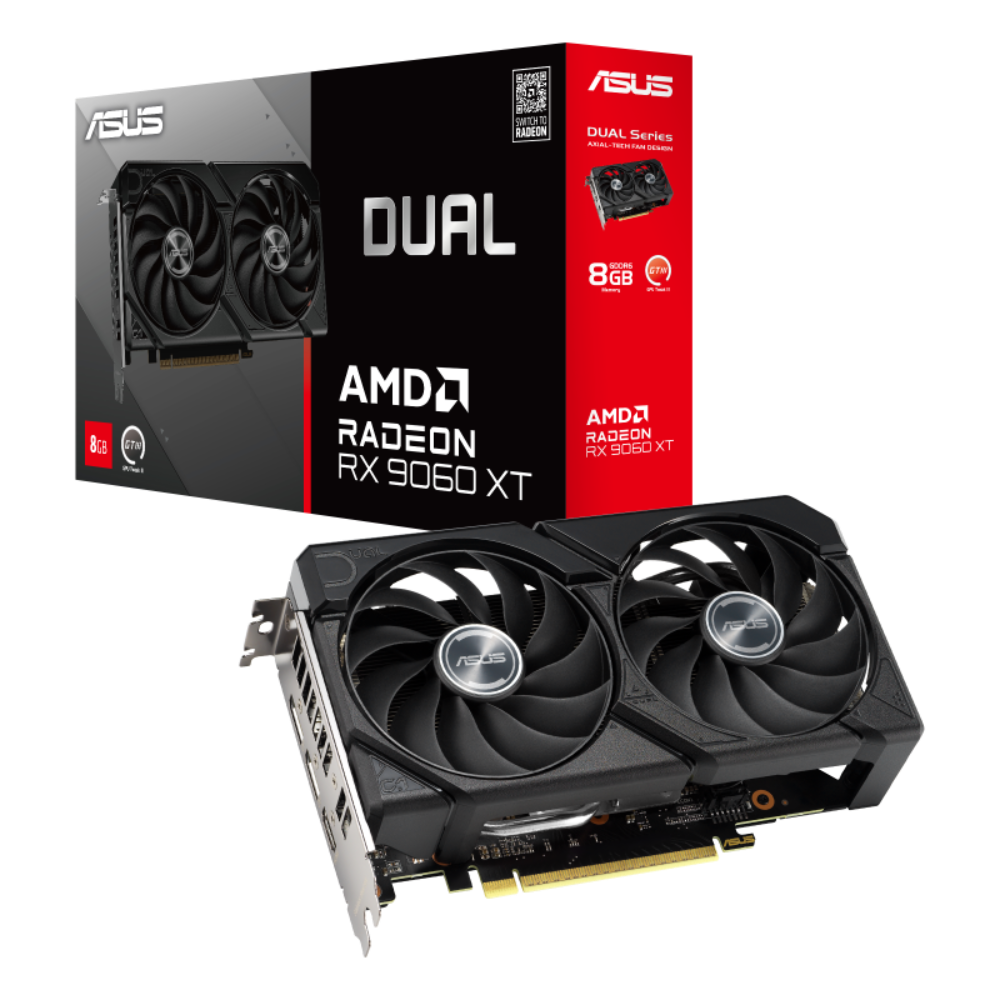

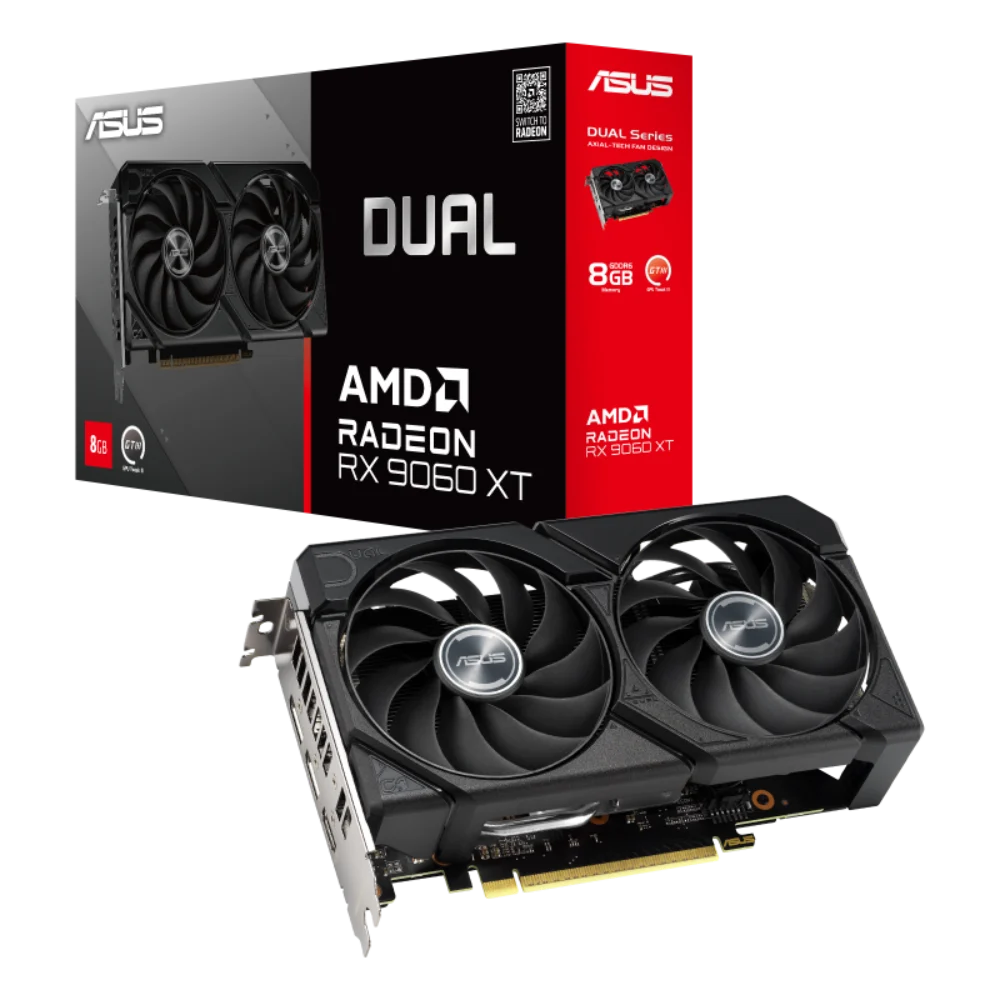

ASUS Dual Radeon RX 9060 XT 8GB AMD Graphic Card

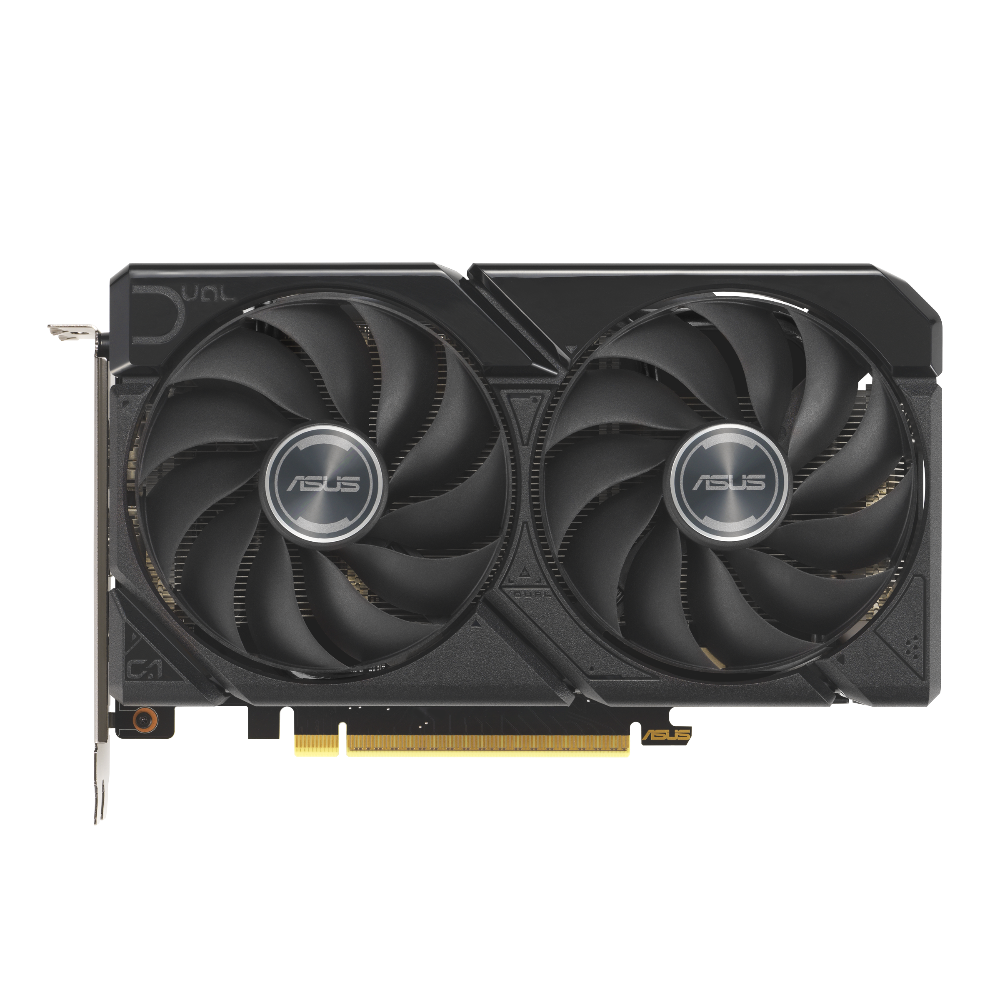

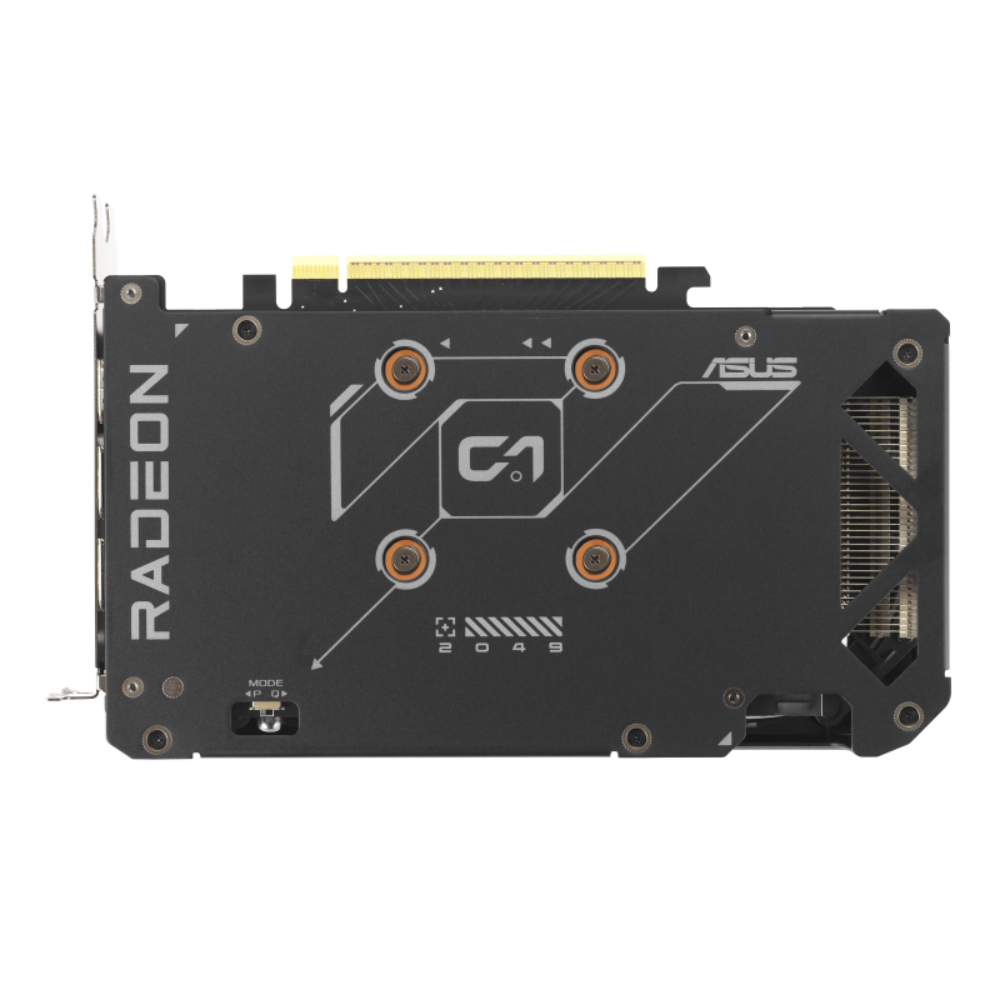

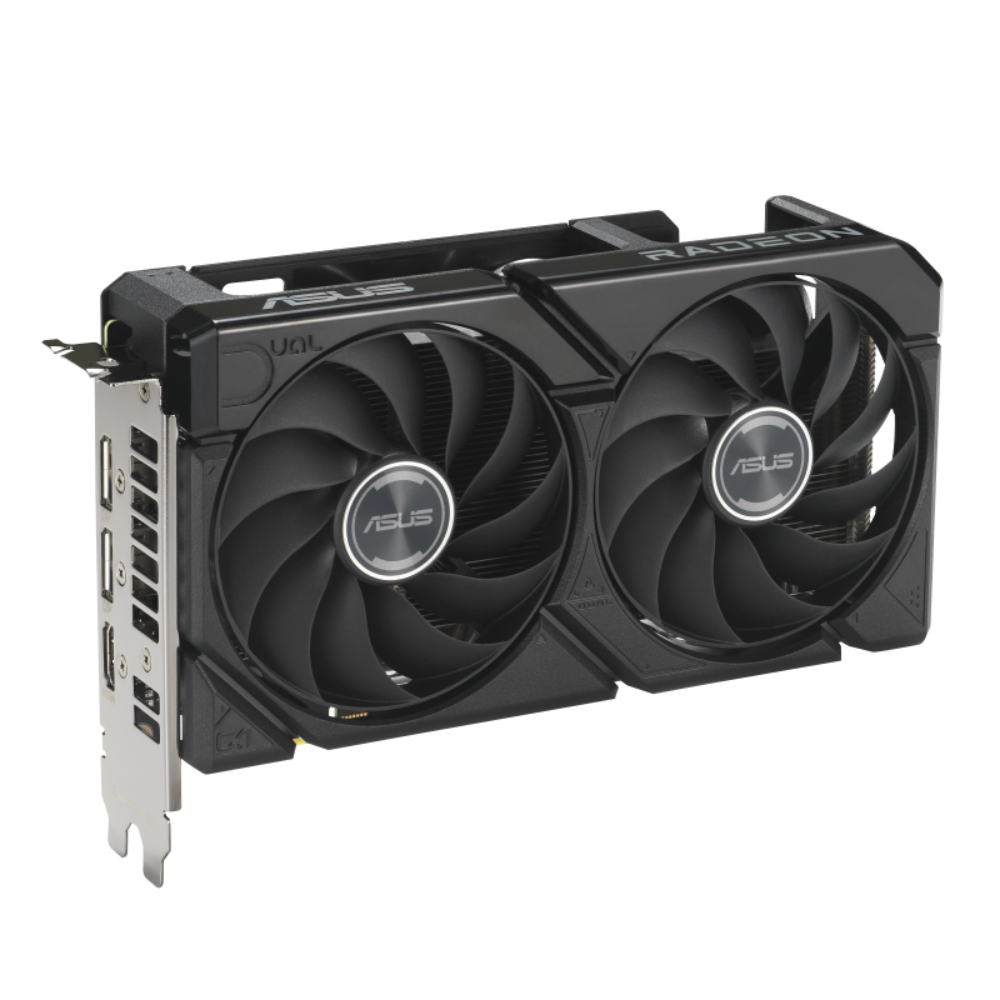

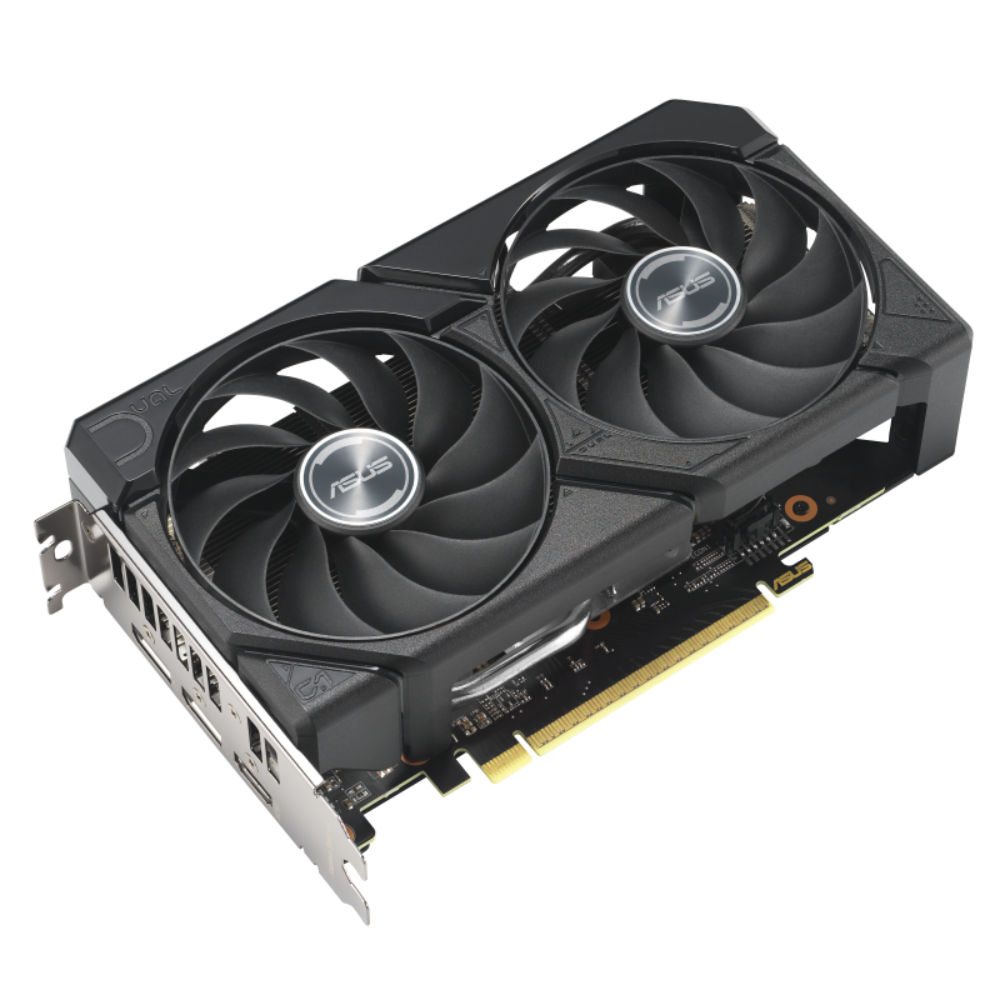

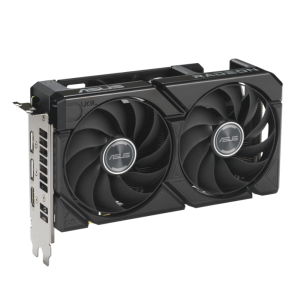

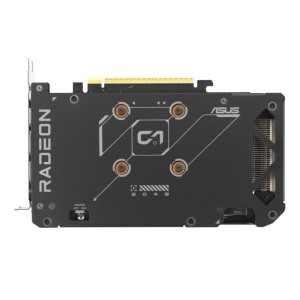

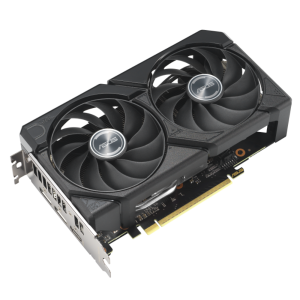

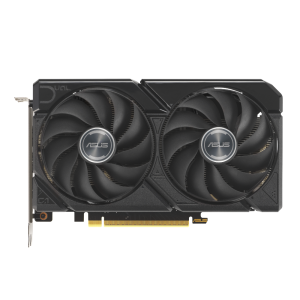

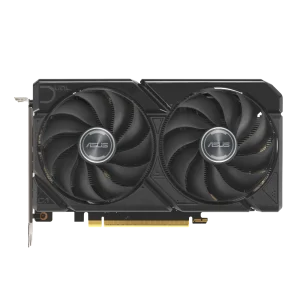

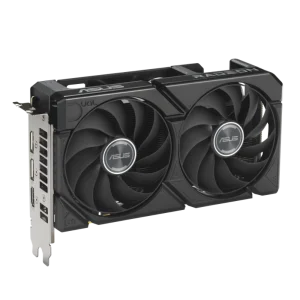

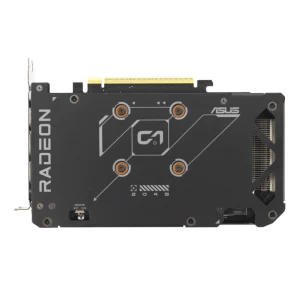

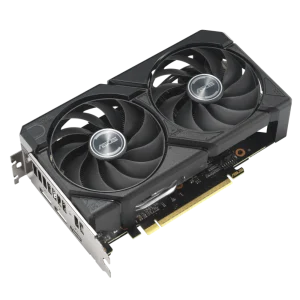

The ASUS Dual Radeon RX 9060 XT 8GB is a mid-range discrete graphics card built around AMD’s Radeon RX 9060 XT GPU. Designed for gamers who need strong 1080p and 1440p performance in a space-efficient enclosure, it fits comfortably into compact mid-tower and small-form-factor cases thanks to its 2.5-slot, 202 × 120 × 49 mm footprint. Cooling is handled by two Axial-tech fans, a design carried over from ASUS’s higher-end product lines. Each fan uses a smaller hub to allow longer blades, paired with a barrier ring that concentrates downward airflow onto the aluminium heatsink. The vented backplate provides an additional exhaust path, helping reduce heat build-up on the rear of the PCB during sustained workloads. Dual-ball fan bearings are used in place of sleeve bearings, a construction choice associated with longer operational lifespan. When GPU temperature drops below 55 °C under light or idle loads, 0dB Technology halts all fans entirely, eliminating noise in low-demand scenarios. A dual-BIOS switch on the card lets you toggle between Performance mode — which runs a more aggressive fan curve to maintain lower GPU temperatures — and Quiet mode, which applies a gentler curve at medium thermal loads while maintaining the same power target. For users who want granular control, ASUS GPU Tweak III software supports custom fan profiles and performance tuning. Manufacturing uses ASUS’s Auto-Extreme Technology, an automated single-pass soldering process intended to reduce thermal stress on components and minimise the use of chemical cleaning agents during production. Verified Specifications: • GPU: AMD Radeon RX 9060 XT • Model number: DUAL-RX9060XT-8G • Video memory: 8 GB GDDR6 • Memory interface: 128-bit • Memory speed: 20 Gbps • Stream processors: 2048 • Engine clock: TBD (not yet published by manufacturer) • Bus interface: PCI Express 5.0 • Display outputs: 1 × HDMI 2.1b, 2 × DisplayPort 2.1a • HDCP: 2.3 • Maximum resolution: 7680 × 4320 (8K) • Maximum simultaneous displays: 3 • Slot width: 2.5 • Dimensions: 202 × 120 × 49 mm • Power connector: 1 × 8-pin • Recommended PSU: 550 W • NVLink / CrossFire: Not supported • OpenGL: 4.6 A 550 W power supply is recommended by ASUS. The single 8-pin power connector keeps cable management straightforward. This card does not support multi-GPU configurations
