ASUS EX-B365M-V5 DDR4 Intel Motherboard
MPN ASUS-EX-B365M-V5 · Brand ASUS · uATX Form Factor8.9 inch x 7.2 inch ( 22.6 cm x 18.28 cm)
The ASUS EX-B365M-V5 is a uATX motherboard with Intel B365 chipset, LGA 1151 socket support for 8th/9th Gen processors, dual DDR4 slots up to 32 GB, M.2 storage, and ASUS 5X Protection III for durable, reliable builds
Inclusive of GST · GST invoice available
Overview

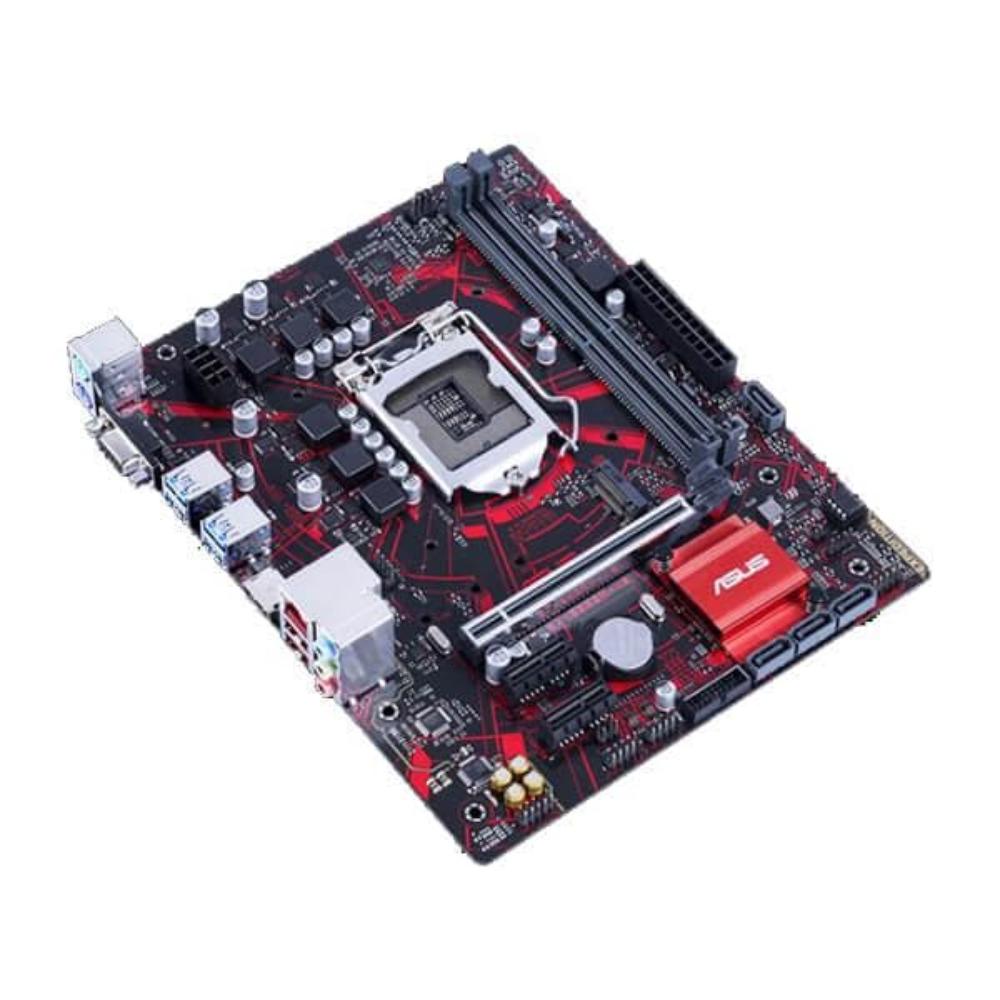

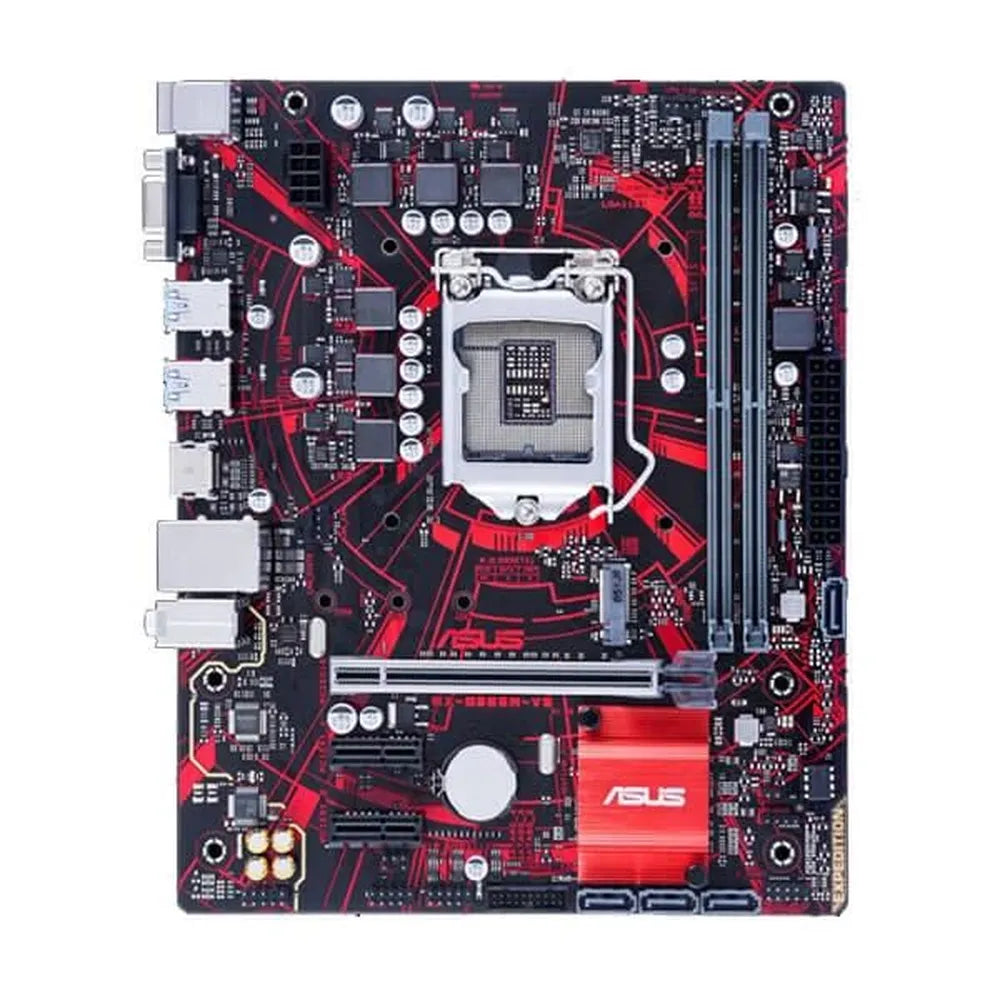

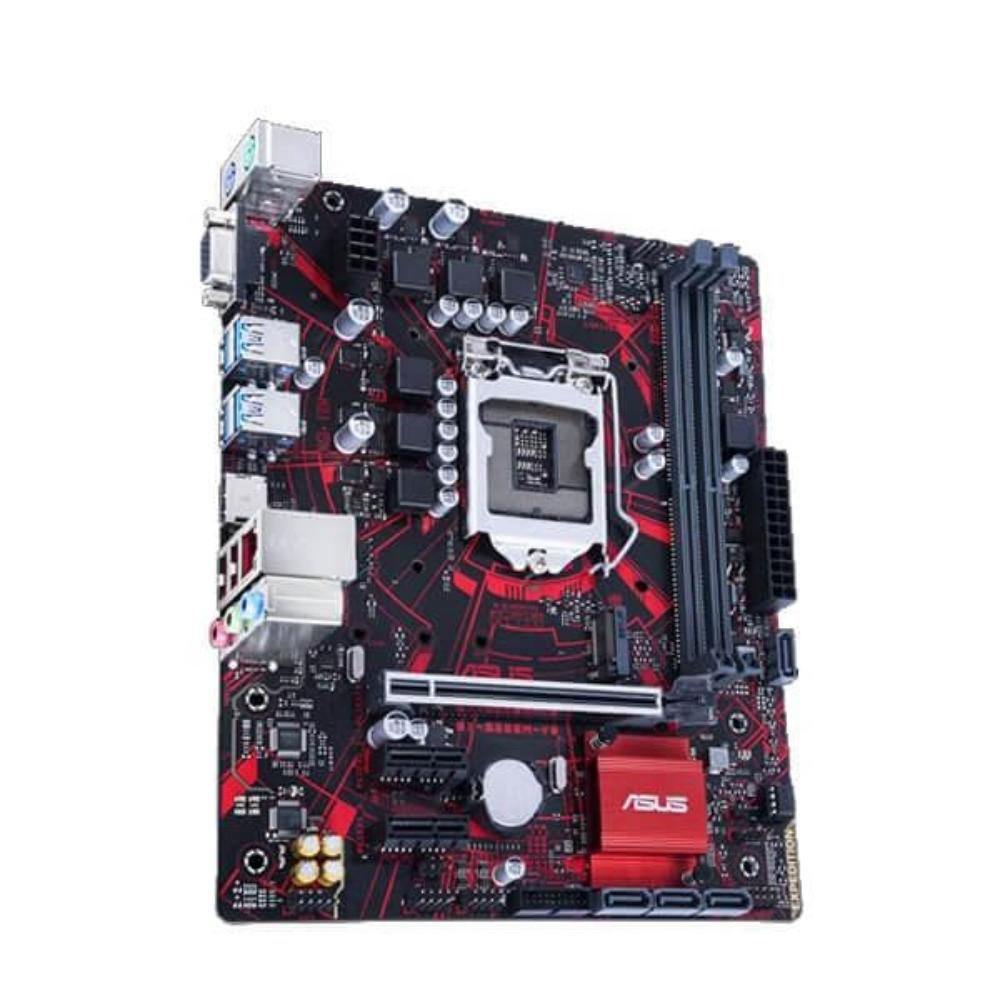

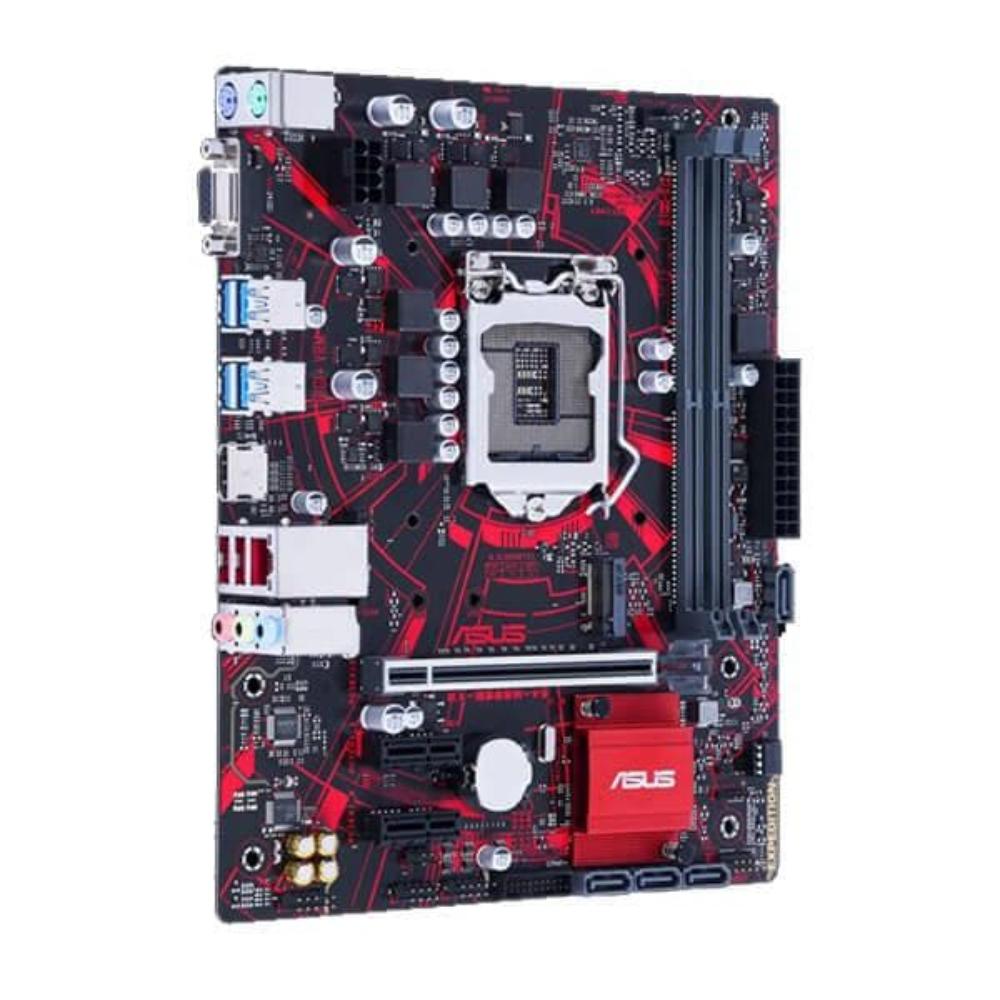

The ASUS EX-B365M-V5 is a Micro-ATX motherboard from ASUS's Expedition series, built on the Intel B365 chipset and designed for Intel LGA 1151 socket processors from the 8th and 9th generations, including Core, Pentium Gold, and Celeron lines with Intel 14 nm architecture. It supports Intel Turbo Boost Technology 2.0, subject to compatible CPU types. Memory support spans two DIMM slots accommodating up to 32 GB of non-ECC, unbuffered DDR4 RAM at speeds of 2666, 2400, or 2133 MHz, along with Intel XMP profile compatibility. Storage options include four SATA 6 Gb/s ports and one M.2 Socket 3 (M Key) slot supporting 2242, 2260, and 2280 form-factor devices. For graphics output, the board leverages Intel integrated graphics via both an HDMI 1.4b port (up to 4096×2160 at 30 Hz) and a D-Sub port (up to 1920×1200 at 60 Hz). Expansion is handled by one PCIe 3.0 x16 slot and two PCIe 3.0/2.0 x1 slots. The SafeSlot Core+ reinforced PCIe slot adds a stainless-steel brace and strengthened PCB solder points for heavy graphics card installations. USB connectivity includes six USB 3.1 Gen 1 ports (four on the rear panel, two via internal header) and six USB 2.0 ports (two on the rear panel, four via internal headers). The rear I/O panel also features PS/2 keyboard and mouse ports, a Gigabit LAN port powered by the Realtek RTL8111H controller, and three audio jacks backed by the Realtek ALC887 8-channel HD Audio CODEC with dedicated PCB audio layers and Japanese audio capacitors. Durability features under ASUS's 5X Protection III framework include LANGuard surge and EMI protection, USBGuard with 120% higher overvoltage tolerance versus standard, an anti-moisture luminous coating, DIGI+ VRM with 6-phase digital power design, and a stainless-steel back I/O shield rated for enhanced corrosion resistance. The board carries ASUS iCafe Labs certification following 144 hours of diskless-system testing and compatibility validation across 100+ peripherals. Verified Specifications: - Form Factor: uATX, 8.9 in × 7.2 in (22.6 cm × 18.28 cm) - Chipset: Intel B365 - CPU Socket: LGA 1151 (8th and 9th Gen Intel Core / Pentium Gold / Celeron) - Memory: 2× DIMM, Max 32 GB, DDR4 2666/2400/2133 MHz, Non-ECC Unbuffered, XMP support - Storage: 4× SATA 6 Gb/s; 1× M.2 (M Key, 2242/2260/2280) - Expansion: 1× PCIe 3.0 x16; 2× PCIe 3.0/2.0 x1 - Video Output: HDMI 1.4b, D-Sub - LAN: Realtek RTL8111H Gigabit - Audio: Realtek ALC887 8-Channel HD - USB: 6× USB 3.1 Gen 1, 6× USB 2.0 - OS Support: Windows 10 64-bit - Warranty: 3 Years

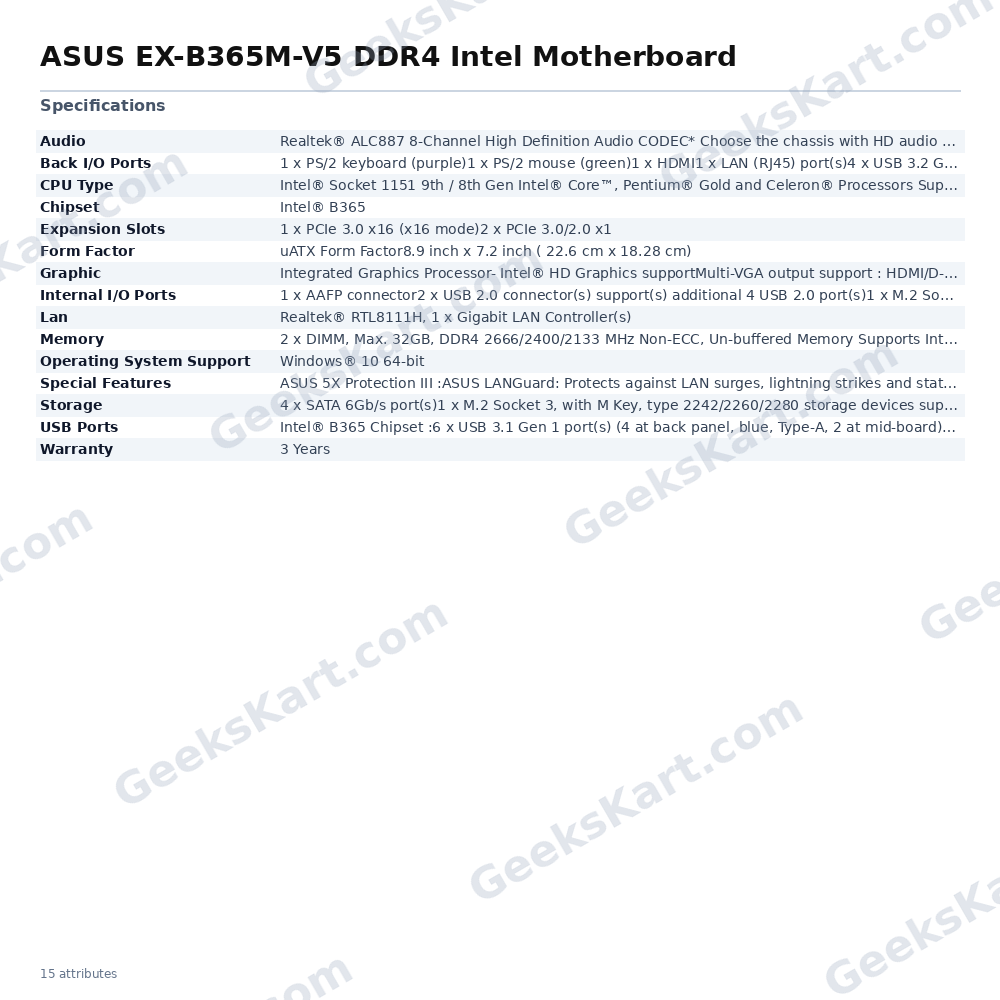

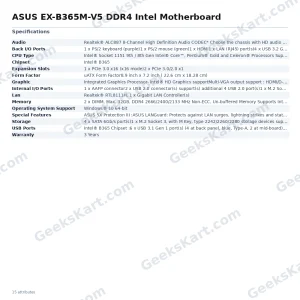

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® B365 |
| CPU Type | Intel® Socket 1151 9th / 8th Gen Intel® CoreTM, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types |
| Lan | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC* Choose the chassis with HD audio module in front panel to support 8-channel audio output |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics supportMulti-VGA output support : HDMI/D-Sub portsSupports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 HzSupports D-sub with max. resolution 1920 x 1200 @ 60 HzMaximum shared memory of 1024 MBSupports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| Storage | 4 x SATA 6Gb/s port(s)1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support |
| USB Ports | Intel® B365 Chipset :6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A, 2 at mid-board)Intel® B365 Chipset :6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |

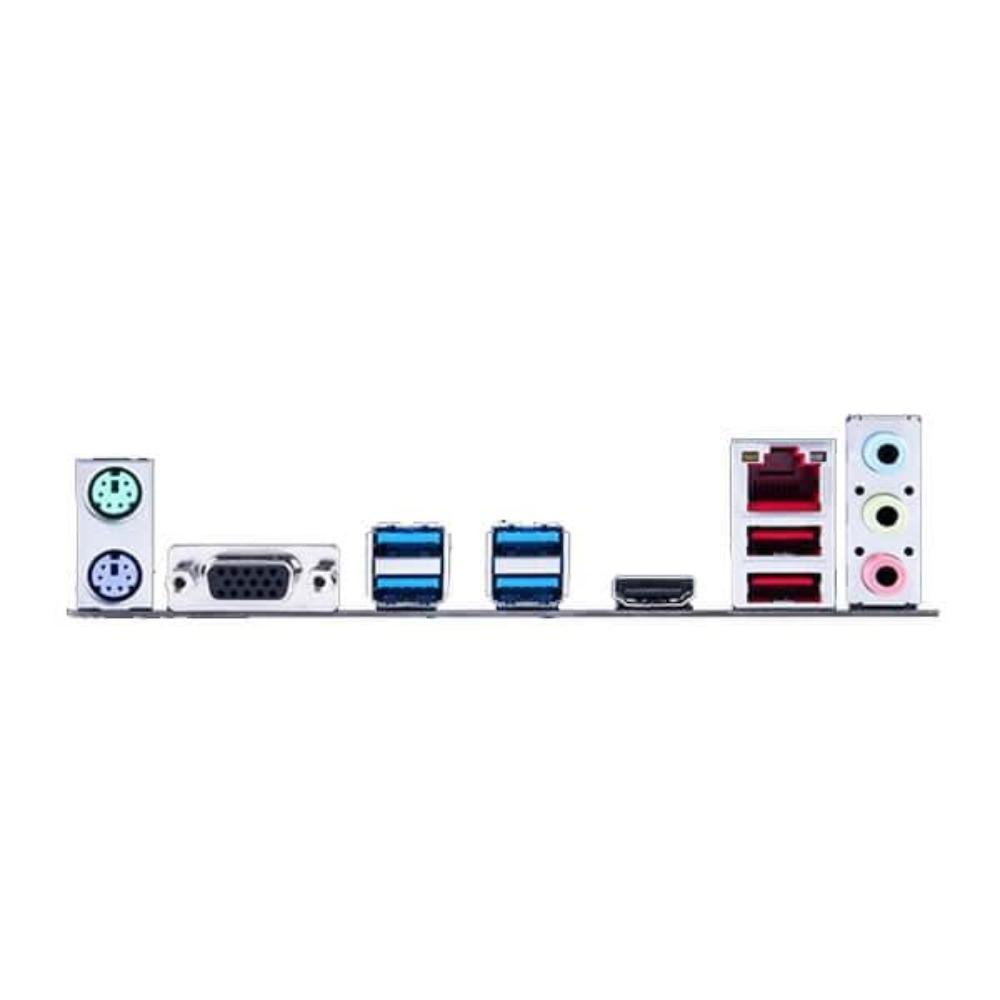

| Back I/O Ports | 1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.2 Gen 11 x D-Sub2 x USB 2.03 x Audio jack(s) |
| Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode)2 x PCIe 3.0/2.0 x1 |
| Special Features | ASUS 5X Protection III :ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!ASUS Overvoltage Protection: World-class circuit-protecting power designASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!ASUS DIGI VRM: 6 Phase digital power designASUS SafeSlot Core – Prevent graphics card damageNon-stop Durability :Anti-moisture coating – Outstanding protection against moisture and corrosionUSBGuard- 120% higher voltage toleranceNon-stop Gaming :Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signalsPremium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelityNon-stop Challenger :ASUS iCafe Labs Certified – Top games and 100 peripherals testedASUS Q-Design :- ASUS Q-Slot- ASUS Q-DIMM |
| Internal I/O Ports | 1 x AAFP connector2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s)1 x Chassis Fan connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Internal speaker connector(s)1 x System panel(s)1 x Clear CMOS jumper(s)1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| Operating System Support | Windows® 10 64-bit |
| Form Factor | uATX Form Factor8.9 inch x 7.2 inch ( 22.6 cm x 18.28 cm) |
