Asus Prime B760M-A-CSM DDR5 M-ATX Motherboard
MPN PRIME-B760M-A-CSM · Brand ASUS · mATX
The ASUS Prime B760M-A-CSM is a Micro-ATX motherboard with Intel B760 chipset, LGA1700 socket, DDR5 support up to 128 GB, PCIe 4.0 storage, and CSM commercial lifecycle assurance
Inclusive of GST · GST invoice available
Overview
The ASUS Prime B760M-A-CSM is a Micro-ATX motherboard built on Intel's B760 chipset, designed for the LGA1700 socket and compatible with Intel Core 12th, 13th, and 14th generation processors, as well as Pentium Gold and Celeron processors. Its Corporate Stable Model (CSM) designation means ASUS provides up to 36 months of product lifecycle support with a 6-month end-of-life notice, making it a sound choice for both home builders and business deployments that require supply continuity. Memory support is handled by four DDR5 DIMM slots capable of accommodating up to 128 GB of non-ECC, unbuffered DDR5 RAM in dual-channel configuration. Speeds range from 4800 MHz natively up to 7200+ MHz via overclocking, with compatibility for Intel XMP profiles and ASUS OptiMem II technology for refined signal integrity. Storage options include two M.2 Key-M slots — both supporting PCIe 4.0 x4 and form factors 2242, 2260, and 2280 — alongside four SATA 6 Gb/s ports with Intel RST support for RAID 0, 1, 5, and 10 configurations. Expansion is covered by one PCIe 4.0 x16 slot from the processor, one PCIe 4.0 x16 slot (x4 mode) and one PCIe 4.0 x16 slot (x1 mode) from the B760 chipset. Display output includes one DisplayPort 1.4 (up to 4K@60Hz) and two HDMI 2.1 ports (up to 4K@60Hz) on the rear I/O. Networking is handled by a Realtek 2.5 Gb Ethernet controller. The rear panel also features two USB 3.2 Gen 2 Type-A ports, four USB 2.0 Type-A ports, a PS/2 combo port, and three audio jacks backed by a Realtek HD 7.1 surround sound codec with 24-bit/192 kHz playback capability. Cooling infrastructure includes VRM heatsinks, an M.2 heatsink with captive screws, a PCH heatsink, one 4-pin CPU fan header, one 4-pin CPU OPT fan header, and two 4-pin chassis fan headers managed through Fan Xpert 2+. ASUS 5X Protection III features DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core+, and a stainless-steel back I/O shield for long-term reliability. RGB personalisation is supported via one Aura RGB header and three Addressable Gen 2 headers, manageable through ASUS Armoury Crate and Aura Sync. The board ships with ASUS Control Center Express for IT asset management, and the UEFI AMI BIOS (128 Mb Flash ROM) supports CrashFree BIOS 3 and EZ Flash 3 for simplified firmware recovery and updates. Verified Specifications: - Form Factor: Micro-ATX (9.6 in × 9.6 in / 24.4 cm × 24.4 cm) - Socket: Intel LGA1700 - Chipset: Intel B760 - CPU Support: Intel Core 12th / 13th / 14th Gen, Pentium Gold, Celeron - Memory: 4 × DDR5 DIMM, Max 128 GB, Dual Channel, up to 7200+ MHz (OC), XMP supported - Storage: 2 × M.2 PCIe 4.0 x4 (2242/2260/2280), 4 × SATA 6 Gb/s - Expansion: 1 × PCIe 4.0 x16 (CPU), 1 × PCIe 4.0 x16 (x4), 1 × PCIe 4.0 x16 (x1) - Display: 1 × DisplayPort 1.4 (4K@60Hz), 2 × HDMI 2.1 (4K@60Hz) - LAN: Realtek 2.5 Gb Ethernet - Rear USB: 2 × USB 3.2 Gen 2 Type-A, 4 × USB 2.0 Type-A - Audio: Realtek 7.1 HD, 24-bit/192 kHz - BIOS: 128 Mb Flash ROM, UEFI AMI - OS: Windows 11, Windows 10 64-bit - Warranty: 3 Years

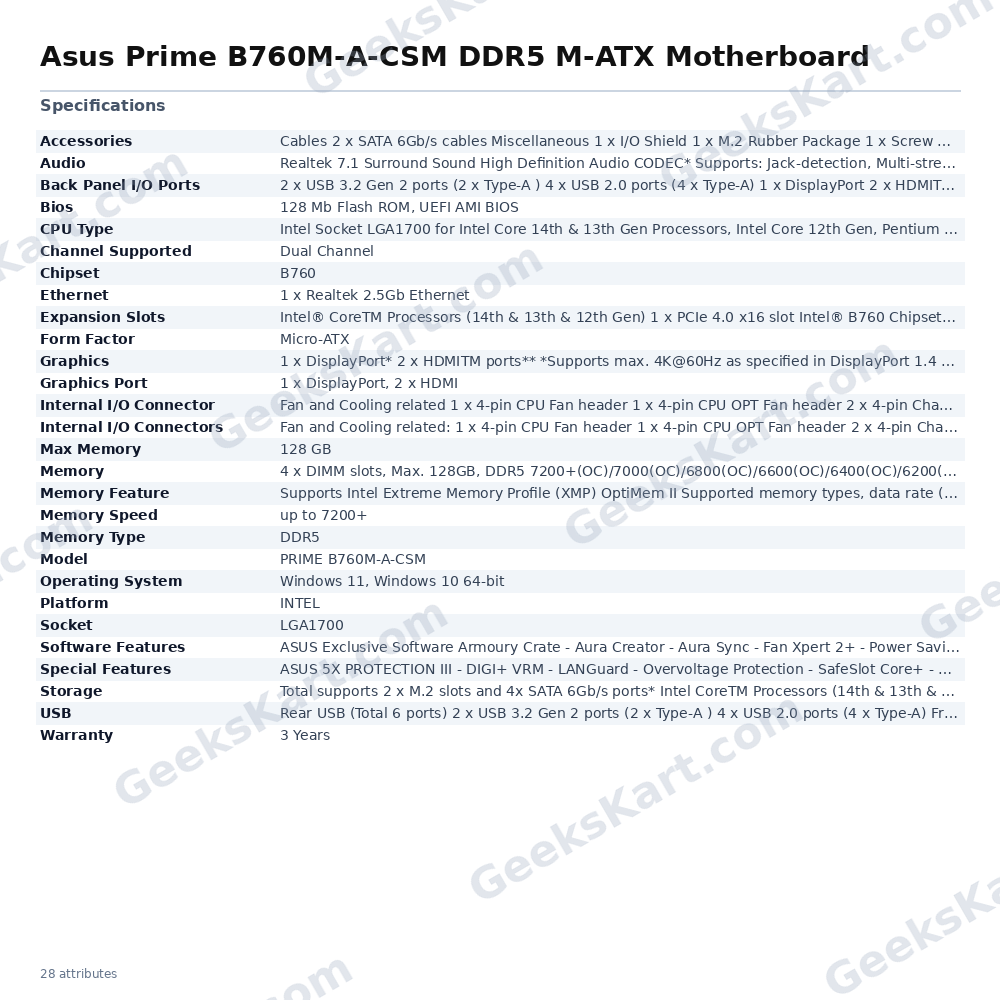

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | |
| Max Memory | 128 GB |
| Memory Speed | up to 7200+ |
| USB | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Model | PRIME B760M-A-CSM |
| Memory | 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Storage | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Graphics | 1 x DisplayPort* 2 x HDMITM ports** *Supports max. 4K@60Hz as specified in DisplayPort 1.4 **Supports 4K@60Hz as specified in HDMITM 2.1 |
| Platform | INTEL |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Graphics Port | 1 x DisplayPort, 2 x HDMI |
| Memory Feature | Supports Intel Extreme Memory Profile (XMP) OptiMem II Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit brand website * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Expansion Slots | Intel® CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Operating System | Windows 11, Windows 10 64-bit |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – ProCool Aura Sync – Aura RGB header – Addressable Gen 2 headers |
| Channel Supported | Dual Channel |
| Software Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 2+ – Power Saving AI Suite 3 – Digi+ VRM – PC Cleaner ASUS CPU-Z Norton Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMITM ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connector | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Internal I/O Connectors | Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous: 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
