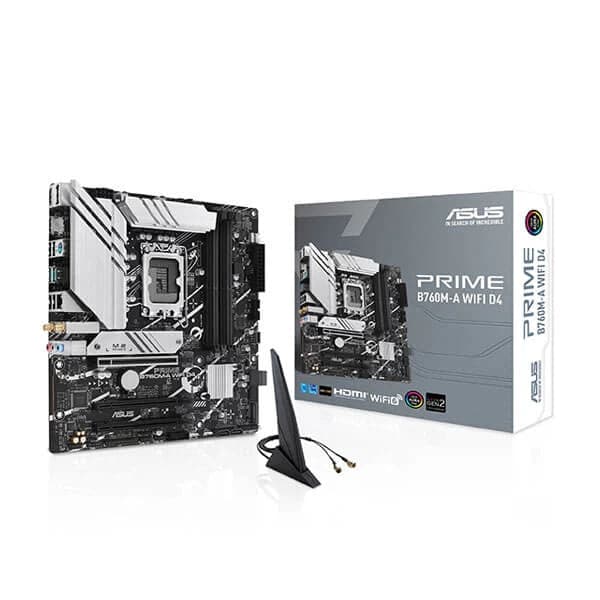

ASUS Prime B760M-A Wifi DDR4 Intel Motherboard

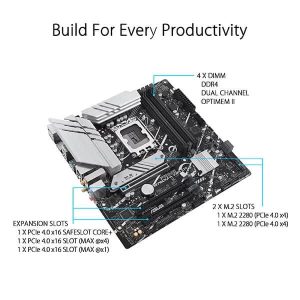

The ASUS Prime B760M-A WiFi DDR4 is a compact Micro-ATX motherboard built on the Intel B760 chipset, designed to deliver a well-rounded platform for 12th and 13th generation Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket. Its balanced feature set makes it a strong choice for productivity-focused builds, home office systems, and entry-to-mid-range gaming rigs that demand modern connectivity without the bulk of a full-size board. Connectivity is a standout strength. The board ships with integrated 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) supporting both 2.4 GHz and 5 GHz bands, Bluetooth 5.2, and a Realtek 2.5 Gigabit Ethernet port — giving builders wired and wireless flexibility out of the box. The rear I/O panel adds two USB 3.2 Gen 2 Type-A ports alongside four USB 2.0 Type-A ports, a DisplayPort 1.4 (up to 4K 60 Hz), two HDMI 2.1 ports (4K 60 Hz each), and a legacy PS/2 combo port for keyboards and mice. Storage options are generous for a mATX board: two M.2 Key-M slots (both supporting PCIe 4.0 x4, form factors 2242/2260/2280) and four SATA 6 Gb/s ports, with Intel Rapid Storage Technology enabling SATA RAID 0/1/5/10. Expansion is handled by one full-bandwidth PCIe 4.0 x16 slot from the CPU, supplemented by chipset-fed PCIe 4.0 slots in x4 and x1 modes. Memory support spans four DIMM slots accommodating up to 128 GB of DDR4 in dual-channel configuration. Native speeds include DDR4-3200/2933/2666/2400/2133, with XMP overclocking profiles reaching up to DDR4-5333 (OC). ASUS OptiMem II trace routing helps preserve signal integrity at elevated frequencies. Thermal management includes dedicated VRM and M.2 heatsinks alongside a PCH heatsink, four 4-pin fan headers (one CPU, one CPU OPT, two chassis), and Fan Xpert 2+ software control. ASUS 5X Protection III covers digital VRM regulation (DIGI+ VRM), LAN surge protection (LANGuard), overvoltage safeguards, a reinforced SafeSlot Core+ primary PCIe slot, and a stainless-steel back I/O panel. For audio, the Realtek HD codec delivers 7.1 surround sound output (requires a front-panel HD audio chassis module), supporting up to 24-bit/192 kHz playback, with audio shielding and dedicated PCB layers to reduce interference. RGB enthusiasts will find three Addressable Gen 2 headers and one Aura RGB header, all manageable through Armoury Crate and Aura Sync software. Verified Specifications: - Form Factor: Micro-ATX, 9.6 x 9.6 inches (24.4 x 24.4 cm) - Socket: LGA1700 | Chipset: Intel B760 - CPU Support: 12th & 13th Gen Intel Core / Pentium Gold / Celeron - Memory: 4 x DDR4 DIMM, Max 128 GB, DDR4-3200 native / up to DDR4-5333 (OC), Dual-channel, XMP - Storage: 2 x M.2 PCIe 4.0 x4 (2242/2260/2280) + 4 x SATA 6 Gb/s - Wireless: Wi-Fi 6 (2x2, 802.11ax), Bluetooth 5.2 - LAN: Realtek 2.5 Gb Ethernet - Display Output: 1 x DisplayPort 1.4 (4K 60 Hz), 2 x HDMI 2.1 (4K 60 Hz) - Rear USB: 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A - BIOS: 128 Mb Flash ROM, UEFI AMI - Warranty: 3 Years
