Asus Prime B760M-F WIFI M-ATX Motherboard
MPN PRIME-B760M-F-WIFI · Brand ASUS · mATX
ASUS Prime B760M-F WIFI is a Micro-ATX motherboard for Intel LGA1700 (12th–14th Gen), featuring DDR5 memory support up to 96 GB, a PCIe 5.0 x16 slot, two PCIe 4.0 M.2 slots, WiFi 6, Bluetooth 5.3, and Realtek 1 Gb Ethernet
Inclusive of GST · GST invoice available
Overview
The ASUS Prime B760M-F WIFI is a Micro-ATX motherboard built on Intel's B760 chipset with an LGA1700 socket, supporting 12th, 13th, and 14th Generation Intel Core processors. It is designed to meet the connectivity and performance demands of modern desktop builds, combining a compact Micro-ATX form factor with a comprehensive feature set. At the heart of its connectivity is a PCIe 5.0 x16 slot for the primary graphics card, delivering doubled bandwidth versus PCIe 4.0 while maintaining backward compatibility. Two onboard M.2 slots (Key M) both operate at PCIe 4.0 speeds, accommodating high-speed NVMe SSDs for fast storage. Four SATA 6 Gb/s ports round out storage options for additional drives. Memory support uses DDR5 in a dual-channel configuration across two DIMM slots, with a maximum capacity of 96 GB and speed support up to 8000 MHz (OC). Intel XMP profiles are supported for straightforward memory overclocking. Wireless connectivity is handled by an integrated WiFi 6 (802.11ax) module with a theoretical peak bandwidth of up to 600 Mbps, optimised for dense network environments. Bluetooth 5.3 is also included. Wired networking is provided by a Realtek 1 Gb Ethernet controller. The back panel I/O includes four USB 5 Gbps Type-A ports, two USB 2.0 Type-A ports, one HDMI output, one DisplayPort output, and three audio jacks. Internally, front-panel USB headers provide two additional USB 5 Gbps and two additional USB 2.0 ports. Cooling is managed through one 4-pin CPU fan header and two 4-pin chassis fan headers, controllable via ASUS Fan Xpert 2+ software or directly through the UEFI BIOS. Addressable RGB Gen 2 headers (two onboard) allow integration with Aura Sync-compatible lighting accessories. Additional onboard headers include a Clear CMOS header, COM port header, front panel audio (F_AUDIO), S/PDIF Out, Speaker, SPI TPM (14-1 pin), and a 10-1 pin front panel system header. Power connectors follow standard ATX layout: 24-pin main and 8-pin +12V CPU. Verified Specifications: - Socket: LGA1700 - Chipset: Intel B760 - Form Factor: Micro-ATX - CPU Support: Intel 12th, 13th, 14th Gen Core processors - Memory: DDR5, Dual Channel, up to 96 GB, up to 8000 MHz (OC), XMP supported - PCIe Slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x1 (chipset) - M.2 Slots: 2x Key M (PCIe 4.0) - SATA: 4x SATA 6 Gb/s - Wireless: WiFi 6 (802.11ax), Bluetooth 5.3 - LAN: Realtek 1 Gb Ethernet - Video Out: 1x HDMI, 1x DisplayPort - Back Panel USB: 4x USB 5 Gbps Type-A, 2x USB 2.0 Type-A - RGB: 2x Addressable RGB Gen 2 headers - Warranty: 3 Years

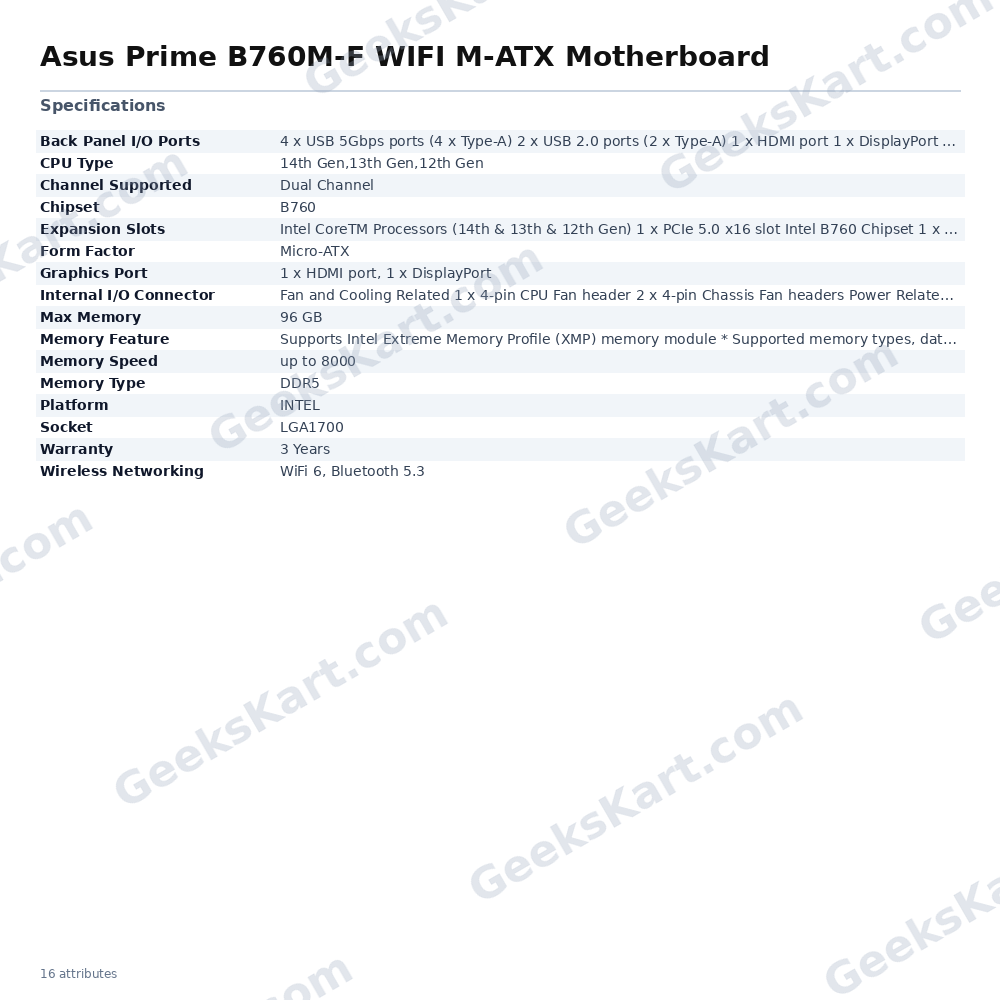

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | 14th Gen,13th Gen,12th Gen |
| Max Memory | 96 GB |
| Memory Speed | up to 8000 |
| Platform | INTEL |
| Graphics Port | 1 x HDMI port, 1 x DisplayPort |
| Memory Feature | Supports Intel Extreme Memory Profile (XMP) memory module * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit brand website. Adjustments will be made based on the specifications of mass-produced memory products available on the market |
| Expansion Slots | Intel CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6, Bluetooth 5.3 |
| Back Panel I/O Ports | 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Wi-Fi module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
| Internal I/O Connector | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 2 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header |
