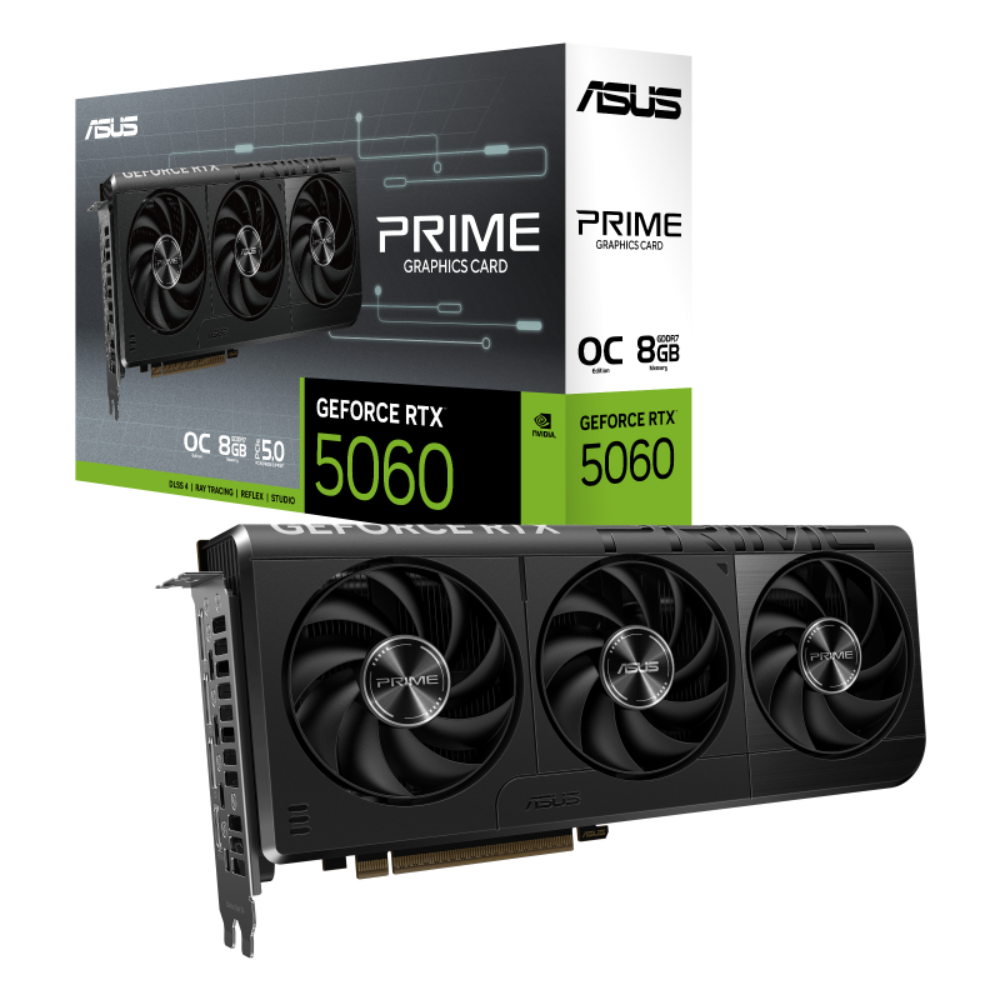

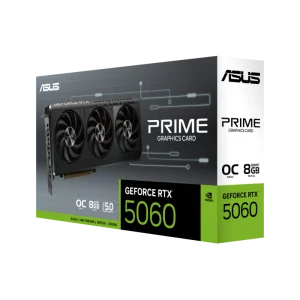

ASUS Prime GeForce RTX 5060 OC 8GB Nvidia Graphic Card

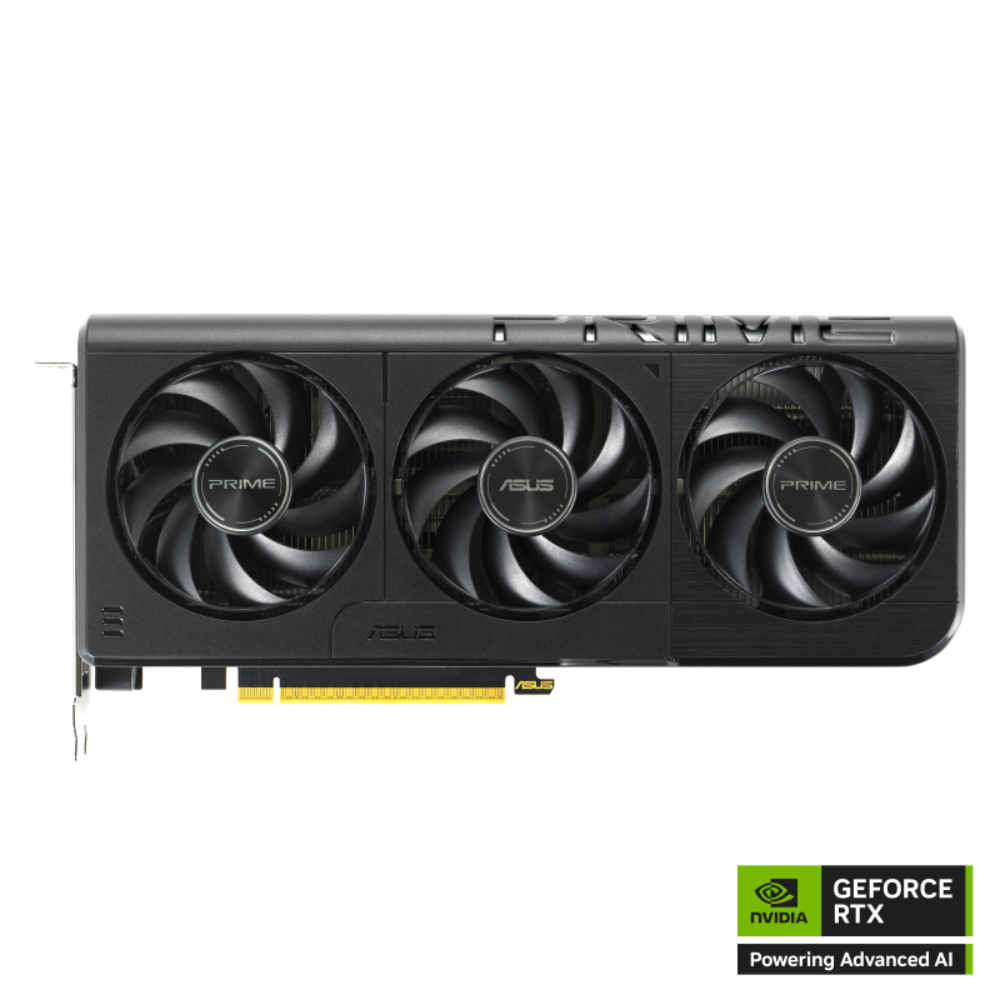

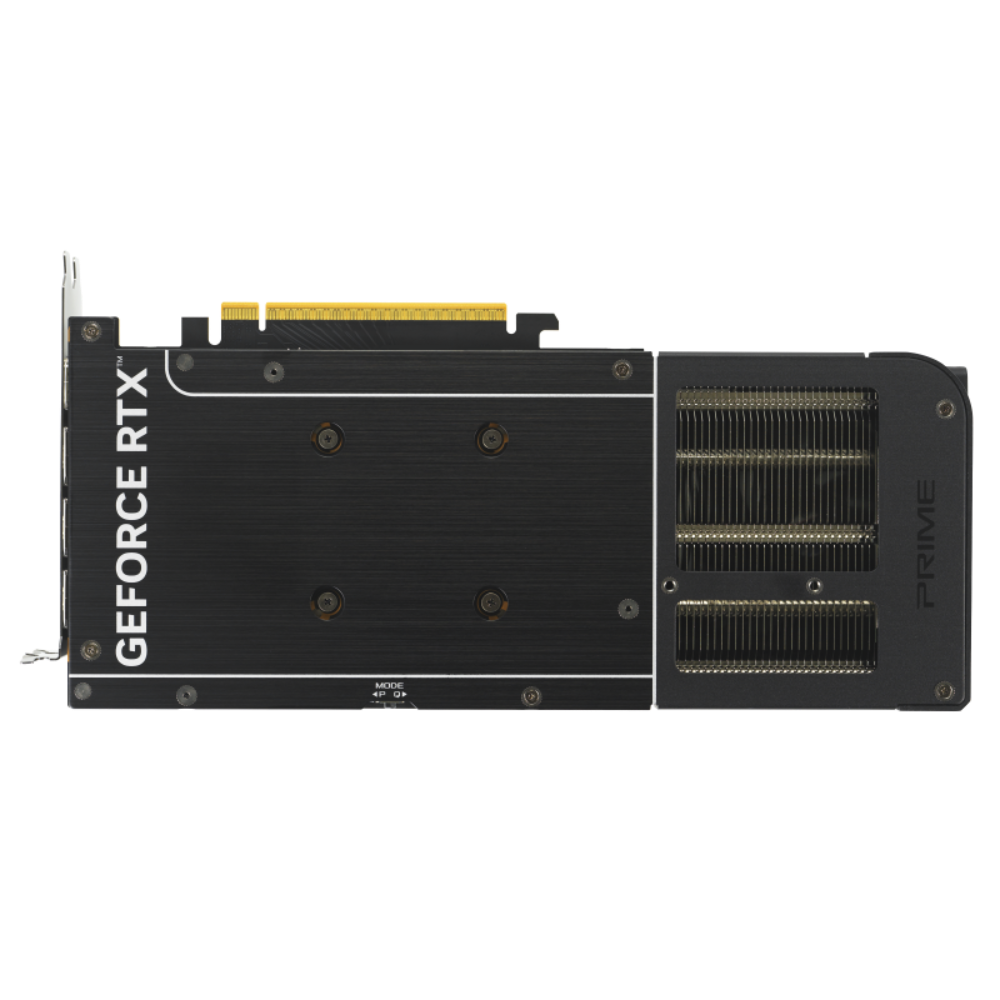

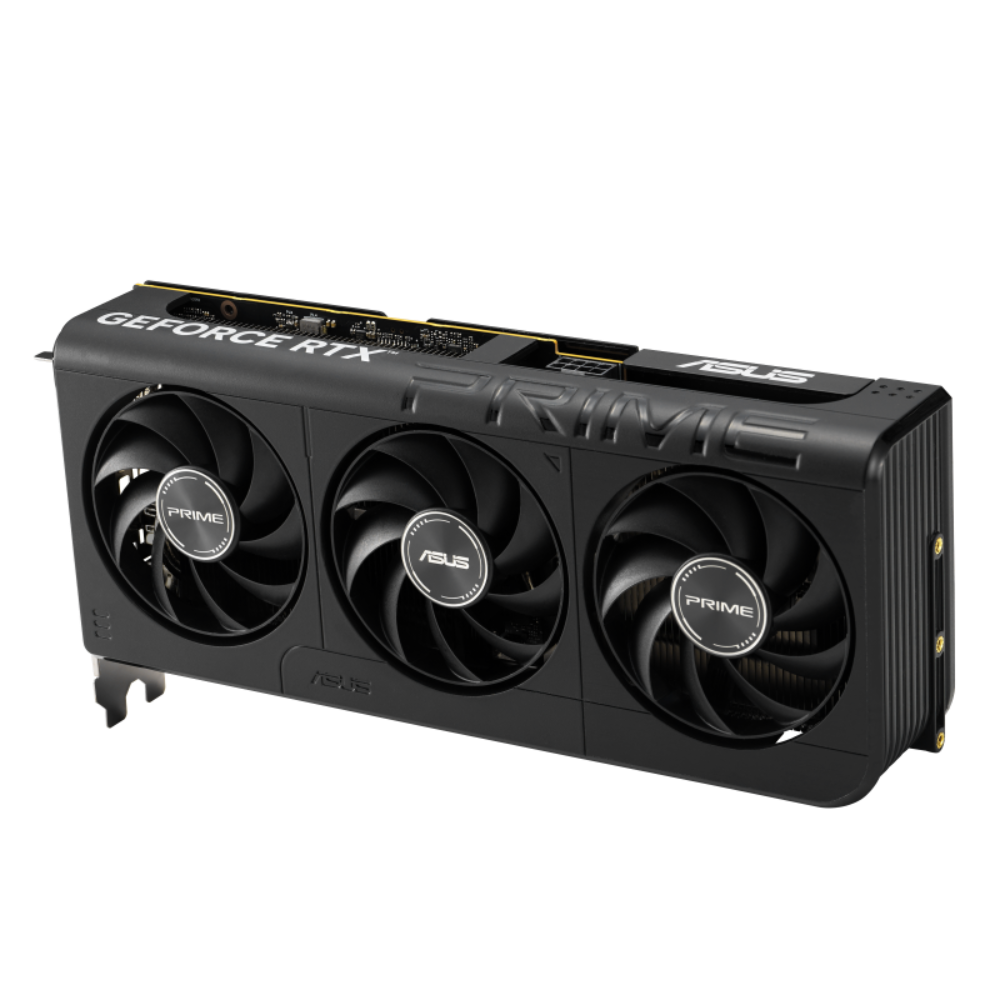

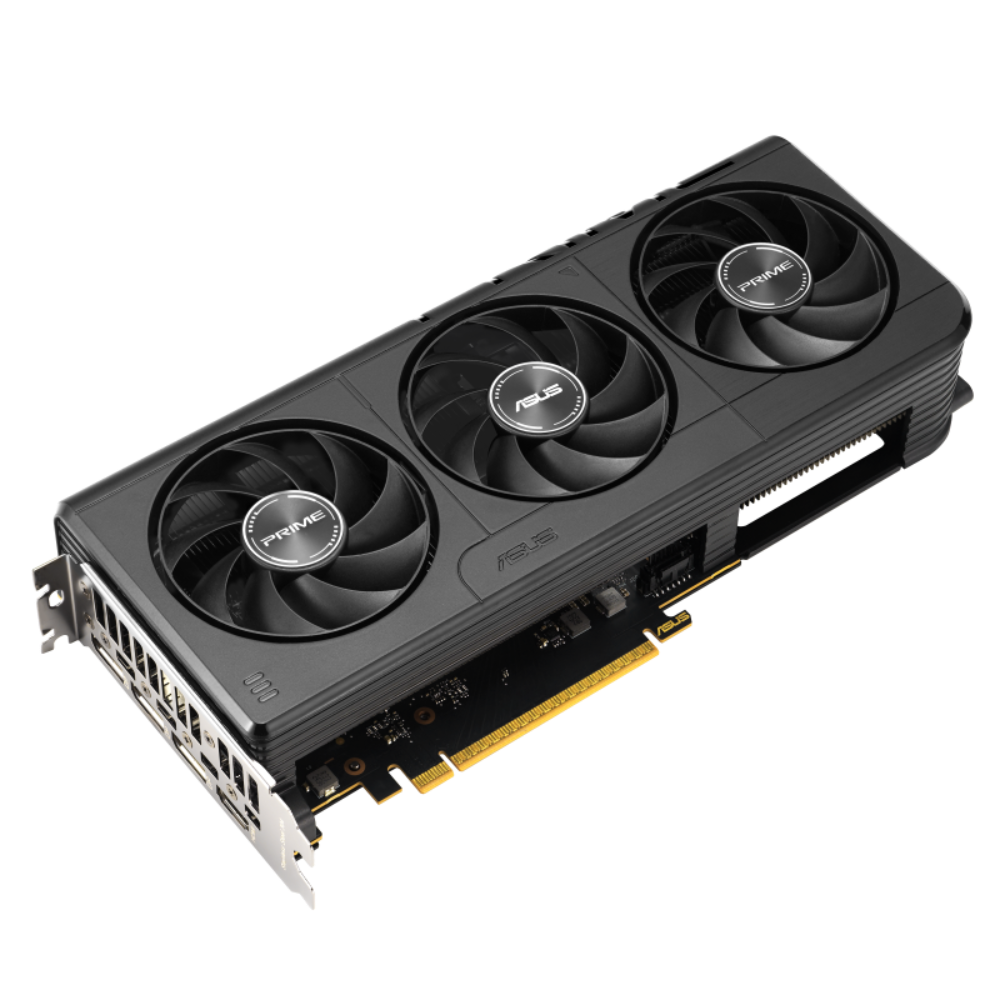

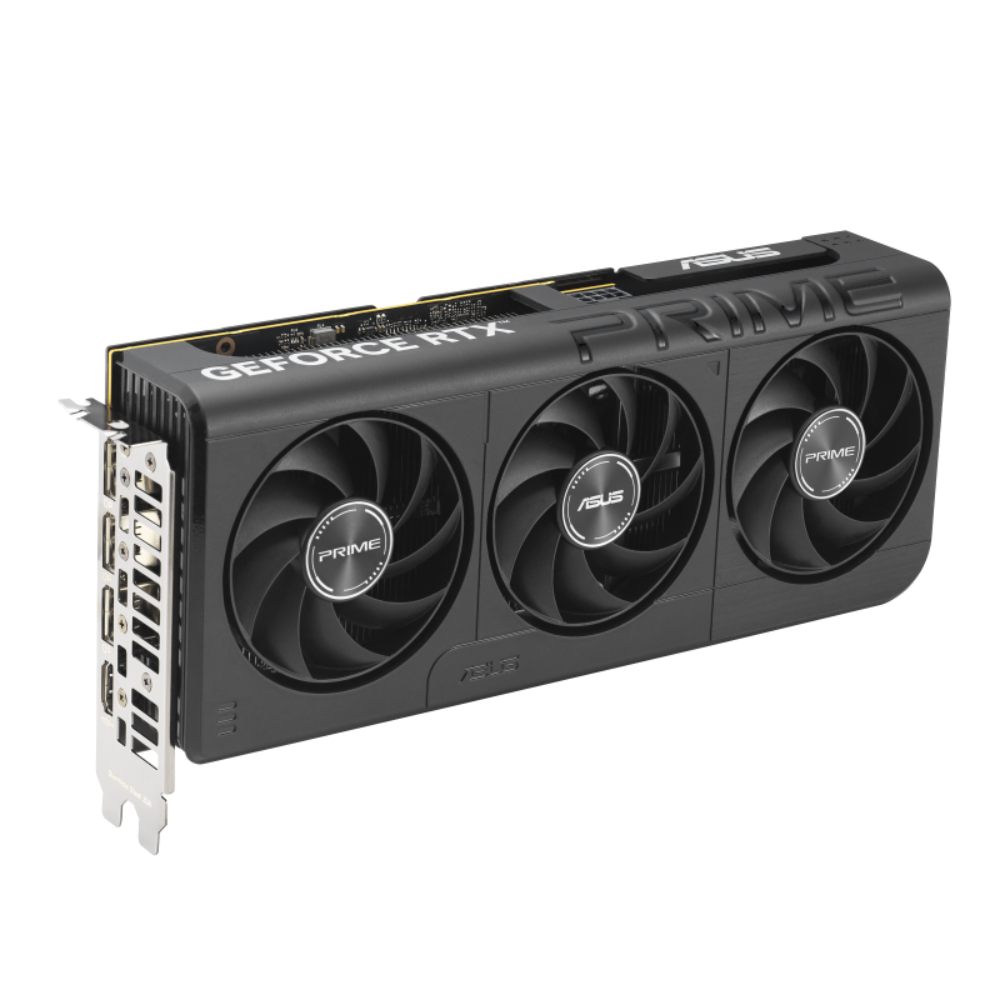

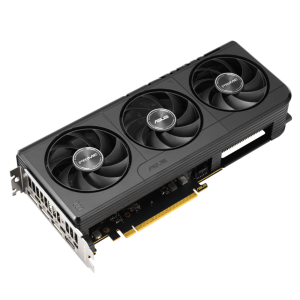

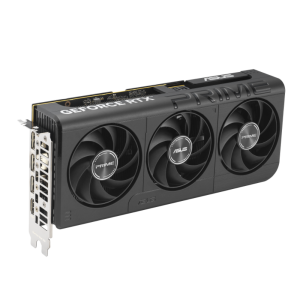

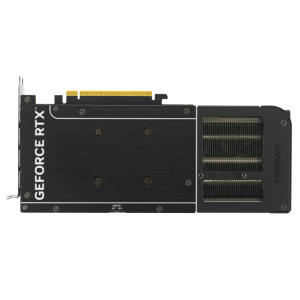

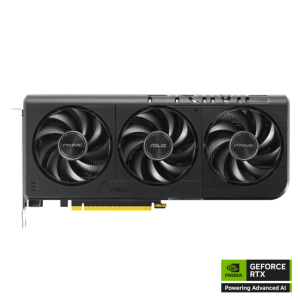

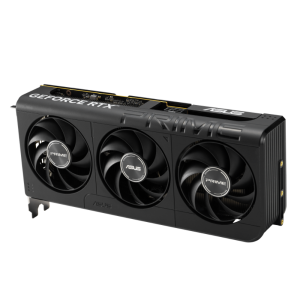

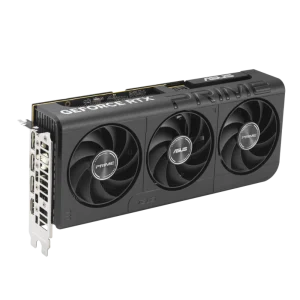

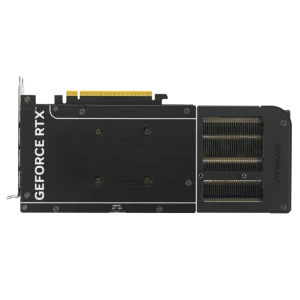

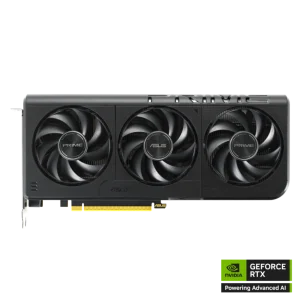

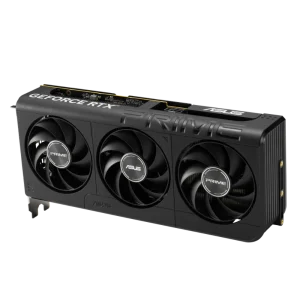

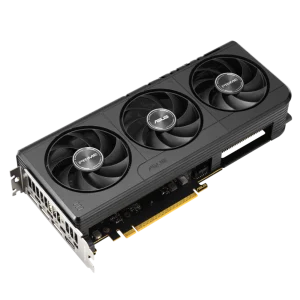

The ASUS Prime GeForce RTX 5060 OC (model PRIME-RTX5060-O8G) is a compact yet capable discrete graphics card built on the NVIDIA GeForce RTX 5060 GPU. Designed with small-form-factor builds firmly in mind, its SFF-Ready 2.5-slot footprint makes it compatible with a wide range of cases, including compact chassis that support SFF-Ready Enthusiast GeForce Cards. At the heart of the cooling solution sit three Axial-tech fans with a revised hub geometry that enables longer blade tips and an integrated barrier ring. This combination increases downward air pressure, improving thermal performance while keeping noise levels in check. All three fans stop completely when GPU temperature stays below 50°C, creating a near-silent experience during everyday use, and they ramp back up above 55°C via a graduated speed curve. Dual-ball fan bearings replace less durable sleeve-bearing designs for extended operational life. A Dual BIOS switch lets you choose between Performance mode — which runs a more aggressive fan curve to keep temperatures at their lowest — and Quiet mode, which maintains the same power and clock targets but uses a gentler curve for reduced acoustic output. The vented metal backplate doubles as structural reinforcement and an additional heat-escape path, while ASUS GPU Guard adhesive on all four PCB corners reduces the risk of stress fractures. The mounting bracket is fabricated from grade 304 stainless steel for corrosion resistance and long-term rigidity. ASUS MaxContact precision-machining technology increases the heat-spreader contact area by up to 5% compared with conventional designs, aiding thermal transfer to the heatsink array. The card is managed through ASUS GPU Tweak III software and is compatible with GeForce Game Ready and Studio driver branches. Verified Specifications: • GPU: NVIDIA GeForce RTX 5060 • CUDA Cores: 3,840 • Video Memory: 8 GB GDDR7 • Memory Interface: 128-bit • Memory Speed: 28 Gbps • Boost Clock (OC mode): 2,595 MHz | Default mode: 2,565 MHz • AI Performance: 630 TOPs • Bus Interface: PCI Express 5.0 • Display Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1b (max 4 simultaneous displays) • Max Digital Resolution: 7680×4320 • HDCP: 2.3 • Slot Width: 2.5 slots • Dimensions: 268.3 × 120 × 50 mm (10.56 × 4.72 × 1.97 in) • Power Connector: 1× 8-pin • Recommended PSU: 550 W • NVLink / CrossFire: Not supported • SFF-Ready: Yes • OpenGL: 4.6 • Warranty: 3 Years • Part Number: 90YV0N10-M0AA00
