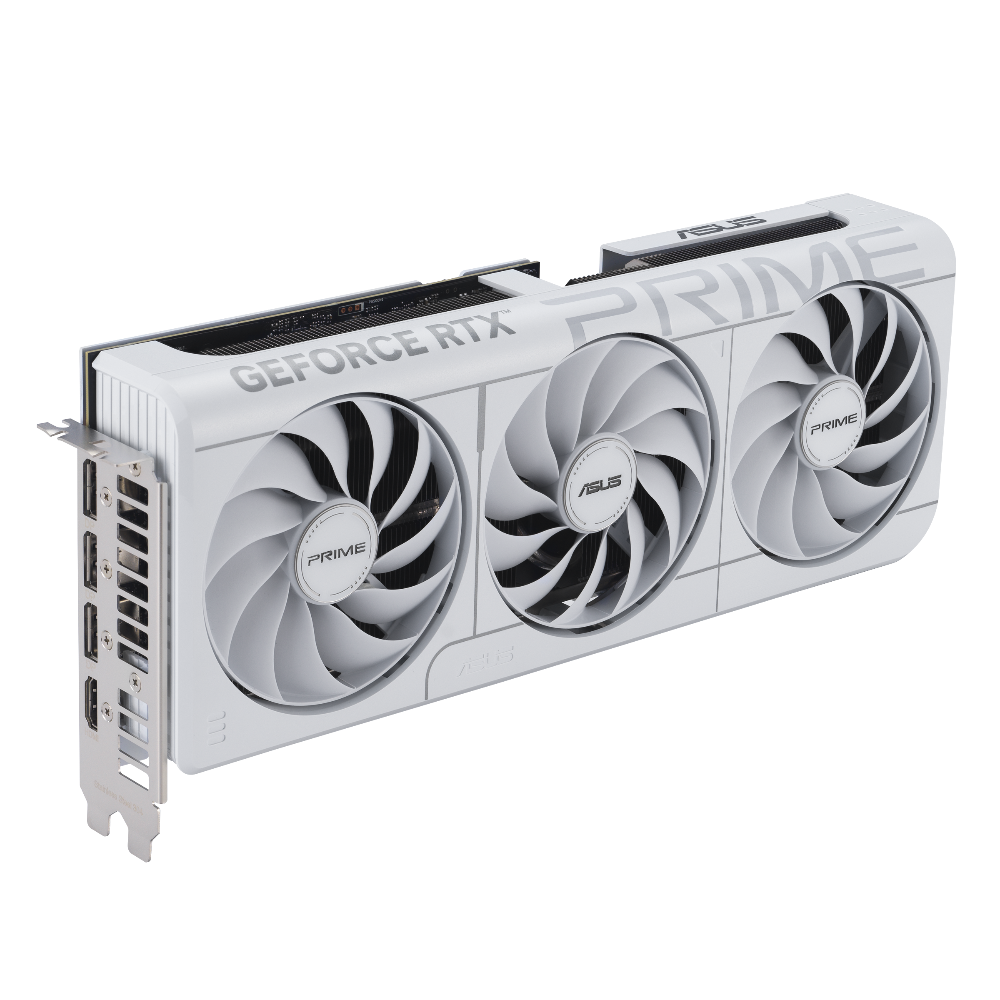

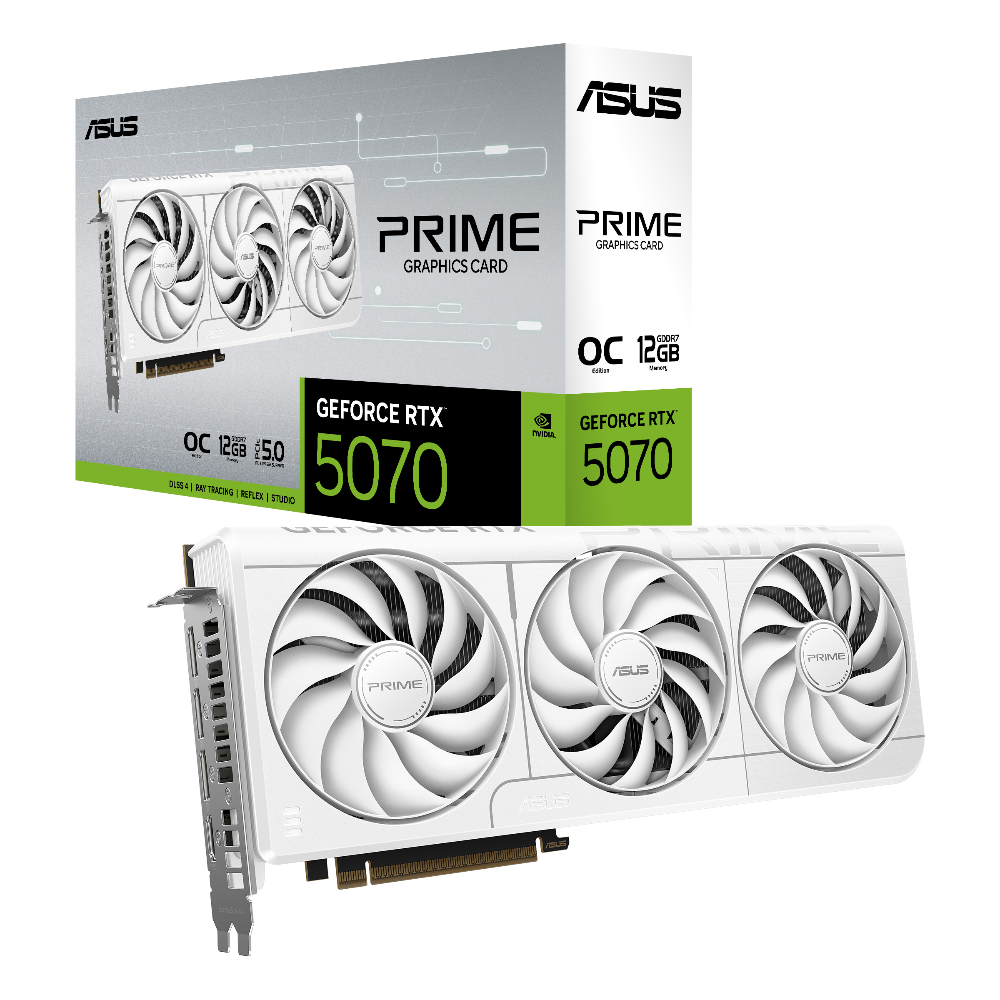

ASUS Prime GeForce RTX 5070 OC White 12GB Nvidia Graphic Card

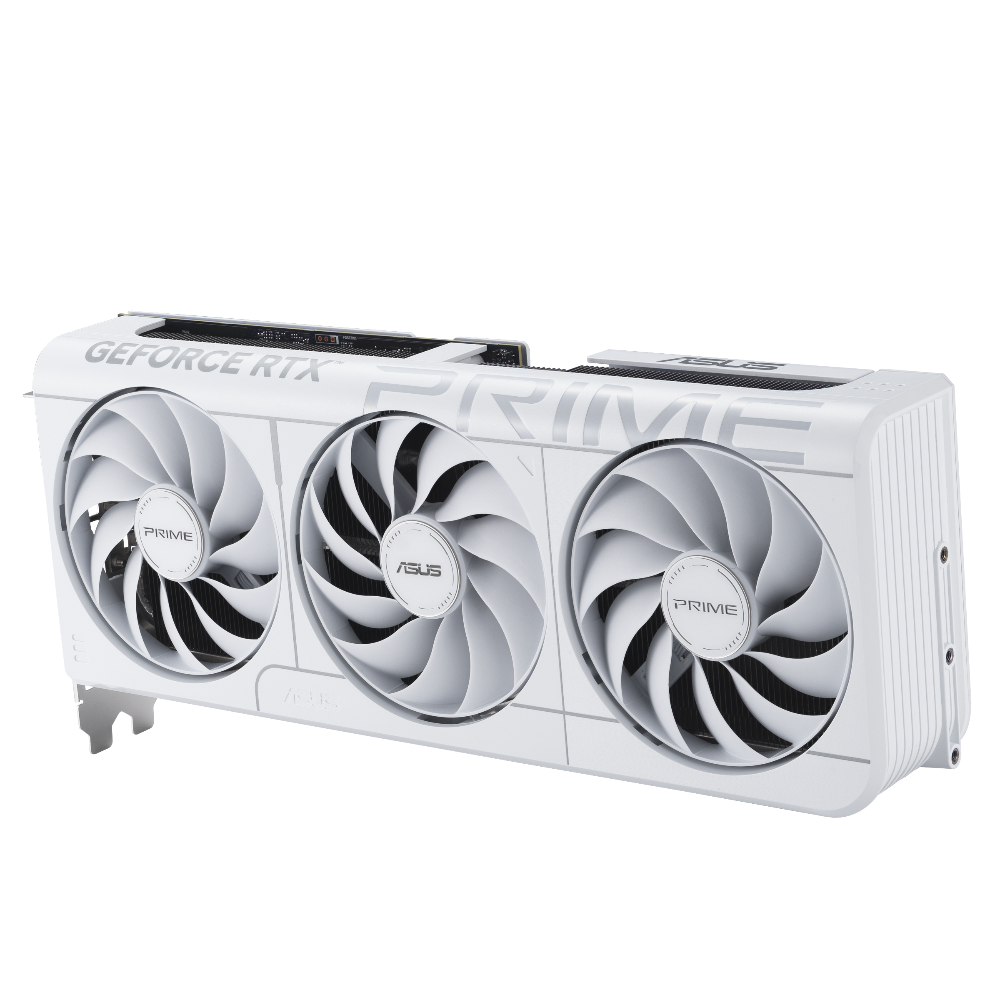

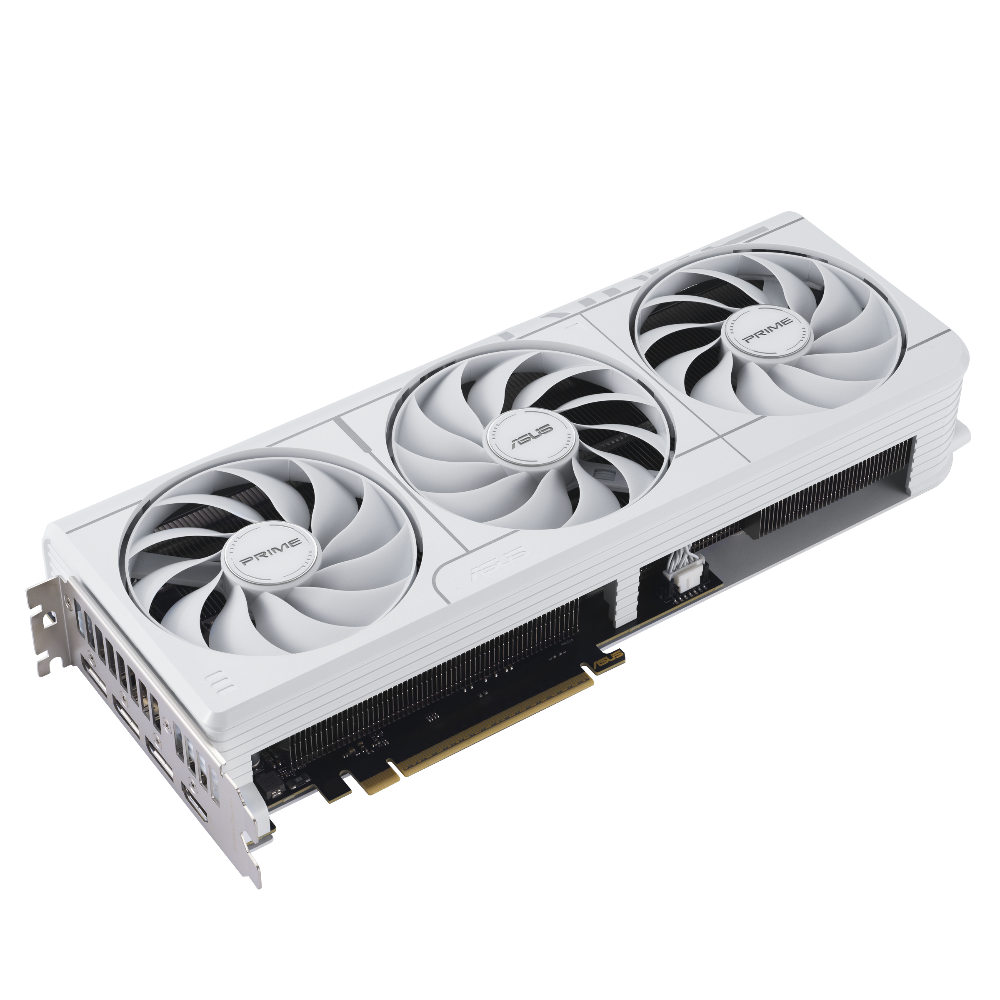

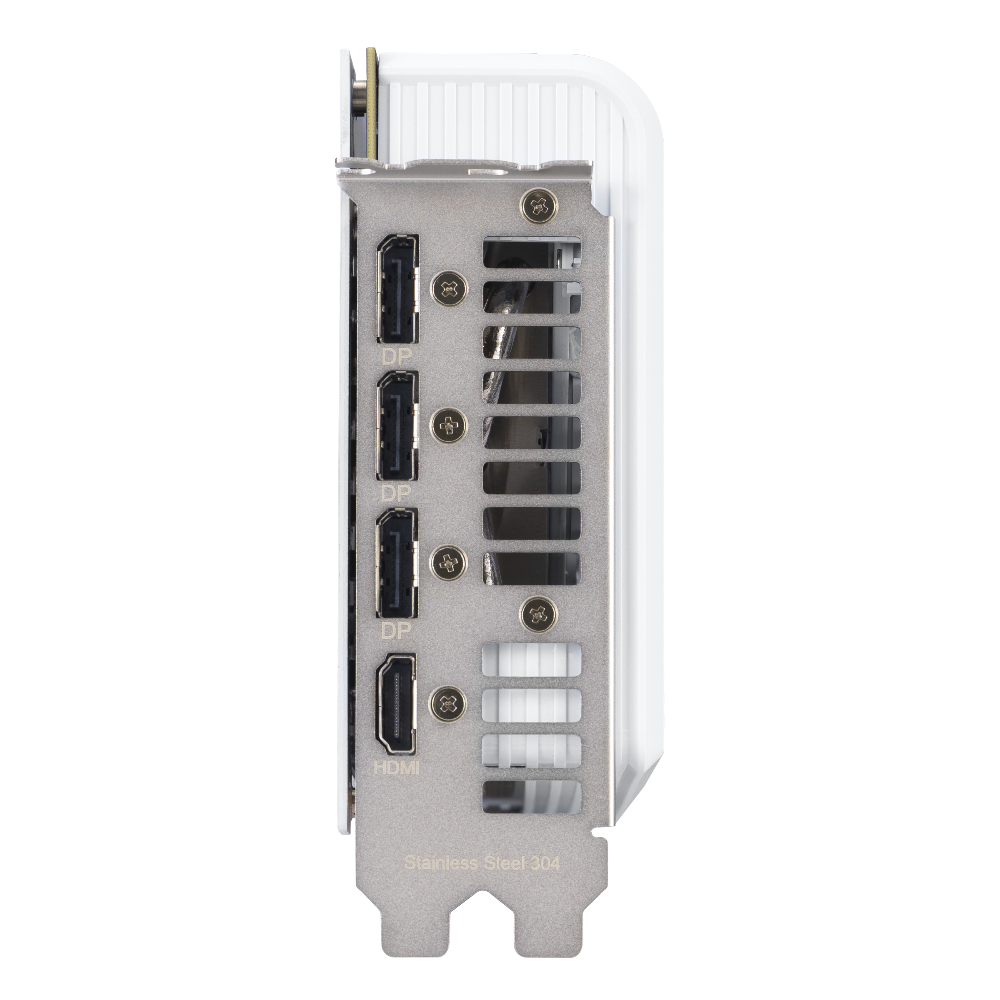

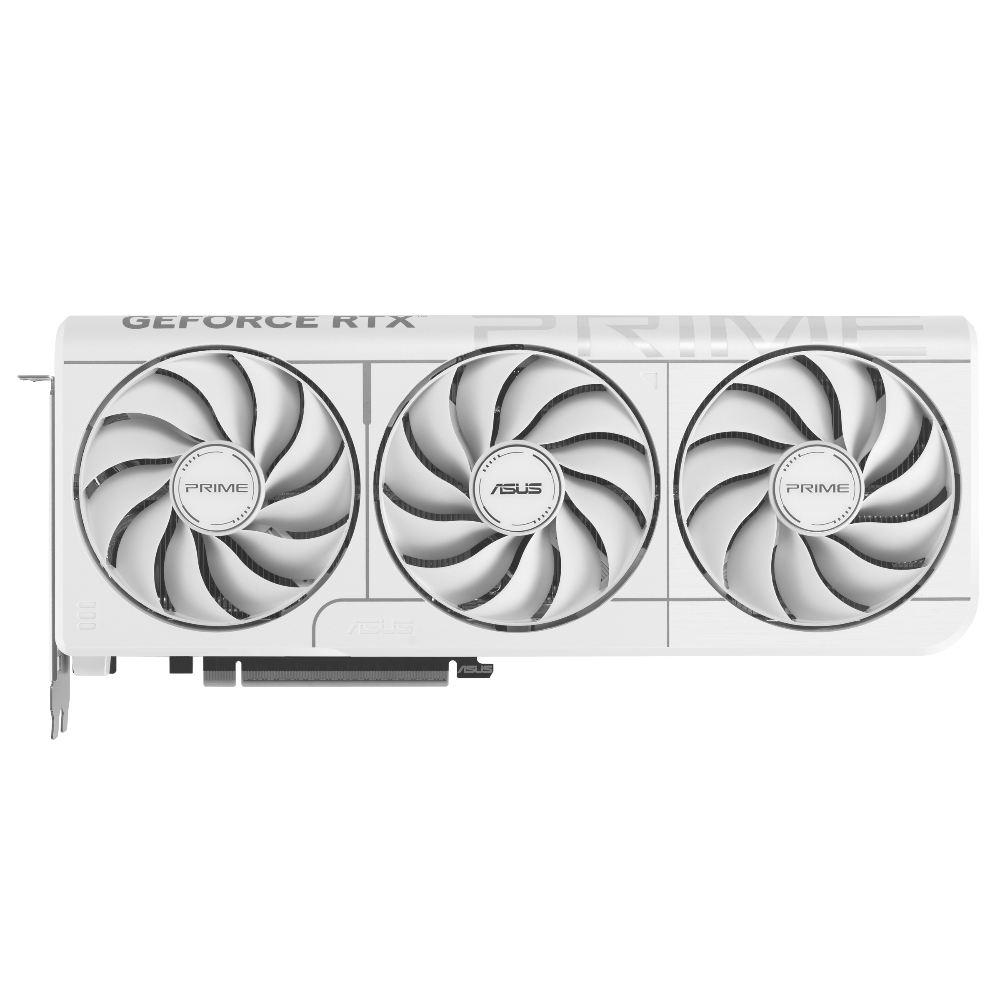

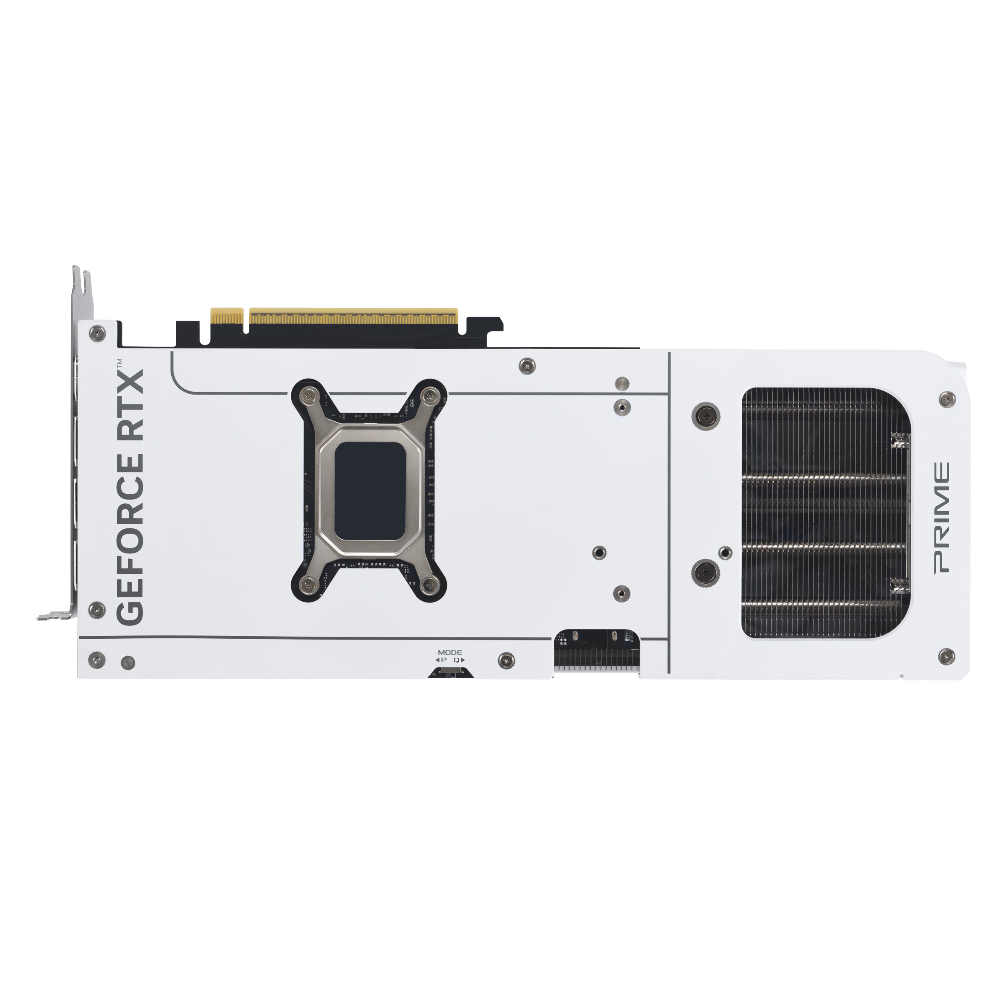

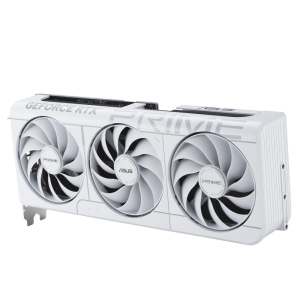

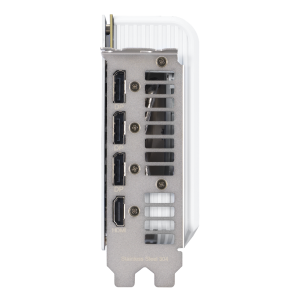

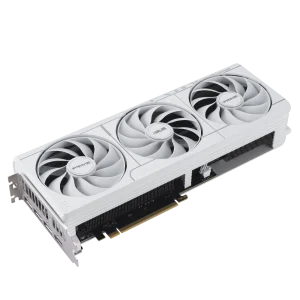

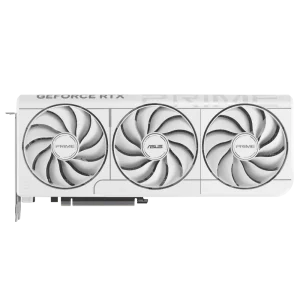

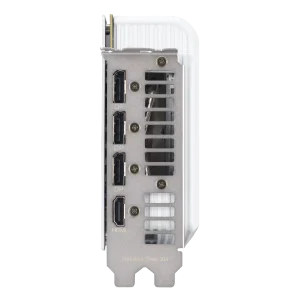

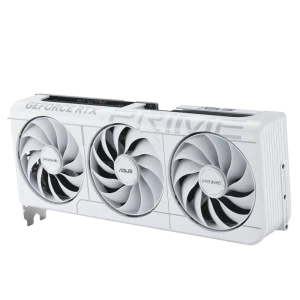

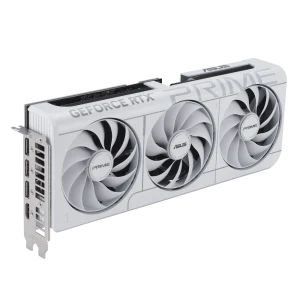

The ASUS Prime GeForce RTX 5070 OC White Edition is a purpose-built graphics card that balances serious gaming performance with a clean, all-white aesthetic and a compact SFF-ready form factor. Powered by the NVIDIA GeForce RTX 5070 GPU, it carries 6,144 CUDA cores, 12 GB of GDDR7 memory running at 28 Gbps across a 192-bit interface, and an AI performance rating of 1,005 TOPs. The card ships with two performance profiles: OC mode boosts the clock to 2,587 MHz, while Default mode runs at 2,557 MHz — both figures representing the peak boost clock as published by ASUS. Connectivity is handled by one native HDMI 2.1b port and three native DisplayPort 2.1b ports, supporting up to four simultaneous displays and a maximum digital resolution of 7,680 × 4,320 (8K). The card rides on a PCI Express 5.0 bus and requires a single 16-pin power connector with a recommended PSU of 750 W. ASUS centres its thermal engineering around three Axial-tech fans featuring a smaller hub, longer blades, and a barrier ring to increase downward air pressure. The 2.5-slot heatsink integrates MaxContact technology, which expands the heat-spreader contact surface area by 5% versus traditional designs, and a phase-change GPU thermal pad that melts to fill micro-gaps between the die and cooler for superior thermal conductivity. A vented backplate provides additional exhaust for the heatsink array. When GPU temperature stays below 50 °C, 0dB Technology halts all three fans entirely for silent operation; fans resume above 55 °C following a speed curve that balances acoustics and thermals. Dual-ball fan bearings are specified for extended bearing longevity compared to sleeve-bearing alternatives. A Dual BIOS switch lets users choose between Performance mode — which runs a more aggressive fan curve to prioritise core temperatures — and Quiet mode, which uses a gentler curve at the same power target. ASUS Auto-Extreme Technology completes all PCB soldering in a single automated pass, reducing thermal stress on components and avoiding harsh cleaning chemicals during manufacture. At 304 × 126 × 50 mm (2.5 slots), the card is certified SFF-Ready Enthusiast, making it compatible with small-form-factor cases that support the SFF-Ready Enthusiast standard. In the box: one Speedsetup Manual, one ASUS Velcro Hook & Loop, one Thank You Card, and one 1-to-2 adapter cable. Software includes ASUS GPU Tweak III, MuseTree, and NVIDIA GeForce Game Ready and Studio drivers (downloaded separately from the ASUS support site). Key Verified Specifications: • GPU: NVIDIA GeForce RTX 5070 • CUDA Cores: 6,144 • Video Memory: 12 GB GDDR7 • Memory Speed: 28 Gbps • Memory Interface: 192-bit • Boost Clock (OC mode): 2,587 MHz | Default mode: 2,557 MHz • AI Performance: 1,005 TOPs • Bus Interface: PCI Express 5.0 • Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1b • Max Resolution: 7,680 × 4,320 • Max Displays: 4 • Slot Width: 2.5 • Dimensions: 304 × 126 × 50 mm • Power Connector: 1× 16-pin • Recommended PSU: 750 W • HDCP: 2.3 • OpenGL: 4.6 • Model No.: 90YV0M19-M0AA00
