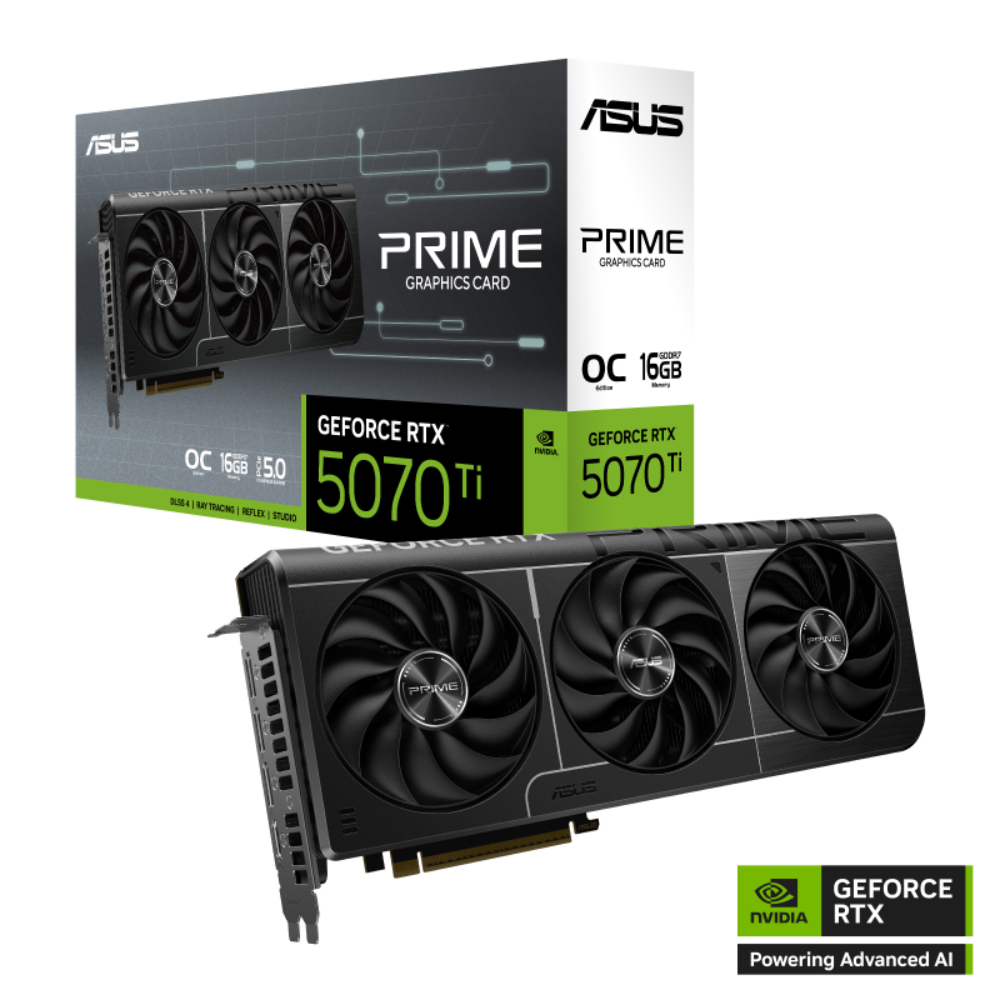

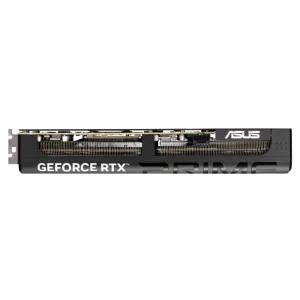

ASUS Prime Geforce RTX 5070 Ti OC Edition 16GB Nvidia Graphic Card

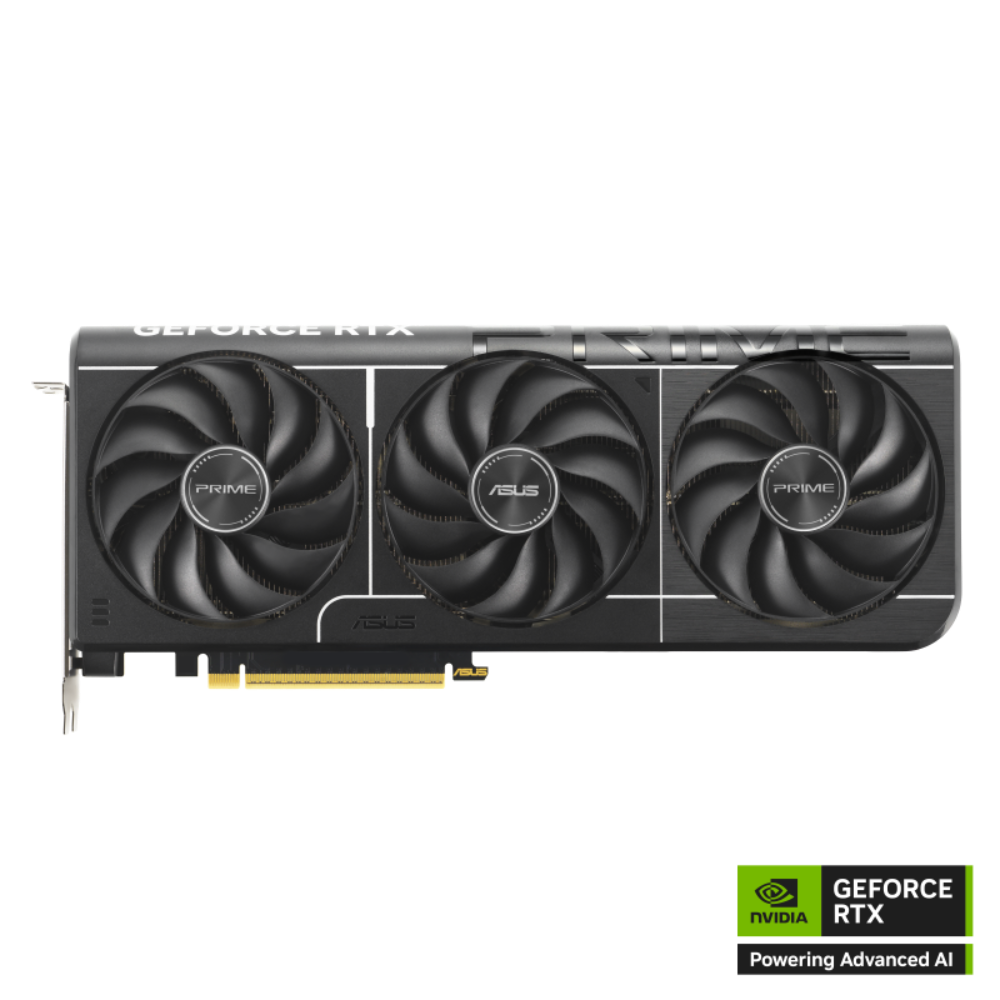

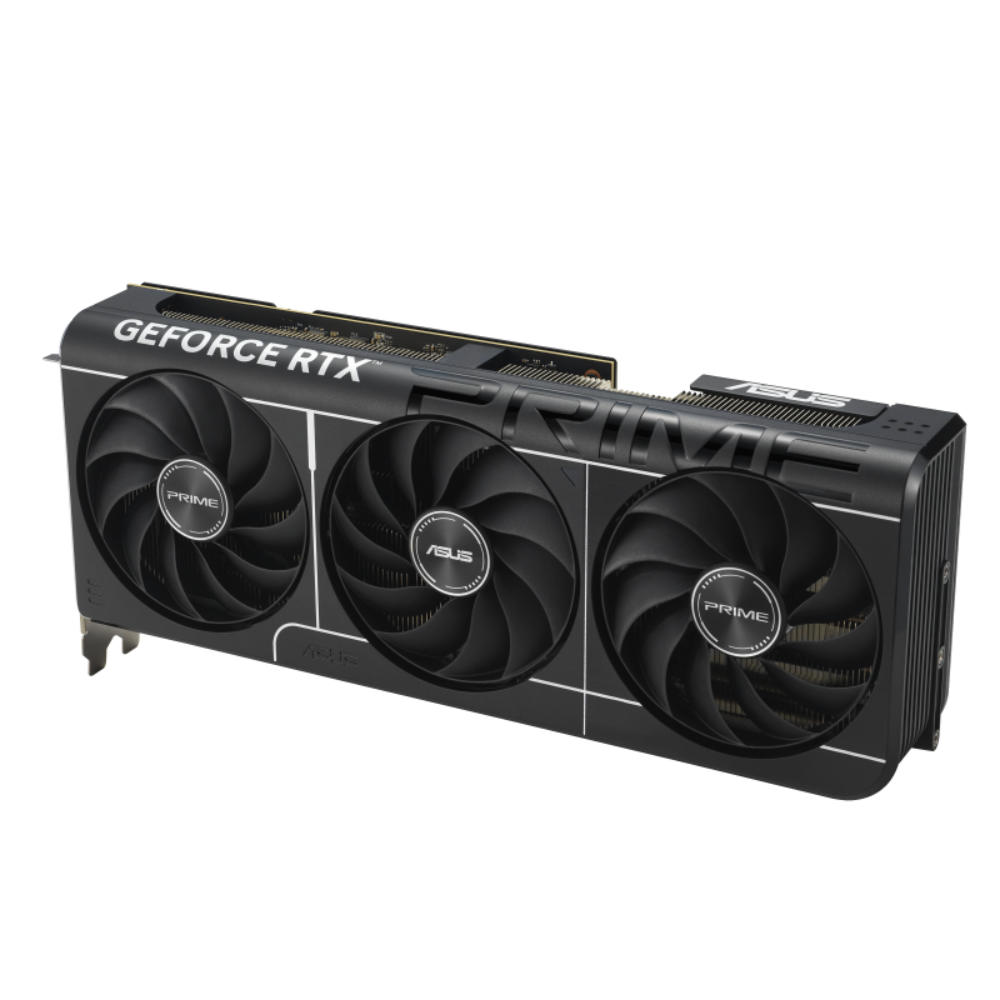

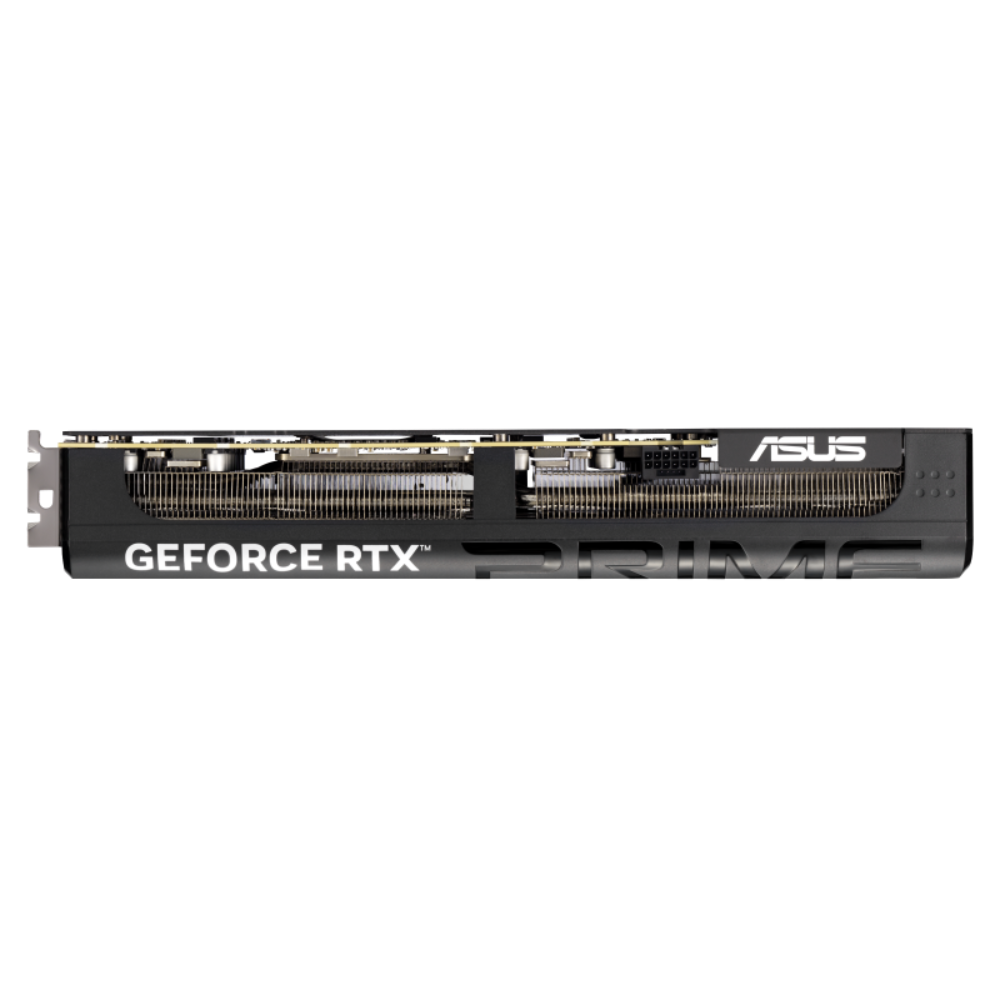

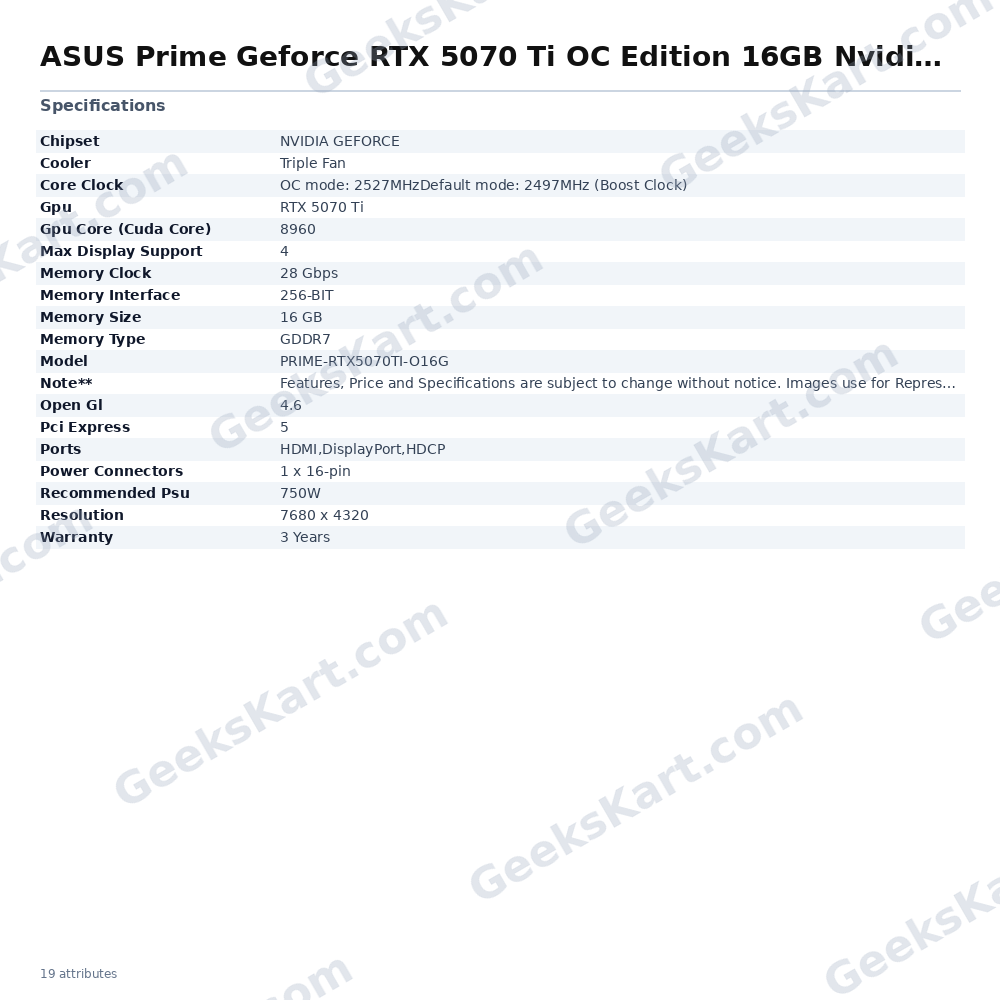

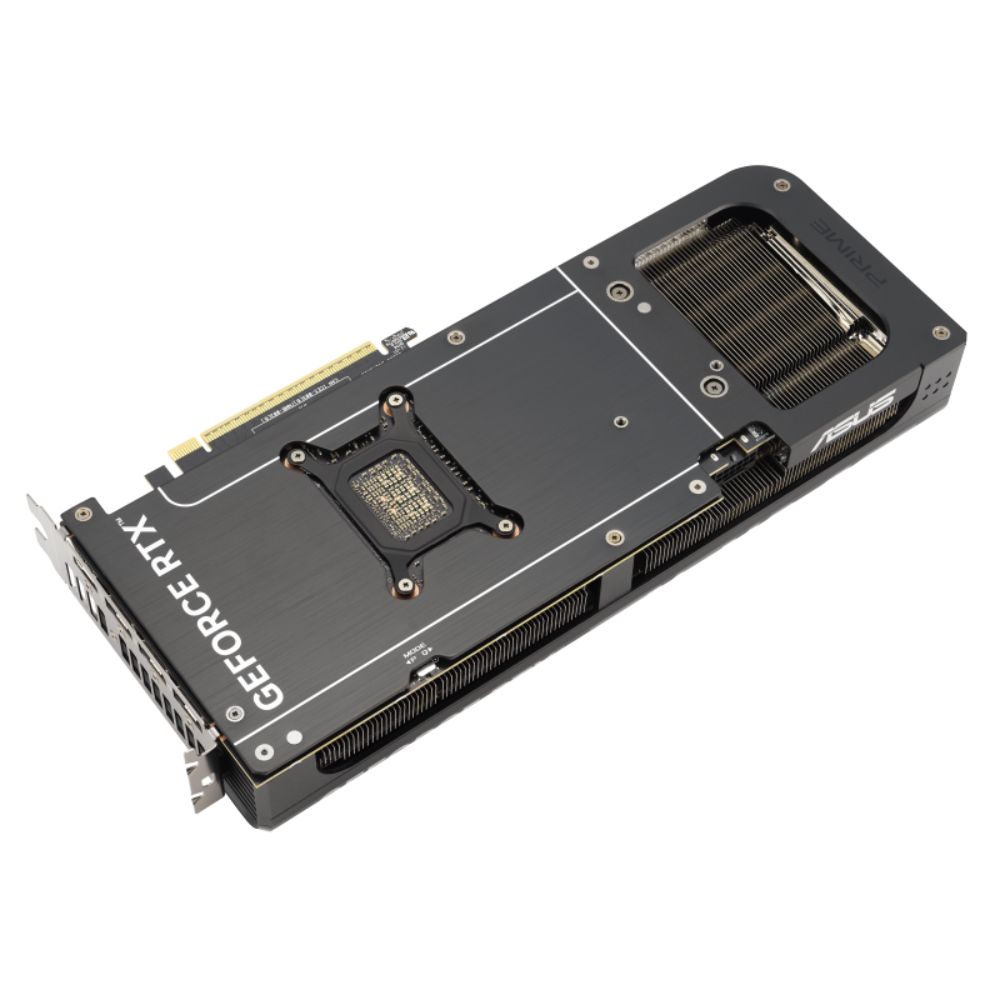

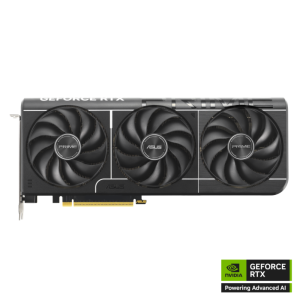

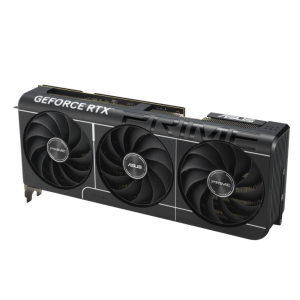

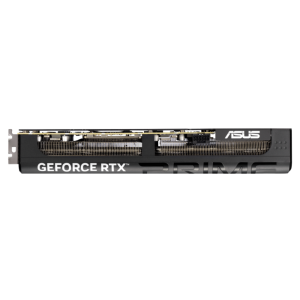

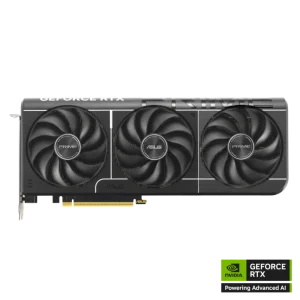

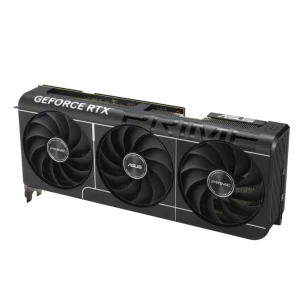

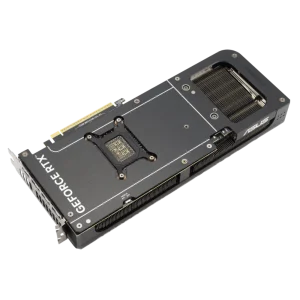

The ASUS Prime GeForce RTX 5070 Ti OC Edition (model PRIME-RTX5070TI-O16G) is a high-performance discrete graphics card built on the NVIDIA GeForce RTX 5070 Ti GPU. Designed to deliver strong performance while remaining compatible with compact chassis, it carries the SFF-Ready designation thanks to its 2.5-slot profile — a meaningful advantage for builders who want enthusiast-class power without the bulk of a full three-slot cooler. At the heart of the card is the RTX 5070 Ti silicon with 8,960 CUDA cores. The OC Edition factory overclock raises the boost clock to 2,527 MHz in OC mode, compared to the 2,497 MHz default-mode boost clock. The 16 GB GDDR7 frame buffer runs across a 256-bit memory interface at 28 Gbps, providing substantial bandwidth for high-resolution textures and complex scene data. The card connects over a PCIe 5 slot, ensuring it is ready for current and upcoming platform standards. Cooling is handled by three Axial-Tech fans whose longer blade geometry moves more air per revolution while directing it effectively across the heatsink surface. Fan bearings use a dual-ball design that ASUS specifies as offering up to twice the operational lifespan of comparable sleeve-bearing alternatives, contributing to long-term reliability. A phase-change GPU thermal pad sits between the die and the heatsink base plate to optimise heat transfer during sustained workloads. Display output is broad: the card supports up to four simultaneous displays, reaches a maximum resolution of 7,680 × 4,320 (8K), and offers HDMI, DisplayPort, and HDCP connectivity. The power delivery is handled by a single 16-pin connector, and ASUS recommends a minimum 750 W system power supply. The card also supports OpenGL 4.6. Verified Specifications: – GPU: NVIDIA GeForce RTX 5070 Ti – CUDA Cores: 8,960 – Memory: 16 GB GDDR7, 256-bit interface, 28 Gbps – Boost Clock: 2,527 MHz (OC mode) / 2,497 MHz (Default mode) – Interface: PCIe 5 – Cooler: Triple Axial-Tech fan, 2.5-slot – Ports: HDMI, DisplayPort, HDCP – Max Resolution: 7,680 × 4,320 – Max Displays: 4 – Power Connector: 1 × 16-pin – Recommended PSU: 750 W – OpenGL: 4.6 – Part Number: PRIME-RTX5070TI-O16G (90YV0MF0-M0NA00) – Warranty: 3 Years
