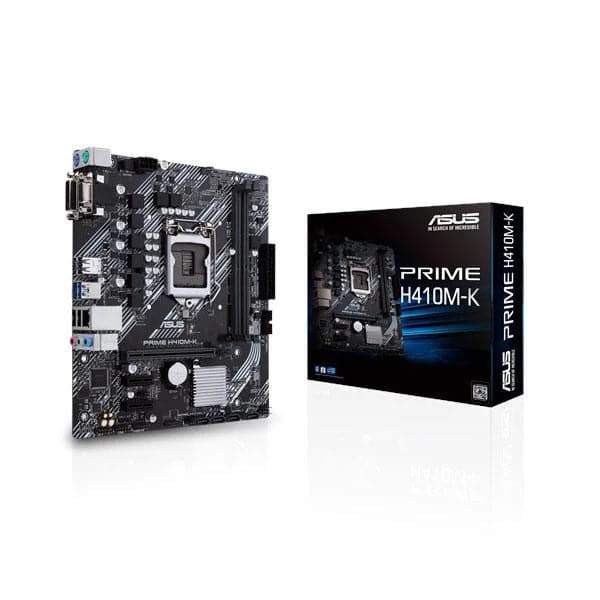

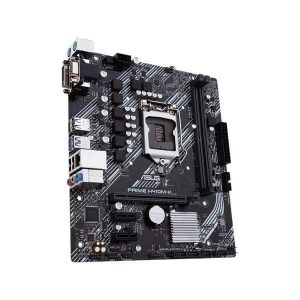

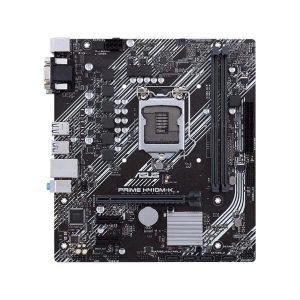

ASUS Prime H410M-K DDR4 Intel Motherboard

The ASUS Prime H410M-K is a Micro-ATX motherboard built on the Intel H410 chipset, designed to support 10th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA1200 (Socket 1200) interface. It targets daily users and DIY PC builders who need a stable, no-fuss foundation without unnecessary complexity. Memory support comes by way of two DIMM slots accommodating up to 64 GB of DDR4 unbuffered non-ECC RAM running at speeds of 2133, 2400, 2666, 2800, or 2933 MHz in dual-channel configuration. Intel Extreme Memory Profile (XMP) is supported for compatible kits. Storage connectivity includes four SATA 6 Gb/s ports sourced from the H410 chipset, giving builders ample room for SSDs and hard drives simultaneously. For expansion, the board offers one PCIe 3.0 x16 slot (running at x16 mode) driven by the processor, plus two PCIe 3.0 x1 slots from the H410 chipset. Display output relies on the CPU's integrated graphics processor via one DVI-D and one D-Sub (VGA) port on the rear panel — note that display capability depends on CPU type. Connectivity on the rear I/O includes two USB 3.2 Gen 1 Type-A ports (up to 5 Gbps), four USB 2.0 Type-A ports, one Gigabit Ethernet port (Realtek RTL8111H), one DVI-D, one D-Sub, three audio jacks, and legacy PS/2 keyboard and mouse ports. Two additional USB 3.2 Gen 1 and two USB 2.0 ports are available via internal headers for front-panel use. Audio is handled by a Realtek ALC887 codec supporting 7.1-channel High Definition Audio with up to 24-bit/192 kHz playback, audio shielding, and dedicated audio PCB layers. ASUS 5X Protection III safeguards are built in: DIGI+ VRM for precise power delivery, LANGuard for surge protection on the Ethernet port, Overvoltage Protection, SafeSlot Core for the PCIe x16 slot, and a stainless-steel back I/O shield. Cooling management is handled through one CPU fan header and one chassis fan header, both configurable via ASUS Fan Xpert software or the UEFI BIOS. The BIOS is a 128 Mb Flash ROM running UEFI AMI firmware with EZ Mode for quick setup, CrashFree BIOS 3 for recovery, and EZ Flash 3 for convenient updates. The board ships with an I/O shield, two SATA 6 Gb/s cables, a support DVD, and a user manual. Officially certified for Windows 10 64-bit. Verifiable Specifications: - Form Factor: Micro-ATX, 22.6 cm x 20.3 cm (8.9 in x 7.9 in) - Socket: Intel LGA1200 (Socket 1200) - Chipset: Intel H410 - Memory: 2x DIMM, Max 64 GB, DDR4 2933/2800/2666/2400/2133 MHz, Non-ECC Unbuffered, Dual Channel, XMP supported - Expansion: 1x PCIe 3.0 x16, 2x PCIe 3.0 x1 - Storage: 4x SATA 6 Gb/s - LAN: Realtek RTL8111H Gigabit Ethernet - Audio: Realtek ALC887, 7.1-channel HD Audio, up to 24-bit/192 kHz - Rear USB: 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A - Display Output: 1x DVI-D, 1x D-Sub (integrated graphics, CPU-dependent) - BIOS: 128 Mb Flash ROM, UEFI AMI - OS Support: Windows 10 64-bit - Warranty: 3 Years
