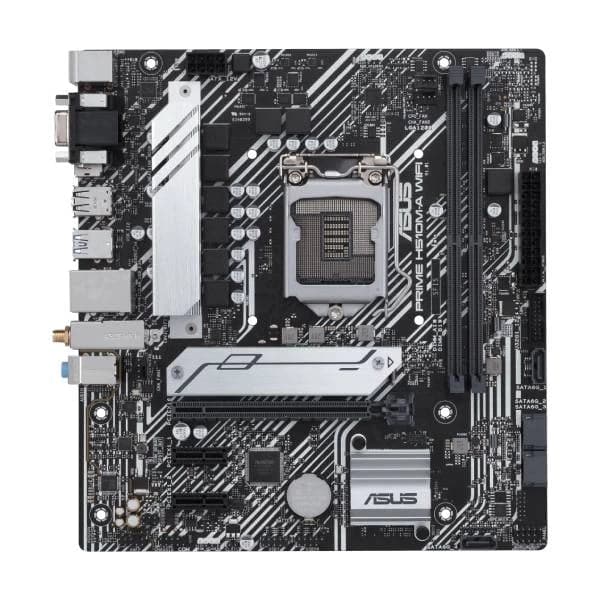

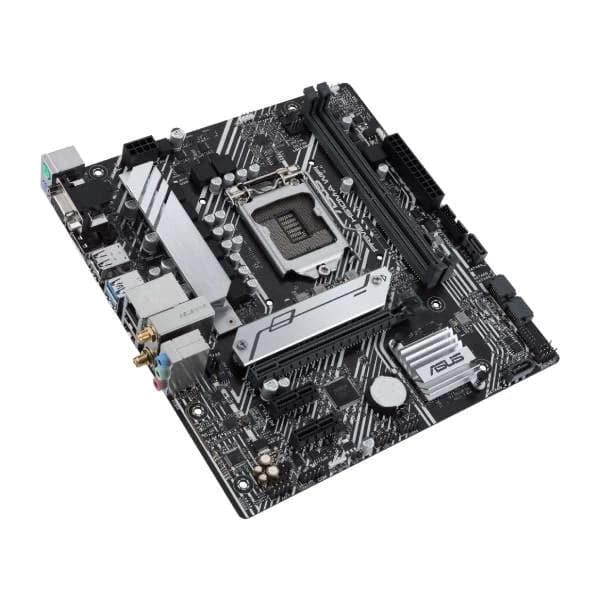

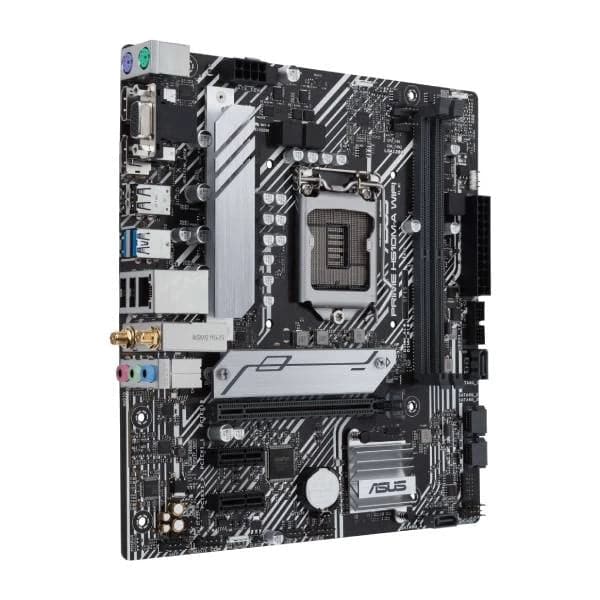

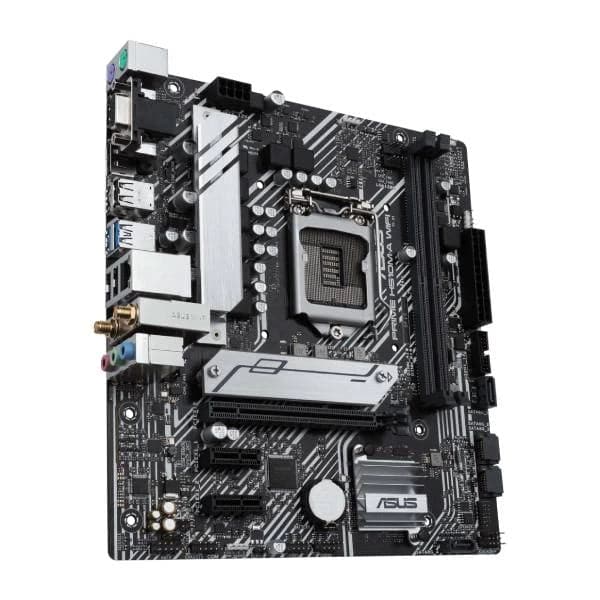

The ASUS Prime H510M-A WiFi is a microATX motherboard built on Intel’s H510 chipset, designed to support both 10th and 11th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA1200 socket. Whether you are assembling a productivity workstation or a compact everyday PC, this board delivers a well-rounded feature set at its form factor. Memory support spans up to 64 GB of DDR4 RAM across two DIMM slots in a dual-channel configuration, with speeds reaching DDR4 3200 MHz in overclocked mode and native support for Intel Extreme Memory Profile (XMP). Connectivity is a strong point: the board features an Intel Wi-Fi 5 (802.11 a/b/g/n/ac) module powered by the Intel 9462NGW adapter, covering both 2.4 GHz and 5 GHz bands, alongside Bluetooth 5.1 and a wired Intel I219-V Gigabit Ethernet controller. For storage, there is one M.2 Key-M slot supporting PCIe 3.0 x4 and SATA modes in 2242/2260/2280 form factors, paired with four SATA 6 Gb/s ports. Note that when a SATA-mode device occupies the M.2 slot, the SATA6G_2 port becomes unavailable. Graphics output is handled by three rear display connectors: DisplayPort 1.4, HDMI (1.4 on 10th Gen, 2.0 on 11th Gen), and a D-Sub port. Expansion is covered by one PCIe x16 slot (PCIe 4.0 with 11th Gen CPUs; PCIe 3.0 with 10th Gen) and two PCIe 3.0 x1 slots. USB connectivity includes six rear ports (two USB 3.2 Gen 1 Type-A and four USB 2.0 Type-A) plus internal headers supporting an additional five front-panel USB ports. AURA Sync RGB lighting is supported via two addressable Gen 2 headers and two standard RGB headers, manageable through Armoury Crate software. Audio is provided by a Realtek ALC897/887 codec delivering 7.1 surround sound with up to 24-bit/192 kHz playback, backed by dedicated audio PCB layers and Japanese audio capacitors. Protection features under ASUS 5X Protection III include DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core reinforcement, and a stainless-steel rear I/O shield. Thermal management is aided by an M.2 heatsink and VRM heatsink, while Fan Xpert 2+ software provides granular fan curve control. Verified Specifications: – Socket: Intel LGA1200 – Chipset: Intel H510 – CPU Support: 10th and 11th Gen Intel Core, Pentium Gold, Celeron (14 nm) – Memory: 2x DDR4 DIMM, max 64 GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz, dual-channel, XMP support – Storage: 1x M.2 (PCIe 3.0 x4 / SATA, 2242/2260/2280), 4x SATA 6 Gb/s – PCIe: 1x PCIe 4.0/3.0 x16, 2x PCIe 3.0 x1 – Wireless: Intel Wi-Fi 5 (802.11ac), 2.4/5 GHz, Bluetooth 5.1 – Ethernet: Intel I219-V 1 Gb – Display Output: 1x DisplayPort 1.4, 1x HDMI 1.4/2.0, 1x D-Sub – USB Rear: 2x USB 3.2 Gen 1, 4x USB 2.0 – Audio: Realtek ALC897/887, 7.1 surround, 24-bit/192 kHz – Form Factor: microATX, 22.6 cm x 21.1 cm – BIOS: 128 Mb Flash ROM, UEFI AMI – OS Support: Windows 10 64-bit – Warranty: 3 Years
ASUS Prime H510M-A Wifi DDR4 Intel Motherboard
₹10,445.00
The ASUS Prime H510M-A WiFi is a microATX LGA1200 motherboard supporting 10th and 11th Gen Intel processors, featuring PCIe 4.0, DDR4 up to 64 GB, Intel Wi-Fi 5 with Bluetooth 5.1, Aura Sync RGB, and ASUS 5X Protection III
Out of stock

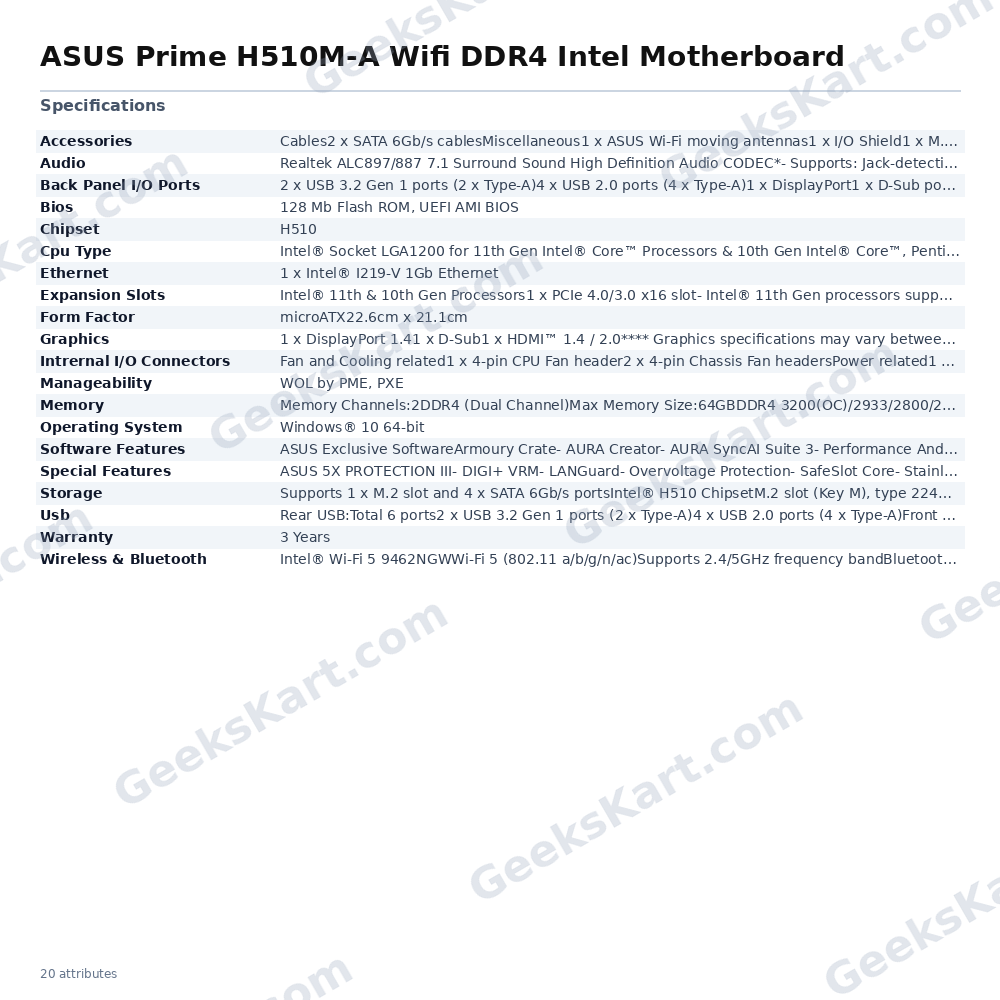

Additional information
| Usb | Rear USB:Total 6 ports2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB:Total 5 ports1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 3 USB 2.0 ports |
|---|---|
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium Japanese audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Memory | Memory Channels:2DDR4 (Dual Channel)Max Memory Size:64GBDDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.* Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types |
| Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s portsIntel® H510 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s ports* The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used |
| Ethernet | 1 x Intel® I219-V 1Gb Ethernet |
| Graphics | 1 x DisplayPort 1.41 x D-Sub1 x HDMI™ 1.4 / 2.0**** Graphics specifications may vary between CPU types.** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to http://www.intel.com for any update.*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to http://www.intel.com for any updates |

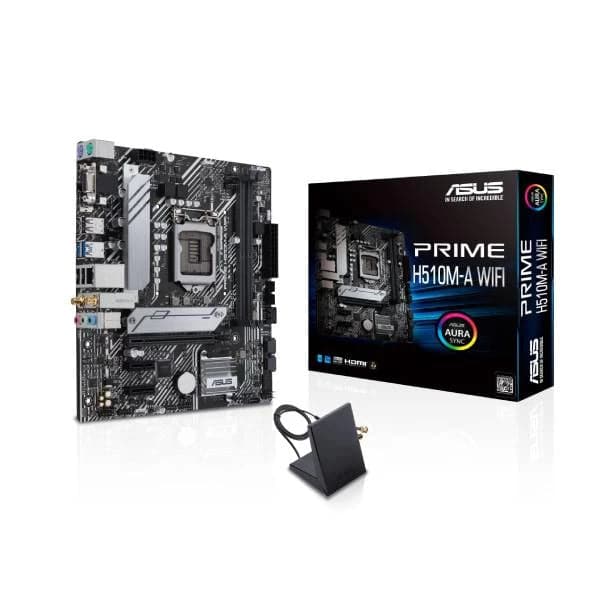

| Accessories | Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS Wi-Fi moving antennas1 x I/O Shield1 x M.2 Rubber Package1 x M.2 SSD screw packageInstallation Media1 x Support DVDDocumentation1 x User manual |
| Manageability | WOL by PME, PXE |
| Expansion Slots | Intel® 11th & 10th Gen Processors1 x PCIe 4.0/3.0 x16 slot- Intel® 11th Gen processors support PCIe 4.0 x16- Intel® 10th Gen processors support PCIe 3.0 x16Intel® H510 Chipset2 x PCIe 3.0 x1 slots |
| Operating System | Windows® 10 64-bit |
| Special Features | ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designAURA Sync- AURA RGB headers- Addressable Gen 2 RGB headers |
| Software Features | ASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDIGI+ VRMFan Xpert 2+- EZ updateASUS CPU-ZAI ChargerDAEMON ToolsMyAsusNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode |

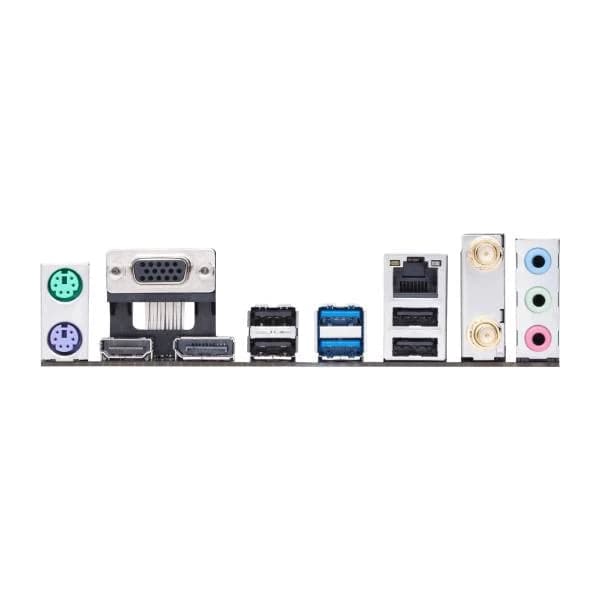

| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x D-Sub port1 x HDMI™ port1 x ASUS Wi-Fi Module1 x Intel® I219-V 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard (purple) port1 x PS/2 Mouse (green) port |
| Wireless & Bluetooth | Intel® Wi-Fi 5 9462NGWWi-Fi 5 (802.11 a/b/g/n/ac)Supports 2.4/5GHz frequency bandBluetooth v5.1 |
| Intrernal I/O Connectors | Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related1 x M.2 slot (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 3 USB 2.0 portsMiscellaneous2 x AURA Addressable Gen 2 headers2 x AURA RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header |
| Warranty | 3 Years |
| Chipset | H510 |
| CPU Type | |
| Form Factor | microATX22.6cm x 21.1cm |
