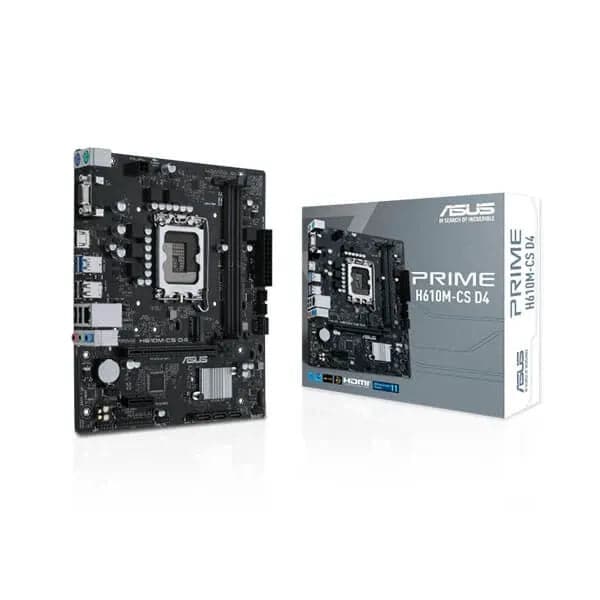

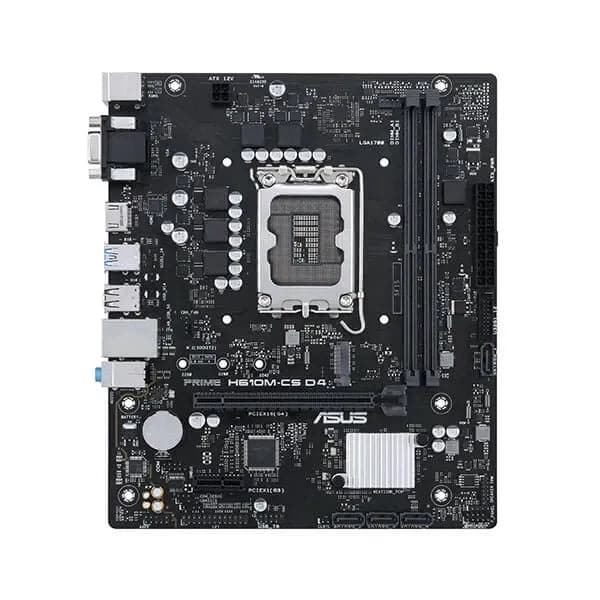

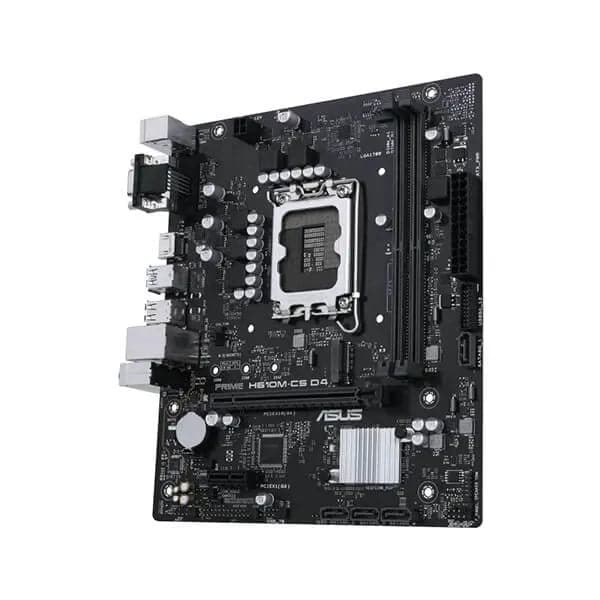

ASUS Prime H610M-CS DDR4 Intel Motherboard

The ASUS Prime H610M-CS DDR4 is a Micro ATX motherboard built on the Intel H610 chipset and designed for Intel LGA1700-socket processors, supporting both 12th Generation and 13th Generation Intel Core CPUs. It is a practical, feature-complete platform for home, office, and entry-level desktop builds that demand reliable daily performance without unnecessary complexity. Memory support extends to two DDR4 DIMM slots in dual-channel configuration, accommodating speeds of DDR4 2133 / 2400 / 2666 / 2933 / 3000 / 3200 MHz and a maximum capacity of 64 GB. Storage connectivity includes four SATA 6 Gb/s ports and an M.2 slot capable of 32 Gbps throughput for NVMe solid-state drives. The rear I/O panel provides three display outputs — one D-Sub, one HDMI, and one DisplayPort — making it straightforward to drive a monitor using Intel processor graphics without a discrete GPU. USB connectivity on the rear panel includes two USB 3.2 Gen 2 Type-A ports and four USB 2.0 Type-A ports. Audio output comes through three 3.5 mm jacks backed by a Realtek High Definition Audio CODEC with 7.1 surround support. ASUS includes its 5X Protection III hardware safeguards suite, which covers surge protection and component longevity measures. A luminous anti-moisture coating helps protect key circuit areas from humidity-related degradation. Power delivery is handled via a standard 24-pin ATX main connector plus an 8-pin ATX 12 V connector. The Digi+ VRM provides digital voltage regulation for CPU stability, while the EPU (Energy Processing Unit) function enables automatic power-saving optimisation. Verifiable Specifications: - Form Factor: Micro ATX (244 mm × 211 mm / 9.6 in × 8.3 in) - Socket: Intel LGA1700 - Chipset: Intel H610 - CPU Compatibility: Intel 12th Gen & 13th Gen Core processors - Memory: 2 × DDR4 DIMM, dual channel, up to 64 GB, DDR4-2133 to DDR4-3200 - Storage: 4 × SATA 6 Gb/s; 1 × M.2 (32 Gbps) - Expansion: PCIe 4.0 x16; PCIe 3.0 x1 slots - Rear USB: 2 × USB 3.2 Gen 2 Type-A; 4 × USB 2.0 Type-A - Display Outputs: 1 × D-Sub, 1 × HDMI, 1 × DisplayPort - Audio: Realtek 7.1 HD Audio CODEC; 3 × audio jacks - LAN: Realtek 1 Gb Ethernet with LANGuard - Power: 24-pin ATX + 8-pin ATX 12 V
