Asus Prime H610M-E D4-CSM M-ATX Motherboard
MPN PRIME-H610M-E-D4-CSM · Brand ASUS · mATX
ASUS Prime H610M-E D4-CSM is a Micro-ATX motherboard for Intel LGA1700 CPUs (12th–14th Gen) featuring DDR4 up to 64 GB, dual M.2 slots, PCIe 4.0 x16, triple display output, and ASUS 5X Protection III — ideal for office and CSM deployments
Inclusive of GST · GST invoice available
Overview
The ASUS Prime H610M-E D4-CSM is a Micro-ATX motherboard built on Intel's H610 chipset, designed for the LGA1700 socket and compatible with Intel Core 12th, 13th, and 14th Generation processors, as well as Pentium Gold and Celeron series CPUs. It provides a solid foundation for everyday computing, entry-level workstation builds, and small-form-factor office systems that benefit from a compact mATX footprint of 9.6 x 8.3 inches (24.4 cm x 21.1 cm). The board accommodates two DDR4 DIMM slots supporting up to 64 GB of non-ECC, unbuffered memory at speeds ranging from 2133 MHz up to 3200 MHz, with dual-channel architecture and Intel XMP support for compatible kits. Storage is handled via two M.2 Key-M slots — M.2_1 running at PCIe 3.0 x4 and M.2_2 at PCIe 3.0 x2 — plus four SATA 6 Gb/s ports, giving builders flexibility to combine fast NVMe storage with traditional drives. The primary expansion slot is a PCIe 4.0 x16 slot for discrete graphics, supplemented by a PCIe 3.0 x1 slot from the H610 chipset. Display output options on the rear panel include DisplayPort 1.4 (up to 4K@60Hz), HDMI 2.1 (up to 4K@60Hz), and a legacy D-Sub port, making it suitable for multi-monitor setups using integrated graphics. Connectivity is rounded out by Realtek 1 Gb Ethernet, four rear USB ports (two USB 3.2 Gen 1 Type-A and two USB 2.0), and internal headers for an additional two USB 3.2 Gen 1 and four USB 2.0 ports. Audio is managed by a Realtek 7.1 Surround Sound HD codec supporting up to 24-bit/192 kHz playback, with audio shielding and dedicated audio PCB layers. ASUS 5X Protection III hardware safeguards include DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core reinforced PCIe slot, and a stainless-steel back I/O panel. The board ships with Fan Xpert 2+ fan control, an RGB header for lighting customisation, a COM port header for legacy industrial or POS applications, and an SPI TPM header. IT management is supported via ASUS Control Center Express (ACCE), Wake- LAN (WOL by PME), and PXE network boot — features particularly relevant for CSM (Commercial Spec Motherboard) deployments. The UEFI AMI BIOS (128 Mb Flash ROM) includes CrashFree BIOS 3 and EZ Flash 3 for safe firmware updates. Verified Specifications: - Socket: Intel LGA1700 - Chipset: Intel H610 - Form Factor: Micro-ATX (24.4 cm x 21.1 cm) - Memory: 2 x DDR4 DIMM, max 64 GB, up to 3200 MHz, dual-channel, XMP - PCIe: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 - M.2: 2 x Key-M slots (PCIe 3.0 x4 + PCIe 3.0 x2), type 2242/2260/2280 - SATA: 4 x SATA 6 Gb/s - Display: 1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x D-Sub - Ethernet: Realtek 1 Gb - Rear USB: 2 x USB 3.2 Gen 1 + 2 x USB 2.0 - Audio: Realtek 7.1 HD, up to 24-bit/192 kHz - Warranty: 3 Years - OS Support: Windows 11 64-bit, Windows 10 64-bit

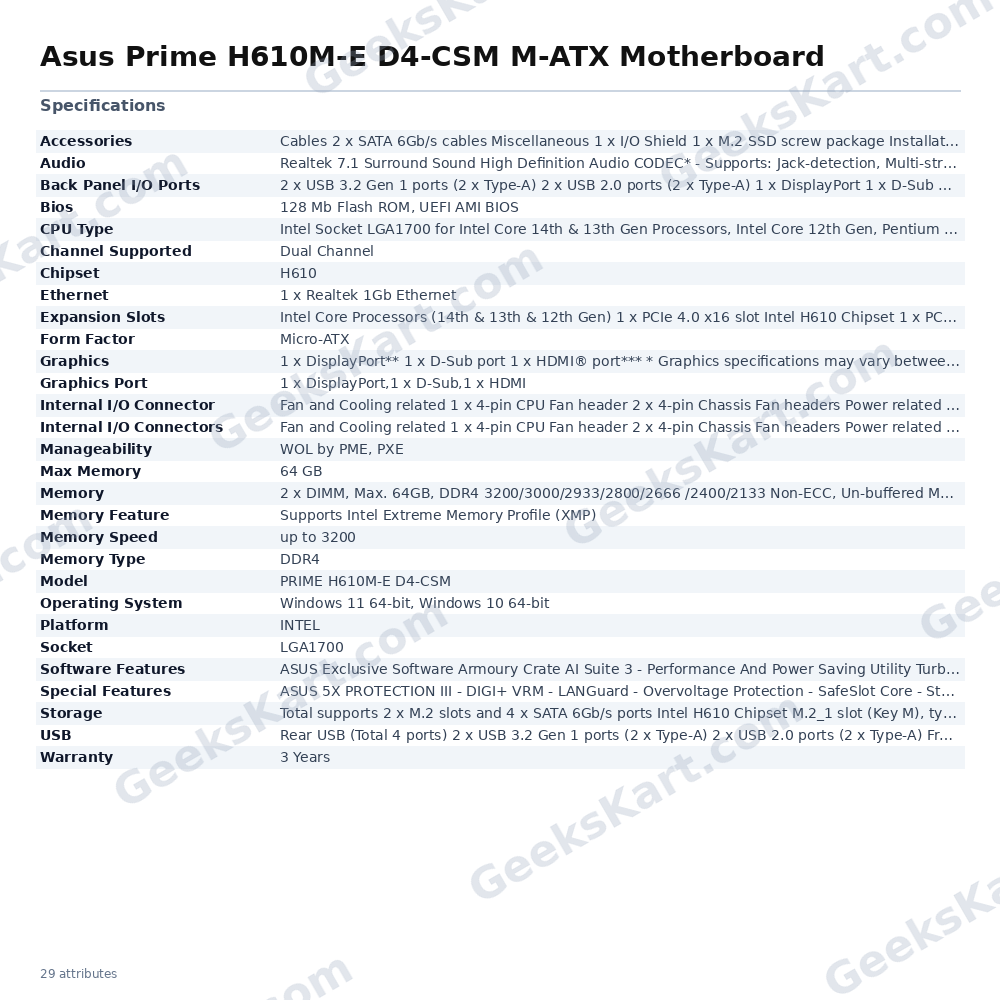

Datasheet
| Memory Type | DDR4 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | H610 |
| Socket | LGA1700 |
| CPU Type | |
| Max Memory | 64 GB |
| Memory Speed | up to 3200 |
| USB | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Model | PRIME H610M-E D4-CSM |
| Memory | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666 /2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| Graphics | 1 x DisplayPort** 1 x D-Sub port 1 x HDMI® port*** * Graphics specifications may vary between CPU types ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1 |
| Platform | INTEL |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Graphics Port | 1 x DisplayPort,1 x D-Sub,1 x HDMI |
| Manageability | WOL by PME, PXE |
| Memory Feature | Supports Intel Extreme Memory Profile (XMP) |
| Expansion Slots | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – Aluminum heatsink design ASUS Lighting Control – RGB header |
| Channel Supported | Dual Channel |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ ASUS CPU-Z IT Management software supported – ASUS Control Center Express(ACCE) Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Internal I/O Connector | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
