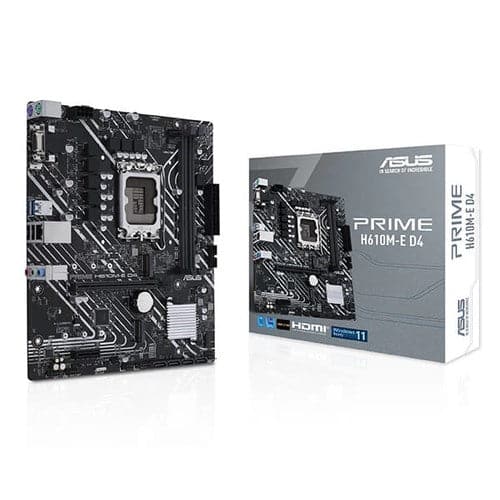

ASUS Prime H610M-E DDR4 Intel Motherboard

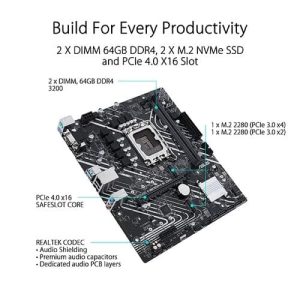

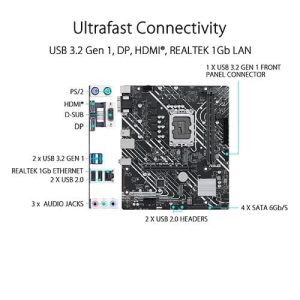

The ASUS Prime H610M-E DDR4 is a Micro-ATX motherboard built around Intel's H610 chipset and the LGA1700 socket, making it fully compatible with 12th Generation Intel Core, Pentium Gold, and Celeron processors. Designed with the PC builder in mind, it balances essential connectivity with ASUS's signature reliability features, delivering a solid foundation for home, office, and entry-level productivity builds. Memory support extends to two DIMM slots capable of holding up to 64 GB of DDR4 RAM, with speeds ranging from 2133 MHz up to 3200 MHz. The board supports dual-channel memory architecture and is compatible with Intel Extreme Memory Profile (XMP) for straightforward performance tuning. Storage flexibility is a highlight: two M.2 Key-M slots support drives in 2242, 2260, and 2280 form factors. The primary M.2_1 slot operates via PCIe 3.0 x4, while the secondary M.2_2 slot uses PCIe 3.0 x2, together enabling fast NVMe SSD installations. An additional four SATA 6 Gb/s ports accommodate traditional hard drives and SSDs. For discrete graphics, a single PCIe 4.0 x16 slot is provided, alongside a PCIe 3.0 x1 slot for expansion cards. Display outputs on the rear panel include one DisplayPort 1.4 (supporting up to 4K@60Hz), one HDMI 2.1 port (4K@60Hz), and one D-Sub port for legacy monitors, enabling multi-display configurations when using a processor with integrated graphics. Connectivity is handled by a Realtek 1 Gb Ethernet port, and the rear panel carries two USB 3.2 Gen 1 Type-A ports and two USB 2.0 Type-A ports. Internal headers expand this further, adding two more USB 3.2 Gen 1 ports and four USB 2.0 ports via front-panel connectors. Legacy PS/2 keyboard and mouse ports are also present. Audio is powered by a Realtek High Definition Audio CODEC delivering 7.1 surround sound with support for 24-bit/192 kHz playback. Audio shielding, dedicated audio PCB layers, and premium capacitors collectively reduce signal interference. Three audio jacks are available on the rear panel. The board's ASUS 5X Protection III suite includes DIGI+ VRM for precise digital voltage regulation, LANGuard for surge protection on the Ethernet port, SafeSlot Core for a reinforced PCIe slot, overvoltage protection, and a stainless-steel back I/O panel. Fan management is handled by Fan Xpert 2+ software, with one 4-pin CPU fan header and two 4-pin chassis fan headers onboard. The UEFI AMI BIOS (128 Mb Flash ROM) includes ASUS EZ DIY tools such as CrashFree BIOS 3 and EZ Flash 3 for easy firmware management. An RGB header and Armoury Crate software are included for basic lighting control. Verified Specifications: - Form Factor: mATX (9.6 in x 8.3 in / 24.4 cm x 21.1 cm) - Socket: Intel LGA1700 - Chipset: Intel H610 - Memory: 2x DIMM, max 64 GB, DDR4 2133–3200 MHz, Non-ECC Unbuffered, Dual Channel - Storage: 2x M.2 (PCIe 3.0 x4 / x2), 4x SATA 6 Gb/s - Expansion: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 - Display Out: 1x DisplayPort 1.4, 1x HDMI 2.1, 1x D-Sub - USB Rear: 2x USB 3.2 Gen 1, 2x USB 2.0 (all Type-A) - Ethernet: Realtek 1 Gb - Audio: Realtek 7.1 HD, 24-bit/192 kHz - BIOS: 128 Mb Flash ROM, UEFI AMI - OS Support: Windows 11 64-bit, Windows 10 64-bit - Warranty: 3 Years
