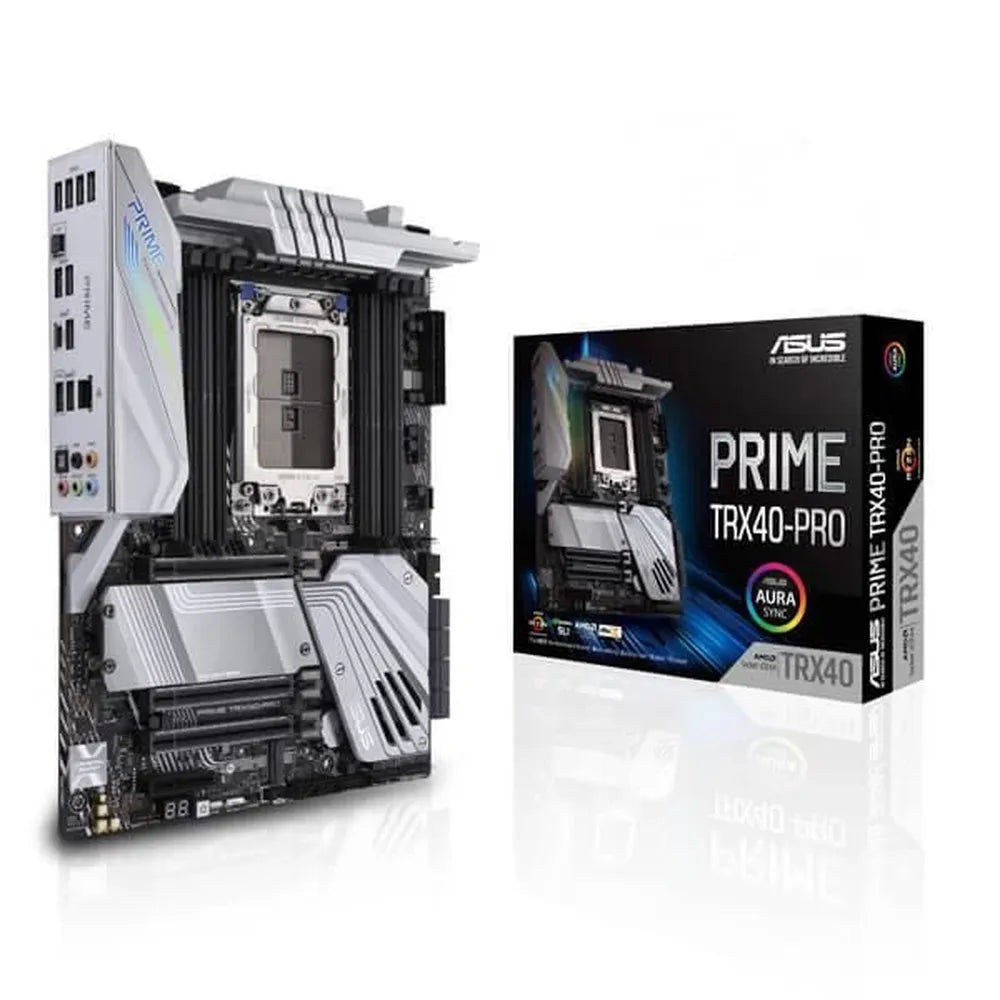

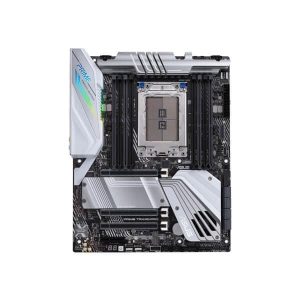

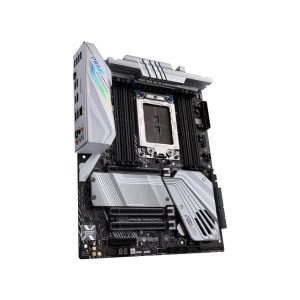

ASUS Prime TRX40-Pro DDR4 AMD Motherboard
MPN ASUS-PRIME-TRX40-PRO · Brand ASUS
The ASUS Prime TRX40-Pro is an AMD sTRX4 HEDT motherboard featuring a 16-stage power design, triple PCIe 4.0 M.2 slots, eight DDR4 DIMM slots supporting up to 256 GB, and comprehensive thermal solutions for 3rd Gen Ryzen Threadripper processors
Inclusive of GST · GST invoice available
Overview
The ASUS Prime TRX40-Pro is a high-end desktop (HEDT) motherboard built around the AMD TRX40 chipset and AMD Socket sTRX4, designed specifically for 3rd Gen AMD Ryzen Threadripper series desktop processors. It is aimed at content creators, 3D artists, CAD professionals, and video editors who need a stable, powerful foundation for demanding multi-core workloads. At the heart of its power delivery are 16 Infineon TDA21462 power stages paired with ProCool II connectors featuring solid pins, premium chokes, and high-quality capacitors. Two 8-pin ATX 12V connectors feed the CPU, supporting processors with up to 280W TDP and up to 32 cores. Memory capacity is handled by eight DIMM slots supporting up to 256 GB of unbuffered DDR4 memory in a quad-channel configuration, with speeds up to DDR4 3200 MHz and ECC support for workstation-grade reliability. Storage is a standout strength: three PCIe 4.0 x4 M.2 slots (two via CPU, one via chipset) support drives up to 110 mm in length, and all three are compatible with RAID configurations for accelerated data throughput. Eight SATA 6Gb/s ports with RAID 0, 1, and 10 support round out the storage options. Expansion is equally capable, with three PCIe 4.0 x16 slots from the CPU (configurable at x16/x16/x16) and one PCIe 4.0 x4 slot from the chipset, enabling Quad-GPU SLI or CrossFireX configurations. Connectivity includes an Intel I211-AT Gigabit Ethernet controller with ASUS Turbo LAN and LAN Guard software. USB ports include four USB 3.2 Gen 2 ports at the rear (3x Type-A, 1x Type-C), six USB 3.2 Gen 1 ports at the rear, and additional headers internally. A USB 3.2 Gen 2 front-panel Type-C header is also provided. Audio is handled by the Realtek ALC S1220 8-channel HD Audio CODEC with Crystal Sound 3, offering 120 dB SNR line-out, dedicated audio PCB layers, audio shielding, and DTS X Ultra support. Thermal management includes a VRM heatsink, M.2 heatsink, SoC VRM heatsink, and an active chipset heatsink, complemented by multiple 4-pin hybrid fan headers controllable via Fan Xpert 4. ASUS Aura Sync RGB lighting with two RGB strip headers and two Addressable Gen 2 headers allow full ecosystem lighting coordination. Verified Specifications: - Socket: AMD sTRX4 - Chipset: AMD TRX40 - Memory: 8x DIMM, Max 256 GB, DDR4 3200/2933/2800/2666/2400/2133 MHz, ECC and non-ECC unbuffered - Expansion: 3x PCIe 4.0 x16 (CPU), 1x PCIe 4.0 x4 (chipset) - Storage: 3x PCIe 4.0 x4 M.2 (up to 22110), 8x SATA 6Gb/s, RAID 0/1/10 - LAN: Intel I211-AT Gigabit Ethernet - Audio: Realtek ALC S1220, 8-channel, 120 dB SNR - Rear USB: 4x USB 3.2 Gen 2 (3x Type-A, 1x Type-C), 6x USB 3.2 Gen 1 - Power: 24-pin EATX + 2x 8-pin ATX 12V - BIOS: 128 Mb Flash ROM, UEFI AMI, USB BIOS FlashBack - Warranty: 3 Years
Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Build in AMD TRX40 |
| CPU Type | AMD Socket sTRX4 for 3rd Gen AMD RyzenTM ThreadripperTM Series Desktop Processors |
| Lan | Intel® I211-AT ASUS Turbo LAN Utility ASUS LAN Guard |
| Bios | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Audio | Realtek® ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in) Audio Feature DTS X®:Ultra Optical S/PDIF out port(s) at back panel Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
| Memory | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors 8 x DIMM, Max. 256GB, DDR4 3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory |
| Storage | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) AMD TRX40 chipset : 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| USB Ports | AMD Ryzen™ Threadripper™ Processors :4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A 1 x Type-C) AMD TRX40 chipset :1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board) AMD TRX40 chipset :6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board) AMD TRX40 chipset :2 x USB 2.0 port(s) (2 at mid-board) ASMedia® USB 3.2 Gen 1 controller :4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A) GL852G USB Hub :2 x USB 2.0 port(s) (2 at mid-board) |
| Accessories | User's manual 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x Q-Connector 1 x Extension Cable for RGB strips (40 cm) 1 x Extension cable for Addressable LED 1 x CPU Fan Holder |
| Manageability | WfM 2.0, WOL by PME, PXE |
| Back I/O Ports | 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A 1 x Type-C) (one port can be switched to USB BIOS FlashBack™) 6 x USB 3.2 Gen 1 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS FlashBack™ Button(s) |
| Expansion Slots | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors 3 x PCIe 4.0 x16 (x16/x16/x16) AMD TRX40 chipset 1 x PCIe 4.0 (x4 mode) |
| Operating System | Windows® 10 64-bit |
| Special Features | ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI VRM, Fan Expert 4, and Turbo AppASUS SafeSlot – Protect your graphics card Investment AURA Aura RGB Strip Headers Aura Lighting Effects Synchronization with compatible ASUS ROG devices Addressable Gen 2 Header ASUS Exclusive Features AI Suite 3 Ai Charger Onboard Button : Power ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface Turbo LAN Crystal Sound 3 Armoury Crate Pre-mounted I/O Shield ASUS Quiet Thermal Solution Stylish Design Heat-pipe solution Stylish Fanless Design with M.2 Heat-sink solution ASUS Fan Xpert 4 ASUS EZ DIY ASUS EZ Flash 3 ASUS USB BIOS FlashBack ASUS UEFI BIOS EZ Mode Multi-language BIOS ASUS Q-Design ASUS Q-Code ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) ASUS Q-Slot ASUS Q-DIMM ASUS Q-Connector |
| Multi-Gpu Support | Supports NVIDIA® Quad-GPU SLI® Technology Supports NVIDIA® 2-Way SLI® Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 2-Way CrossFireX Technology |
| Internal I/O Ports | 1 x Q_Code 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 with E key for Wi-Fi module 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) x With flexkey function 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x USB 3.2 Gen 2 front panel connector |
