ASUS Prime X299-A DDR4 Intel Motherboard
MPN ASUS-PRIME-X299-A · Brand ASUS · ATX

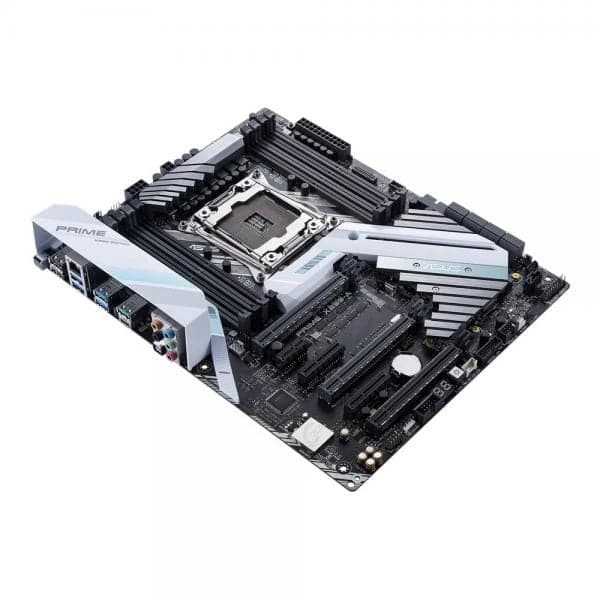

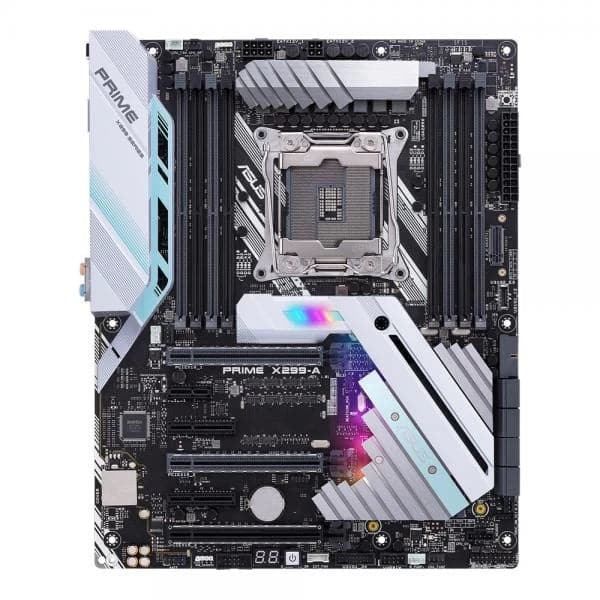

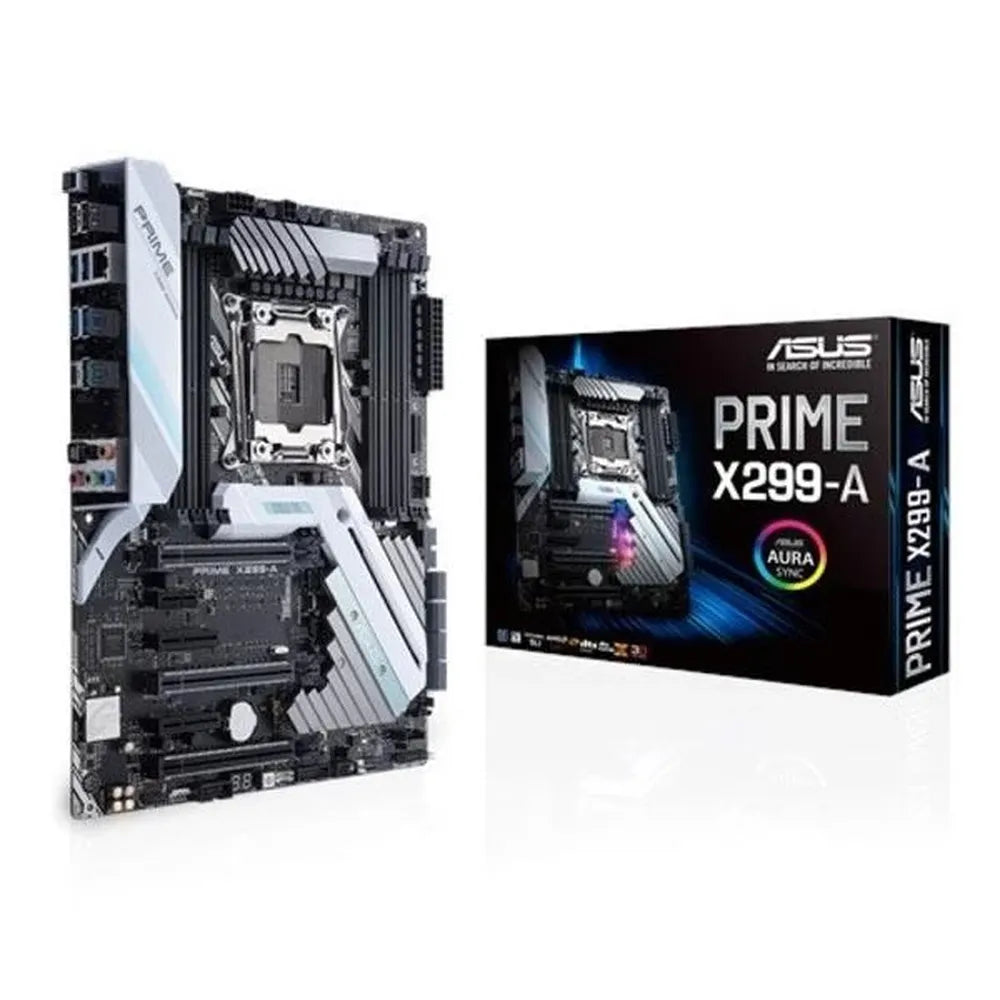

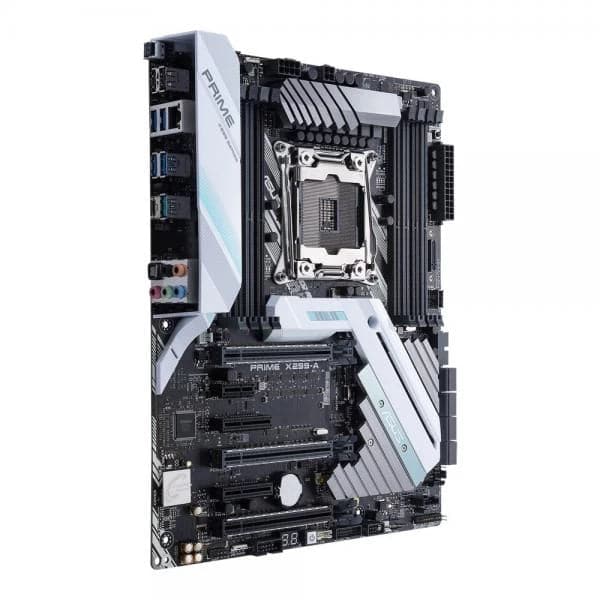

The ASUS Prime X299-A is an ATX motherboard featuring the Intel X299 chipset, LGA 2066 socket, dual M.2 with heatsink, 5-Way Optimization, and Aura Sync RGB — built for Intel Core X-Series processors
Inclusive of GST · GST invoice available
Overview
The ASUS Prime X299-A is an ATX form-factor motherboard built on the Intel X299 chipset, designed to pair with Intel Core X-Series processors via the LGA 2066 (Socket 2066) interface. Whether you are a content creator, video editor, or a power user running heavily threaded workloads, this board offers a platform engineered around flexibility, cooling performance, and connectivity. The 5-Way Optimization system combines TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core tuning into a single-click process, allowing both novice and experienced builders to dial in performance without manual intervention. Fan Xpert 4 provides per-header control over fans and water pumps, with each header configurable to respond to up to three user-defined thermal sensors — a practical advantage for thermally demanding tasks. Storage is a clear strength. Two M.2 slots are onboard: one supports SATA and PCIe 3.0 x4 (2242/2260/2280 form factors), while the second supports PCIe 3.0 x4 exclusively with lengths up to 22110. Both run at up to 32 Gb/s. An M.2 heatsink is included to help manage SSD thermals, with source data noting up to 20°C reduction in M.2 SSD temperatures. Eight SATA 6 Gb/s ports round out storage, with RAID 0, 1, 5, and 10 support. Intel Optane Memory is also supported. For audio, the Realtek S1220A 8-channel HD audio codec is featured, with dedicated left/right PCB layers, an EMI shield, Japanese-made audio capacitors, DTS Connect, and DTS Headphone:X support. Networking is handled by a single Intel I219V Gigabit LAN controller backed by ASUS LAN Guard and Turbo LAN utility. USB connectivity includes USB 3.1 Gen 2 at the back panel (one Type-A and one Type-C) via ASMedia controller, four USB 3.1 Gen 1 at the back panel, two USB 2.0 back-panel ports, and additional mid-board headers. A front-panel USB 3.1 Gen 2 header is also present. Aura Sync RGB lighting with two onboard strip headers enables ecosystem-wide lighting coordination. The board also includes a Thunderbolt header and an onboard power button for open-bench use. Verified Specifications: - Socket: Intel LGA 2066 (Socket 2066) - Chipset: Intel X299 - Memory: Up to 8 x DIMM slots, max 128 GB DDR4 (4-core CPUs: 4 x DIMM, max 64 GB); DDR4 2133/2400/2666 native; up to 4000 MHz O.C.; Non-ECC, Un-buffered - Multi-GPU: NVIDIA 3-Way / Quad-GPU SLI; AMD 3-Way / Quad-GPU CrossFireX - Storage: 2 x M.2 PCIe 3.0 x4 (up to 32 Gb/s); 8 x SATA 6 Gb/s; RAID 0/1/5/10 - Audio: Realtek S1220A 8-channel HD; DTS Connect; DTS Headphone:X; Optical S/PDIF out - LAN: 1 x Intel I219V Gigabit - USB: 2 x USB 3.1 Gen 2 (rear); 4 x USB 3.1 Gen 1 (rear); 2 x USB 2.0 (rear); additional mid-board headers - Form Factor: ATX — 30.5 cm x 24.4 cm - BIOS: 128 Mb Flash ROM, UEFI AMI, ASUS EZ Flash 3, CrashFree BIOS 3 - OS Support: Windows 10 64-bit - Warranty: 3 Years

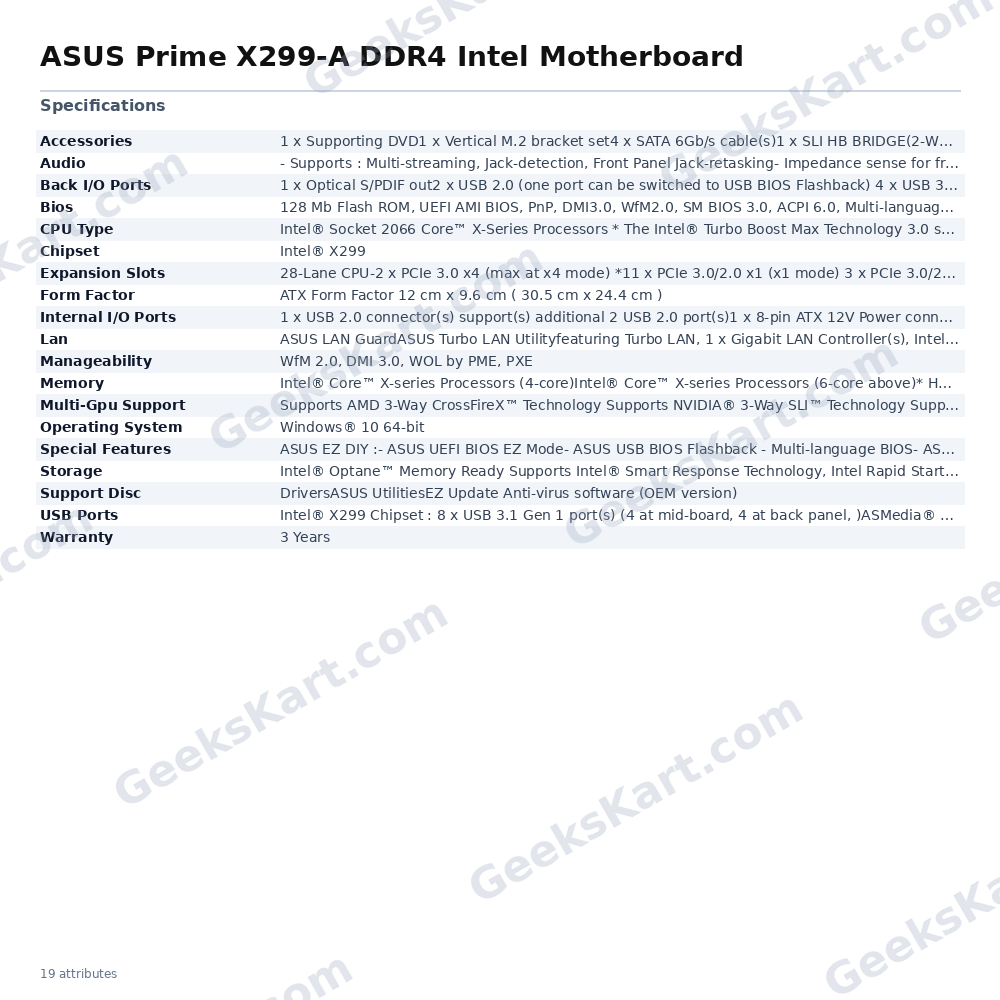

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® X299 |
| CPU Type | Intel® Socket 2066 CoreTM X-Series Processors * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types |
| Lan | ASUS LAN GuardASUS Turbo LAN Utilityfeaturing Turbo LAN, 1 x Gigabit LAN Controller(s), Intel® I219V |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Audio | – Supports : Multi-streaming, Jack-detection, Front Panel Jack-retasking- Impedance sense for front and rear headphone outputsAudio Feature :- Optical S/PDIF out port(s) at back panel- Unique de-pop circuit: Reduces start-up popping noise to audio outputs- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- DTS Connect- DTS Headphone:X – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- EMI protection cover to prevent electrical noise to affect the amplifier qualitySeparate layer for left and right track, ensuring both sound deliver equal quality- Internal audio Amplifier to enhance the highest quality sound for headphone and speakersRealtek® S1220A 8-Channel High Definition Audio CODEC |
| Memory | Intel® Core™ X-series Processors (4-core)Intel® Core™ X-series Processors (6-core above)* Hyper DIMM support is subject to the physical characteristics of individual CPUs. 8 x DIMM, Max. 128GB, DDR4 2666/3600(O.C.)/4000(O.C.)/2400/2133 MHz Un-buffered, Non-ECC Memory 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/2666/2133/3600(O.C.)/2400 MHz Non-ECC, Un-buffered Memory |
| Storage | Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology, Intel Rapid Start Technology1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)Support Raid 1, 10, 0, 51 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)8 x SATA 6Gb/s port(s)Intel® X299 Chipset |
| USB Ports | Intel® X299 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at mid-board, 4 at back panel, )ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board)ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM)Intel® X299 Chipset : 4 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board) |
| Accessories | 1 x Supporting DVD1 x Vertical M.2 bracket set4 x SATA 6Gb/s cable(s)1 x SLI HB BRIDGE(2-WAY-M)1 x Q-ConnectorASUS Q-Shield1 x M.2 Screw PackageUser's manual |
| Support Disc | DriversASUS UtilitiesEZ Update Anti-virus software (OEM version) |
| Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Back I/O Ports | 1 x Optical S/PDIF out2 x USB 2.0 (one port can be switched to USB BIOS Flashback) 4 x USB 3.1 Gen 1 2 x USB 3.1 Gen 2 ()Type-A + USB Type-CTM1 x LAN (RJ45) port(s)5 x Audio jack(s)1 x USB BIOS Flashback Button(s) |
| Expansion Slots | 28-Lane CPU-2 x PCIe 3.0 x4 (max at x4 mode) *11 x PCIe 3.0/2.0 x1 (x1 mode) 3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1) 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1) 2 x PCIe 3.0 x4 (max at x4 mode) *12 x PCIe 3.0 x4 (max at x4 mode) *144-Lane CPU-16-Lane CPU- |
| Operating System | Windows® 10 64-bit |
| Special Features | ASUS EZ DIY :- ASUS UEFI BIOS EZ Mode- ASUS USB BIOS Flashback – Multi-language BIOS- ASUS EZ Flash 3 ASUS Exclusive Features :- Ai Charger – Crystal Sound 3- MemOK!- Turbo LAN- AI Suite 3- Onboard Button : Power- USB BIOS Flashback- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface OC Design – ASUS PRO Clock TechnologyAURA :- Aura RGB Strip Headers- Aura Lighting Effects Synchronization with compatible ASUS ROG devicesASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core AppASUS Q-Design :- ASUS Q-Slot- ASUS Q-Connector- ASUS Q-LED (VGA, CPU, Boot Device LED, HDD LED, DRAM)- ASUS Q-DIMM – ASUS Q-Code- ASUS Q-ShieldGaming Aesthetics :- 3D printing friendly- AURA-RGB LightingM.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |
| Multi-Gpu Support | Supports AMD 3-Way CrossFireX™ Technology Supports NVIDIA® 3-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports NVIDIA® 2-Way SLI™ Technology Supports NVIDIA® Quad-GPU SLI™ Technology |
| Internal I/O Ports | 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)1 x 8-pin ATX 12V Power connector(s)1 x CPU_OV jumper8 x SATA 6Gb/s connector(s)1 x 4-pin ATX 12V Power connector(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x AAFP connector1 x USB 3.1 Gen 2 front panel connector1 x Clear CMOS jumper(s)1 x CPU OPT Fan connector(s) 1 x AIO_PUMP connector 1 x MemOK! button(s)1 x W_PUMP+ connector 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x 24-pin EATX Power connector(s)1 x Thermal sensor connector(s)1 x Thunderbolt header(s)1 x CPU Fan connector(s) 1 x System panel(s) (Q-Connector)1 x Power-on button(s)2 x Aura RGB Strip Header2 x Chassis Fan connector(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
