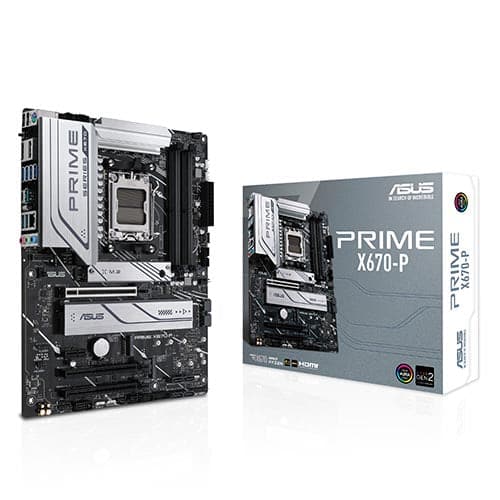

Feature of ASUS Prime X670-P DDR5 AMD Motherboard
PCIe 5.0 Slot
ASUS Prime X670-P DDR5 motherboards offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
PCIe 5.0 M.2 Support
PRIME X670-P WIFI offers a total of three M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives.
M.2 Heatsink
An M.2 heatsink takes care of the M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers
VRM Heatsinks and High-quality Thermal Pads
Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Robust Power Design
Stable power is essential to extract every last bit of performance out of AMD processors. The PRIME X670-P WIFI is geared to cater to the demands of these high-core-count CPUs.
1. ProCool Connectors
Proprietary connectors augment the motherboard’s link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
2. 12+2 DrMOS Power Stages
12+2 DrMOS power stages combine high-side and low-side MOSFETS and drivers into packages rated for 60 amperes each, delivering power, efficiency, stability and performance to current and future AMD processors.
USB 3.2 Gen 2×2 Type-C
A batch of USB ports supports high-end rigs loaded with peripherals, including both front and rear USB Type-C connectors with ultrafast USB 3.2 Gen 2×2 for transmission speeds of up to 20Gbps.
BIOS FlashBack
BIOS FlashBack is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.
Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
USB4 Support
PRIME X670 motherboard features USB4 support via a Thunderbolt (USB4) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to the fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.

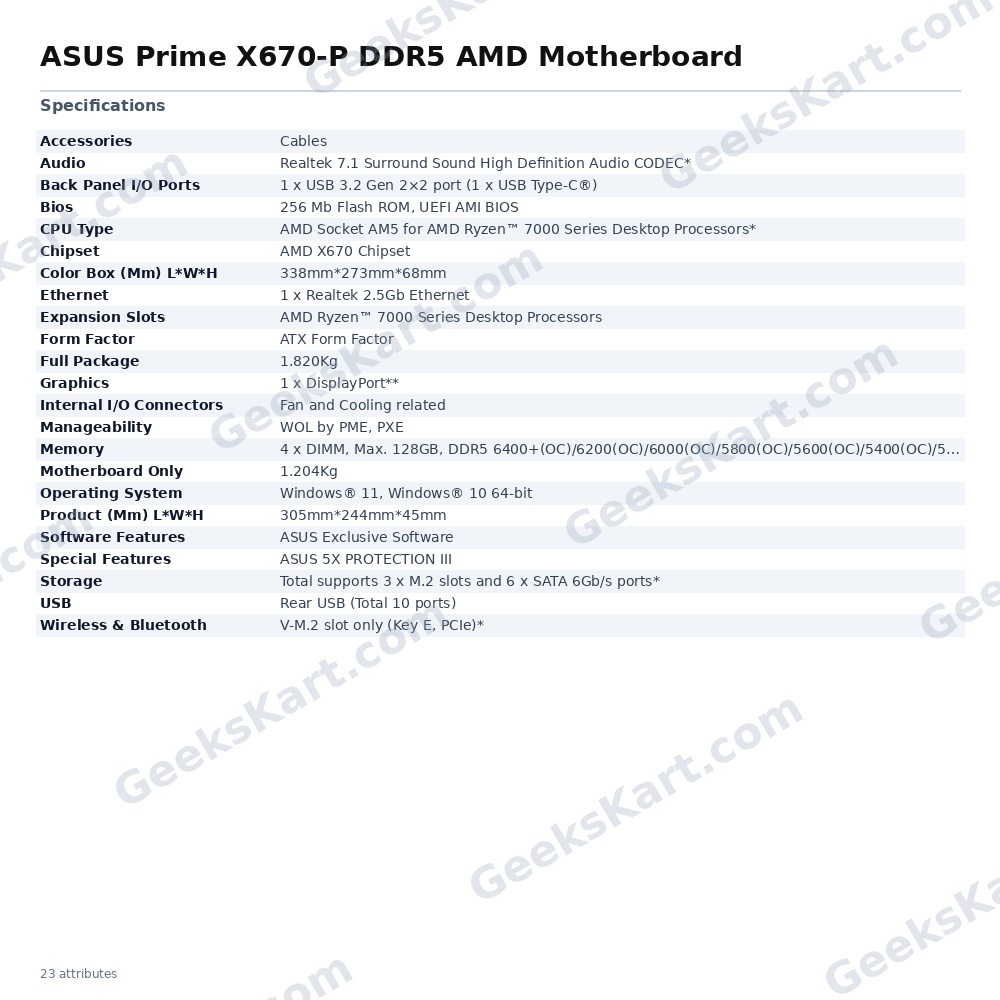

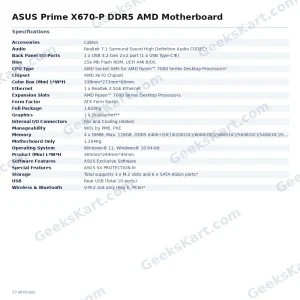

Specifications of ASUS Prime X670-P DDR5 AMD Motherboard
|
CPU
|
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
|
|
* Refer to www.asus.com for CPU support list.
|
|
| Chipset |
AMD X670 Chipset
|
|
Memory
|
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory*
|
|
Dual Channel Memory Architecture
|
|
|
Supports AMD Extended Profiles for Overclocking (EXPO™)
|
|
|
OptiMem II
|
|
|
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
|
|
|
* Non-ECC, Un-buffered DDR5 Memory supports Die ECC function.
|
|
|
Graphics
|
1 x DisplayPort**
|
|
1 x HDMI® port***
|
|
|
* Graphics specifications may vary between CPU types.
|
|
|
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
|
|
|
*** Supports 4K@60Hz as specified in HDMI® 2.1.
|
|
|
Expansion Slots
|
AMD Ryzen™ 7000 Series Desktop Processors
|
|
1 x PCIe 4.0 x16 slot (supports x16 mode)
|
|
|
AMD X670 Chipset
|
|
|
2 x PCIe 4.0 x16 slots (support x4 mode)
|
|
|
1 x PCIe 3.0 x1 slot**
|
|
|
* Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.
|
|
|
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
|
|
|
Storage
|
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
|
|
AMD Ryzen™ 7000 Series Desktop Processors
|
|
|
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
|
|
|
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
|
|
|
AMD X670 Chipset
|
|
|
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
|
|
|
6 x SATA 6Gb/s ports**
|
|
|
* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
|
|
|
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
|
|
| Ethernet |
1 x Realtek 2.5Gb Ethernet
|
|
Wireless & Bluetooth
|
V-M.2 slot only (Key E, PCIe)*
|
|
* Wi-Fi module is sold separately.
|
|
|
USB
|
Rear USB (Total 10 ports)
|
|
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
|
|
|
3 x USB 3.2 Gen 2 ports (3 x Type-A)
|
|
|
4 x USB 3.2 Gen 1 ports (4 x Type-A)
|
|
|
2 x USB 2.0 ports (2 x Type-A)
|
|
|
Front USB (Total 9 ports)
|
|
|
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
|
|
|
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
|
|
|
2 x USB 2.0 headers support additional 4 USB 2.0 ports
|
|
|
Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC*
|
|
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
|
|
|
– Supports up to 24-Bit/192 kHz playback
|
|
|
Audio Features
|
|
|
– Audio Shielding
|
|
|
– Premium audio capacitors
|
|
|
– Dedicated audio PCB layers
|
|
|
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
|
|
|
Back Panel I/O Ports
|
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
|
|
3 x USB 3.2 Gen 2 ports (3 x Type-A)
|
|
|
4 x USB 3.2 Gen 1 ports (4 x Type-A)
|
|
|
2 x USB 2.0 ports (2 x Type-A)
|
|
|
1 x DisplayPort
|
|
|
1 x HDMI® port
|
|
|
1 x V-M.2 slot (Key E)
|
|
|
1 x Realtek 2.5Gb Ethernet port
|
|
|
3 x Audio jacks
|
|
|
1 x BIOS FlashBack™ button
|
|
|
1 x PS/2 Keyboard/Mouse combo port
|
|
|
Internal I/O Connectors
|
Fan and Cooling related
|
|
1 x 4-pin CPU Fan header
|
|
|
1 x 4-pin CPU OPT Fan header
|
|
|
1 x 4-pin AIO Pump header
|
|
|
3 x 4-pin Chassis Fan headers
|
|
|
Power related
|
|
|
1 x 24-pin Main Power connector
|
|
|
1 x 8-pin +12V Power connector
|
|
|
1 x 4-pin +12V Power connector
|
|
|
Storage related
|
|
|
3 x M.2 slots (Key M)
|
|
|
6 x SATA 6Gb/s ports
|
|
| USB | |
|
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
|
|
|
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
|
|
|
2 x USB 2.0 headers support additional 4 USB 2.0 ports
|
|
|
Miscellaneous
|
|
|
3 x Addressable Gen 2 headers
|
|
|
2 x Aura RGB headers
|
|
|
1 x Clear CMOS header
|
|
|
1 x COM Port header
|
|
|
1 x Front Panel Audio header (AAFP)
|
|
|
1 x S/PDIF Out header
|
|
|
1 x SPI TPM header (14-1pin)
|
|
|
1 x 20-5 pin System Panel header
|
|
|
1 x Thunderbolt™ (USB4®) header
|
|
|
Special Features
|
ASUS 5X PROTECTION III
|
|
– DIGI+ VRM (- Digital power design with DrMOS)
|
|
|
– ESD Guards
|
|
|
– LANGuard
|
|
|
– Overvoltage Protection
|
|
|
– Safeslot Core+
|
|
|
– Stainless-Steel Back I/O
|
|
|
ASUS Q-Design
|
|
|
– M.2 Q-Latch
|
|
|
– Q-DIMM
|
|
|
– Q-LED Core
|
|
| – Q-Slot | |
|
ASUS Thermal Solution
|
|
|
– M.2 heatsink
|
|
|
– VRM heatsink design
|
|
|
ASUS EZ DIY
|
|
|
– BIOS FlashBack™ button
|
|
|
– BIOS FlashBack™ LED
|
|
|
– ProCool
|
|
|
Aura Sync
|
|
|
– Aura RGB headers
|
|
|
– Addressable Gen 2 headers
|
|
|
Software Features
|
ASUS Exclusive Software
|
|
Armoury Crate
|
|
|
– Aura Creator
|
|
|
– Aura Sync
|
|
|
– Fan Xpert 4 with AI Cooling II
|
|
|
– Power Saving
|
|
| AI Suite 3 | |
|
– TurboV EVO
|
|
|
– DIGI+ VRM
|
|
|
– PC Cleaner
|
|
|
ASUS CPU-Z
|
|
|
Norton Anti-virus software (Free Trial version)
|
|
| WinRAR | |
|
UEFI BIOS
|
|
|
ASUS EZ DIY
|
|
|
– ASUS CrashFree BIOS 3
|
|
|
– ASUS EZ Flash 3
|
|
|
– ASUS UEFI BIOS EZ Mode
|
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Manageability |
WOL by PME, PXE
|
|
Accessories
|
Cables |
|
2 x SATA 6Gb/s cables
|
|
|
Miscellaneous
|
|
|
1 x I/O Shield
|
|
|
1 x Rubber Package for M.2
|
|
|
2 x Screw Packages for M.2 SSD
|
|
|
Documentation
|
|
|
1 x User guide
|
|
| Operating System |
Windows® 11, Windows® 10 64-bit
|
|
Form Factor
|
ATX Form Factor
|
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
|
| Dimension | |
| Product (mm)_ L*W*H |
305mm*244mm*45mm
|
| Color Box (mm)_ L*W*H |
338mm*273mm*68mm
|
| Weight | |
| Motherboard only | 1.204Kg |
| Full package | 1.820Kg |
| Note | **Features, Price and Specifications are subject to change without notice to customer. |
