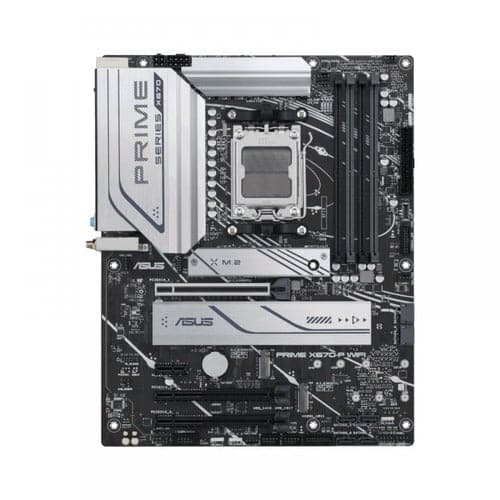

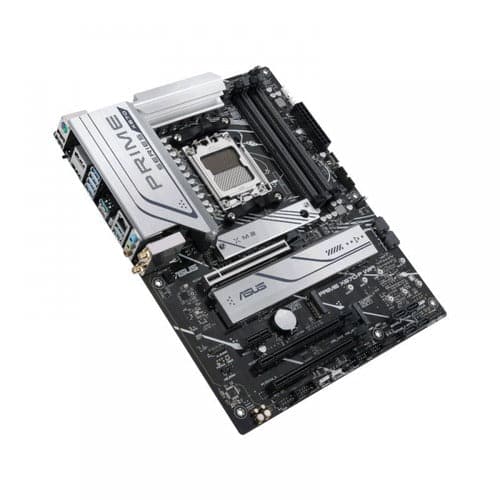

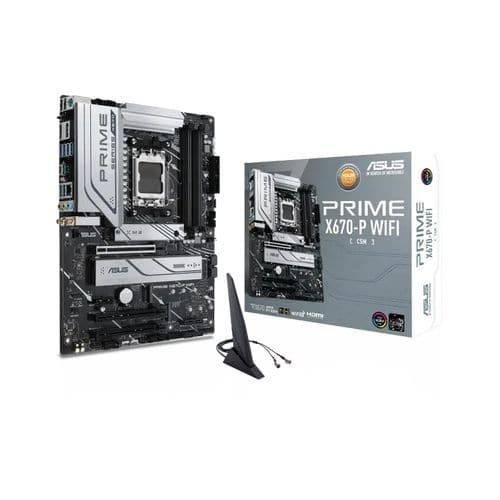

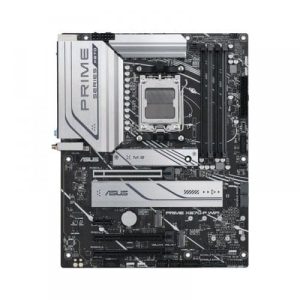

ASUS Prime X670-P Wifi CSM DDR5 AMD Motherboard

The ASUS Prime X670-P WiFi CSM is an ATX-form-factor motherboard built around the AMD X670 chipset and AMD AM5 socket, engineered to support AMD Ryzen 7000 Series desktop processors. Designed for demanding professional and enthusiast builds alike, it combines a robust power delivery system with comprehensive connectivity options and ASUS Corporate Stable Model (CSM) reliability assurances. At the heart of its power architecture are 12+2 DrMOS power stages, each rated at 60 amperes, fed by ProCool solid-pin EPS connectors (4-pin + 8-pin) for stable, consistent delivery to high-core-count Ryzen 7000 CPUs. The six-layer PCB design optimises thermal management across the board, while a dedicated VRM heatsink and a passive aluminum chipset heatsink keep temperatures in check under sustained workloads. Memory support spans four DIMM slots accommodating up to 128 GB of DDR5 RAM in dual-channel configuration. Native speeds include DDR5-4800, 5000, and 5200; overclocked profiles reach DDR5-6400+ with AMD EXPO support. Die ECC is supported on compatible unbuffered DDR5 modules. Storage options are extensive: three M.2 Key-M slots (M.2_1 at PCIe 5.0 x4 for up to 128 Gbps, M.2_2 at PCIe 4.0 x4 supporting up to 22110 length, and M.2_3 at PCIe 4.0 x4), plus six SATA 6 Gb/s ports. AMD RAIDXpert2 enables NVMe RAID 0/1/10 and SATA RAID 0/1/10. Expansion slots include one PCIe 4.0 x16 slot (CPU-direct, x16 mode), two PCIe 4.0 x16 slots (chipset, x4 mode), and one PCIe 3.0 x1 slot. Rear I/O delivers ten USB ports: one USB 3.2 Gen 2x2 Type-C (20 Gbps), three USB 3.2 Gen 2 Type-A (10 Gbps), four USB 3.2 Gen 1 Type-A (5 Gbps), and two USB 2.0 Type-A. A front-panel USB 3.2 Gen 1 Type-C header and additional internal headers add nine further front ports. A Thunderbolt (USB4) header enables up to 40 Gbps bi-directional speeds with a compatible ASUS add-on card. Networking is handled by a Realtek 2.5 Gb Ethernet controller with ASUS LANGuard protection and an integrated 2×2 Wi-Fi 6 (802.11ax, 2.4/5 GHz) module with Bluetooth 5.2. Video output includes DisplayPort 1.4 (up to 8K@60Hz) and HDMI 2.1 (up to 4K@60Hz) for iGPU-equipped Ryzen processors. Audio is delivered by a Realtek High Definition Audio CODEC supporting 7.1 surround sound at up to 24-bit/192 kHz, backed by dedicated audio PCB layers, premium audio capacitors, and analog/digital shielding. RGB ecosystem integration is provided through three Addressable Gen 2 headers and two Aura RGB headers, all manageable via Armoury Crate with AI Cooling II. For enterprise and professional deployments, ASUS CSM provides up to 36-month product lifecycle support, a 6-month end-of-life notice, and ASUS Control Center Express (ACCE) for remote IT monitoring and automated BIOS/software management across networked endpoints. Key Verified Specifications: - Socket: AMD AM5 | Chipset: AMD X670 - Form Factor: ATX — 304.8 mm × 243.8 mm (12 × 9.6 in) - Memory: 4× DIMM, max. 128 GB, DDR5-4800–6400+(OC), Dual Channel, ECC/Non-ECC, EXPO - Storage: 1× PCIe 5.0 x4 M.2, 2× PCIe 4.0 x4 M.2, 6× SATA 6 Gb/s - Expansion: 1× PCIe 4.0 x16 (x16), 2× PCIe 4.0 x16 (x4), 1× PCIe 3.0 x1 - Networking: Realtek 2.5 GbE; Wi-Fi 6 (802.11ax) 2×2; Bluetooth 5.2 - Audio: Realtek 7.1 HD Audio CODEC, 24-bit/192 kHz - Power Design: 12+2 DrMOS, 60A per stage - BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, BIOS FlashBack - OS Support: Windows 11 64-bit, Windows 10 64-bit - Warranty: 3 Years
