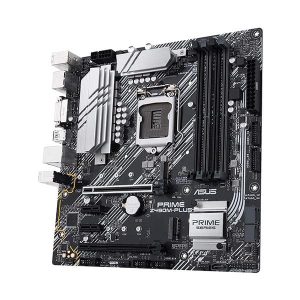

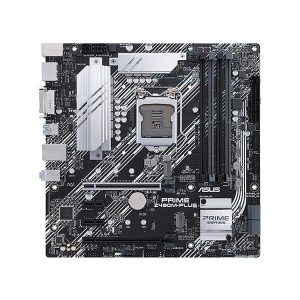

ASUS Prime Z490M-Plus DDR4 Intel Motherboard
MPN ASUS-PRIME-Z490M-PLUS-MOTHERBOARD · Brand ASUS · mATX
The ASUS Prime Z490M-Plus is an mATX motherboard for Intel LGA 1200 (10th Gen Core) processors, featuring an 8+1 DrMOS power design, dual M.2 slots, USB 3.2 Gen 2 Type-A and Type-C, and support for up to 128 GB DDR4 memory
Inclusive of GST · GST invoice available
Overview
The ASUS Prime Z490M-Plus is a Micro-ATX motherboard built around the Intel Z490 chipset and LGA 1200 socket, designed to support 10th Generation Intel Core, Pentium Gold, and Celeron processors with Intel 14 nm architecture. Its robust 8+1 DrMOS power-stage design, combined with a 6-layer PCB, ProCool connector sockets, alloy chokes, and durable capacitors, delivers stable and efficient power to high-core-count CPUs under sustained workloads. Memory flexibility is a strong suit: four DDR4 DIMM slots accept up to 128 GB of non-ECC unbuffered RAM in dual-channel configuration, with native speeds of 2133–2666 MHz on 10th Gen Core i9/i7 CPUs and overclocked profiles reaching up to DDR4-4400 via XMP. ASUS OptiMem technology carefully routes PCB traces and vias to maintain signal integrity during memory overclocking. Storage options include two M.2 Socket 3 slots—one supporting up to 22110 form factors at PCIe 3.0 x4 speeds, and a second supporting 2242/2260/2280 devices in either SATA or PCIe 3.0 x4 mode—alongside five SATA 6 Gb/s ports with RAID 0/1/5/10 support and Intel Optane Memory readiness. Connectivity is handled by an Intel I219-V Gigabit Ethernet controller and a comprehensive USB layout: the rear I/O panel provides two USB 3.2 Gen 2 ports (one Type-A, one Type-C), two USB 3.2 Gen 1 Type-A ports, and two USB 2.0 ports, while internal headers add four USB 3.2 Gen 1 and four USB 2.0 front-panel ports. Display outputs include DisplayPort 1.4 (up to 4096×2304 at 60 Hz), HDMI 1.4b, and DVI-D for systems using integrated graphics. Thermal management relies on VRM heatsinks with thermal pads, plus four hybrid fan headers (1 CPU, 3 chassis) and an AIO pump header, all controllable via Fan Xpert 4 software. Audio is delivered through a Realtek ALC887 8-channel HD codec with dedicated PCB layers, audio shielding, and premium Japanese capacitors for up to 24-bit/192 kHz playback. The ASUS 5X Protection III suite includes DIGI+ VRM with DrMOS, LANGuard surge protection, overvoltage protection, SafeSlot Core reinforced PCIe slots, and a stainless-steel rear I/O panel. BIOS is a 128 Mb Flash ROM UEFI AMI implementation accessible via the intuitive EZ Mode interface, CrashFree BIOS 3, and EZ Flash 3 for firmware updates. Verified Specifications: - Socket: Intel LGA 1200 - Chipset: Intel Z490 - Form Factor: mATX, 9.6 × 9.6 in (24.4 × 24.4 cm) - Memory: 4 × DDR4 DIMM, max 128 GB, up to DDR4-4400 (O.C.), dual-channel, XMP supported - Storage: 2 × M.2 (PCIe 3.0 x4 / SATA), 5 × SATA 6 Gb/s, RAID 0/1/5/10 - LAN: Intel I219-V 1 Gb Ethernet - USB (rear): 2× USB 3.2 Gen 2 (Type-A + Type-C), 2× USB 3.2 Gen 1, 2× USB 2.0 - Audio: Realtek ALC887, 8-channel, 24-bit/192 kHz - Display Out: 1× DisplayPort 1.4, 1× HDMI 1.4b, 1× DVI-D - Power: 8+1 DrMOS stages, 8-pin + 4-pin + 24-pin ATX connectors - Expansion: 1× PCIe 3.0 x16 (CPU), 1× PCIe 3.0 x16 (x4 mode, chipset), 4× PCIe 3.0 x1 - Warranty: 3 years

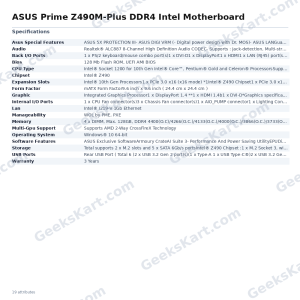

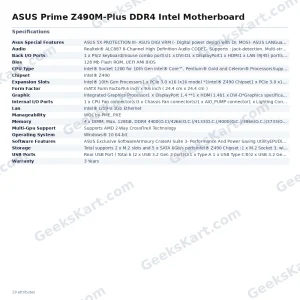

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® Z490 |
| CPU Type | |
| Lan | Intel® I219-V 1Gb Ethernet |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- LED-illuminated design- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ 3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/ 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists) |
| Graphic | Integrated Graphics Processor1 x DisplayPort 1.4 **1 x HDMI 1.4b1 x DVI-D*Graphics specifications may vary between CPU types.**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz |
| Storage | Total supports 2 x M.2 slots and 5 x SATA 6Gb/s portsIntel® Z490 Chipset :1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*25 x SATA 6Gb/s port(s)Support Raid 0, 1, 5, 10Intel® Rapid Storage Technology supportsIntel® Optane™ Memory Ready |
| USB Ports | Rear USB Port ( Total 6 )2 x USB 3.2 Gen 2 port(s)(1 x Type-A 1 x USB Type-C®)2 x USB 3.2 Gen 1 port(s)(2 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 8 )4 x USB 3.2 Gen 1 port(s)4 x USB 2.0 port(s) |
| Manageability | WOL by PME, PXE |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 2 (1 x Type-A 1 x USB Type-C®)2 x USB 3.2 Gen 1 Type-A2 x USB 2.03 x Audio jack(s) |
| Expansion Slots | Intel® 10th Gen Processors1 x PCIe 3.0 x16 (x16 mode) *1Intel® Z490 Chipset1 x PCIe 3.0 x16 (x4 mode)4 x PCIe 3.0 x1 |
| Operating System | Windows® 10 64-bit |
| Multi-Gpu Support | Supports AMD 2-Way CrossFireX Technology |
| Software Features | ASUS Exclusive SoftwareArmoury CrateAI Suite 3- Performance And Power Saving UtilityEPUDigi VRMFan Xpert 4- EZ updateAI ChargerWinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode |
| Internal I/O Ports | 1 x CPU Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x Lighting Control RGB Strip Header(s)2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header5 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 4-pin EATX 12 V Power connector1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header |
| Asus Special Features | ASUS 5X PROTECTION III- ASUS DIGI VRM (- Digital power design with Dr. MOS)- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Aluminum heatsink designASUS EZ DIY- Procool |
