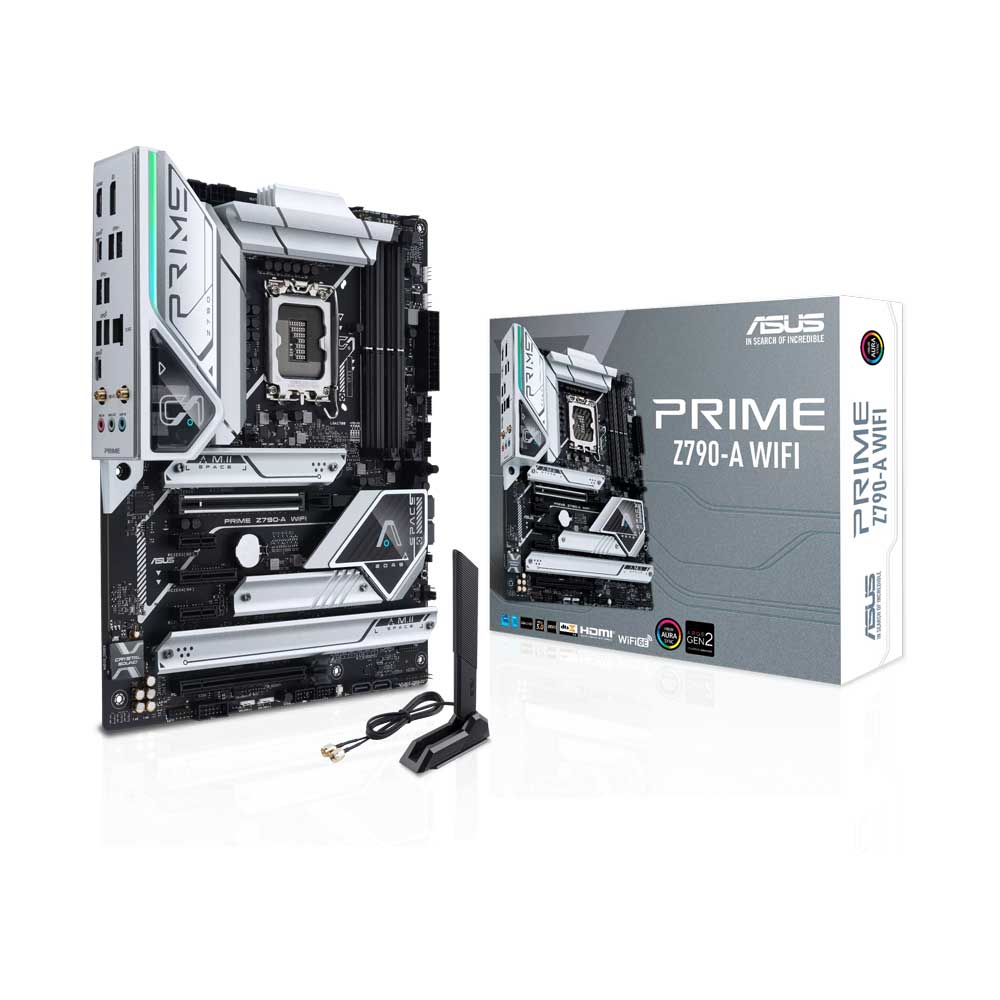

ASUS Prime Z790-A Wifi DDR5 Intel Motherboard
MPN ASUS-PRIME-Z790-A-WIFI-DDR5 · Brand ASUS · ATX
The ASUS Prime Z790-A WiFi DDR5 is an Intel Z790 LGA1700 ATX motherboard featuring PCIe 5.0, four M.2 slots, DDR5 up to 128 GB, Wi-Fi 6E, 2.5Gb LAN, and a 16+1 DrMOS power stage — a solid foundation for 12th and 13th Gen Intel builds
Inclusive of GST · GST invoice available
Overview

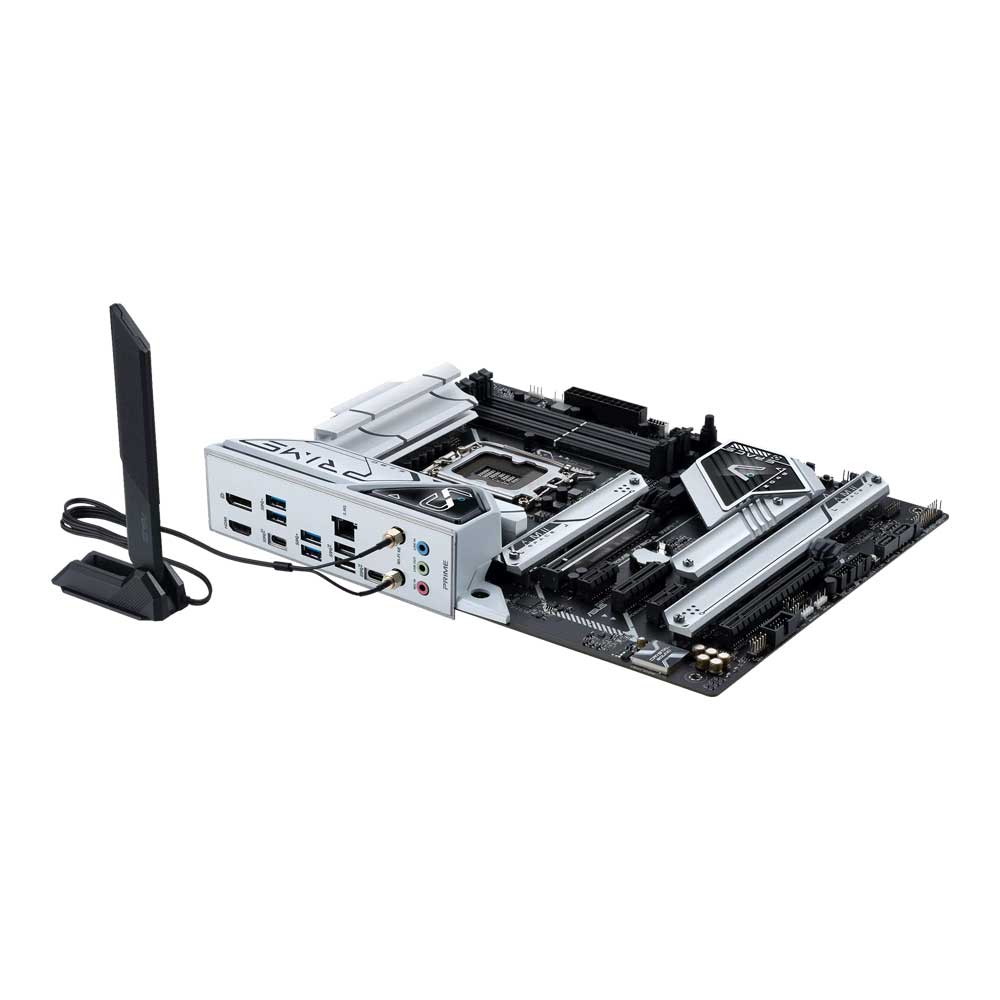

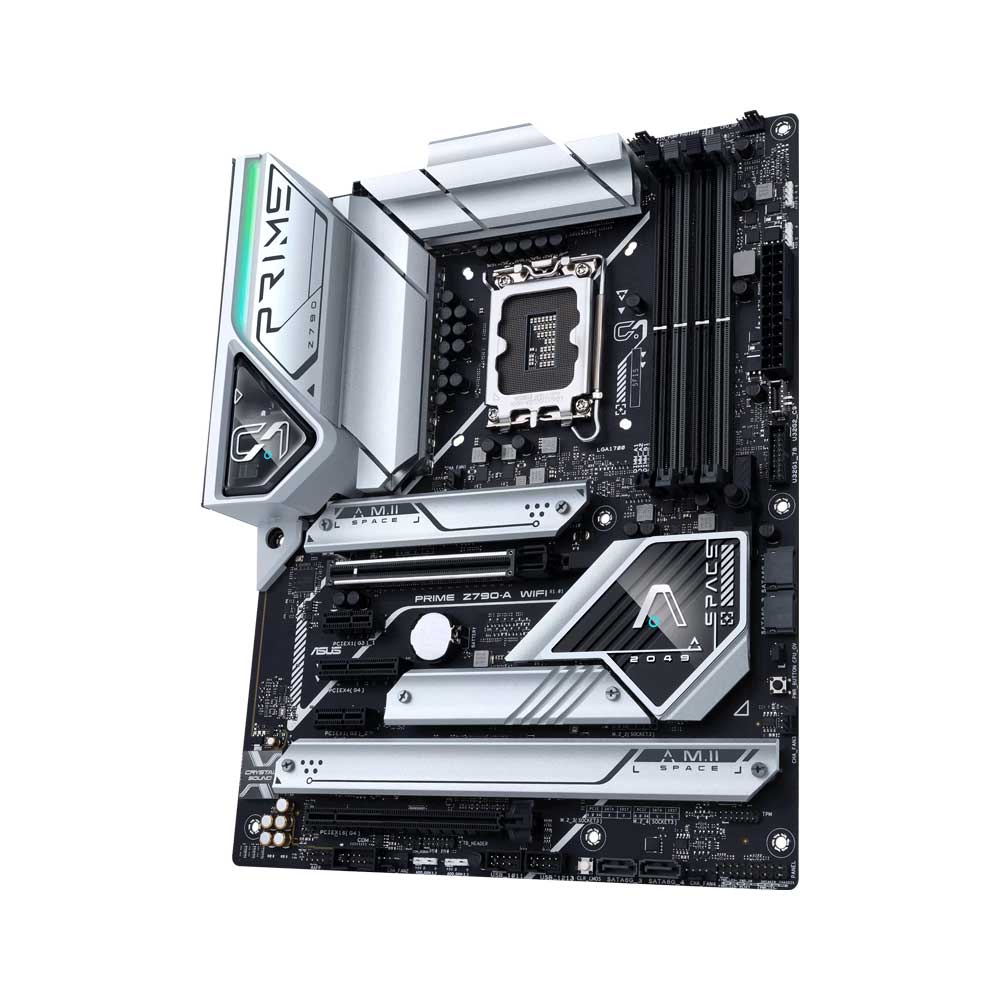

The ASUS Prime Z790-A WiFi DDR5 is an ATX-form-factor motherboard built on the Intel Z790 chipset with an LGA 1700 socket, making it compatible with Intel 12th-generation Core, Pentium Gold, and Celeron processors as well as 13th-generation Intel Core processors. At 12 × 9.6 inches (30.5 × 24.4 cm), it fits standard ATX mid-tower and full-tower enclosures and ships with a pre-mounted I/O shield to simplify installation. Power delivery centres on a 16+1 DrMOS configuration paired with ProCool connectors, alloy chokes, and durable capacitors. Two 8-pin +12V EPS connectors and a 24-pin ATX connector supply stable current under sustained workloads. Large VRM heatsinks and dedicated M.2 heatsinks with backplates help keep thermals in check, while six 4-pin fan headers (CPU, CPU OPT, AIO Pump, and four chassis headers) alongside Fan Xpert 4 and AI Cooling II software enable precise fan and pump management. Memory support spans four DDR5 DIMM slots capable of holding up to 128 GB in a dual-channel configuration. Native speeds begin at DDR5-4800 and rise to DDR5-5600, with XMP and ASUS OptiMem II profiles enabling overclocked operation up to DDR5-7000. Storage is equally expansive: four PCIe 4.0 x4 M.2 slots (M.2_1 and M.2_3 supporting up to 22110 length; M.2_2 and M.2_4 up to 2280) join four SATA 6 Gb/s ports. Intel Rapid Storage Technology enables PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. Expansion slots include one PCIe 5.0 x16 slot (CPU-direct) for discrete graphics, one PCIe 4.0 x16 slot operating in x4 mode, one PCIe 4.0 x4 slot, and two PCIe 3.0 x1 slots — all from the Z790 chipset. Connectivity is comprehensive. The rear I/O provides eight USB ports: one USB 3.2 Gen 2×2 Type-C (20 Gb/s), two USB 3.2 Gen 2 Type-A plus one Gen 2 Type-C (10 Gb/s each), and four USB 3.2 Gen 1 Type-A (5 Gb/s). An onboard Thunderbolt header (USB4) accommodates add-in Thunderbolt cards. Networking combines 2×2 Wi-Fi 6E (802.11ax, 2.4/5/6 GHz) with Bluetooth 5.3 and an Intel 2.5 Gigabit Ethernet port protected by ASUS LANGuard. Display outputs include one HDMI 2.1 port (4K@60Hz) and one DisplayPort 1.4 (up to 8K@60Hz) for systems using integrated graphics. Audio is handled by a Realtek S1220A codec offering 7.1-channel surround sound, 120 dB SNR stereo playback, and 113 dB SNR line-in recording, backed by dedicated audio PCB layers, audio shielding, and premium capacitors. Three ASUS Addressable Gen 2 headers and one Aura RGB header connect to the Aura Sync ecosystem for lighting control. Verified Specifications: • Socket: LGA 1700 | Chipset: Intel Z790 • CPU Support: Intel 12th Gen (Core/Pentium Gold/Celeron) and 13th Gen Core • Memory: 4× DDR5 DIMM, max 128 GB, DDR5-4800 native / up to DDR5-7000 (OC) • M.2 Slots: 4× PCIe 4.0 x4 (Key M) • SATA Ports: 4× SATA 6 Gb/s • PCIe: 1× PCIe 5.0 x16, 1× PCIe 4.0 x16 (x4 mode), 1× PCIe 4.0 x4, 2× PCIe 3.0 x1 • Wireless: Wi-Fi 6E 2×2 (802.11ax), Bluetooth 5.3 • LAN: Intel 2.5 Gb Ethernet • Rear USB: 1× Gen 2×2 Type-C, 3× Gen 2 (2×Type-A + 1×Type-C), 4× Gen 1 Type-A • Audio: Realtek S1220A, 7.1-channel, 120 dB SNR • Form Factor: ATX, 305 × 244 mm • BIOS: 256 Mb Flash ROM, UEFI AMI • Warranty: 3 years

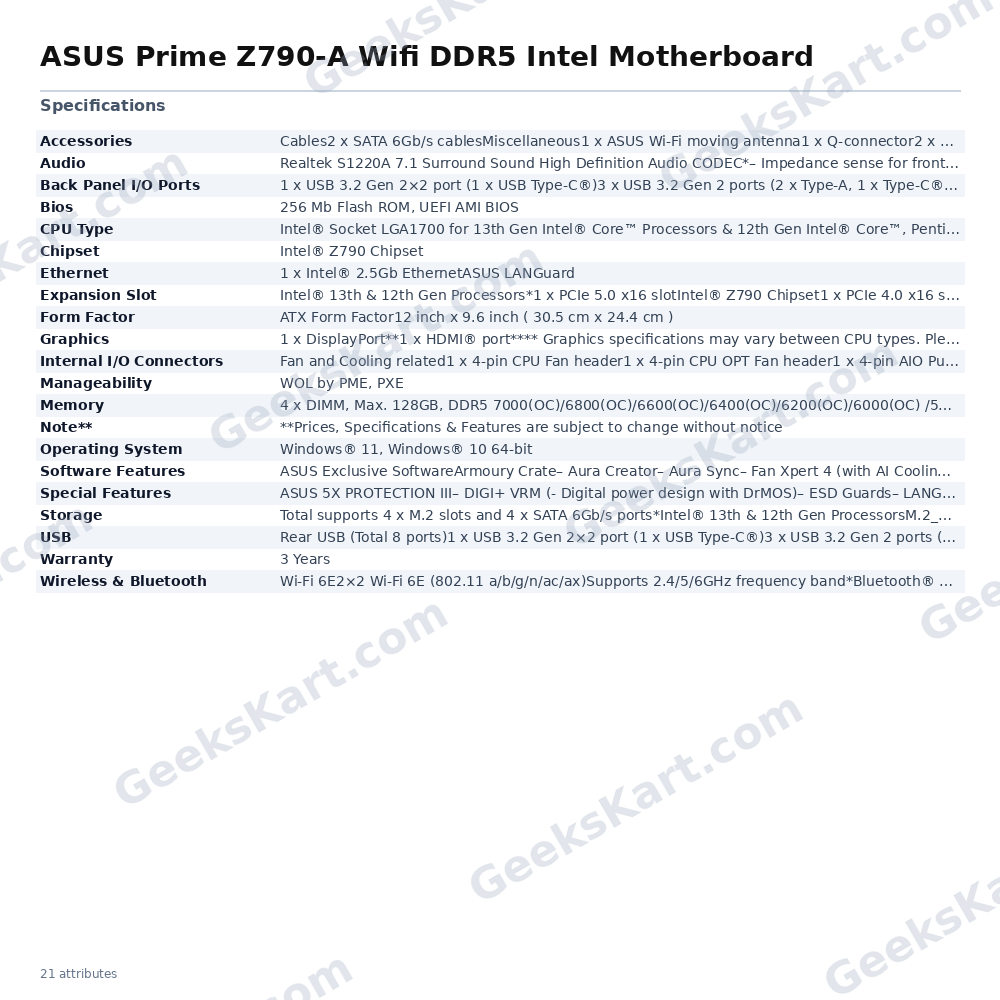

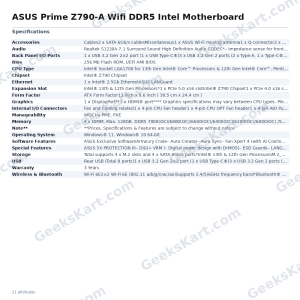

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z790 Chipset |
| CPU Type | |
| USB | Rear USB (Total 8 ports)1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 2 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*– Impedance sense for front and rear headphone outputs– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)– Supports up to 32-Bit/192 kHz playback*Audio Features– Audio Shielding– Power pre-regulator reduces power input noise to ensure consistent performance– Premium audio capacitors– Dedicated audio PCB layers– Audio cover– Unique de-pop circuit* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio |
| Memory | 4 x DIMM, Max. 128GB, DDR5 7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC) /5800(OC)/5600/5400/5200/5000/4800, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)Intel® Z790 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Ethernet | 1 x Intel® 2.5Gb EthernetASUS LANGuard |
| Graphics | 1 x DisplayPort**1 x HDMI® port**** Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.**Supports max. 8K@60Hz as specified in DisplayPort 1.4.***Supports 4K@60Hz as specified in HDMI 2.1.**** VGA resolution support depends on processors’ or graphic cards’ resolution |
| Accessories | Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS Wi-Fi moving antenna1 x Q-connector2 x M.2 Rubber Packages1 x Screw package for M.2 SSDDocumentation1 x User guide |
| Manageability | WOL by PME, PXE |
| Expansion Slot | Intel® 13th & 12th Gen Processors*1 x PCIe 5.0 x16 slotIntel® Z790 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x4 slot2 x PCIe 3.0 x1 slots* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/.Note): To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Special Features | ASUS 5X PROTECTION III– DIGI+ VRM (- Digital power design with DrMOS)– ESD Guards– LANGuard– Overvoltage Protection– Safeslot– Stainless-Steel Back I/OASUS Q-Design– M.2 Q-Latch– PCIe Slot Q-Release– Q-Connector– Q-DIMM– Q-LED (CPU , DRAM , VGA , Boot Device )– Q-SlotASUS Thermal Solution– M.2 heatsink– VRM heatsink designASUS EZ DIY– Box Headers– Clear CMOS button– CPU Socket lever protector– ProCool– Pre-mounted I/O shield– SafeDIMMAura Sync– Aura RGB header– Addressable Gen 2 headers |
| Software Features | ASUS Exclusive SoftwareArmoury Crate– Aura Creator– Aura Sync– Fan Xpert 4 (with AI Cooling II)– Power Saving– Two-Way AI Noise CancellationAI Suite 3– TurboV EVO– DIGI+ VRM– PC CleanerASUS CPU-ZDTS:X® UltraMyASUSNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY– ASUS CrashFree BIOS 3– ASUS EZ Flash 3– ASUS UEFI BIOS EZ ModeMemTest86 |

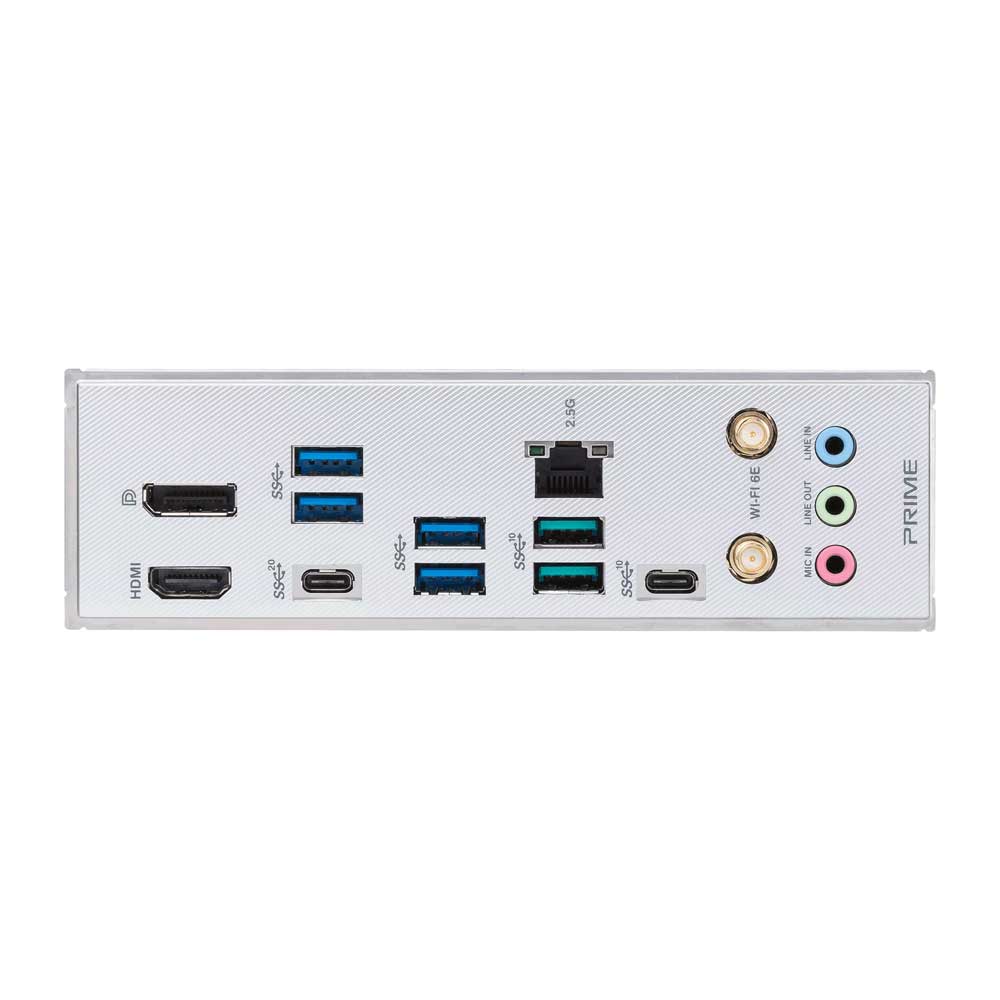

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port3 x Audio jacks |
| Wireless & Bluetooth | Wi-Fi 6E2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency band*Bluetooth® v5.3*** WiFi 6E 6GHz regulatory may vary between countries.** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications |
| Internal I/O Connectors | Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector2 x 8-pin +12V Power connectorsStorage related4 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2 connector (supports USB Type-C® )1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP)1 x Power button1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ header |
