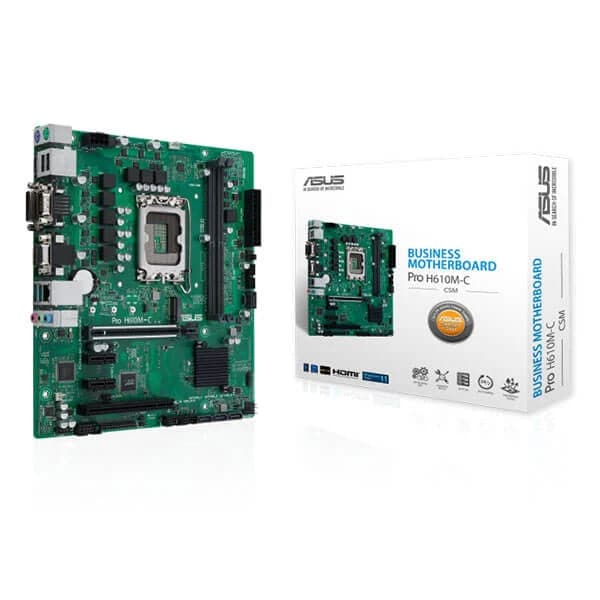

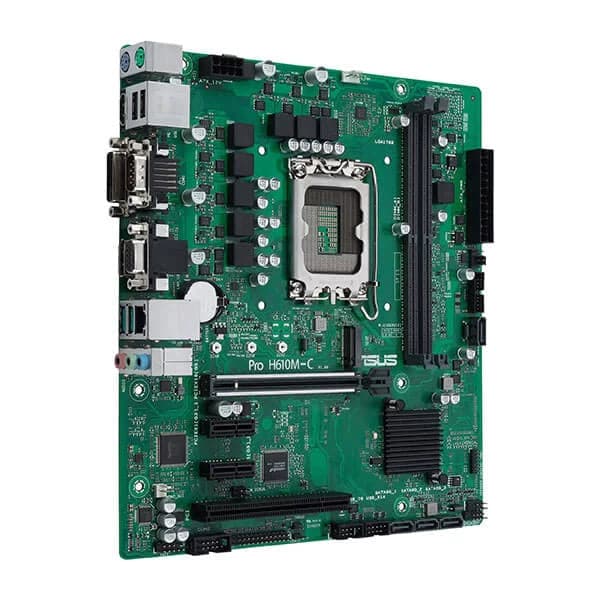

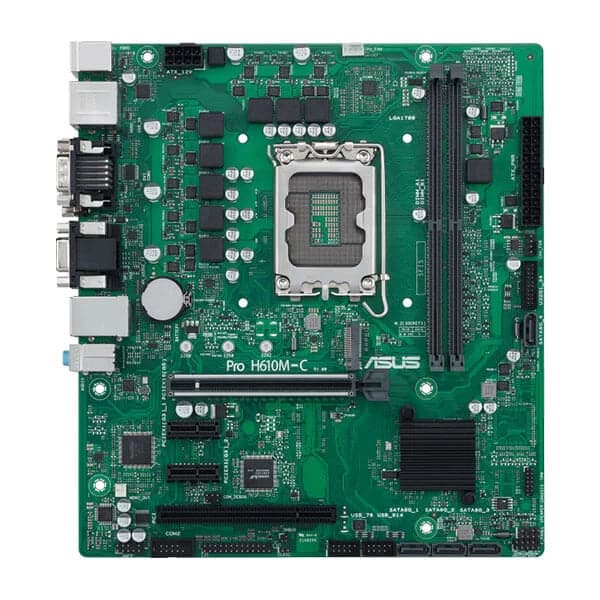

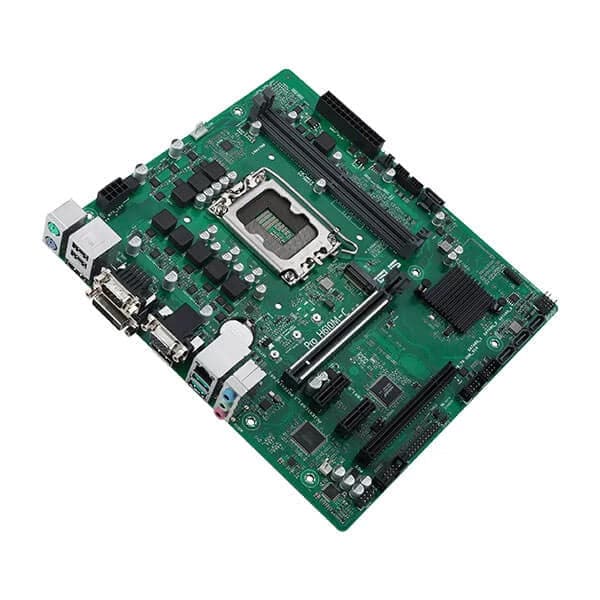

ASUS Pro H610M-C CSM DDR4 Intel Motherboard
MPN ASUS-PRO-H610M-C-CSM · Brand ASUS · mATX Form Factor 9.6 inch x 8.7 inch (24.4 cm x 22 cm)
ASUS Pro H610M-C CSM is a Micro-ATX business motherboard for 12th Gen Intel LGA1700 processors, featuring CSM lifecycle support, self-recovering BIOS, TPM security, PCIe 5.0, and ASUS Control Center Express management software
Inclusive of GST · GST invoice available
Overview
The ASUS Pro H610M-C CSM is a Micro-ATX form factor motherboard built specifically for business and commercial deployments that demand long-term platform stability. Featuring Intel's LGA1700 socket, it is compatible with 12th Generation Intel Core, Pentium Gold, and Celeron processors, and is governed by Intel's H610 chipset. At the heart of its commercial appeal is the ASUS Corporate Stable Model (CSM) programme, which provides up to 36 months of product lifecycle support and a 6-month end-of-life notification period. This gives IT procurement teams adequate runway to plan hardware transitions without disruption. Every CSM purchase includes access to ASUS Control Center Express — a server-grade, real-time IT monitoring and management platform that enables centralised hardware and software administration across an organisation's fleet. Security is a core design consideration. The board ships with a self-recovering BIOS that can restore itself after corruption, a hardware SPI TPM header (14-1 pin) for platform-level encryption, chassis intrusion detection, and overcurrent protection. An anti-moisture coating protects board components in demanding environments such as factories, internet cafes, and data centres. For technicians, the Q-LED diagnostic display and COM debug header streamline fault-finding during builds and field support visits. The ASUS Event Log and Commercial BIOS Kit further simplify maintenance and customisation at scale. Display output options include DisplayPort 1.4 (up to 4K@60Hz), HDMI 2.1 (4K@60Hz), DVI-D, and D-Sub, supporting up to three simultaneous displays from integrated graphics. Networking is handled by an Intel 1Gb Ethernet controller paired with ASUS LANGuard surge protection, and the board supports Wake- LAN via PME and PXE boot for remote management. Verified Specifications: - Form Factor: Micro-ATX, 9.6 in × 8.7 in (24.4 cm × 22.0 cm) - Socket: Intel LGA1700 (12th Gen Intel Core / Pentium Gold / Celeron) - Chipset: Intel H610 - Memory: 2 × DIMM, DDR4 (product name) / DDR5 4800 Non-ECC Unbuffered (source spec), max 64 GB, dual-channel, XMP support - Expansion: 1 × PCIe 5.0 x16, 2 × PCIe 3.0 x1, 1 × PCI - Storage: 1 × M.2 (Key M, 2242/2260/2280, PCIe 3.0 x4), 4 × SATA 6 Gb/s - Rear USB: 2 × USB 3.2 Gen 2 Type-A, 2 × USB 2.0 Type-A - Front USB headers: 1 × USB 3.2 Gen 1 (2 ports), 2 × USB 2.0 (4 ports) - Display outputs: 1 × DisplayPort 1.4, 1 × HDMI 2.1, 1 × DVI-D, 1 × D-Sub (up to 3 simultaneous) - Audio: Realtek HD Audio, 7.1 surround, 24-bit/192 kHz - LAN: 1 × Intel 1GbE + ASUS LANGuard - Manageability: WOL (PME), PXE - BIOS: 128 Mb Flash ROM, self-recovering BIOS - OS Support: Windows 11 64-bit, Windows 10 64-bit - Warranty: 3 Years

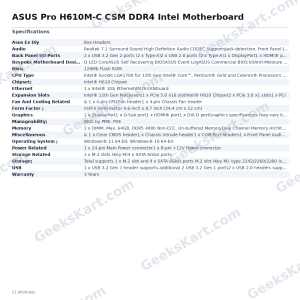

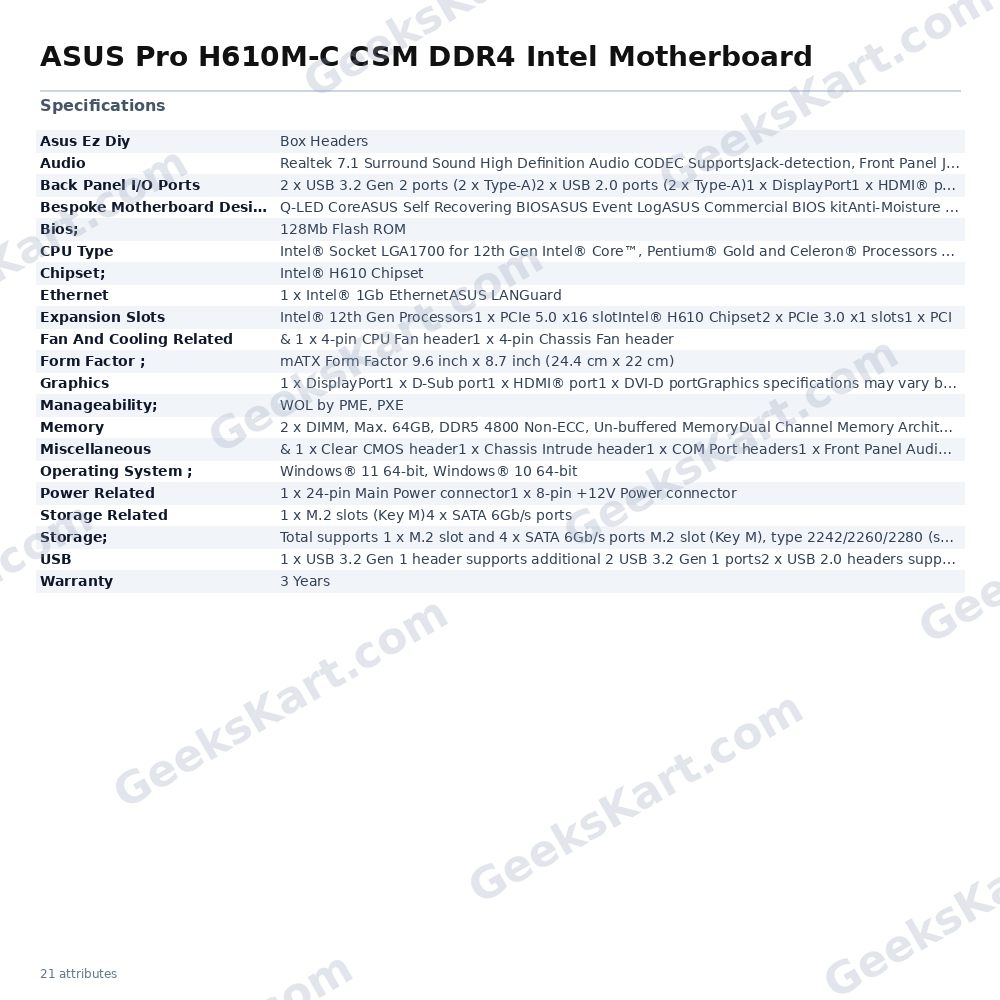

Datasheet
| Warranty | 3 Years |
|---|---|
| CPU Type | Intel® Socket LGA1700 for 12th Gen Intel® CoreTM, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Refer to http://www.asus.com for CPU support list. Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types |
| USB | 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC SupportsJack-detection, Front Panel Jack-retaskingSupports up to 24-Bit/192 kHz playbackA chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Bios; | 128Mb Flash ROM |
| Memory | 2 x DIMM, Max. 64GB, DDR5 4800 Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memoryconfiguration, for more information refer to http://www.asus.com for memory support list |
| Chipset; | Intel® H610 Chipset |
| Ethernet | 1 x Intel® 1Gb EthernetASUS LANGuard |
| Graphics | 1 x DisplayPort1 x D-Sub port1 x HDMI® port1 x DVI-D portGraphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.Supports max. 4K@60Hz as specified in DisplayPort 1.4Supports 4K@60Hz as specified in HDMI 2.1Supports up to 3 displays simultaneously |
| Storage; | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports Intel® H610 Chipset |
| Asus Ez Diy | Box Headers |
| Form Factor ; | mATX Form Factor 9.6 inch x 8.7 inch (24.4 cm x 22 cm) |
| Miscellaneous | & 1 x Clear CMOS header1 x Chassis Intrude header1 x COM Port headers1 x Front Panel Audio header (AAFP)1 x COM debug header1 x LPT header1 x Mono-out header(with Amp IC)1 x SMBUS header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header |
| Power Related | 1 x 24-pin Main Power connector1 x 8-pin +12V Power connector |
| Manageability; | WOL by PME, PXE |
| Expansion Slots | Intel® 12th Gen Processors1 x PCIe 5.0 x16 slotIntel® H610 Chipset2 x PCIe 3.0 x1 slots1 x PCI |
| Storage Related | 1 x M.2 slots (Key M)4 x SATA 6Gb/s ports |
| Operating System ; | Windows® 11 64-bit, Windows® 10 64-bit |

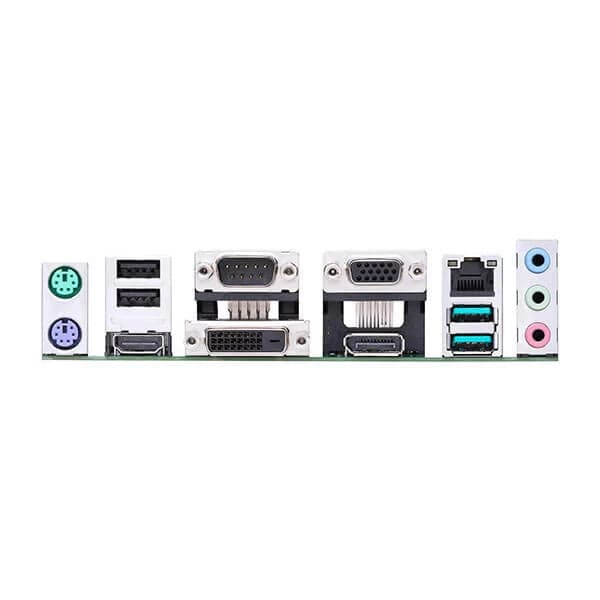

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI® port1 x D-Sub port1 x DVI-D port1 x Intel® 1Gb Ethernet3 x Audio jacks1 x PS/2 keyboard (purple) port1 x PS/2 mouse (green) port1 x COM port |
| Fan And Cooling Related | & 1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan header |
| Bespoke Motherboard Design & Business Focused Features | Q-LED CoreASUS Self Recovering BIOSASUS Event LogASUS Commercial BIOS kitAnti-Moisture – 24/7 ReliabilityOvercurrent Protection |
