ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard (AMD sTR5, WRX90, EEB)
MPN PRO-WS-WRX90E-SAGE-SE · Brand ASUS · EEB
The ASUS Pro WS WRX90E-SAGE SE is an EEB workstation motherboard featuring the AMD WRX90 chipset, sTR5 socket for Ryzen Threadripper PRO 7000 WX-Series CPUs, seven PCIe 5.0 x16 slots, up to 2 TB DDR5 ECC memory, dual 10Gb LAN, USB4 40 Gbps connectivity, and onboard IPMI BMC for 24/7 professional operation
Inclusive of GST · GST invoice available
Overview
The ASUS Pro WS WRX90E-SAGE SE is a professional EEB-form-factor workstation motherboard built around the AMD WRX90 chipset and the AMD sTR5 socket, designed to support AMD Ryzen Threadripper PRO 7000 WX-Series processors with up to 96 cores. It is purpose-built for demanding workloads including content creation, software development, machine learning, and scientific computing, providing the headroom professionals need to run complex pipelines without bottlenecks. At the heart of its expansion capability are seven PCIe 5.0 x16 slots — six operating at full x16 mode and one at x8 mode — enabling flexible multi-GPU configurations or high-bandwidth accelerator deployments. Four onboard M.2 Key-M slots support PCIe 5.0 NVMe drives and can be configured in RAID, while two SlimSAS ports extend connectivity to industrial SSDs and enterprise networking equipment. Four SATA 6 Gb/s ports round out the storage options. Memory capacity reaches up to 2 TB via eight DDR5 R-DIMM slots with ECC support running in octa-channel mode (1DPC), providing the data integrity and bandwidth that professional applications require. The power delivery system comprises 32+3+3+3 power stages fed by two 8-pin +12 V CPU connectors, supplemented by two additional 8-pin PCIe power connectors on the board itself to stabilise multi-GPU loads. Thermal management is addressed through active VRM cooling with extruded aluminium heatsinks, onboard M.2 heatsinks with an active fan, and thermal pads on select M.2 slots. The board is validated for continuous 24/7 operation up to 45 °C ambient and 80% humidity. Connectivity on the rear panel includes two USB4 (USB 40 Gbps) Type-C ports via ASMedia ASM4242 controllers, six USB 10 Gbps Type-A ports, a USB 2.0 port, Intel dual 10 Gb Ethernet, a Realtek 1 Gb Ethernet port, a VGA output, two mini DisplayPort inputs, and a dedicated BMC LAN port. One USB Type-C rear port supports DisplayPort Alt Mode at up to 8K/60 Hz. Server-grade IPMI remote management is enabled by an onboard AST2600 BMC controller, complemented by ASUS Control Center Express software for real-time monitoring. A rear BIOS FlashBack button and Clear CMOS button aid field maintenance. ASUS SafeSlot reinforcement protects PCIe slots under heavy card loads, and SafeDIMM sheathes protect memory modules during installation. The PCIe Q-Release Slim mechanism allows graphics card removal without depressing the retention latch. A full suite of debug tools — including ProbeIt measurement points, ReTry button, Safe Boot button, LN2 Mode jumper, and Slow Mode switch — supports validation and overclocking workflows. Verified Specifications: - Socket: AMD sTR5 - Chipset: AMD WRX90 - Supported CPUs: AMD Ryzen Threadripper PRO 7000 WX-Series (up to 96 cores) - Form Factor: EEB - Memory: 8x DDR5 R-DIMM slots, ECC, Octa-Channel, up to 2 TB (1DPC) - Expansion: 6x PCIe 5.0 x16 + 1x PCIe 5.0 x16 (x8 mode) - Storage: 4x M.2 Key-M (PCIe 5.0), 2x SlimSAS, 4x SATA 6 Gb/s - Networking: Intel dual 10 Gb Ethernet + Realtek 1 Gb Ethernet + dedicated BMC LAN - Rear USB: 2x USB4 40 Gbps Type-C, 6x USB 10 Gbps Type-A, 1x USB 2.0 - Power: 32+3+3+3 power stages, 2x 8-pin CPU + 2x 8-pin PCIe onboard connectors - BMC: AST2600 with IPMI support - Operating Conditions: Up to 45 °C, 80% humidity - Warranty: 3 Years

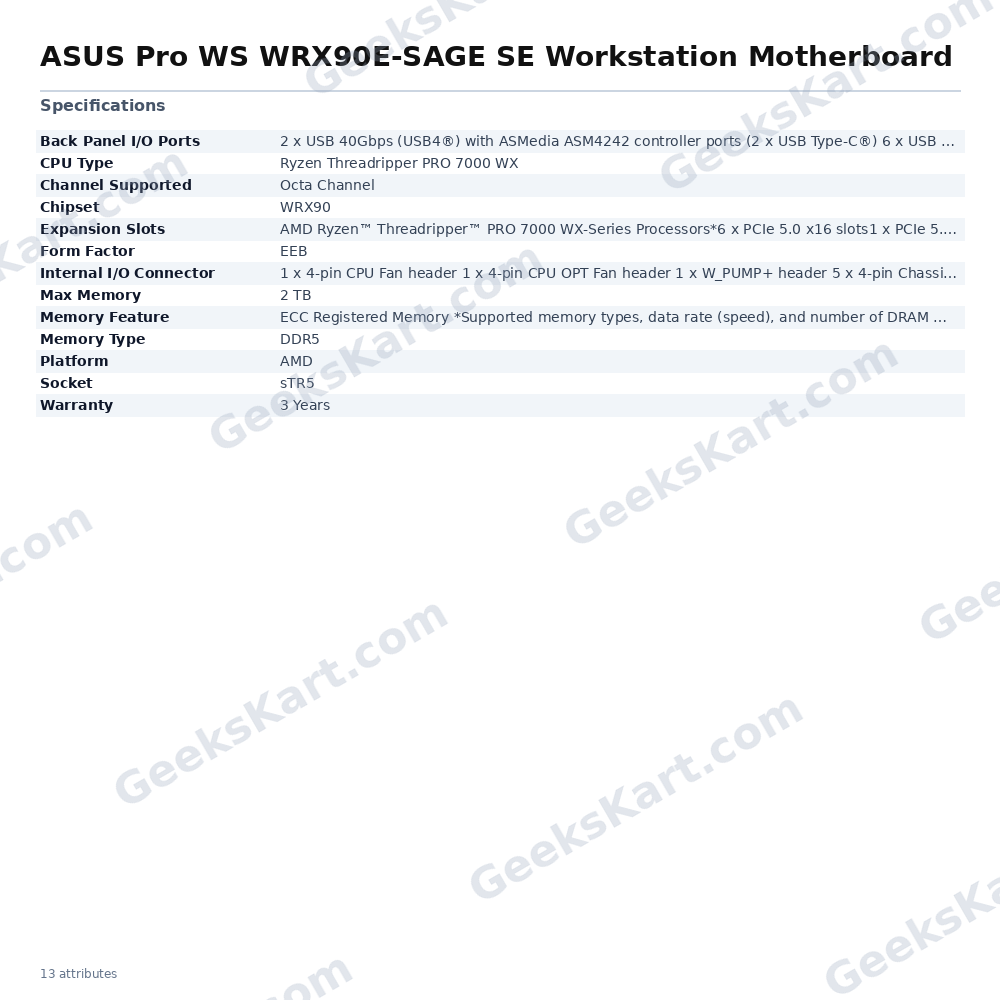

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Chipset | WRX90 |
| Socket | sTR5 |
| CPU Type | Ryzen Threadripper PRO 7000 WX |
| Max Memory | 2 TB |
| Platform | AMD |
| Memory Feature | ECC Registered Memory *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of brand product information site |
| Expansion Slots | AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*6 x PCIe 5.0 x16 slots1 x PCIe 5.0 x16 slot (x8 mode) *Please check the PCIe bifurcation table on the supported brand site **To ensure compatibility of the device installed, please refer to brand for the list of supported peripherals |
| Channel Supported | Octa Channel |
| Back Panel I/O Ports | 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (2 x Type-A) 1 x VGA port 2 x mini DisplayPort IN 1 x Intel® dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O Connector | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 5 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) 1 x 4-pin M.2 Fan header (with M.2 FAN onboard) 1 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 2 x 8-pin PCIe Power connector 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port 1 x USB 20Gbps connector supports USB Type-C 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x Chassis intrusion header 1 x COM port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x LN2 mode jumper 1 x M.2 slot (Key E) 7 x ProbeIt measurement points 1 x ReTry button 1 x RSVD switch 1 x Slow mode switch 1 x Safe boot button 1 x SPI TPM header (14-1 pin) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header |
| Form Factor | EEB |
