ASUS ProArt GeForce RTX 4060 Ti OC Edition 16GB Nvidia Graphic Card
MPN 90YV0JH2-M0AA00 · Brand ASUS
Features of ASUS ProArt GeForce RTX 4060 Ti OC Edition 16GB NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering 3rd Generation RT Cores: Up to 2x ray tracing performance OC edition: 2685 MHz (OC mode)/ 2655 MHz (Default mode) Axial-tech fans scaled up for 21% more airflow 2.5-slot design: allows for greater build compatibility while maintaining premium cooling Dual ball fa
Inclusive of GST · GST invoice available
Overview
Features of ASUS ProArt GeForce RTX 4060 Ti OC Edition 16GB
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- OC edition: 2685 MHz (OC mode)/ 2655 MHz (Default mode)
- Axial-tech fans scaled up for 21% more airflow
- 2.5-slot design: allows for greater build compatibility while maintaining premium cooling
- Dual ball fan bearings of the asus rtx 4060 ti last up to twice as long as conventional designs
- 0dB technology lets you enjoy light gaming in relative silence
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III profile Connect enables creators to seamlessly optimize system performance and cooling for every app

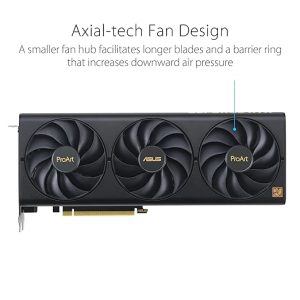

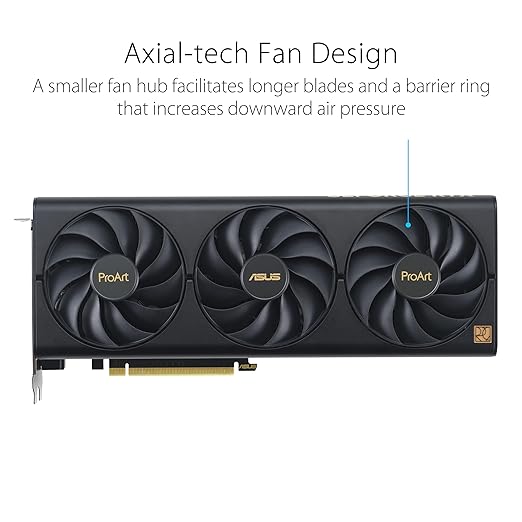

Axial-tech Upgrades-A Fresh Spin
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology-Orchestrated Chill
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps of the ASUS ProArt GeForce RTX 4060 Ti OC Edition 16GB Nvidia graphic card are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.

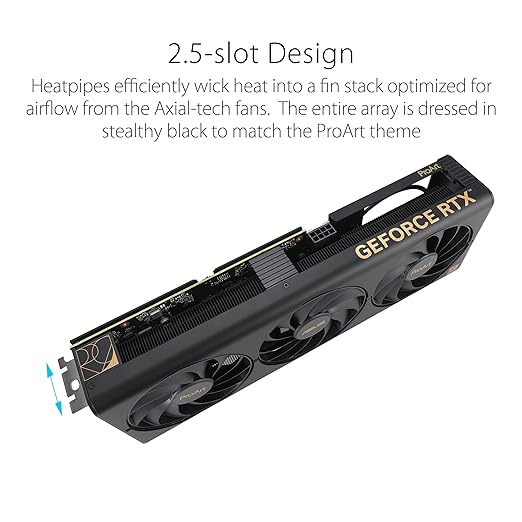

2.5-slot Design-Custom Heatsink
Heatpipes efficiently wick heat into a fin stack optimized for airflow from the Axial-tech fans. The entire array is dressed in stealthy black to match the ProArt theme.
Specifications of ASUS ProArt GeForce RTX 4060 Ti OC Edition 16GB
| Model | PROART-RTX4060TI-O16G |
| Part No | 90YV0JH2-M0AA00 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR6 |
| Engine Clock | OC mode: 2685 MHz Default mode: 2655 MHz (Boost) |
| CUDA Core | 4352 |
| Memory Speed | 18 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

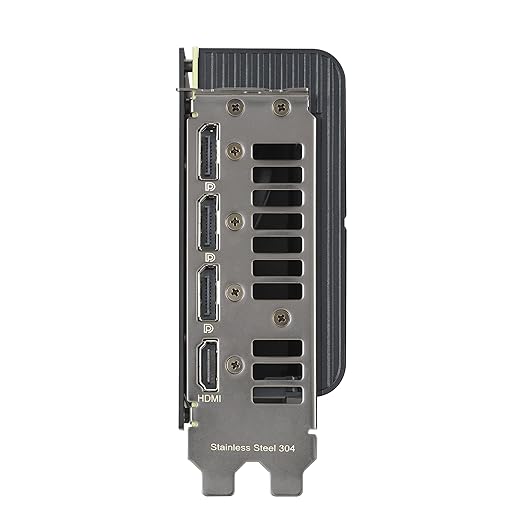

| Interface | Yes x 1 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Collection Card 1 x Speedsetup Manual 1 x ASUS Velcro Hook & Loop 1 x Thank you Card |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 300 x 120 x 50 mm 11.81 x 4.72 x 1.97 inches |
| Recommended PSU | 650W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
| Note | *** Features, Price, Specifications are subject to change without notice. |

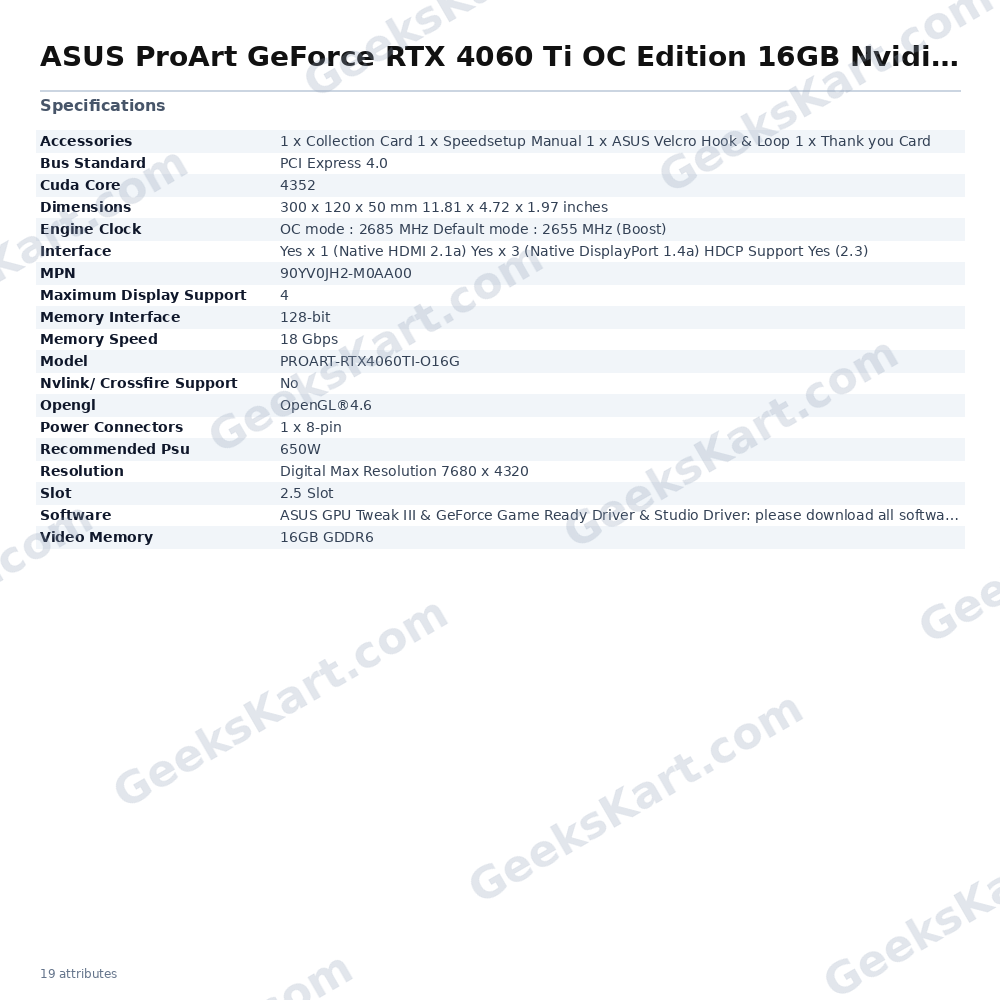

Datasheet
| Memory Speed | 18 Gbps |
|---|---|
| Interface | Yes x 1 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Recommended PSU | 650W |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Slot | 2.5 Slot |
| Model | PROART-RTX4060TI-O16G |
| Opengl | OpenGL®4.6 |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site |
| Cuda Core | 4352 |
| Dimensions | 300 x 120 x 50 mm 11.81 x 4.72 x 1.97 inches |
| Accessories | 1 x Collection Card 1 x Speedsetup Manual 1 x ASUS Velcro Hook & Loop 1 x Thank you Card |
| Bus Standard | PCI Express 4.0 |
| Engine Clock | OC mode : 2685 MHz Default mode : 2655 MHz (Boost) |
| Video Memory | 16GB GDDR6 |
| Memory Interface | 128-bit |
| Power Connectors | 1 x 8-pin |
| Maximum Display Support | 4 |
| Nvlink/ Crossfire Support | No |
