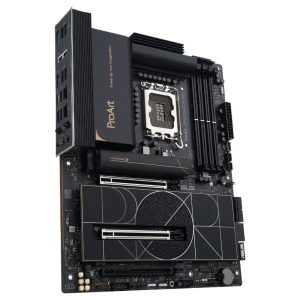

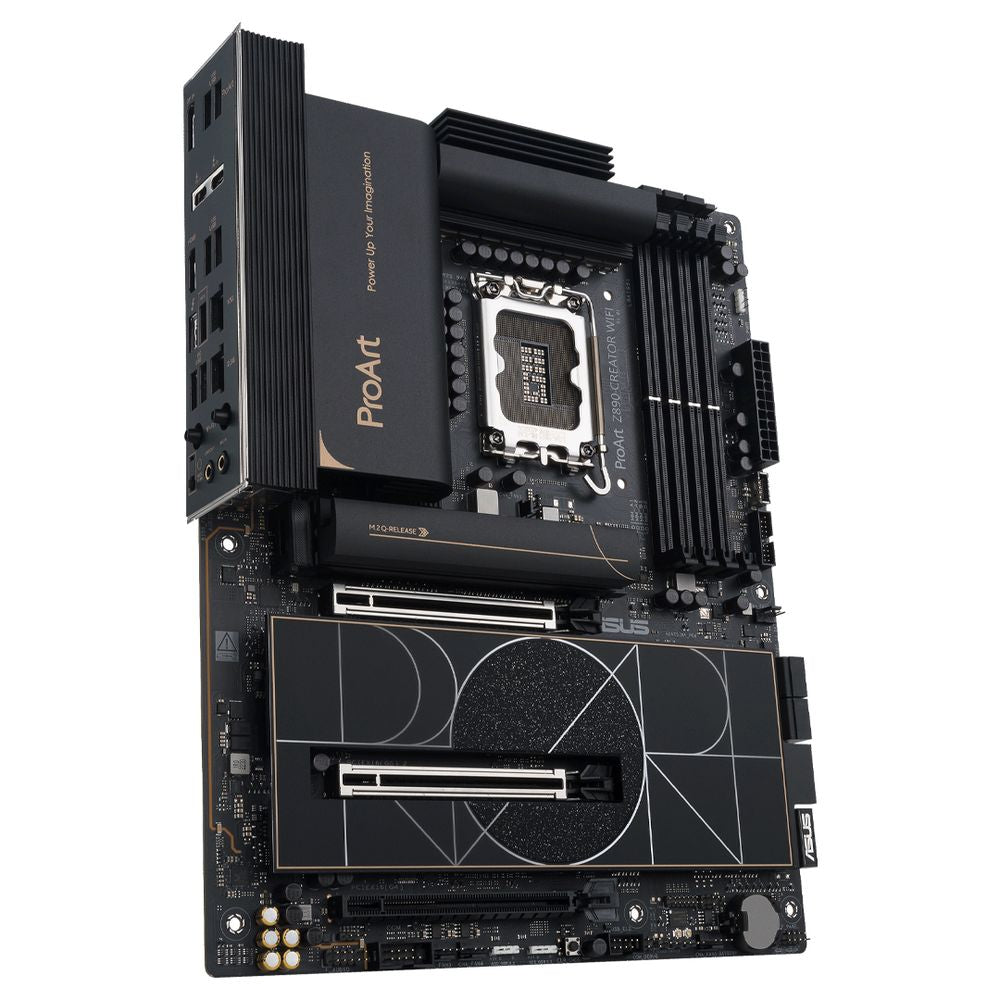

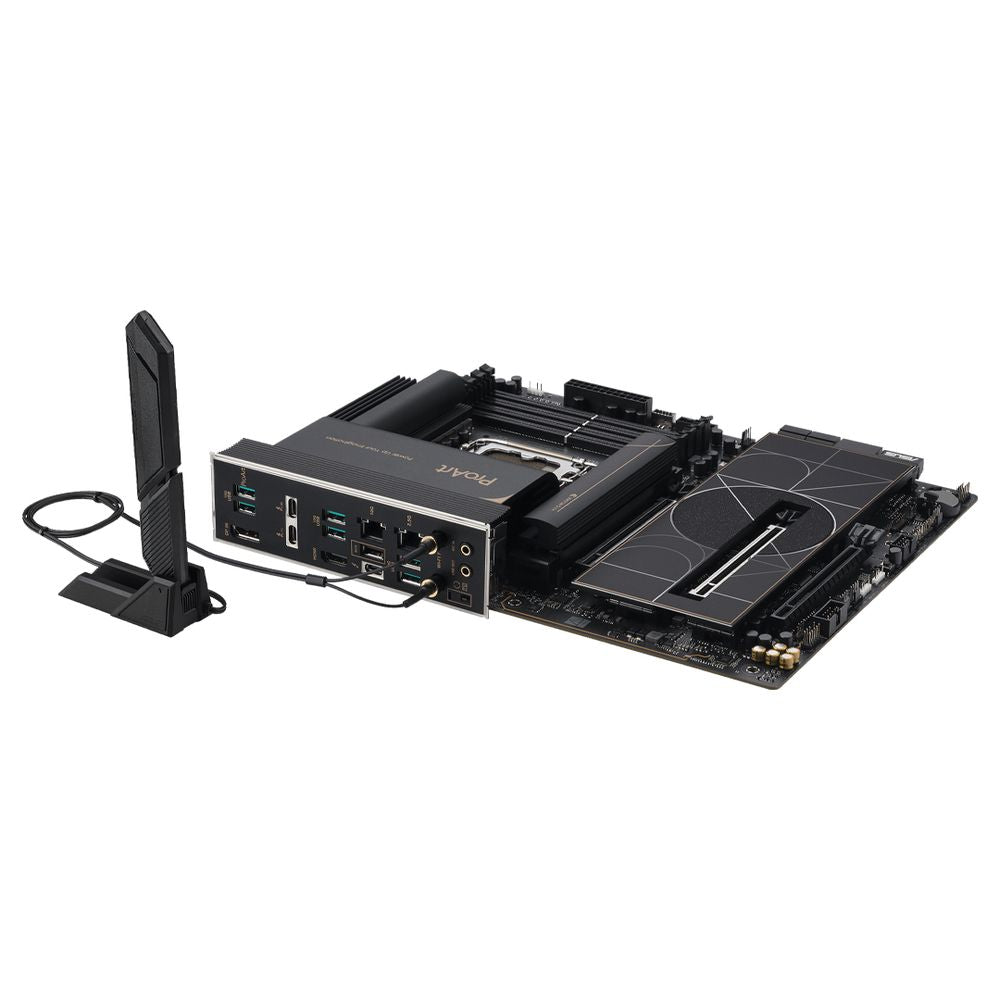

ASUS ProArt Z890 Creator Wifi DDR5 Intel Motherboard
MPN ASUS-PROART-Z890-CREATOR-WIFI · Brand Asus · ATX
The ASUS ProArt Z890-Creator WiFi is an ATX motherboard for Intel LGA1851 processors featuring dual Thunderbolt 5 ports, Wi-Fi 7, dual Ethernet (10G + 2.5G), five M.2 slots, and DDR5 support up to 192 GB — engineered for professional content creation and AI workloads
Inclusive of GST · GST invoice available
Overview
The ASUS ProArt Z890-Creator WiFi is a full-size ATX motherboard built on the Intel Z890 chipset and designed to meet the demands of content creators, AI workstation builders, and power users who require both extreme connectivity and reliable performance. It accepts Intel Core Ultra Processors (Series 2) in the LGA1851 socket, including Core Ultra 9, 7, and 5 desktop variants, and supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 where applicable. For memory, four DDR5 DIMM slots accommodate up to 192 GB in dual-channel configuration, with overclocked speeds supported up to DDR5-8600+ MT/s. ASUS Enhanced Memory Profile III (AEMP III) and Intel XMP support are both available, along with the DIMM Fit BIOS feature that analyses each installed module to optimise timing and stability. Connectivity is a defining strength of this board. Two Thunderbolt 5 Type-C ports and one Thunderbolt 4 Type-C port sit on the rear panel, enabling up to 120 Gbps bi-directional bandwidth and DisplayPort 2.1 video output — capable of driving one 8K or dual 4K displays via the Thunderbolt 5 ports when a discrete GPU is connected to the onboard DisplayPort Input. A Marvell AQtion 10 Gb Ethernet port and an Intel 2.5 Gb Ethernet port provide simultaneous wired connections for NAS and internet traffic. Wireless connectivity is handled by a 2x2 Wi-Fi 7 (802.11be) module with Bluetooth 5.4, covering the 2.4 GHz, 5 GHz, and 6 GHz bands at up to 5.8 Gbps on a 320 MHz channel. Storage options include five M.2 slots: one PCIe 5.0 x4 slot (supporting drives up to 22110 length) and four PCIe 4.0 x4 slots, all supporting NVMe RAID via Intel Rapid Storage Technology. Six SATA 6 Gb/s ports provide additional legacy drive support. Two PCIe 5.0 x16 expansion slots handle discrete graphics — with SafeSlot reinforcement and the tool-free PCIe Q-Release Slim mechanism — and one PCIe 4.0 x16 slot (x4 electrical) is available for additional cards via the chipset. The power delivery subsystem uses a 16(90A)+1(90A)+2(90A)+2(80A) stage design with ProCool II connectors, high-quality alloy chokes, and DrMOS integrated power stages. ASUS AI Overclocking, AI Cooling II, AI Networking II, and NPU Boost (enabling BIOS-level NPU overclocking) round out the platform-level performance tools. Audio is managed by a Realtek ALC1220P codec supporting 7.1 surround sound with up to 32-bit/192 kHz stereo playback, 120 dB SNR output, and 113 dB SNR line input, backed by gold-plated jacks and dedicated audio PCB layers. Verified Specifications: - Socket: Intel LGA1851 - Chipset: Intel Z890 - Form Factor: ATX — 305 mm x 244 mm x 50 mm - Weight: 1.965 kg - Memory: 4x DDR5 DIMM, max 192 GB, up to 8600+ MT/s (OC) - Storage: 1x PCIe 5.0 M.2, 4x PCIe 4.0 M.2, 6x SATA 6 Gb/s - Expansion: 2x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode) - Rear USB: 2x Thunderbolt 5 (Type-C), 1x Thunderbolt 4 (Type-C), 6x USB 10 Gbps (Type-A), 1x USB 2.0 - LAN: 1x 10 Gb (Marvell AQtion), 1x 2.5 Gb (Intel) - Wireless: Wi-Fi 7 (802.11be), Bluetooth 5.4 - Audio: Realtek ALC1220P, 7.1 HD, 120 dB SNR - BIOS: 256 Mb Flash ROM, UEFI AMI

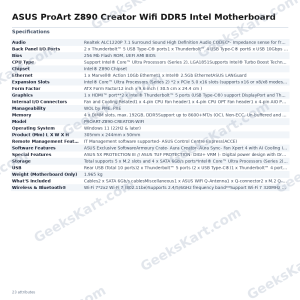

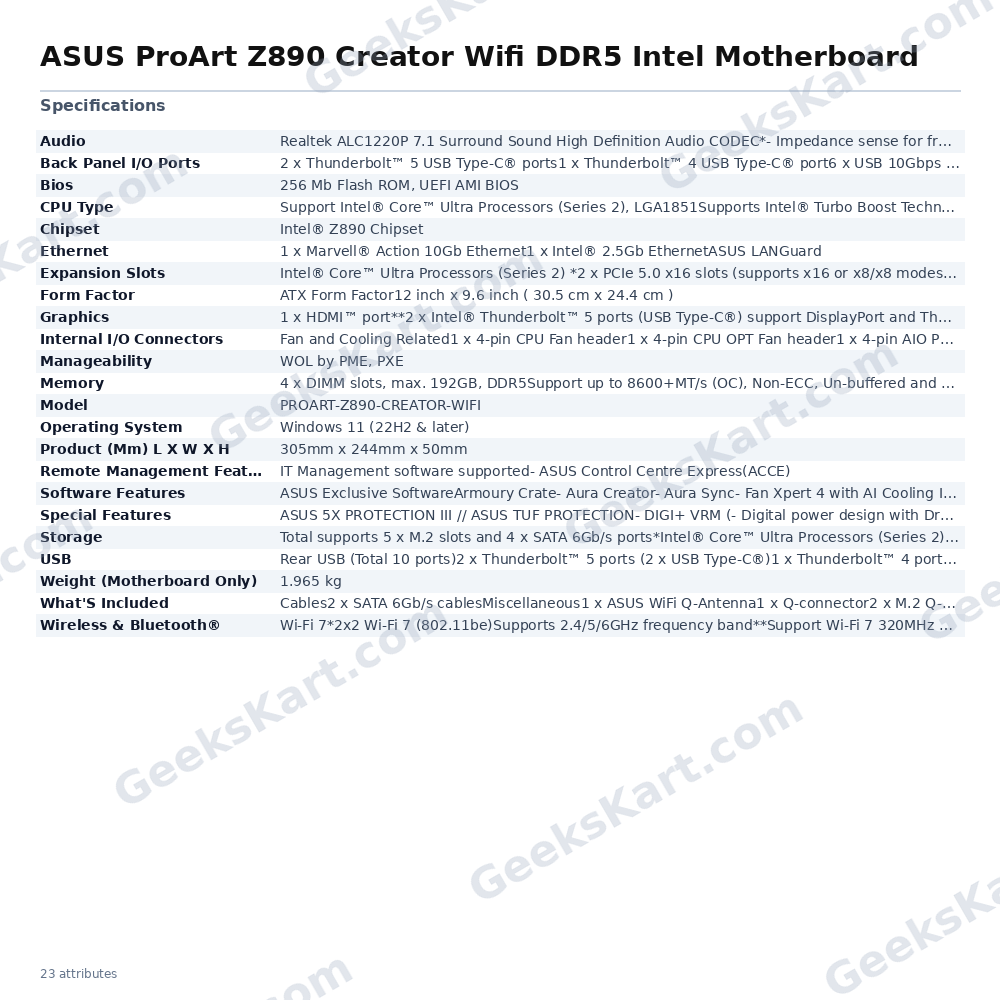

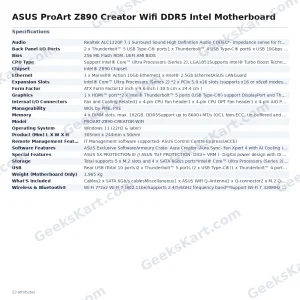

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | Intel® Z890 Chipset |
| CPU Type | Support Intel® CoreTM Ultra Processors (Series 2), LGA1851Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to https://www.asus.com/support/download-center/ for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types |
| USB | Rear USB (Total 10 ports)2 x Thunderbolt™ 5 ports (2 x USB Type-C®)1 x Thunderbolt™ 4 port (1 x USB Type-C®)6 x USB 10Gbps ports (6 x Type-A )1 x USB 2.0 port (1 x Type-A )Front USB (Total 5 ports)1 x USB 20Gbps (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 portsUSB Type-C® power delivery output: max. 5V/3A |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*Audio Features- Gold-plated audio jacks- Premium audio capacitors- Dedicated audio PCB layers* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Memory | 4 x DIMM slots, max. 192GB, DDR5Support up to 8600+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III (AEMP III)DIMM Fit* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Storage | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® Core™ Ultra Processors (Series 2) *M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® Z890 ChipsetM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**6 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled |
| Ethernet | 1 x Marvell® Action 10Gb Ethernet1 x Intel® 2.5Gb EthernetASUS LANGuard |
| Graphics | 1 x HDMI™ port**2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** /1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** /* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.** Supports 4K@60Hz as specified in HDMI 2.1*** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in.*** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in.**** Supports up to 1 x 8K/60HZ monitor.*****For resolution support please check DisplayPort 2.1 specs. Thunderbolts 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables.******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card |
| Model | PROART-Z890-CREATOR-WIFI |
| Manageability | WOL by PME, PXE |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2) *2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**Intel® Z890 Chipset*1 x PCIe 4.0 x16 slot (supports x4 mode)**** Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |

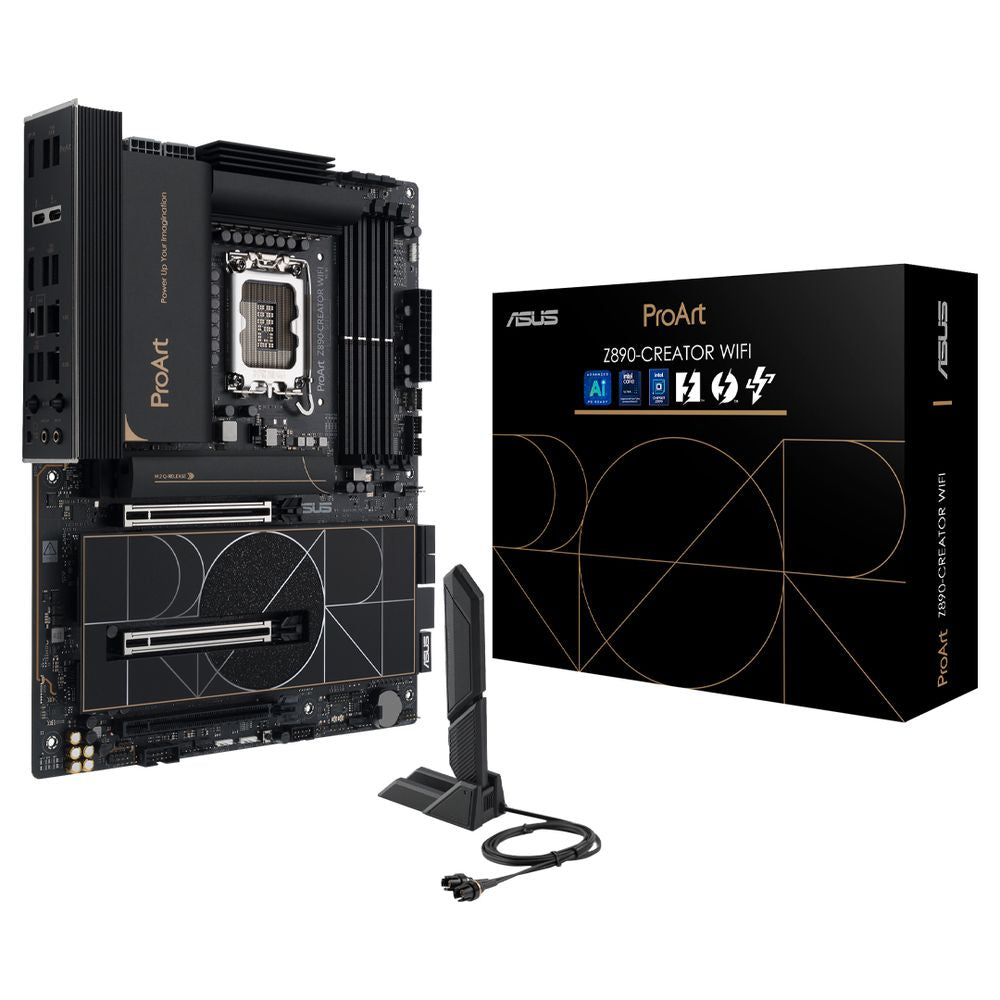

| What'S Included | Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna1 x Q-connector2 x M.2 Q-Latch packages2 x M.2 rubber packages1 x ProArt accessory bagDocumentation1 x ACC Express activation key card1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Special Features | ASUS 5X PROTECTION III // ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- LANGuard- Overvoltage protection- SafeSlot- Stainless-steel back I/OASUS Q-Design- M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Connector- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])ASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Box headers- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeDIMMAura Sync- Addressable Gen2 headersBespoke Motherboard Design & Business Focused Features- 24/7 reliability- Overcurrent protection |
| Software Features | ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 with AI Cooling II- Power SavingASUS Driver HubASUS GlideXASUS CPU-ZCreatonFirstProArt Creator HubTurboV CoreThunderbolt™ ShareUSB Wattage WatcherAdobe Creative Cloud (Free Trial)Norton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS Crash Free BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS My HotkeyMemTest86NPU Boost |

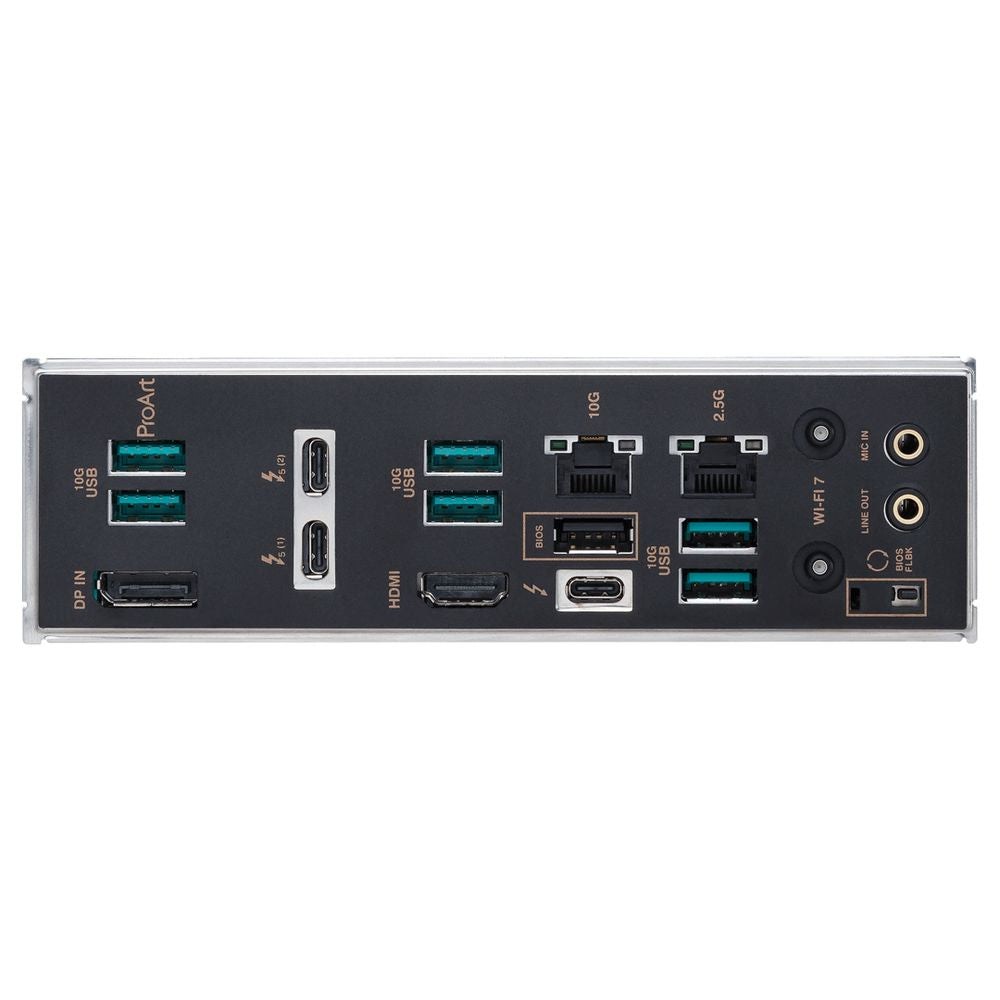

| Back Panel I/O Ports | 2 x Thunderbolt™ 5 USB Type-C® ports1 x Thunderbolt™ 4 USB Type-C® port6 x USB 10Gbps ports (6 x Type-A)1 x USB 2.0 port (1 x Type-A)1 x DisplayPort (Input only)1 x HDMI™ port1 x Wi-Fi module1 x Marvell® Action 10Gb Ethernet port1 x Intel® 2.5Gb Ethernet port2 x Gold-plated audio jacks1 x BIOS FlashBack™ button |
| Product (Mm) L X W X H | 305mm x 244mm x 50mm |
| Wireless & Bluetooth® | Wi-Fi 7*2×2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.Bluetooth® v5.4****Wi-Fi features may vary depending on the operating systemFor Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, only Wi-Fi 6 is supported.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| Internal I/O Connectors | Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorStorage Related5 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 20Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 portsMiscellaneous3 x Addressable Gen2 headers1 x Clear CMOS button1 x COM Port header1 x CPU Over voltage jumper1 x Chassis Intrusion header1 x Front Panel Audio header (F_AUDIO)1 x SPI TPM header (14-1 pin)1 x 10-1 pin Front System Panel header1 x RTC Battery header1 x Thermal Sensor header |
| Weight (Motherboard Only) | 1.965 kg |
| Remote Management Features | IT Management software supported- ASUS Control Centre Express(ACCE) |
