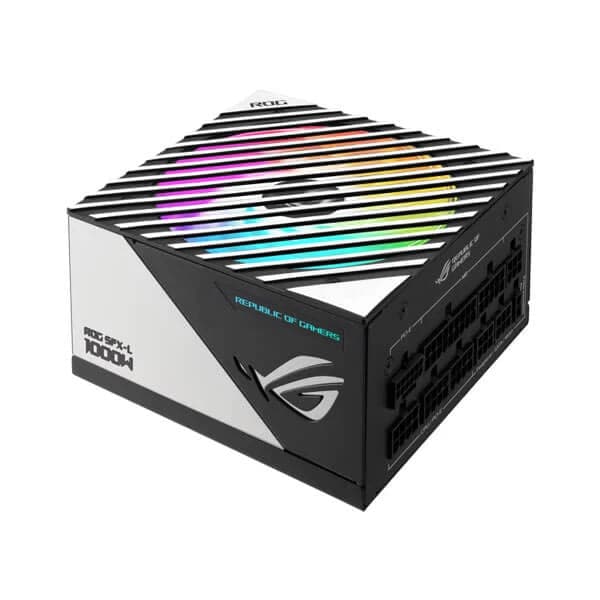

ASUS ROG Loki SFX-L 1000W 80+ Platinum Fully Modular ITX 3.0 Power Supply
MPN ROG-LOKI-1000P-SFX-L-GAMING · Brand ASUS · SFX-L
Features of ASUS ROG Loki SFX-L 1000W Taking after the ROG Thor, the Asus Power Supply Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build. ROG Heatsinks - Cool under pressure ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation. Axial-tech Fan Design - Better, faster, stronger Axial-tech fan design f
Inclusive of GST · GST invoice available
Overview
Features of ASUS ROG Loki SFX-L 1000W
Taking after the ROG Thor, the Asus Power Supply Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
ROG Heatsinks - Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

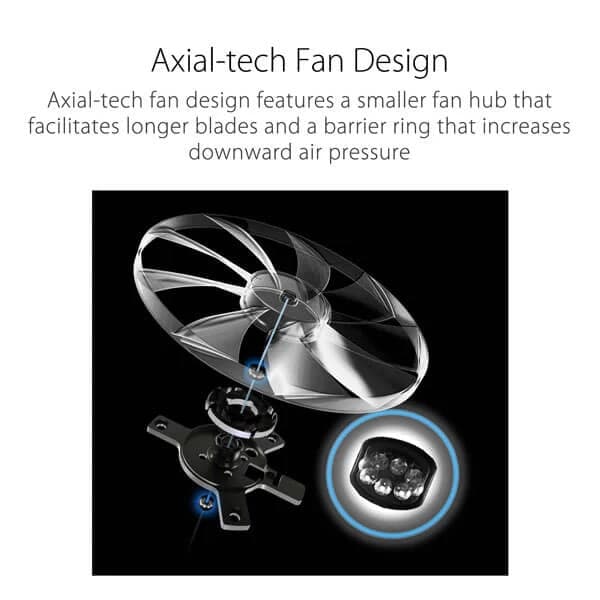

Axial-tech Fan Design - Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Loki PSUs, we've scaled that design to 120mm so it keeps things cool at low RPMs while producing less noise.
Dual Ball Fan Bearings - 2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
0dB Technology - Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.

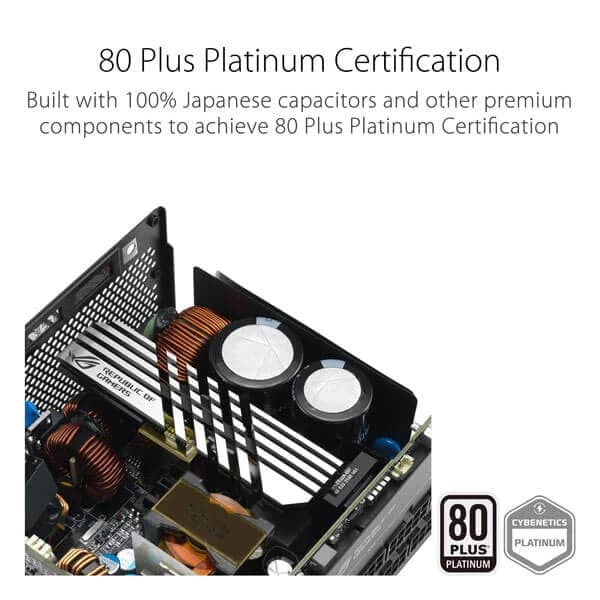

80 PLUS Platinum Certified - Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.

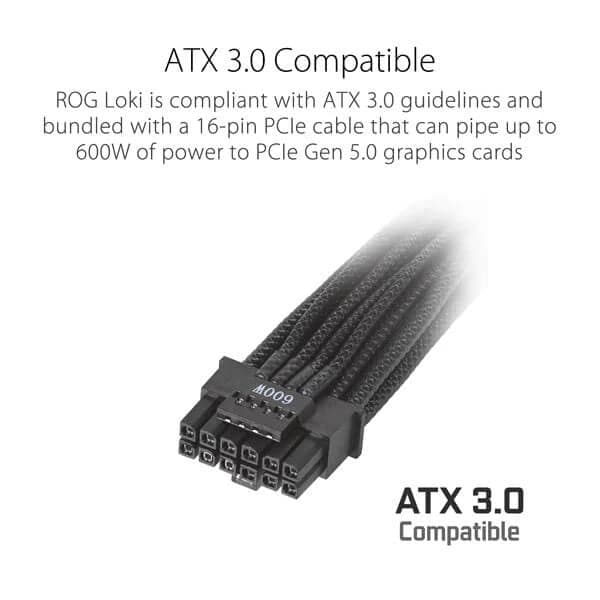

ATX 3.0 Compatible - Step into the future
The latest power specification updates have landed. 1000W Power Supply ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.

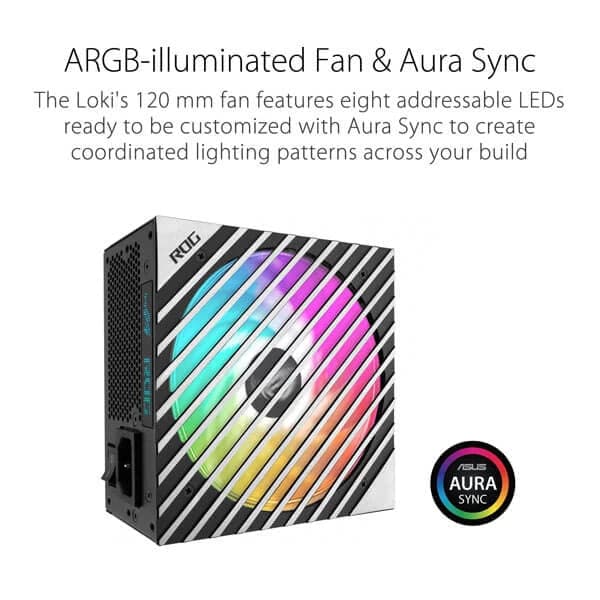

ARGB-illuminated Fan & Aura Sync - Magical glow
The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
10-Year Warranty - A decade of power
We're so confident about the reliability of the ROG Loki SFX-L 1000W Platinum that we back it with a 10-year worldwide warranty.
Get the best 80 Plus Platinum psu power supply price from us today!
Specifications of ASUS ROG Loki SFX-L 1000W
| Model |
ROG LOKI SFX-L 1000W Platinum
|

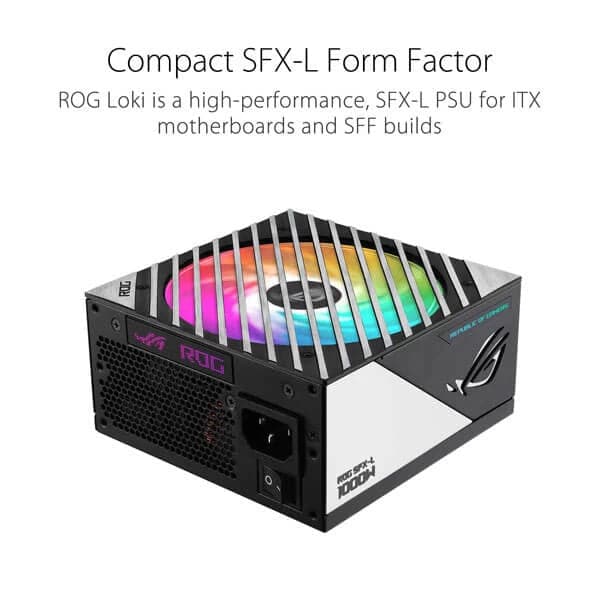

| Intel Form Factor | SFX-L |
| ATX 3.0 | Yes |
| Dimensions | 125 x 125 x 63.5 mm |
| Efficiency | 80Plus Platinum |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | #ERROR! |
| Maximum Load | 20A 20A 83.3A 0.8A 2.5A |
| Combined Load | 110W 110W 1000W 9.6W 12.5W |
| Total Output | 1000W |
| Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 3 SATA x 6 PERIPHERAL x 4 |
| Package Contents |
Power Cord x 1

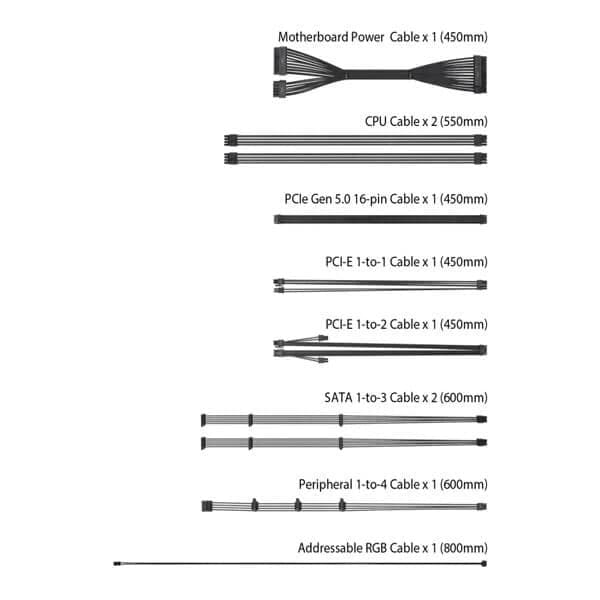

Motherboard Power Cable x 1 (450mm) CPU Cable x 2 (550mm) PCI-E Gen 5 16-pin Cable x 1 (450mm) PCI-E 1-to-1 Cable x 1 (450mm) PCI-E 1-to-2 Cable x 1 (450mm) SATA 1-to-3 Cable x 2 (300+200+100mm) Peripheral 1-to-4 Cable x 1 (300+100+100+100mm) Addressable RGB Cable x 1 (800mm) User Manual x 1 ATX to SFX adapter bracket x 1 |
| Weight | 1.83kg (single PSU) |
| AURA SYNC | ARGB |
| 0dB Fan Button | No |
| Cybenetics Noise Level Certification | A |
| Warranty | 10 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
Datasheet
| Warranty | 10 Years |
|---|---|
| Model | ROG LOKI SFX-L 1000W Platinum |
| Weight | 1.83kg (single PSU) |
| Atx 3.0 | Yes |
| Aura Sync | ARGB |
| Connectors | MB 24/20-pin x 1CPU 4+4-pin x 2PCI-E 16-pin x 1PCI-E 8-pin x 3SATA x 6PERIPHERAL x 4 |
| Dimensions | 125 x 125 x 63.5 mm |
| Efficiency | 80Plus Platinum |
| Maximum Load | 20A 20A 83.3A 0.8A 2.5A |
| Total Output | 1000W |
| Combined Load | 110W 110W 1000W 9.6W 12.5W |
| 0Db Fan Button | No |
| Ac Input Range | 100-240Vac |
| Package Contents | Power Cord x 1Motherboard Power Cable x 1 (450mm)CPU Cable x 2 (550mm)PCI-E Gen 5 16-pin Cable x 1 (450mm)PCI-E 1-to-1 Cable x 1 (450mm)PCI-E 1-to-2 Cable x 1 (450mm)SATA 1-to-3 Cable x 2 (300+200+100mm)Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)Addressable RGB Cable x 1 (800mm)User Manual x 1ATX to SFX adapter bracket x 1 |
| Dc Output Voltage | #ERROR! |
| Intel Form Factor | SFX-L |
| Hazardous Materials | ROHS |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Cybenetics Noise Level Certification | A |
