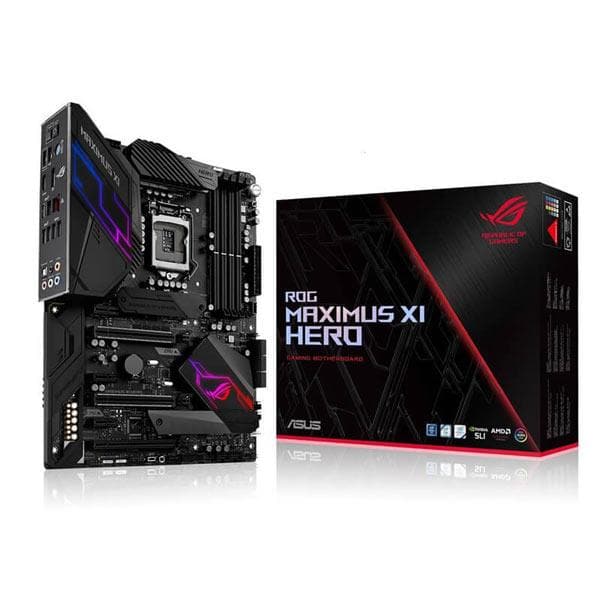

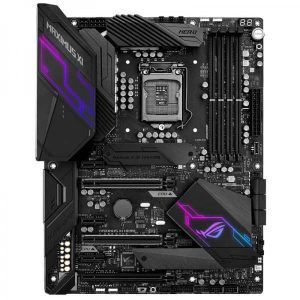

ASUS ROG Maximus XI Hero DDR4 Intel Motherboard
MPN ASUS-ROG-MAXIMUS-XI-HERO · Brand ASUS · ATX
The ASUS ROG Maximus XI Hero is an ATX Z390 motherboard for 9th/8th Gen Intel processors, featuring dual M.2 slots, USB 3.1 Gen 2, SupremeFX audio, Aura Sync RGB, and comprehensive water-cooling headers
Inclusive of GST · GST invoice available
Overview
The ASUS ROG Maximus XI Hero is an ATX-form-factor motherboard built on the Intel Z390 chipset and designed for 9th and 8th generation Intel Core, Pentium Gold, and Celeron processors via the LGA1151 socket. It measures 30.5 cm x 24.4 cm and supports Intel Turbo Boost Technology 2.0, making it a capable platform for enthusiast desktop builds. Memory support spans four DDR4 DIMM slots accommodating up to 64 GB of non-ECC unbuffered RAM in a dual-channel configuration. Native speeds of 2133/2400/2666 MHz are supported, with XMP overclocking profiles reaching up to 4400 MHz (O.C.), giving builders significant headroom for performance tuning. Storage is handled by two M.2 Socket 3 slots with M-key support — one catering to 2242/2260/2280 devices (SATA and PCIe 3.0 x4), and a second accommodating 2242/2260/2280/22110 devices (PCIe 3.0 x4 only) — plus six SATA 6 Gb/s ports with RAID 0, 1, 5, and 10 support and Intel Optane Memory compatibility. Expansion is provided by two PCIe 3.0 x16 slots (operating at x16, dual x8, or x8/x4/x4) and one PCIe 3.0 x16 slot running at x4 mode, supplemented by three PCIe 3.0 x1 slots. Multi-GPU configurations are supported via NVIDIA 2-Way SLI and AMD 3-Way CrossFireX. Connectivity at the rear I/O includes four USB 3.1 Gen 2 ports, two USB 3.1 Gen 1 Type-A ports, two USB 2.0 ports, Intel I219V Gigabit Ethernet with LANGuard surge protection, DisplayPort, HDMI, an optical S/PDIF output, and five gold-plated audio jacks. Onboard Wi-Fi (802.11ac) is listed in source feature descriptions. A USB BIOS Flashback button and Clear CMOS button are also present on the rear panel. Audio is powered by the ROG SupremeFX S1220 codec delivering 8-channel HD audio with 120 dB SNR playback output and 113 dB SNR recording input, backed by an ESS ES9023P DAC and SupremeFX shielding. Sonic Studio III and Sonic Radar III software are included. The Aura Sync ecosystem is fully supported, with two addressable RGB strip headers and two standard Aura RGB strip headers for per-zone lighting control compatible with Aura Sync-capable peripherals including Philips Hue. The 5-Way Optimization system consolidates AI overclocking, EPU energy management, DIGI+ VRM control, Fan Expert 4, and Turbo App profiles into a single tuning workflow. Water-cooling builders benefit from dedicated W_IN, W_OUT, W_FLOW, and W_PUMP headers alongside an AIO_PUMP connector and an H_AMP fan header. The BIOS is a 128 Mb Flash ROM running UEFI AMI with EZ Flash 3, CrashFree BIOS 3, and USB BIOS Flashback. The board carries a 3-year manufacturer warranty. Verifiable Specifications: - Socket: LGA1151 | Chipset: Intel Z390 - Memory: 4 x DDR4 DIMM, max 64 GB, up to 4400 MHz (O.C.), XMP support - Storage: 2 x M.2 PCIe 3.0 x4, 6 x SATA 6 Gb/s, RAID 0/1/5/10 - Expansion: 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1 - USB: 4 x USB 3.1 Gen 2, 4 x USB 3.1 Gen 1, 6 x USB 2.0 (total) - Audio: SupremeFX S1220, 120 dB SNR playback, 32-bit/192 kHz - LAN: Intel I219V Gigabit Ethernet - Form Factor: ATX, 30.5 cm x 24.4 cm - Warranty: 3 Years

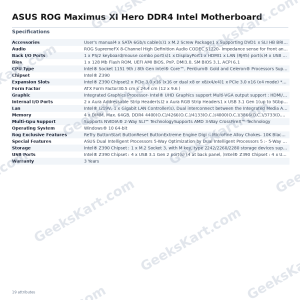

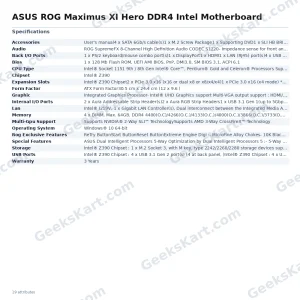

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z390 |
| CPU Type | |
| Lan | Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)Anti-surge LANGuardROG GameFirst Technology |
| Bios | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- SupremeFX Shielding Technology- ESS® ES9023P- Supports up to 32-Bit/192kHz playback *3Audio Feature :- Gold-plated jacks- Optical S/PDIF out port(s) at back panel- Sonic Radar III- Sonic Studio III Sonic Studio Link |
| Memory | 4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ 3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.) /3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/ 2666/2400/ 2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* Hyper DIMM support is subject to the physical characteristics of individual CPUs |
| Graphic | Integrated Graphics Processor- Intel® UHD Graphics support Multi-VGA output support : HDMI/DisplayPort ports- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz |
| Storage | Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*21 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)6 x SATA 6Gb/s port(s)Support Raid 0, 1, 5, 10Intel® Optane™ Memory Ready |
| USB Ports | Intel® Z390 Chipset : 4 x USB 3.1 Gen 2 port(s) (4 at back panel, )Intel® Z390 Chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)Intel® Z390 Chipset :6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)Intel® Z390 Chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) |
| Accessories | User's manual4 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x SLI HB BRIDGE(2-WAY-M)1 x ROG big sticker1 x Q-Connector1 x Extension Cable for RGB strips (80 cm)1 x Extension cable for Addressable LED1 x ROG coaster(s) |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.1 Gen 2 (red) ()2 x USB 3.1 Gen 1 (blue) Type-A2 x USB 2.01 x Optical S/PDIF out1 x Clear CMOS button(s)1 x USB BIOS Flashback Button(s)5 x Gold-plated audio jacks |
| Expansion Slots | Intel® Z390 Chipset2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4)1 x PCIe 3.0 x16 (x4 mode) *13 x PCIe 3.0 x1 |
| Operating System | Windows® 10 64-bit |
| Special Features | ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI VRM, Fan Expert 4, and Turbo AppAURA :- Aura Lighting Control- Aura RGB Strip Headers- Aura Lighting Effects Synchronization with compatible ASUS ROG devices- Aura Addressable Strip Header(s)ASUS Exclusive Features :- USB BIOS Flashback- MemOK! II- AI Suite 3- Ai Charger- ASUS CrashFree BIOS 3- Armoury Crate- Pre-mounted I/O Shield- ASUS NODE: hardware control interface- OptiMem II- ASUS EZ Flash 3- ASUS C.P.R.(CPU Parameter Recall)- BUPDATER- BIOS Flashback Button- Clear CMOS Button- Reset ButtonASUS Q-Design :- ASUS Q-Code- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMM- ASUS Q-Connector |
| Multi-Gpu Support | Supports NVIDIA® 2-Way SLI™ TechnologySupports AMD 3-Way CrossFireX™ Technology |
| Internal I/O Ports | 2 x Aura Addressable Strip Header(s)2 x Aura RGB Strip Headers1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)1 x TPM connector(s)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)3 x Chassis Fan connector(s) (3 x 4 -pin)1 x AIO_PUMP connector (1 x 4 -pin)1 x H_AMP fan connector1 x W_PUMP connector (1 x 4 -pin)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x MemOK! II switch(es)1 x Reset button(s)1 x Node Connector(s)1 x ReTry button1 x System panel connector1 x EXT_Fan header1 x W_IN header1 x W_OUT header1 x W_FLOW header1 x Thermal sensor connector1 x Start button1 x USB 3.1 Gen 2 front panel connector |
| Rog Exclusive Features | ReTry ButtonStart ButtonReset ButtonExtreme Engine Digi :- MicroFine Alloy Chokes- 10K Black Metallic CapacitorsMem TweakItExtreme TweakerROG Exclusive Software- Mem Tweakit- RAMCache III- RAMDisk- CPU-Z- GameFirst V- Sonic Studio III Sonic Studio Link- Sonic Radar III |
