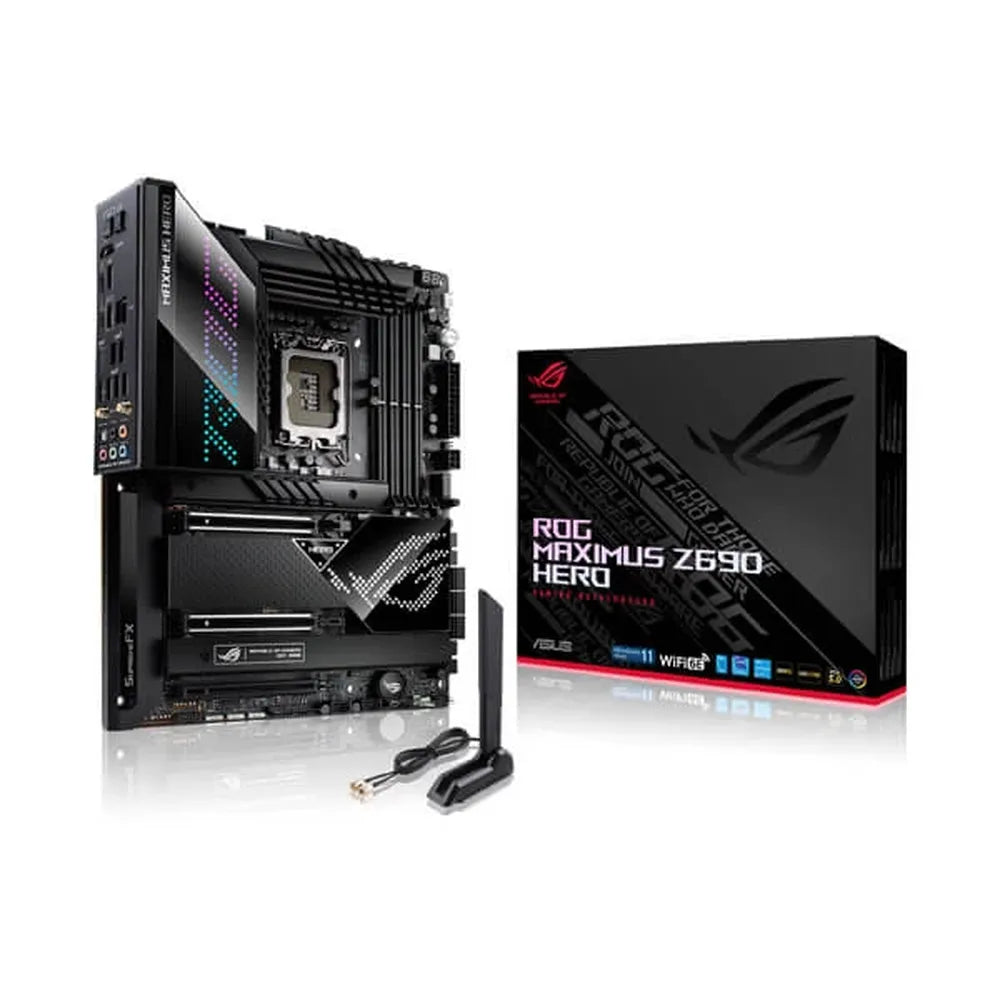

ASUS ROG Maximus Z690 Hero Wifi DDR5 Intel Motherboard

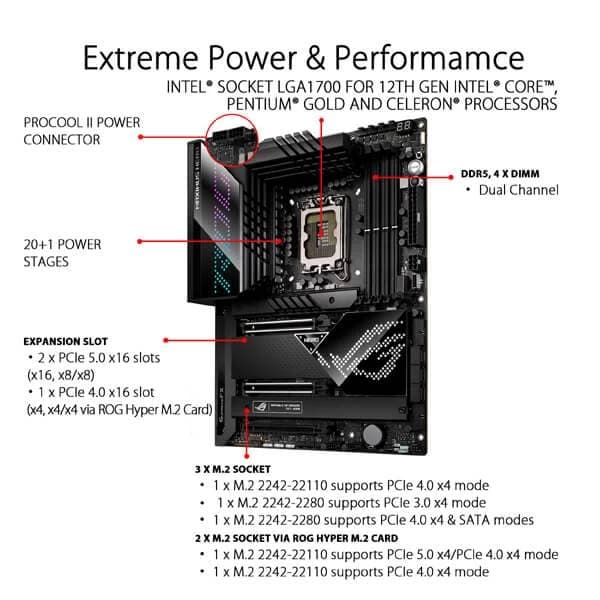

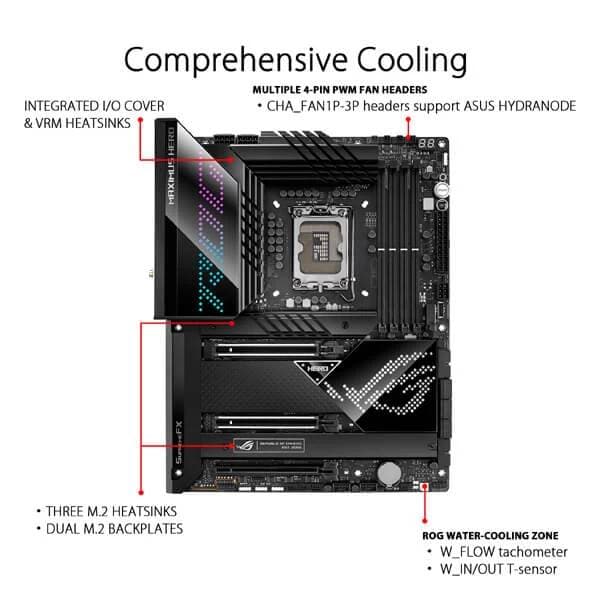

The ASUS ROG Maximus Z690 Hero WiFi is a full-size ATX motherboard (305 mm × 244 mm) built on the Intel Z690 chipset for 12th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. It is engineered with enthusiast-grade overclocking credentials and a comprehensive set of connectivity options, making it a capable platform for demanding gaming rigs, content-creation workstations, and high-throughput storage builds. At the heart of the board's power delivery sits the Extreme Engine Digi+ design, which uses 10K Black Metallic Capacitors and MicroFine Alloy Chokes alongside ProCool II power connectors. The ROG VRM and chipset heatsinks are sized to balance thermal mass and surface area for sustained operation under load. Dual 8-pin +12 V CPU power connectors and a supplementary 6-pin PCIe Graphics Card connector support the board's power requirements. Memory support spans four DDR5 DIMM slots accommodating up to 128 GB of non-ECC unbuffered RAM in dual-channel configuration. Native speed is 4800 MT/s, with XMP profiles reaching 6400+ MT/s (OC). Storage flexibility is extensive: three onboard M.2 Key-M slots — M.2_1 (PCIe 4.0 x4, up to 22110), M.2_2 (PCIe 3.0 x4, up to 2280), and M.2_3 (PCIe 4.0 x4 or SATA, up to 2280) — are complemented by the included ROG Hyper M.2 Card, which adds up to two additional M.2 slots (supporting PCIe 5.0 x4 or PCIe 4.0 x4 depending on slot placement) for a total of five M.2 slots. Six SATA 6 Gb/s ports round out storage, with Intel RST supporting NVMe RAID 0/1/5 and SATA RAID 0/1/5/10. Expansion is handled by two PCIe 5.0 x16 slots (supporting x16 or x8/x8 modes from the CPU) and one PCIe 4.0 x16 slot (supporting x4 modes from the chipset). Rear connectivity includes two Thunderbolt 4 USB Type-C ports (DisplayPort 1.4 and 4K video capable), seven USB 3.2 Gen 2 ports (six Type-A + one Type-C), and two USB 2.0 ports, plus a single HDMI 2.1 output (4K@60 Hz). Front-panel headers add a USB 3.2 Gen 2×2 Type-C connector with Quick Charge 4+ support (up to 60 W with the 6-pin connector fitted), two USB 3.2 Gen 1 headers, and two USB 2.0 headers. Networking centres on Intel Wi-Fi 6E (2×2, 802.11 a/b/g/n/ac/ax, 2.4/5/6 GHz) with Bluetooth 5.2 and a wired Intel 2.5 Gb Ethernet port protected by ASUS LANGuard. Audio is handled by the ROG SupremeFX ALC4082 CODEC paired with an ESS SABRE9018Q2C DAC/AMP, delivering 7.1 surround sound, 120 dB SNR stereo playback, 113 dB SNR recording, and 32-bit/384 kHz playback, all behind SupremeFX Shielding Technology and gold-plated jacks. The board ships with the ROG Extreme OC Kit (FlexKey, ReTry, and Start buttons), BIOS FlashBack, Clear CMOS, onboard Q-Code display, Q-LED diagnostics, M.2 Q-Latch screwless retention, SafeSlot, SafeDIMM, and a pre-mounted I/O shield. Lighting is provided by one AURA RGB header and three Addressable Gen 2 headers, synced via AURA Sync, plus the Polymo Lighting display on the I/O cover. The 256 Mb UEFI AMI BIOS supports AI Overclocking, CrashFree BIOS 3, and EZ Flash 3. Software bundle includes AI Suite 3, Fan Xpert 4, Armoury Crate, GameFirst VI, Sonic Studio III, and Two-Way AI Noise Cancelation. Verifiable Specifications: - Socket: Intel LGA1700 | Chipset: Intel Z690 - Form Factor: ATX, 305 mm × 244 mm - Memory: 4 × DDR5 DIMM, max 128 GB, 4800–6400+ MT/s (XMP) - M.2 Slots: 5 total (3 onboard + 2 via ROG Hyper M.2 Card); up to PCIe 5.0 x4 - SATA: 6 × SATA 6 Gb/s; RAID 0/1/5/10 - PCIe: 2 × PCIe 5.0 x16 (CPU), 1 × PCIe 4.0 x16 (chipset) - Rear USB: 2 × TB4 Type-C, 7 × USB 3.2 Gen 2, 2 × USB 2.0 - Networking: Intel 2.5 GbE + Intel Wi-Fi 6E + Bluetooth 5.2 - Audio: ALC4082 + ESS SABRE9018Q2C, 120 dB SNR, 32-bit/384 kHz - Display: 1 × HDMI 2.1 (4K@60 Hz), 2 × TB4 (DP 1.4) - Warranty: 3 Years
