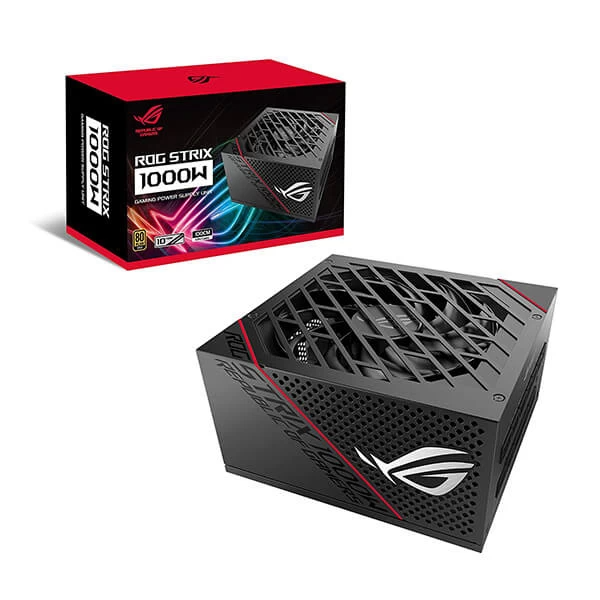

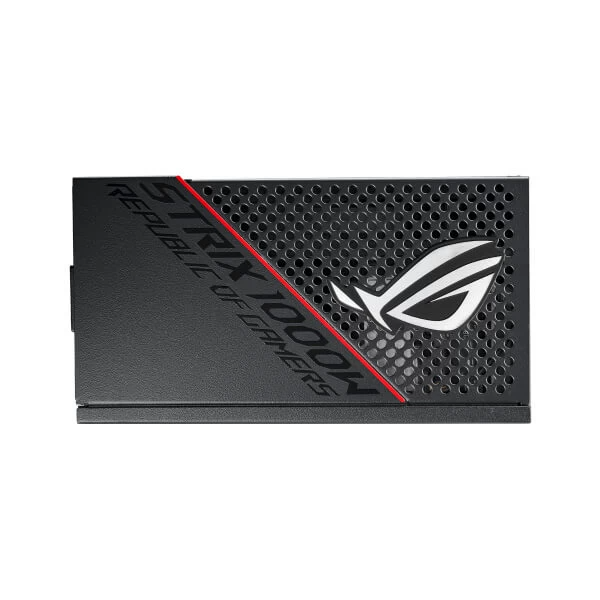

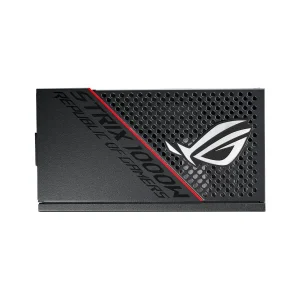

Asus ROG Strix 1000G 80 Plus Gold SMPS

The Asus ROG Strix 1000G is a 1000W fully modular ATX power supply engineered for high-performance gaming builds that demand reliable, efficient, and quiet power delivery. Built on the same thermal philosophy as the flagship ROG Thor series, the Strix 1000G brings premium-grade cooling and component quality together in a purpose-built gaming PSU. At the core of the cooling system are integrated ROG heatsinks with roughly twice the volume of conventional designs. These heatsinks draw heat away from critical components, keeping internal temperatures lower and enabling the 0dB fan-stop mode to operate for longer periods. The 135mm Axial-tech fan — a design refined on high-end ROG graphics cards — features a smaller hub for longer blade sweep and a barrier ring that channels air downward more efficiently. When the system's thermal design power (TDP) stays below 40%, the fan halts completely, delivering near-silent operation during light gaming or general desktop use. Above 40% TDP, the fan spins up automatically. Dual ball fan bearings underpin long-term durability, rated to last up to twice as long as sleeve bearing alternatives. Efficiency is certified at 80 Plus Gold, supported by premium Japanese capacitors and low RDS MOSFETs that reduce resistive losses and heat generation under load. Protection circuits cover over-power (OPP), over-voltage (OVP), under-voltage (UVP), short-circuit (SCP), over-current (OCP), and over-temperature (OTP) scenarios. The unit accepts a wide AC input range of 100–240 V, making it compatible with Indian and international mains supplies. Fully modular cabling eliminates unused cable clutter. The included 24/20-pin motherboard cable, two 4+4-pin CPU cables, three 6+2-pin PCIe cables, two SATA cable runs covering eight connectors, and two peripheral cable runs covering six connectors all feature embedded capacitors on the MB, CPU, and PCIe cables to reduce voltage ripple. Cosmetic personalisation is supported by a magnetic ROG logo, badge inserts, and label stickers. Verified Specifications: - Form Factor: ATX12V - Total Output: 1000 W - Efficiency Certification: 80 Plus Gold - Modular: Fully Modular - Fan: 135 mm Axial-tech, Dual Ball Bearing, 0dB mode below 40% TDP - AC Input: 100–240 Vac - Maximum Rails: +3.3 V / 25 A; +5 V / 25 A; +12 V / 83 A; –12 V / 0.3 A; +5 Vsb / 3 A - Combined Load: +3.3 V + +5 V = 125 W; +12 V = 996 W - Connectors: MB 24/20-pin ×1, CPU 4+4-pin ×2, PCIe 6+2-pin ×6, SATA ×8, Peripheral ×6 - Protection: OPP, OVP, UVP, SCP, OCP, OTP - Compliance: RoHS - Dimensions: 160 × 150 × 86 mm - Weight: 1.885 kg - GTIN: 4718017375917 - Warranty: 10 Years
