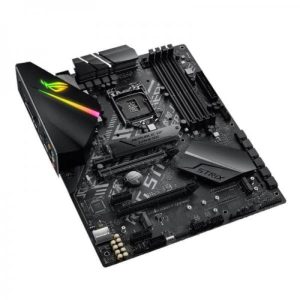

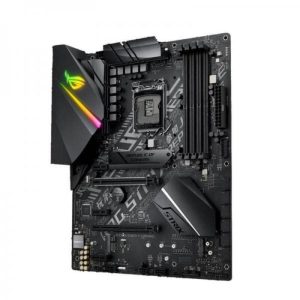

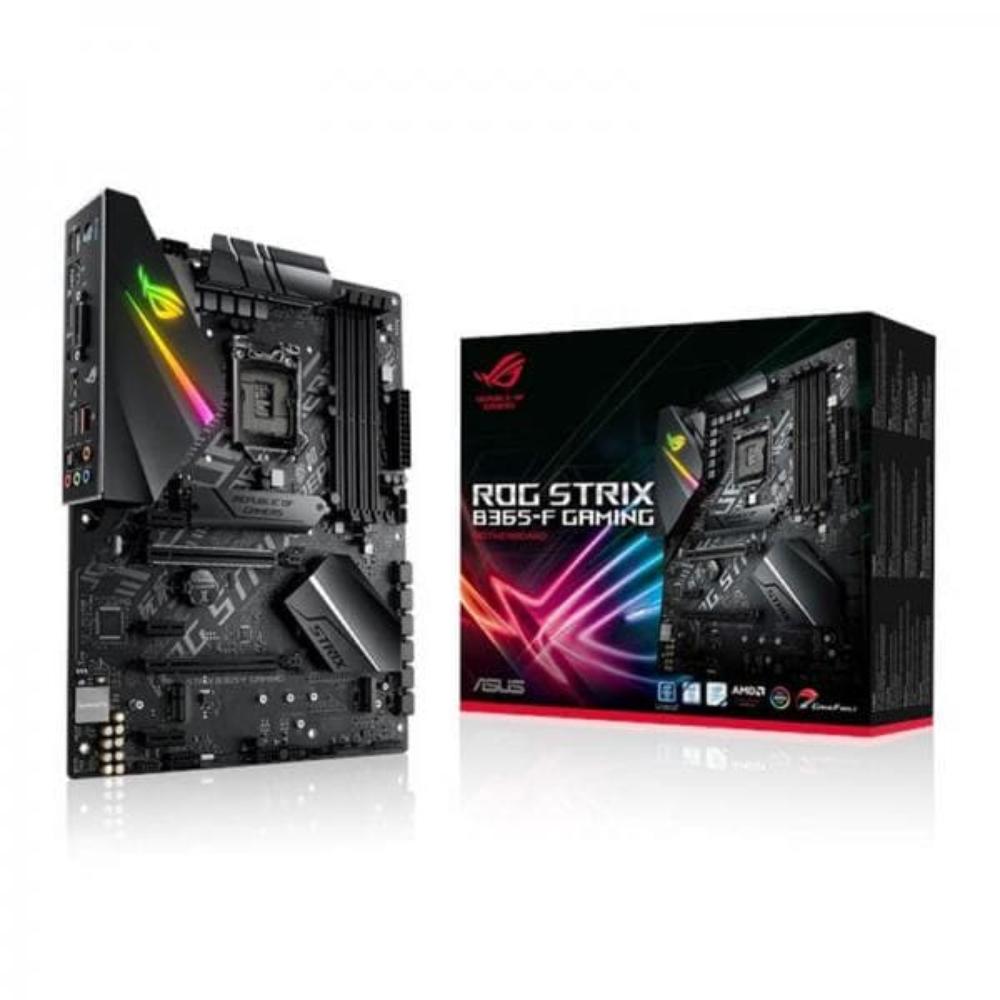

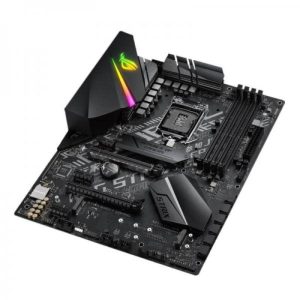

ASUS ROG Strix B365-F Gaming DDR4 Intel Motherboard
MPN ASUS-ROG-STRIX-B365-F · Brand ASUS · ATX
The ASUS ROG Strix B365-F Gaming is an ATX motherboard for Intel LGA1151 8th/9th Gen CPUs, featuring dual PCIe 3.0 M.2 slots, SupremeFX S1220A audio, Aura Sync RGB, and Intel Gigabit LAN
Inclusive of GST · GST invoice available
Overview
The ASUS ROG Strix B365-F Gaming is an ATX-form-factor motherboard built around the Intel B365 chipset and LGA1151 socket, designed to support 8th and 9th generation Intel Core, Pentium Gold, and Celeron desktop processors running on Intel's 14 nm process. At its core, the board provides four DDR4 DIMM slots accommodating up to 64 GB of dual-channel, non-ECC unbuffered memory across speeds of 2133, 2400, and 2666 MHz, with Intel Extreme Memory Profile (XMP) support for enthusiast kits. Storage flexibility is addressed through two PCIe 3.0 x4 M.2 Socket 3 slots (key-M, supporting 2242/2260/2280 form factors); the first slot also accepts SATA-mode M.2 drives and includes an integrated M.2 heatsink to maintain consistent thermal performance under sustained workloads. Six SATA 6 Gb/s ports, Intel Rapid Storage Technology support, and Intel Optane Memory readiness round out the storage feature set. Connectivity is handled by an Intel I219V Gigabit Ethernet controller, protected by ROG LANGuard anti-surge circuitry and paired with GameFirst technology for traffic prioritisation during online play. The back panel provides two USB 3.1 Gen 2 Type-A ports (red), two USB 3.1 Gen 1 ports (one Type-A, one Type-C), four USB 2.0 ports, DisplayPort, HDMI (up to 4096×2160 @ 24 Hz), DVI-D (up to 1920×1200 @ 60 Hz), optical S/PDIF output, five audio jacks, and a PS/2 combo port. An M.2 E-key slot on the board supports optional Wi-Fi module installation. Audio is delivered by ROG SupremeFX using the S1220A codec — an 8-channel HD solution featuring dual headphone amplifiers, impedance sensing for front and rear outputs, 120 dB SNR stereo playback, 113 dB SNR recording, and 32-bit/192 kHz playback capability, complemented by Sonic Studio III and Sonic Radar III software. Fan management is handled by Fan Xpert 4, which includes Fan Auto Tuning and GPU temperature sensing for system-wide cooling optimisation. ROG Aura Sync enables RGB LED control across the board's built-in LEDs and an onboard RGB strip header, synchronisable with compatible ASUS ROG peripherals and components. Verified Specifications: Socket: LGA1151 | Chipset: Intel B365 | Memory: 4x DIMM, DDR4 up to 64 GB, 2666/2400/2133 MHz | Form Factor: ATX (12 x 9.6 in / 30.5 x 24.4 cm) | M.2 Slots: 2x PCIe 3.0 x4 (one with heatsink, one SATA+PCIe) | SATA Ports: 6x 6 Gb/s | Expansion: 1x PCIe x16 (x16), 1x PCIe x16 (x4), 3x PCIe x1 | LAN: Intel I219V Gigabit | Audio Codec: SupremeFX S1220A, 120 dB SNR playback | USB: 2x Gen 2, 4x Gen 1, 8x USB 2.0 | Display Out: HDMI, DisplayPort, DVI-D | BIOS: UEFI AMI, 128 Mb Flash | Warranty: 3 Years

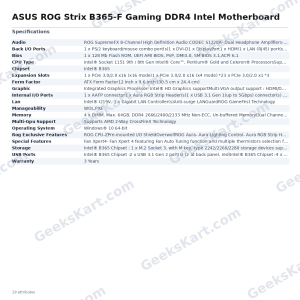

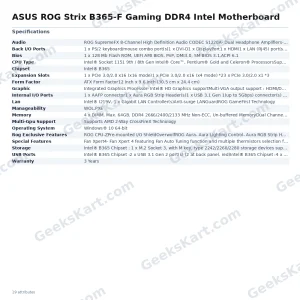

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® B365 |
| CPU Type | Intel® Socket 1151 9th / 8th Gen Intel® CoreTM, Pentium® Gold and Celeron® ProcessorsSupports Intel® 14 nm CPU* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types |
| Lan | Intel® I219V, 1 x Gigabit LAN Controller(s)Anti-surge LANGuardROG GameFirst Technology |
| Bios | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1,ACPI 6.1 |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A- Dual Headphone Amplifiers- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- SupremeFX Shielding Technology- Supports up to 32-Bit/192kHz playback *6Audio Feature :- Optical S/PDIF out port(s) at back panel- Sonic Radar III- Sonic Studio III Sonic Studio Link |
| Memory | 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics supportMulti-VGA output support : HDMI/DVI/DisplayPort ports- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1 |
| Storage | Intel® B365 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*41 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)6 x SATA 6Gb/s port(s)Intel® Rapid Storage Technology supportsIntel® Optane™ Memory Ready |
| USB Ports | Intel® B365 Chipset :2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)Intel® B365 Chipset :4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 1 x Type-A 1 x Type-C)Intel® B365 Chipset :8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board) |
| Manageability | WOL,PXE |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 (red)Type-A,2 x USB 3.1 Gen 1 (black) Type-A USB Type-CTM4 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s) |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 mode)1 x PCIe 3.0/2.0 x16 (x4 mode) *23 x PCIe 3.0/2.0 x1 *3 |
| Operating System | Windows® 10 64-bit |
| Special Features | Fan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlGamer's Guardian:- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports- DRAM Overcurrent Protection- Stainless Steel Back I/O- Highly Durable Components- SafeSlotAURA :- Aura Lighting Control- Aura RGB Strip Headers- Aura Lighting Effects Synchronization with compatible ASUS ROG devicesASUS Exclusive Features :- AI Suite 3- Armoury CrateASUS EZ DIY :- ASUS CrashFree BIOS 3- ASUS EZ Flash 3ASUS Q-Design :- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMMGaming Aesthetics :- 3D printing friendly- AURA-RGB LightingDigi VRM |
| Multi-Gpu Support | Supports AMD 2-Way CrossFireX Technology |
| Internal I/O Ports | 1 x AAFP connector1 x Aura RGB Strip Header(s)1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)1 x M.2 with E key for Wi-Fi module6 x SATA 6Gb/s connector(s)1 x M.2_FAN connector1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x System panel(s)1 x 5-pin EXT_FAN(Extension Fan) connector1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)1 x 14-1 pin TPM connector1 x COM port header |
| Rog Exclusive Features | ROG CPU-ZPre-mounted I/O ShieldOverwolfROG Aura- Aura Lighting Control- Aura RGB Strip HeadersROG Exclusive Software- RAMCache III- GameFirst V |
