ASUS ROG Strix B550-F Gaming Wifi DDR4 AMD Motherboard
MPN ASUS-B550-F-STRIX · Brand ASUS
The ASUS ROG Strix B550-F Gaming WiFi DDR4 motherboard features an AMD AM4 socket, 12+2 DrMOS power stages, WiFi 6, 2.5G LAN, PCIe 4.0, and dual M.2 slots for a high-performance AMD Ryzen gaming build
Inclusive of GST · GST invoice available
Overview

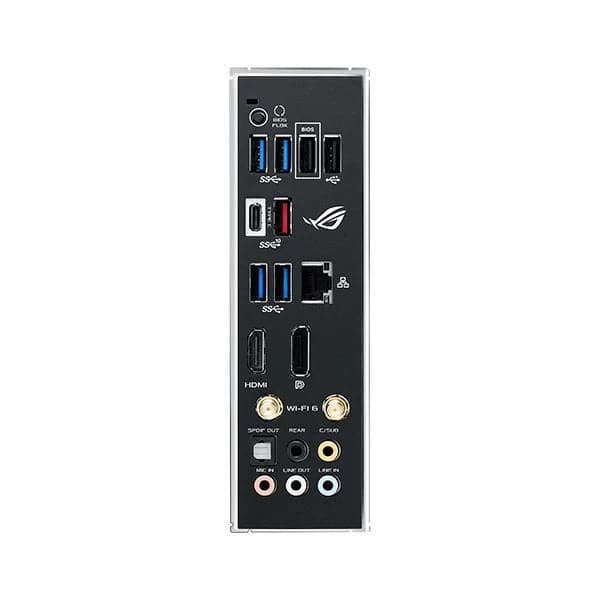

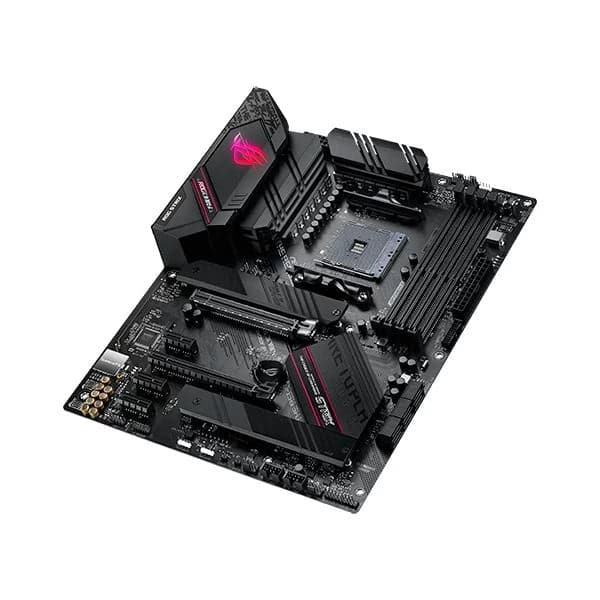

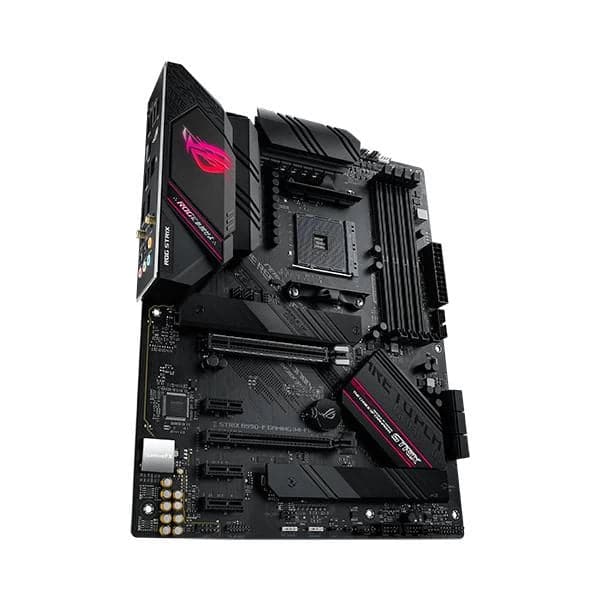

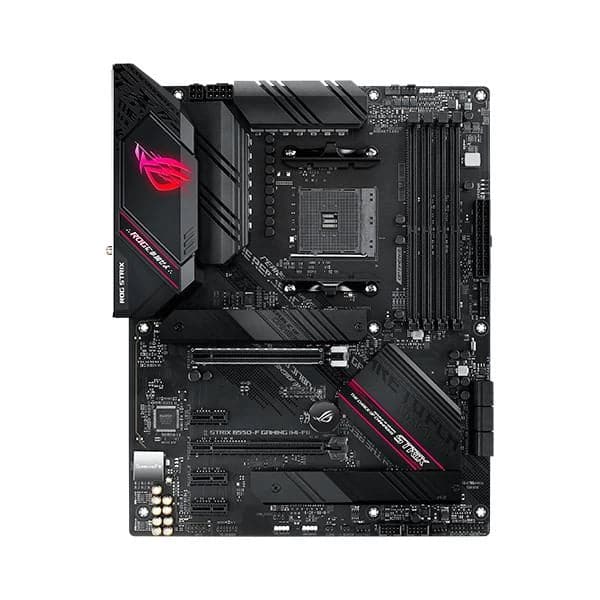

The ASUS ROG Strix B550-F Gaming WiFi is a full-size ATX motherboard built around AMD's AM4 socket, designed to pair with 3rd Generation AMD Ryzen processors while leveraging the performance headroom of the B550 chipset. At its core sits a 12+2 DrMOS power stage arrangement, backed by high-quality alloy chokes and durable capacitors, delivering the stable, clean power delivery that high-core-count AMD CPUs demand under sustained workloads. Thermal management is handled through fanless VRM and chipset heatsinks incorporating ASUS Stack Cool 3+ passive cooling architecture, keeping critical onboard components operating reliably under extended heavy load without adding fan noise to the equation. For networking, the board ships with onboard WiFi 6 (802.11ax) supporting the full 802.11a/b/g/n/ac/ax protocol stack alongside Bluetooth 5.1, and a 2.5 Gb wired LAN port protected by ASUS LANGuard for low-latency, high-throughput connectivity in both wired and wireless environments. Storage and expansion are well-served by dual M.2 slots for NVMe SSDs — one of which runs at PCIe 4.0 x4 bandwidth — alongside a primary PCIe 4.0 x16 slot for the graphics card. Display output options include HDMI 2.1 supporting up to 4K at 60 Hz and DisplayPort 1.2 for multi-monitor setups. Connectivity is further rounded out by a USB 3.2 Gen 2 Type-C rear port and a Thunderbolt 3 header. Memory support extends to four DDR4 DIMM slots accommodating up to 128 GB of total system RAM, providing ample headroom for content creation, streaming, and gaming workloads alike. Verified Specifications: - Socket: AMD AM4 - Chipset: AMD B550 - Compatible CPUs: AMD 3rd Generation Ryzen - Memory: 4x DDR4 DIMM slots, max 128 GB - PCIe: PCIe 4.0 (primary x16 slot and one M.2 slot) - M.2 Slots: 2 (one PCIe 4.0 x4 NVMe) - Wireless: WiFi 6 (802.11a/b/g/n/ac/ax), Bluetooth 5.1 - Wired LAN: 2.5 Gb with ASUS LANGuard - Display Output: HDMI 2.1 (4K@60Hz), DisplayPort 1.2 - USB: USB 3.2 Gen 2 Type-C (rear), Thunderbolt 3 header - VRM: 12+2 DrMOS power stages - Form Factor: ATX - Product Dimensions: 33.78 x 27.18 x 6.86 cm; approx. 1.08 kg - Model Year: 2020 - Country of Origin: China

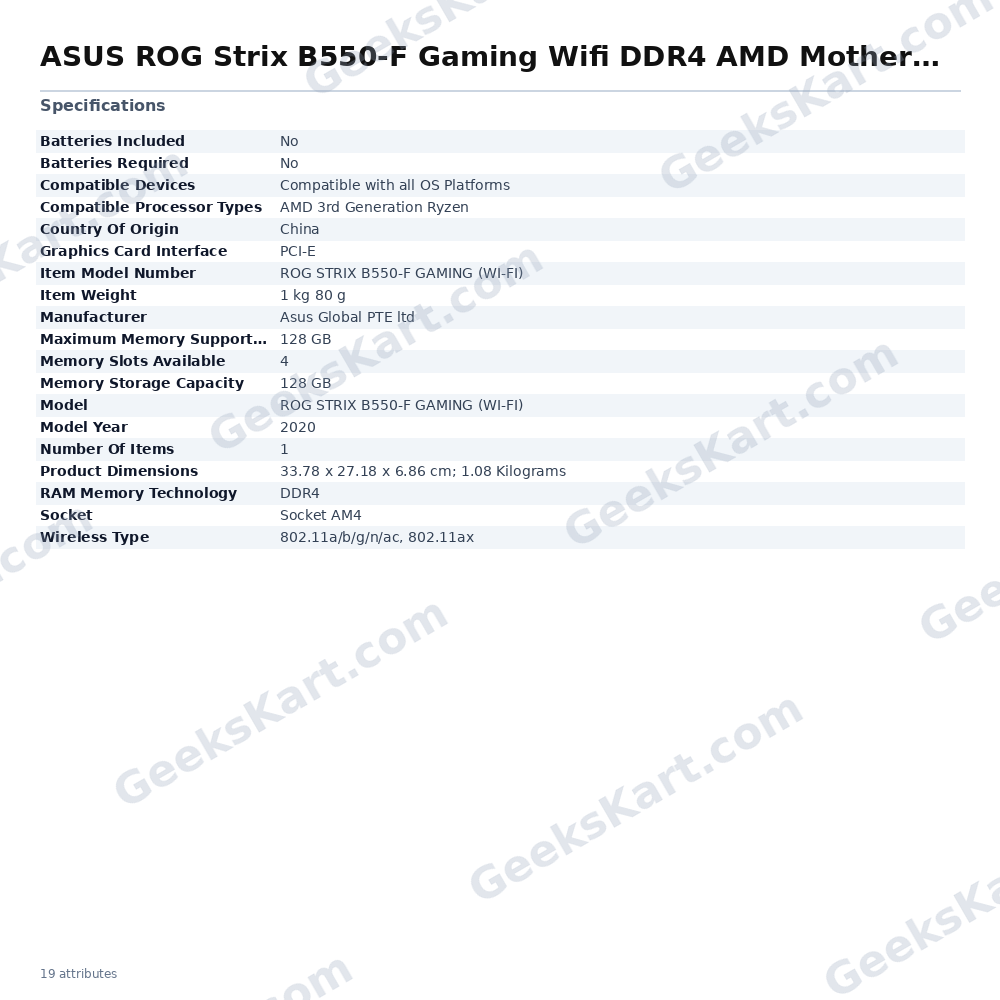

Datasheet
| Socket | AM4 |
|---|---|
| Model | ROG STRIX B550-F GAMING (WI-FI) |
| Model Year | 2020 |
| Item Weight | 1 kg 80 g |
| Manufacturer | Asus Global PTE ltd |
| Wireless Type | 802.11a/b/g/n/ac, 802.11ax |
| Number Of Items | 1 |
| Country Of Origin | China |
| Item Model Number | ROG STRIX B550-F GAMING (WI-FI) |
| Batteries Included | No |
| Batteries Required | No |
| Compatible Devices | Compatible with all OS Platforms |
| Product Dimensions | 33.78 x 27.18 x 6.86 cm; 1.08 Kilograms |
| RAM Memory Technology | DDR4 |
| Memory Slots Available | 4 |
| Graphics Card Interface | PCI-E |
| Memory Storage Capacity | 128 GB |
| Maximum Memory Supported | 128 GB |
| Compatible Processor Types | AMD 3rd Generation Ryzen |
