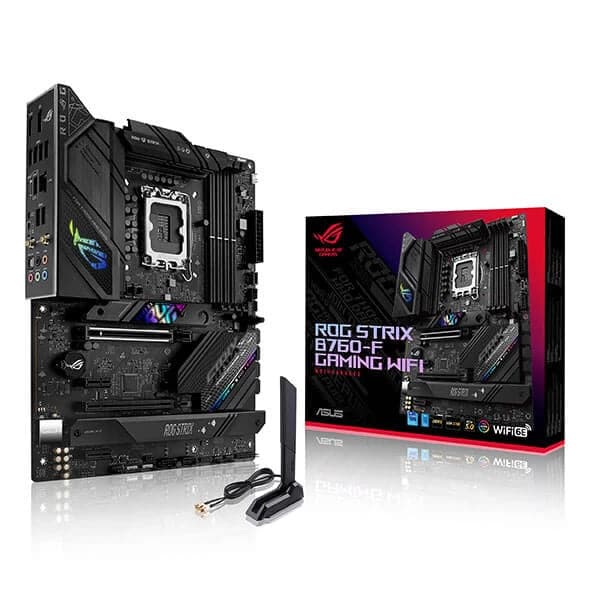

ASUS ROG Strix B760-F Gaming Wifi DDR5 Intel Motherboard

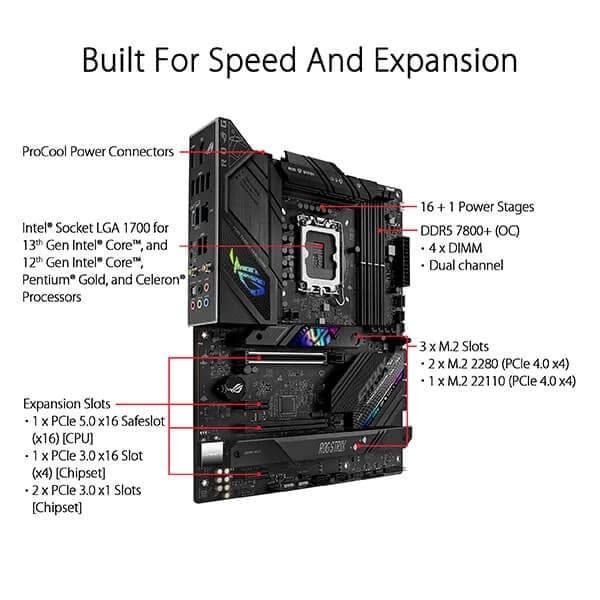

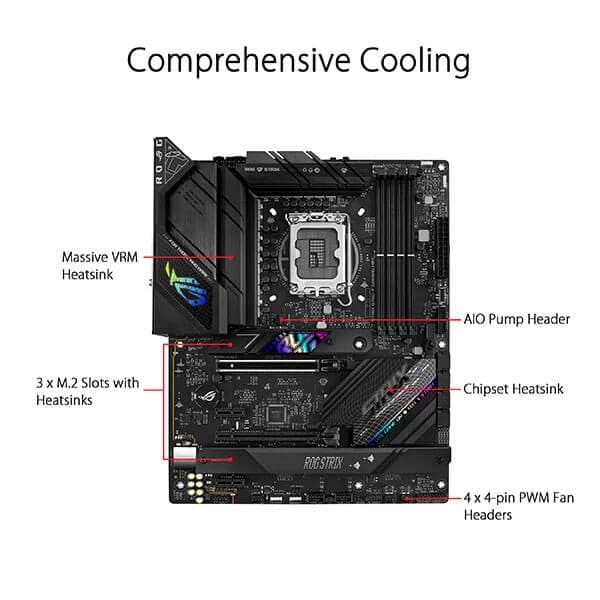

The ASUS ROG Strix B760-F Gaming WiFi DDR5 is an ATX form-factor motherboard built on the Intel B760 chipset for LGA1700 socket processors, supporting Intel 12th and 13th Gen Core, Pentium Gold, and Celeron CPUs including Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0. It is designed for enthusiast PC builders who demand a robust power delivery, high-speed connectivity, and flexible storage in a full-sized ATX package. At the core of its power delivery sits a 16+1 power stage design, each rated at 60A, backed by dual VRM heatsinks with airflow channels to keep temperatures in check during sustained workloads. A six-layer PCB aids in heat dissipation around the voltage regulators, enhancing system stability over long gaming or creative sessions. Memory support is comprehensive: four DDR5 DIMM slots accommodate up to 128GB of non-ECC unbuffered DDR5 memory running from 4800 MHz up to 7800 MHz (OC) in dual-channel configuration. Intel XMP and ASUS OptiMem II profiles are supported for straightforward memory tuning. For storage, the board provides three PCIe 4.0 x4 M.2 slots (all Key-M), each covered by an M.2 heatsink, plus four SATA 6Gb/s ports with Intel Rapid Storage Technology supporting RAID 0/1/5/10. A single PCIe 5.0 x16 slot handles the primary GPU, while an additional PCIe 3.0 x16 slot (x4 mode) and two PCIe 3.0 x1 slots offer expansion flexibility. Connectivity is a highlight: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) spans 2.4, 5, and 6GHz bands alongside Bluetooth 5.3, and a dedicated Intel 2.5Gb Ethernet port provides wired networking. The rear I/O offers eight USB ports including a USB 3.2 Gen 2x2 Type-C at 20Gbps, plus DisplayPort 1.4 and HDMI 2.1 outputs supporting up to 4K@60Hz for systems with integrated graphics. Audio is handled by the ROG SupremeFX subsystem using a Realtek ALC4080 CODEC with 120 dB SNR stereo playback output, 113 dB SNR recording input, 32-bit/384kHz playback support, Savitech SV3H712 amplifier, dedicated audio PCB layers, and SupremeFX Shielding Technology. Five rear audio jacks and an optical S/PDIF output are included. Builder-friendly features include PCIe Slot Q-Release (tool-free GPU removal), M.2 Q-Latch (screwless SSD installation), BIOS FlashBack (CPU-free BIOS updates via USB), Clear CMOS button, and four Q-LED diagnostic indicators. Aura Sync RGB is supported via one Aura RGB header and three Addressable Gen 2 headers. Verified Specifications: - Socket: Intel LGA1700 | Chipset: Intel B760 - Form Factor: ATX, 12 in x 9.6 in (30.5 cm x 24.4 cm) - Memory: 4x DIMM DDR5, max 128GB, up to DDR5-7800(OC), Dual Channel, XMP - Expansion: 1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4 mode), 2x PCIe 3.0 x1 - Storage: 3x M.2 PCIe 4.0 x4 (Key-M), 4x SATA 6Gb/s, RAID 0/1/5/10 - Networking: Intel 2.5Gb Ethernet, Wi-Fi 6E (2x2, 802.11ax), Bluetooth 5.3 - Audio: ALC4080, 7.1 surround, 120 dB SNR playback, 32-Bit/384kHz - Rear USB: 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-A, 6x USB 3.2 Gen 1 Type-A - Video Output: 1x DisplayPort 1.4 (4K@60Hz), 1x HDMI 2.1 (4K@60Hz) - Power: 16+1 power stages @ 60A each, 6-layer PCB - BIOS: 256Mb Flash ROM, UEFI AMI - Warranty: 3 Years
