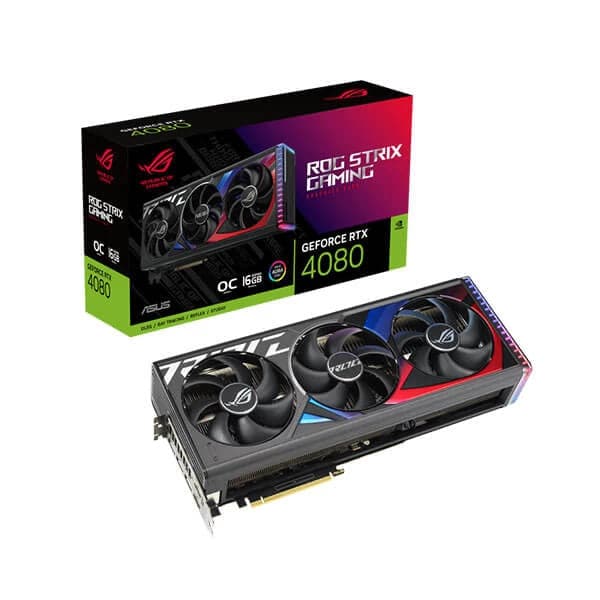

Features of ASUS ROG Strix Gaming GeForce RTX 4080 OC Edition 16GB Nvidia Graphic Card
The ASUS ROG Strix GeForce RTX™ 4080 brings a whole new meaning to going with the flow.
Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.
The unleashed reign of the NVIDIA Ada Lovelace architecture is here.
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 2X AI performance
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Axial-tech fans scaled up for 23% more airflow

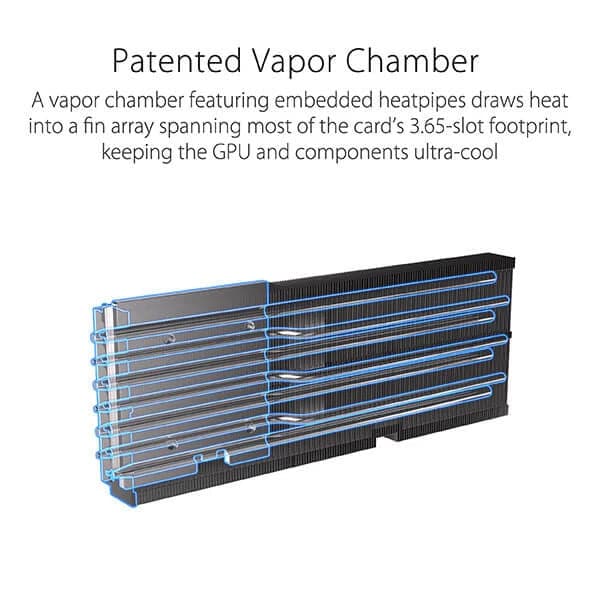

- New patented vapor chamber with milled heatspreader for lower GPU temps
- 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance

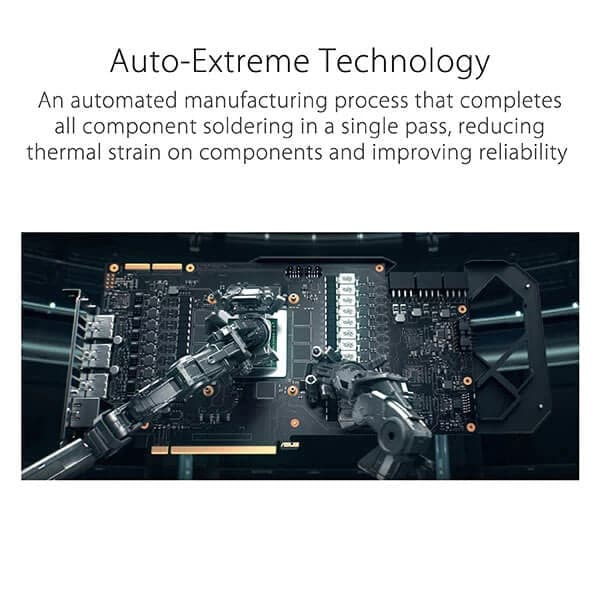

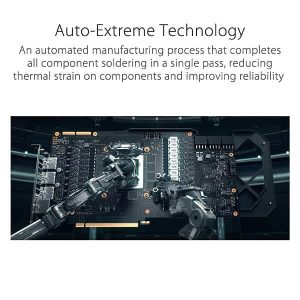

- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

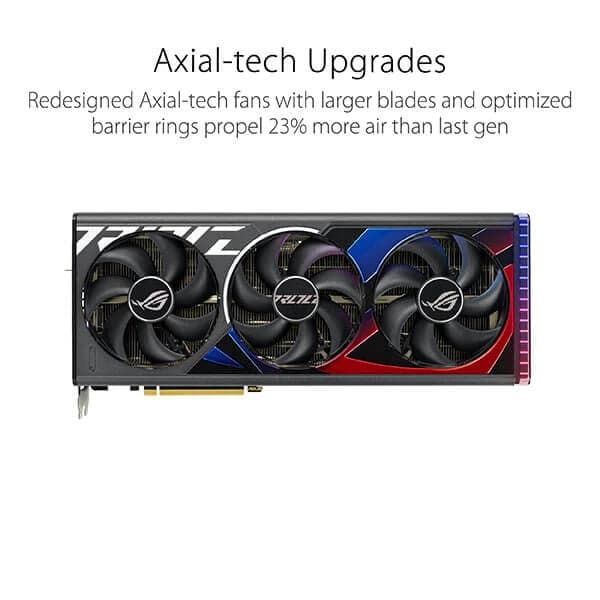

Axial-tech Upgrades
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology
The two sided fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.
3.5-slot Design
Through Thick and Fin
The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4080 GPU so that it can be efficiently whisked away by the three Axial-tech fans.

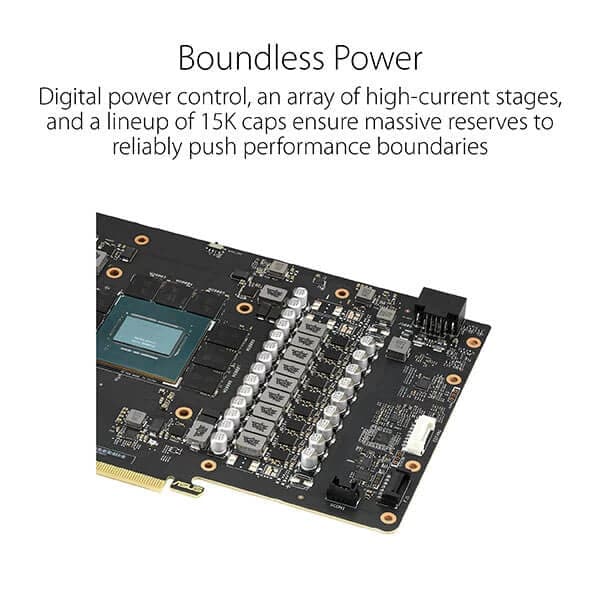

Premium Power Delivery
1st Responder
Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.
Power Sensing
Quick Diagnosis
Know if your PSU is worthy. ROG Strix GeForce RTX 4080 graphic card feature a high-speed circuit that constantly monitors input power from the PSU and utilizes conveniently placed LEDs to indicate voltage regulation issues and cable connection problems.
Frames Win Games
Competitive games like Apex Legends demand maximum frame rates and the lowest system latency. Get the competitive edge you need at sub-25 milliseconds (ms) with NVIDIA Reflex and 144+ frames per second (FPS) powered by GeForce RTX. The Best responsiveness. Unbeatable performance. Frames Win Games.

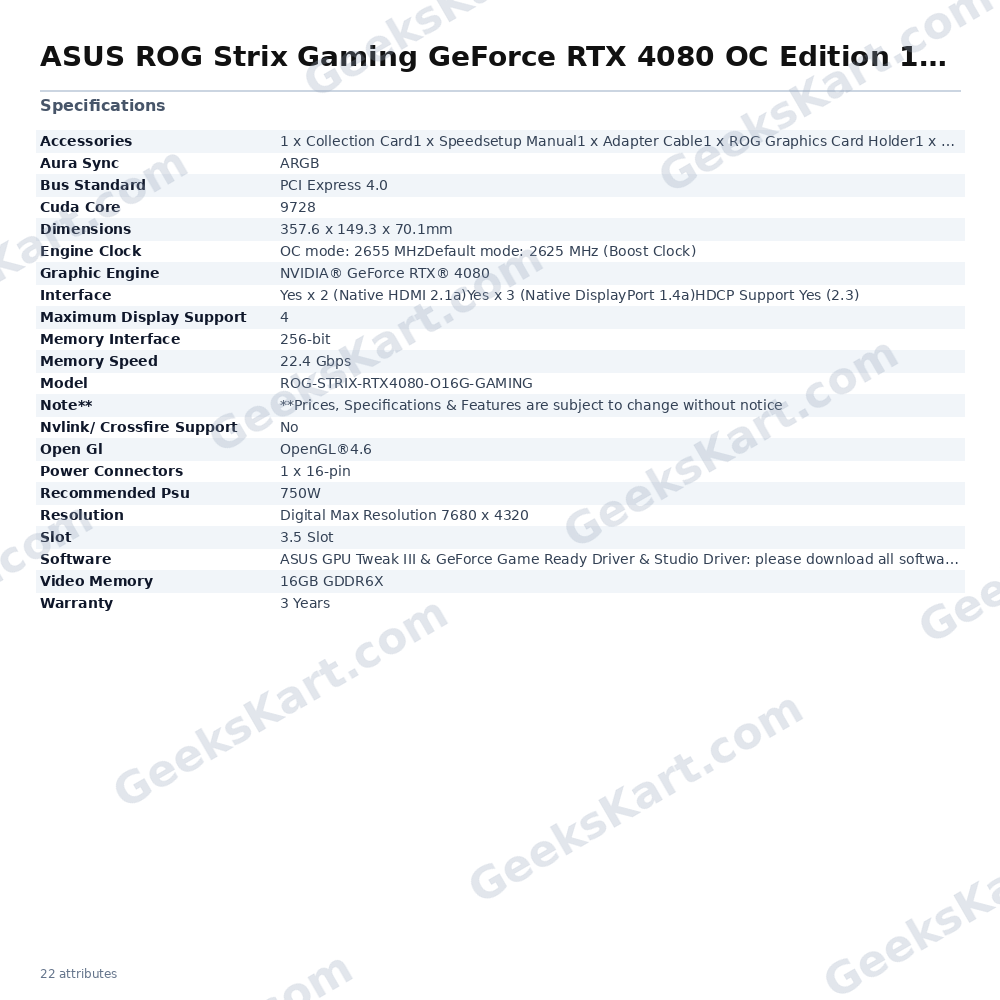

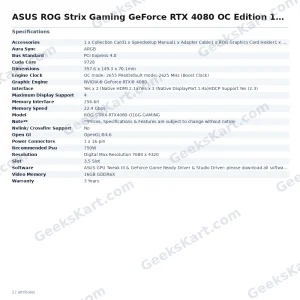

Specifications of ASUS ROG Strix Gaming GeForce RTX 4080 OC Edition 16GB Nvidia Graphic Card
| Model No | 90YV0IC0-M0AA00 |
| Model | ROG-STRIX-RTX4080-O16G-GAMING |
| Graphic Engine | NVIDIA® GeForce RTX® 4080 |
| Bus Standard | PCI Express 4.0 |
| Open GL | OpenGL®4.6 |
| Video Memory | 16GB GDDR6X |
| Engine Clock | OC mode: 2655 MHz Default mode: 2625 MHz (Boost Clock) |
| Cuda Core | 9728 |
| Memory Speed | 22.4 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

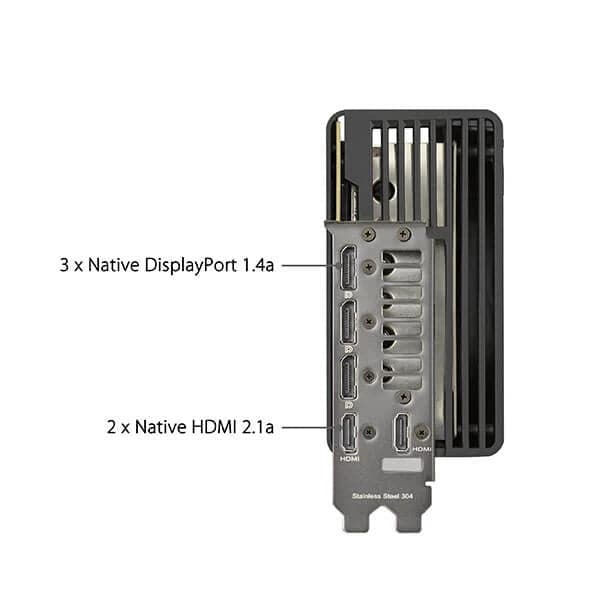

| Interface | Yes x 2 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Collection Card 1 x Speedsetup Manual 1 x Adapter Cable 1 x ROG Graphics Card Holder 1 x ROG Velcro Hook & Loop 1 x Thank you Card |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 357.6 x 149.3 x 70.1mm |
| Recommended PSU | 750W |
| Power Connectors | 1 x 16-pin |
| Slot | 3.5 Slot |
| Aura Sync | ARGB |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
