ASUS ROG Strix X870-I Gaming WIFI M-ITX Motherboard
MPN ROG-STRIX-X870-I-GAMING-WIFI · Brand ASUS · Mini-ITX
The ASUS ROG Strix X870-I Gaming WIFI is an AM5 Mini-ITX motherboard featuring the X870 chipset, DDR5 support up to 128 GB at 8600+ MT/s, dual USB4 40 Gbps ports, WiFi 7, and PCIe 5.0 — purpose-built for compact high-performance AMD Ryzen builds
Inclusive of GST · GST invoice available
Overview
The ASUS ROG Strix X870-I Gaming WIFI is a Mini-ITX motherboard built around AMD's X870 chipset and the AM5 socket, designed for builders who demand enthusiast-grade performance in a compact form factor. It supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 series desktop processors, giving users access to the latest AMD CPU generations without sacrificing size constraints. At the heart of its connectivity story are two USB4 Type-C ports on the rear panel, each running at 40 Gbps, which also double as display outputs alongside the single HDMI port. This makes the X870-I a capable hub for high-speed peripherals and multi-display configurations even from onboard graphics. The rear I/O further includes five USB 10 Gbps ports (four Type-A and one Type-C), three USB 2.0 ports, and an Intel 2.5 Gb Ethernet port for reliable wired networking. Wireless connectivity is handled by a WiFi 7 module paired with Bluetooth 5.4, delivering the bandwidth and low latency that modern gaming and content-creation workflows demand. ASUS AI Networking II intelligently optimises network performance to maintain stable and fast connections. Memory support reaches up to 128 GB of DDR5 in a dual-channel configuration, with speeds rated up to 8600 MT/s and beyond. The board supports AMD EXPO profiles for enthusiast overclocking kits and ASUS's own AEMP (ASUS Enhanced Memory Profile) for PMIC-restricted modules. ECC and non-ECC unbuffered DIMMs are both accommodated. Storage flexibility is provided through two M.2 Key-M slots and two SATA 6 Gb/s ports internally, while the primary PCIe slot runs at PCIe 5.0 x16 with Ryzen 9000 and 7000 series CPUs (PCIe 4.0 x16 with Ryzen 8000 series). ASUS AI Overclocking profiles the CPU and cooling system to predict an optimal overclock, and AI Cooling II balances thermals and acoustics with a single click. A BIOS FlashBack button and Clear CMOS button on the rear panel simplify setup and recovery. — Verified Specifications — Socket: AM5 | Chipset: AMD X870 | Form Factor: Mini-ITX | Supported CPUs: Ryzen 9000, 8000, 7000 series | Memory: DDR5, dual channel, up to 128 GB, up to 8600+ MT/s, EXPO & AEMP support | PCIe: 5.0 x16 (Ryzen 9000/7000), 4.0 x16 (Ryzen 8000) | M.2 Slots: 2 x Key-M | SATA: 2 x 6 Gb/s | USB (rear): 2 x USB4 40 Gbps Type-C, 4 x USB 10 Gbps Type-A, 1 x USB 10 Gbps Type-C, 2 x USB 2.0 Type-A | Display: 1 x HDMI, 2 x USB4 Type-C display out | Ethernet: Intel 2.5 Gb | Wireless: WiFi 7, Bluetooth 5.4 | Warranty: 3 Years

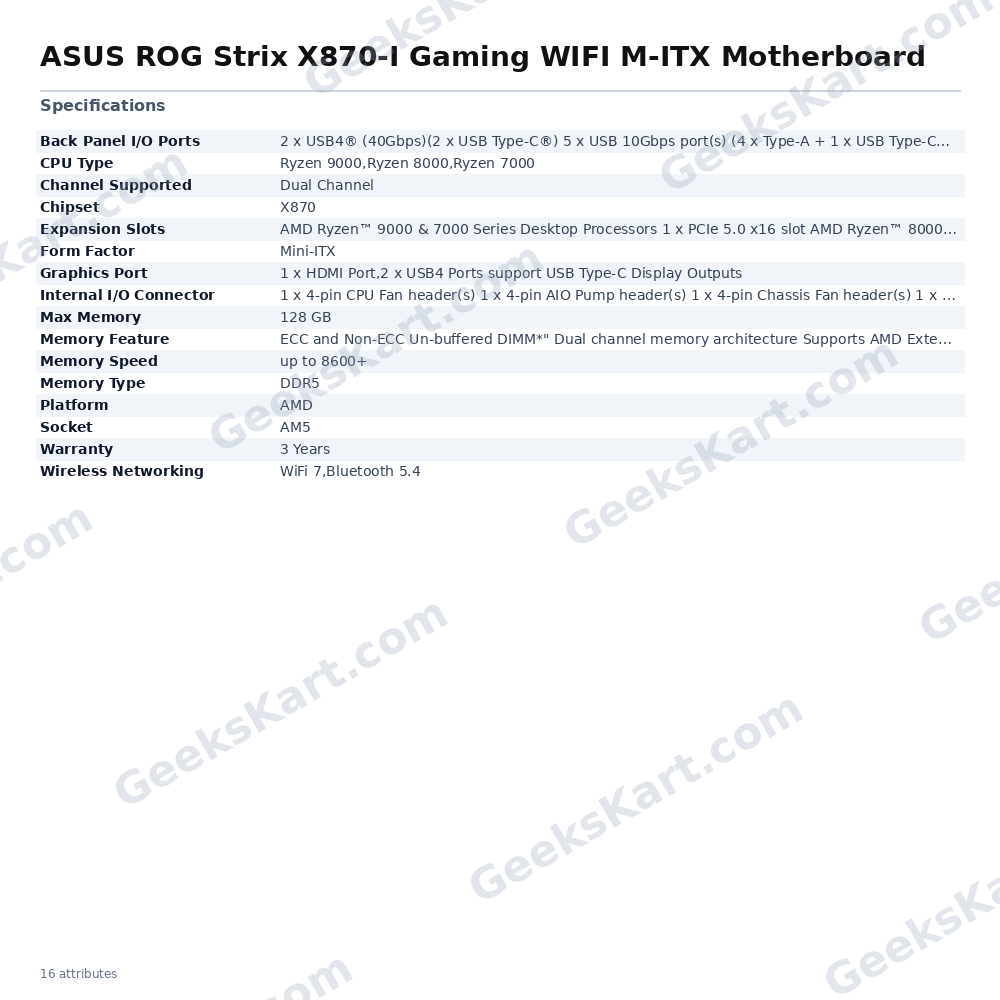

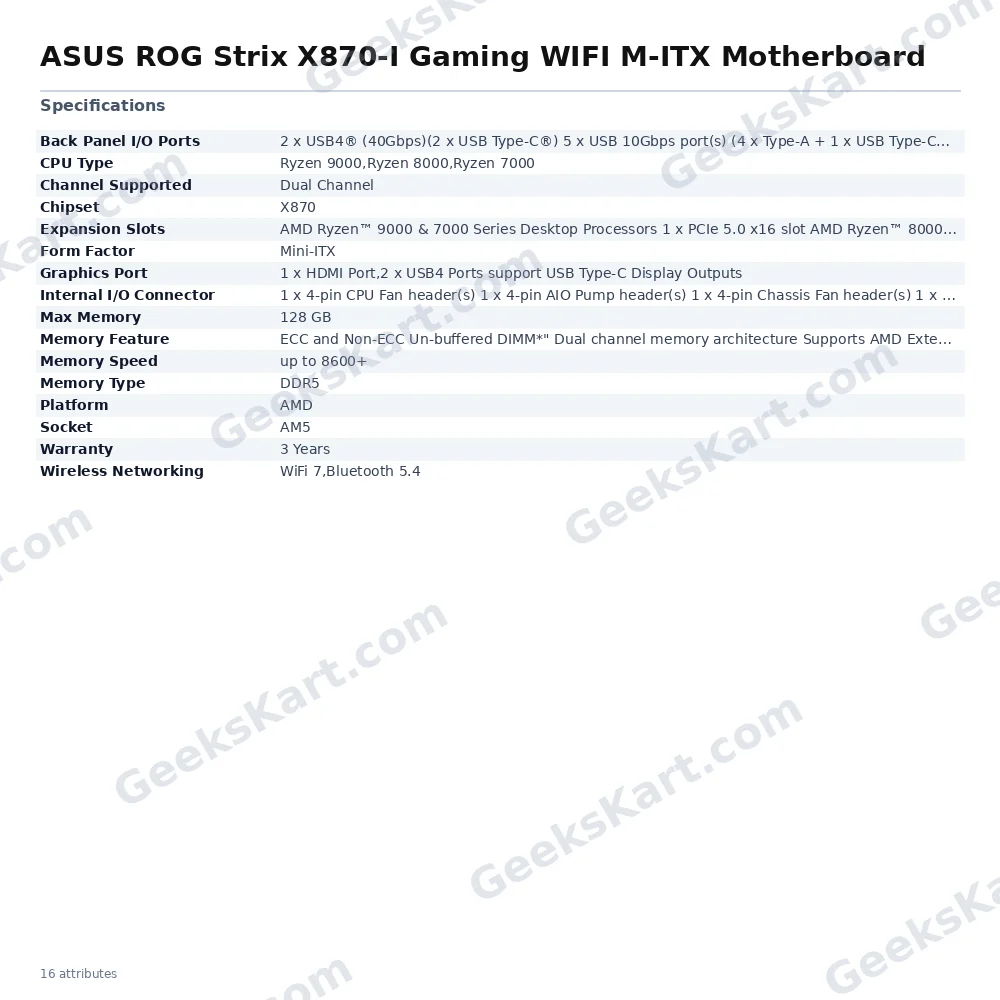

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | Mini-ITX |
| Chipset | X870 |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 128 GB |
| Memory Speed | up to 8600+ |
| Platform | AMD |
| Graphics Port | 1 x HDMI Port,2 x USB4 Ports support USB Type-C Display Outputs |
| Memory Feature | ECC and Non-ECC Un-buffered DIMM*" Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Asus Brand Site * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)* * Specifications vary by CPU types. – To ensure compatibility of the device installed, please refer to Asus Website for the list of supported peripherals |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 2 x USB4® (40Gbps)(2 x USB Type-C®) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II) 3 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O Connector | 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header support(s) 2 additional USB 5Gbps ports 2 x Addressable Gen 2 headers 1 x 2-pin Power Button header 1 x Thermal Sensor header 2 x USB Type-C® connectors to install ROG FPS card ROG FPS card 2 x SATA 6Gb/s ports 1 x CPU Over Voltage jumper 1 x Front Panel header 1 x Alteration PCIe Mode switch 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
