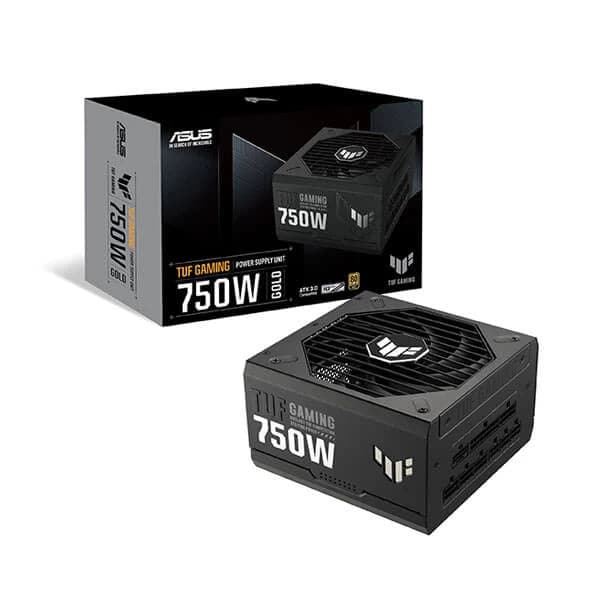

ASUS TUF Gaming 750W 80 + Gold Fully Modular ATX 3.0 Power Supply

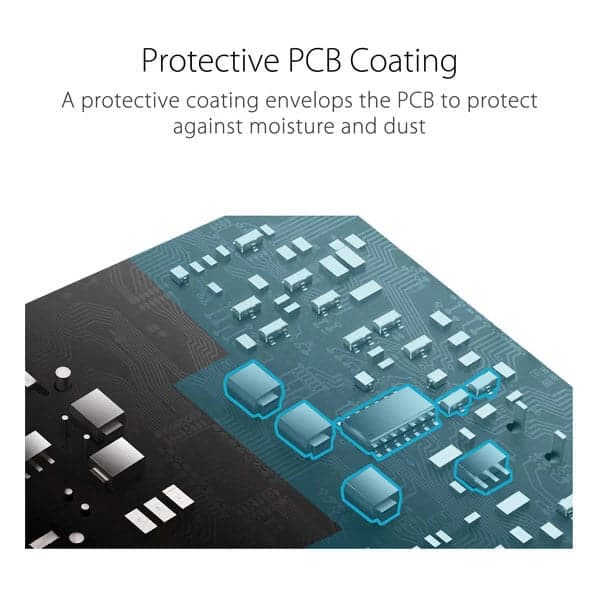

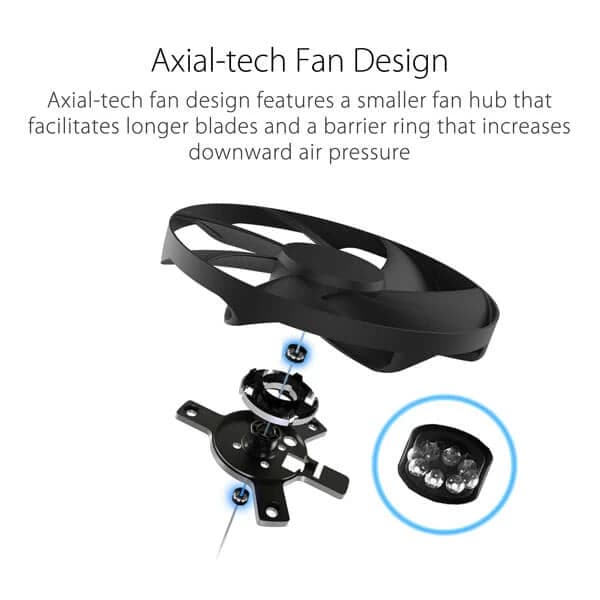

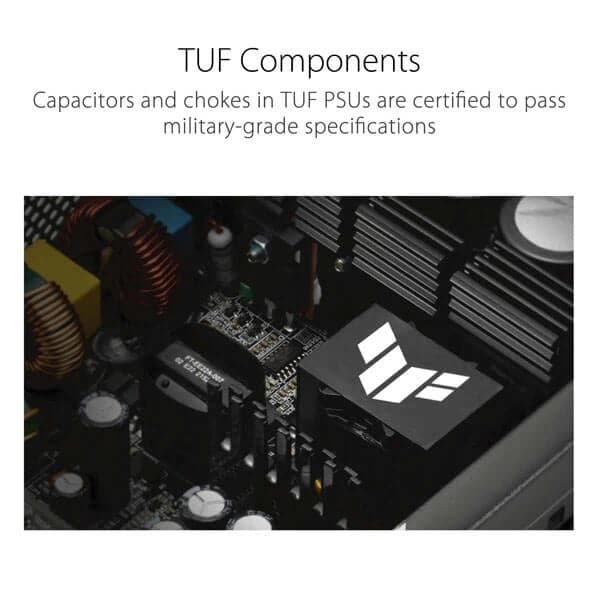

The ASUS TUF Gaming 750W Gold is a fully modular ATX 3.0 power supply engineered for demanding gaming and content-creation builds. Built around a foundation of military-grade components, it is designed to deliver stable, efficient power for the long haul. At the heart of the unit are Japanese capacitors rated for 105°C operation with a rated lifespan of up to 170,000 hours. These components, along with selected chokes, have passed stringent military-grade certification tests, giving builders confidence in the PSU's resilience under sustained load. Cooling is handled by a 135mm Axial-tech fan mounted on a dual ball bearing setup. The Axial-tech design incorporates a smaller fan hub to allow longer blade spans, plus a barrier ring that directs increased airflow downward into the unit. Dual ball bearings are rated to last up to twice as long as conventional sleeve bearing fans, keeping the system quiet and thermally stable across years of use. Note: this model does not include a 0dB fan mode. The PCB is protected by a conformal coating that guards against short-circuits from moisture, dust, and debris — an important consideration for builds in varied environments. The unit carries 80 PLUS Gold certification, achieving up to 92% energy efficiency at typical loads. Less wasted energy means less heat generated inside your chassis, quieter fan operation, and improved long-term component reliability. ATX 3.0 compliance brings the TUF Gaming 750W Gold in line with Intel's latest power specification, which mandates tighter voltage and current regulation tolerances suited to next-generation hardware. The included 16-pin PCIe Gen 5 cable supports up to 600W delivery to compatible PCIe 5.0 graphics cards. The fully modular cable set uses etched cables that mimic the look of sleeved cables while offering slightly greater flexibility for routing in compact cases. Only the cables you need connect to the PSU, keeping the interior clean and airflow unobstructed. Protection features cover OPP (over-power), OVP (over-voltage), UVP (under-voltage), SCP (short-circuit), OCP (over-current), and OTP (over-temperature), providing a comprehensive safety net for your components. ASUS backs this unit with a 10-year worldwide warranty. Verified Specifications: - Model: TUF Gaming 750W Gold - Form Factor: ATX12V / ATX 3.0 - Total Output: 750W - Efficiency: 80 Plus Gold (up to 92%) - Fan: 135mm Axial-tech, dual ball bearing - 0dB Fan Mode: No - AC Input: 100–240 V AC - Protection: OPP / OVP / UVP / SCP / OCP / OTP - Connectors: MB 24/20-pin ×1, CPU 4+4-pin ×2, PCIe 16-pin ×2, PCIe 8-pin ×3, SATA ×5, Peripheral ×4 - Dimensions: 150 × 150 × 86 mm - Weight: 2.38 kg - Compliance: RoHS - Warranty: 10 Years - DC Output Voltages: +3.3V / +5V / +12V / -12V / +5Vsb (individual rail values not parseable from source data — see manual review flags)
