ASUS TUF Gaming B550 Plus DDR4 AMD Motherboard
MPN 90MB14G0-M0IAY0 · Brand ASUS · ATX
The ASUS TUF Gaming B550 Plus DDR4 is an ATX motherboard for AMD AM4 Ryzen CPUs, featuring PCIe 4.0, dual M.2 slots, 2.5Gb Ethernet, and up to 128 GB DDR4 support
Inclusive of GST · GST invoice available
Overview

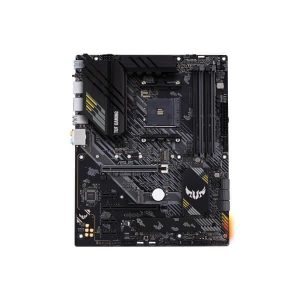

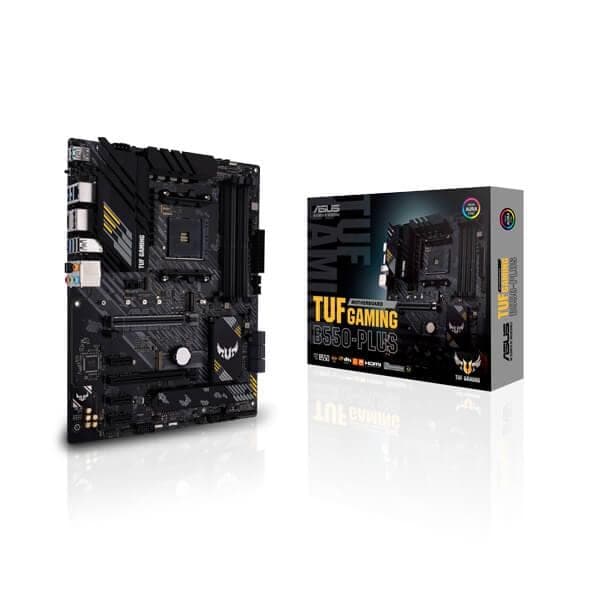

The ASUS TUF Gaming B550 Plus DDR4 is an ATX-form-factor motherboard built on the AMD B550 chipset, designed for AMD AM4-socket processors including 3rd Gen AMD Ryzen CPUs. Measuring 12 x 9.6 inches (30.5 x 24.4 cm), it fits standard ATX mid-tower and full-tower cases while delivering a robust platform for gaming and productivity workloads. Power delivery is handled by an 8+2 DrMOS power-stage design backed by ProCool sockets and ASUS Digi+ VRM digital power control, helping ensure stable voltage to the CPU under sustained load. The board ships with a VRM heatsink, a fanless PCH heatsink, an aluminum M.2 heatsink, and five hybrid fan headers controlled through Fan Xpert software, giving builders flexible thermal management without additional hardware. For memory, four DIMM slots accommodate up to 128 GB of unbuffered DDR4 in dual-channel configuration. Native speeds of DDR4-2133 through DDR4-3200 are supported, with overclocking profiles available up to DDR4-4600 on 3rd Gen Ryzen or DDR4-4800 on Ryzen PRO processors. ECC support varies by CPU. Storage options include two M.2 Socket 3 (M-key) slots — one CPU-connected running PCIe 4.0 x4 or SATA, one chipset-connected running PCIe 3.0 x4 or SATA — plus six SATA 6 Gb/s ports with RAID 0, 1, and 10 support. Note that populating the second M.2 slot disables SATA ports 5 and 6. Expansion slots consist of one PCIe 4.0 x16 (CPU, x16 mode), one PCIe 3.0 x16 (chipset, x4 mode), and three PCIe 3.0 x1 slots, with AMD 2-Way CrossFireX multi-GPU support. Rear I/O includes 2.5 Gigabit Ethernet via a Realtek RTL8125B controller with TUF LANGuard surge protection, one USB 3.2 Gen 2 Type-A, one USB 3.2 Gen 2 Type-C, four USB 3.2 Gen 1 Type-A, two USB 2.0 Type-A (one switchable to BIOS FlashBack), DisplayPort 1.4, HDMI 2.1 (4K@60Hz), optical S/PDIF out, five 3.5 mm audio jacks, and a BIOS FlashBack button for CPU-free firmware updates. Audio is powered by the Realtek ALC S1200A codec supporting 7.1-channel surround sound at up to 24-bit/192 kHz playback, with a 108 dB SNR for stereo line-out and dedicated audio PCB layers, audio shielding, premium Japanese capacitors, and a unique de-pop circuit. A Key-E M.2 slot supports an optional Wi-Fi module (sold separately). AURA Sync RGB lighting is supported via two standard RGB headers and one Addressable Gen 2 header. The board carries a 3-year warranty and ships with ASUS Armoury Crate, AI Suite 3, and UEFI AMI BIOS with CrashFree BIOS 3 and EZ Flash 3. Verified Specifications: - Socket: AMD AM4 - Chipset: AMD B550 - Form Factor: ATX, 12 x 9.6 in (30.5 x 24.4 cm) - Memory: 4 x DIMM, max 128 GB, DDR4 up to 4600 MHz (O.C.) / dual-channel - Storage: 2 x M.2 (PCIe 4.0 x4 / PCIe 3.0 x4 / SATA), 6 x SATA 6 Gb/s, RAID 0/1/10 - PCIe: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1 - LAN: Realtek RTL8125B 2.5 Gb Ethernet - USB (rear): 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0 - Audio: Realtek ALC S1200A, 7.1-channel, 24-bit/192 kHz, 108 dB SNR - Display: DisplayPort 1.4, HDMI 2.1 (4K@60Hz) - BIOS: 256 Mb Flash ROM, UEFI AMI - Warranty: 3 Years
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD B550 |
| CPU Type | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors |
| Lan | Realtek RTL8125B 2.5Gb EthernetTUF LANGuard |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- Exclusive DTS Custom for GAMING Headsets.- Optical S/PDIF out port(s) at back panel- Audio cover- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors- Unique de-pop circuit |
| Memory | 3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Next Generation AMD Ryzen PRO Processors4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered MemoryDual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU |
| Graphic | 1 x DisplayPort 1.4 *1 x HDMI 2.1(4K@60HZ)*Graphics specifications may vary between CPU types |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports3rd Gen AMD Ryzen™ Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)AMD B550 Chipset :1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*26 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 |
| USB Ports | Rear USB Port ( Total 8 )2 x USB 3.2 Gen 2 port(s)(1 x Type-A 1 x USB Type-C®)4 x USB 3.2 Gen 1 port(s)( x Type-A)2 x USB 2.0 port(s)( x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A) |
| Manageability | WOL by PXE |
| Back I/O Ports | 1 x DisplayPort1 x HDMI1 x LAN (2.5G) port(s)2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A 1 x USB Type-C®)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)1 x Optical S/PDIF out5 x Audio jack(s)1 x BIOS FlashBack™ Button(s) |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode)AMD B550 Chipset1 x PCIe 3.0 x16 (x4 mode)3 x PCIe 3.0 x1 *1* Support PCIe bifurcation for RAID on CPU function |
| Operating System | Windows® 10 64-bit |
| Multi-Gpu Support | Supports AMD 2-Way CrossFireX Technology |
| Software Features | ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- AI Noise Cancelling MicrophoneAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi VRMFan Xpert 2- EZ updateTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode |
| Internal I/O Ports | 1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 with E key for Wi-Fi module1 x SPI TPM header6 x SATA 6Gb/s connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header |
| Asus Special Features | ASUS TUF PROTECTION- ASUS DIGI VRM (Digital power design with Dr. MOS)- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU , DRAM , VGA , Boot Device )- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProcoolAURA Sync- Standard RGB headers- Addressable Gen 2 RGB header |
| Wireless Data Network | M.2 slot only (Key E) (Support PCIe interface)**Wi-Fi module is sold separately |
