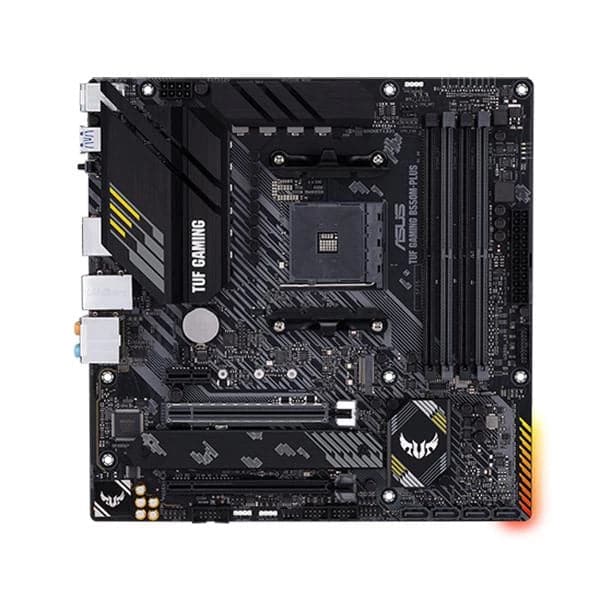

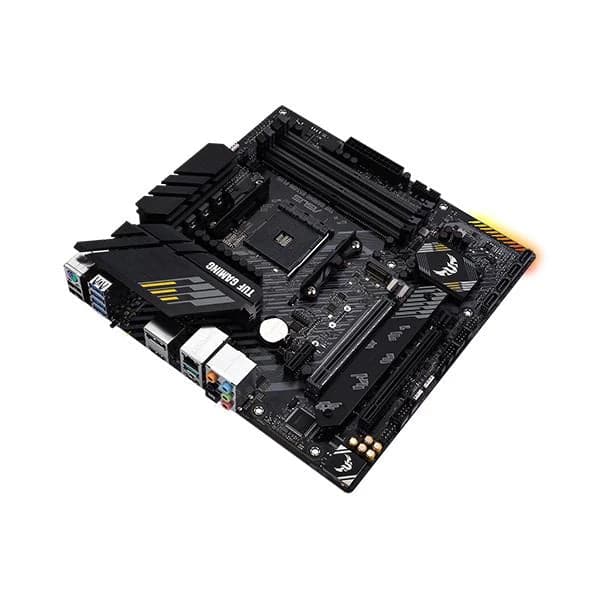

Asus TUF Gaming B550M Plus DDR4 AMD Motherboard
MPN ASUS-B5550M-PLUS · Brand ASUS · mATX
The ASUS TUF Gaming B550M-Plus is an AMD AM4 mATX motherboard with PCIe 4.0, dual M.2, 2.5 Gb Ethernet, USB 3.2 Gen 2 Type-C, and Aura Sync RGB — built for AMD Ryzen 5000, 4000 G-Series, and 3000 Series processors
Inclusive of GST · GST invoice available
Overview
The ASUS TUF Gaming B550M-Plus is a Micro-ATX (mATX) gaming motherboard built around the AMD B550 chipset, designed for the AMD AM4 socket and compatible with AMD Ryzen 5000 Series, 4000 G-Series, and 3000 Series desktop processors. Its compact 9.6 x 9.6 inch (24.4 x 24.4 cm) footprint makes it an excellent choice for space-conscious builds that do not want to sacrifice performance or connectivity. At the heart of its power delivery is an 8+2 DrMOS power stage configuration, combining high-side and low-side MOSFETs with their gate driver into a single package. This is paired with ASUS ProCool connectors, Digi+ VRM digital power control, and military-grade TUF components for stable, long-term operation under sustained gaming workloads. The board supports up to four DDR4 DIMMs with a maximum capacity of 128 GB. Native DDR4-3200 is supported out of the box, with overclocked profiles extending up to DDR4-4600 (O.C.) for Ryzen 5000/3000 Series CPUs and up to DDR4-4800 (O.C.) for Ryzen 4000 G-Series processors, using dual-channel architecture. Storage options are generous for a compact form factor: two M.2 slots (one PCIe 4.0 x4 on CPU, one PCIe 3.0 x4 via chipset, both also supporting SATA mode) and four SATA 6 Gb/s ports with RAID 0, 1, and 10 support. The primary x16 PCIe slot runs at PCIe 4.0 x16 with Ryzen 5000/3000 Series CPUs, providing maximum GPU bandwidth. Connectivity is handled by a Realtek RTL8125B 2.5 Gb Ethernet controller with TUF LANGuard surge protection. Audio comes via the Realtek ALC S1200A codec delivering 7.1-channel HD audio with up to 108 dB SNR for stereo line output and 24-bit/192 kHz playback, complemented by dedicated audio PCB layers, audio shielding, and premium Japanese audio capacitors. The rear I/O panel provides two USB 3.2 Gen 2 ports (one Type-A, one Type-C), four USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, DisplayPort 1.2, HDMI 2.1 (4K@60 Hz), optical S/PDIF out, five audio jacks, and a BIOS FlashBack button for BIOS updates without a CPU installed. ASUS Aura Sync RGB lighting is supported via onboard headers (two standard RGB and one Addressable Gen 2), and Fan Xpert 2+ manages the four fan/pump headers. Verified Specifications: - Socket: AMD AM4 - Chipset: AMD B550 - Form Factor: mATX, 9.6 x 9.6 in (24.4 x 24.4 cm) - Memory: 4x DIMM, DDR4, Max 128 GB, up to DDR4-4600 (O.C.) - PCIe: 1x PCIe 4.0 x16 (CPU, Ryzen 5000/3000), 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1 - Storage: 2x M.2 (PCIe 4.0/3.0 x4 + SATA), 4x SATA 6 Gb/s, RAID 0/1/10 - LAN: Realtek RTL8125B 2.5 Gb - Audio: Realtek ALC S1200A, 7.1 HD, 108 dB SNR line-out - USB (rear): 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 2x USB 2.0 - Display: 1x HDMI 2.1 (4K@60 Hz), 1x DisplayPort 1.2 - BIOS: 256 Mb Flash ROM, UEFI AMI with FlashBack - Warranty: 3 Years

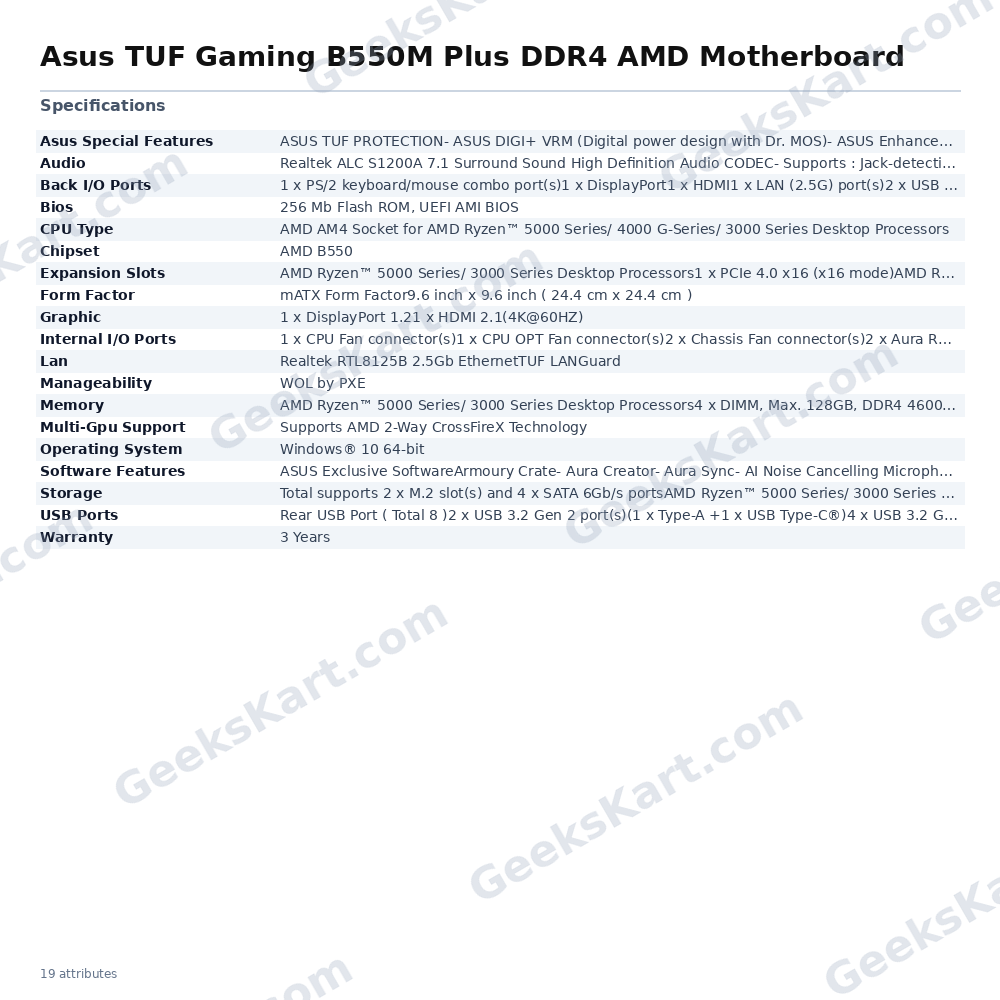

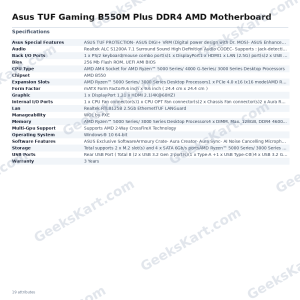

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | AMD B550 |
| CPU Type | AMD AM4 Socket for AMD RyzenTM 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Lan | Realtek RTL8125B 2.5Gb EthernetTUF LANGuard |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- Exclusive DTS Custom for GAMING Headsets.- Optical S/PDIF out port(s) at back panel- Audio cover- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors |
| Memory | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *AMD Ryzen™ 4000 G-Series Desktop Processors4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU |
| Graphic | 1 x DisplayPort 1.21 x HDMI 2.1(4K@60HZ) |
| Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s portsAMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices supportAMD Ryzen™ 4000 G-Series Desktop Processors :1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices supportAMD B550 Chipset :1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 |
| USB Ports | Rear USB Port ( Total 8 )2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A) |
| Manageability | WOL by PXE |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (2.5G) port(s)2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s)1 x BIOS FlashBack™ Button(s) |
| Expansion Slots | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors1 x PCIe 4.0 x16 (x16 mode)AMD Ryzen™ 4000 G-Series Desktop Processors1 x PCIe 3.0 x16 (x16 mode)AMD B550 Chipset1 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x1* Support PCIe bifurcation for RAID on CPU function |
| Operating System | Windows® 10 64-bit |
| Multi-Gpu Support | Supports AMD 2-Way CrossFireX Technology |
| Software Features | ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- AI Noise Cancelling MicrophoneAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode |
| Internal I/O Ports | 1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header4 x SATA 6Gb/s connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connector |
| Asus Special Features | ASUS TUF PROTECTION- ASUS DIGI+ VRM (Digital power design with Dr. MOS)- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU , DRAM , VGA , Boot Device )- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProcoolAURA Sync- Standard RGB headers- Addressable Gen 2 RGB header |
