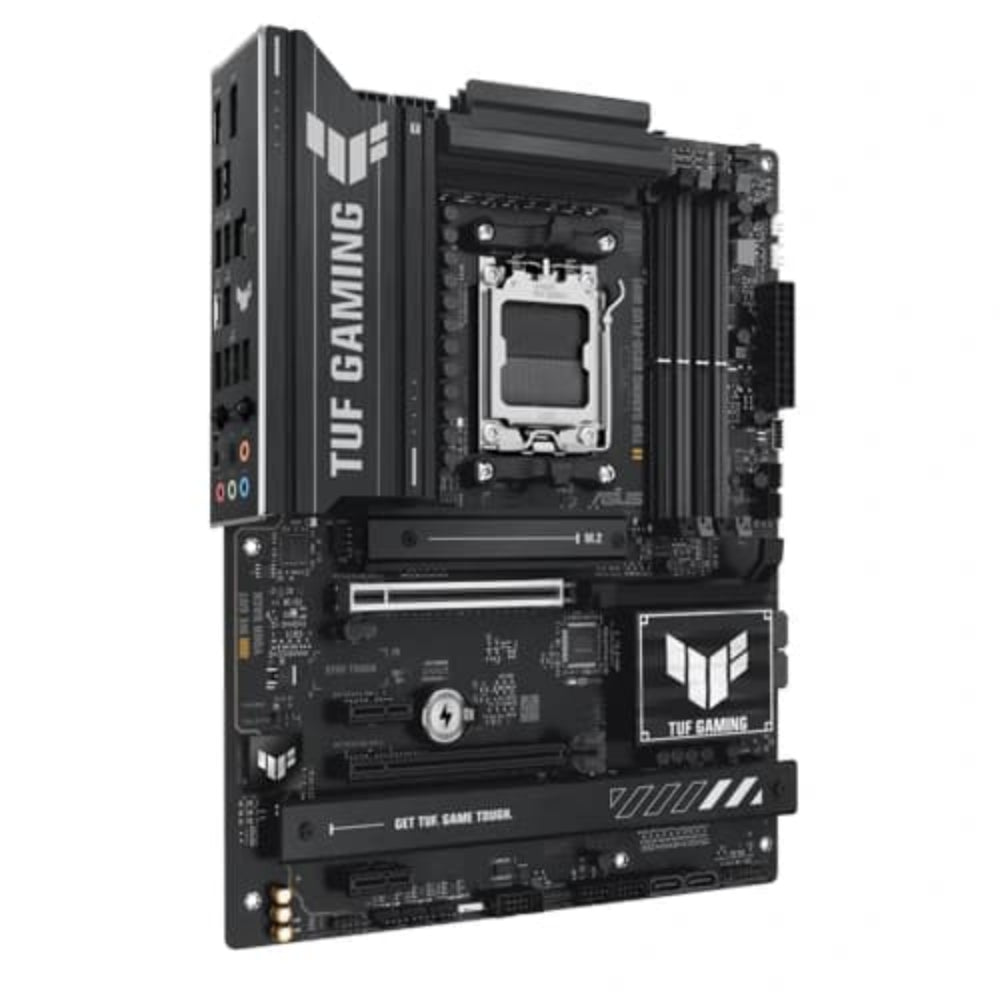

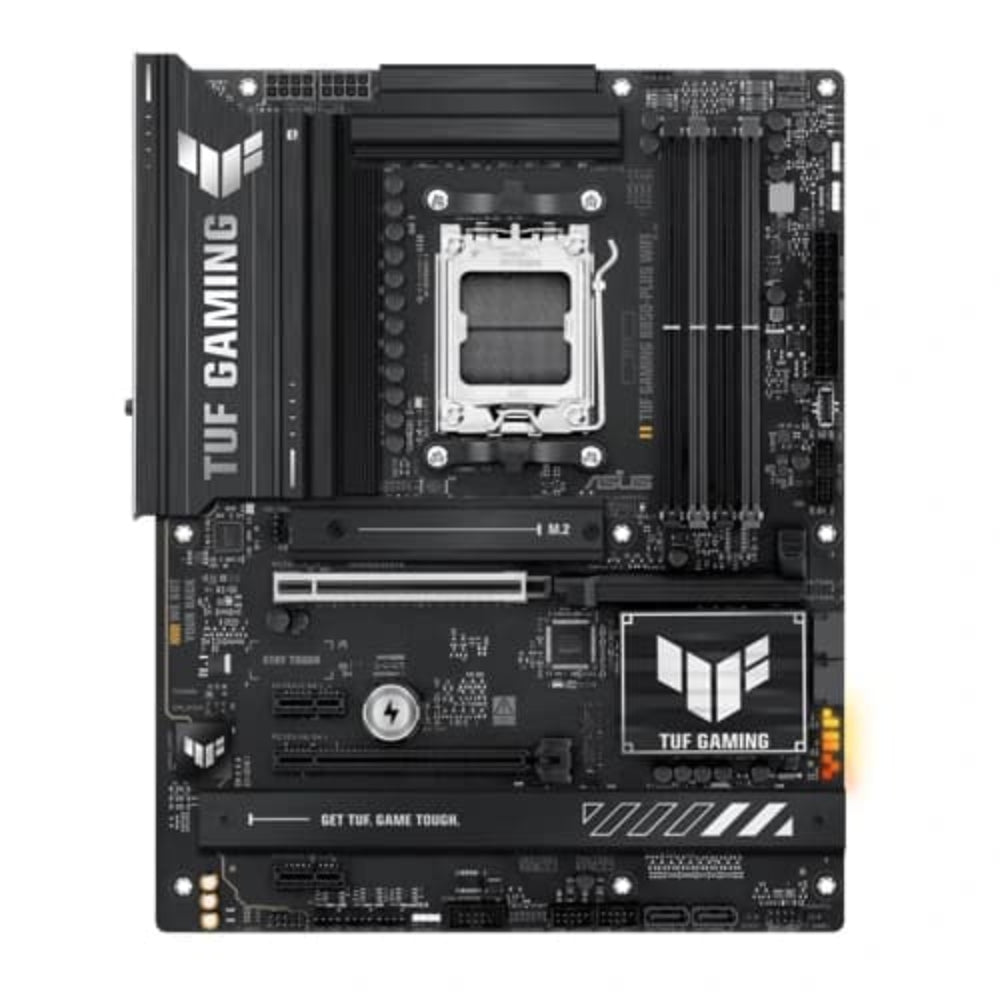

The ASUS TUF Gaming B850-Plus WiFi is an ATX-form-factor motherboard built on the AMD B850 chipset, designed for AMD Socket AM5 processors including Ryzen 9000, 8000, and 7000 series desktop CPUs. It pairs a robust 14(80A) + 2(80A) + 1(80A) DrMOS power stage configuration with dedicated VRM heatsinks, delivering stable and efficient power delivery for high-core-count processors across extended workloads. Memory support spans four DDR5 DIMM slots accommodating up to 256 GB in a dual-channel configuration. Speeds of up to 8000+ MT/s (overclocked) are achievable with compatible Ryzen 9000, 8000, and 7000 series processors. The board supports AMD EXPO profiles and ASUS AEMP for straightforward memory tuning, while the UEFI BIOS provides fine-grained manual adjustments for experienced builders. Storage is handled by three M.2 Key-M slots and four SATA 6 Gb/s ports. When paired with Ryzen 9000 or 7000 series processors, the primary M.2 slot operates at PCIe 5.0 x4, enabling storage throughput up to 128 Gbps. The remaining two M.2 slots run at PCIe 4.0 x4. AMD RAIDXpert2 technology supports RAID 0/1/5/10 configurations with Ryzen 9000 series processors. Connectivity is a clear strength of this board. The integrated Wi-Fi 7 (802.11be) module supports the 2.4 GHz, 5 GHz, and 6 GHz bands with a 2×2 antenna arrangement and up to 2.9 Gbps wireless transfer speeds. Wired networking is provided by a Realtek 2.5 Gb Ethernet controller with TUF LANGuard surge protection. The rear I/O includes one USB 20 Gbps Type-C port, three USB 10 Gbps Type-A ports, four USB 5 Gbps Type-A ports, and two USB 2.0 ports, supplemented by front-panel connectors and a Thunderbolt (USB4) header. Audio is managed by the Realtek ALC1220P codec, offering 7.1 surround sound, 120 dB SNR playback output, and 32-bit/192 kHz playback support. Three Addressable Gen 2 headers enable Aura Sync RGB lighting integration. ASUS Q-Design features—including M.2 Q-Latch, Q-DIMM, and PCIe Slot Q-Release—simplify installation without requiring tools for most components. Key Verified Specifications: – Form Factor: ATX, 30.5 cm x 24.4 cm – Socket: AMD AM5 – Chipset: AMD B850 – Memory: 4x DDR5 DIMM, max 256 GB, up to 8000+ MT/s (OC), dual-channel, EXPO/AEMP – Power Stages: 14(80A) + 2(80A) + 1(80A) DrMOS – PCIe: 1x PCIe 5.0 x16 (Ryzen 9000/7000); 1x PCIe 4.0 x16 (B850 chipset) – Storage: 3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4), 4x SATA 6 Gb/s – Wireless: Wi-Fi 7 (802.11be), 2.4/5/6 GHz, up to 2.9 Gbps; Bluetooth 5.4 – Ethernet: Realtek 2.5 Gb – Rear USB: 1x 20 Gbps Type-C, 3x 10 Gbps Type-A, 4x 5 Gbps Type-A, 2x USB 2.0 – Audio: Realtek ALC1220P, 7.1 surround, 120 dB SNR – Video Output: 1x DisplayPort 1.4 (up to 8K@30Hz), 1x HDMI 2.1 (up to 4K@60Hz) – BIOS: 256 Mb Flash ROM, UEFI AMI – Warranty: 3 Years
GIGABYTE B860M Gaming WIFI6 DDR5 Intel Motherboard
₹15,850.00

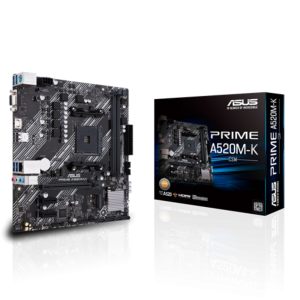

ASUS Prime A520M-K CSM DDR4 AMD Motherboard
₹6,125.00
ASUS TUF Gaming B850-Plus Wifi DDR5 AMD Motherboard
₹28,250.00
The ASUS TUF Gaming B850-Plus WiFi is an AMD AM5 ATX motherboard featuring the B850 chipset, DDR5 support up to 256 GB, PCIe 5.0, Wi-Fi 7, and a 14+2+1 DrMOS power design for Ryzen 9000/8000/7000 series processors

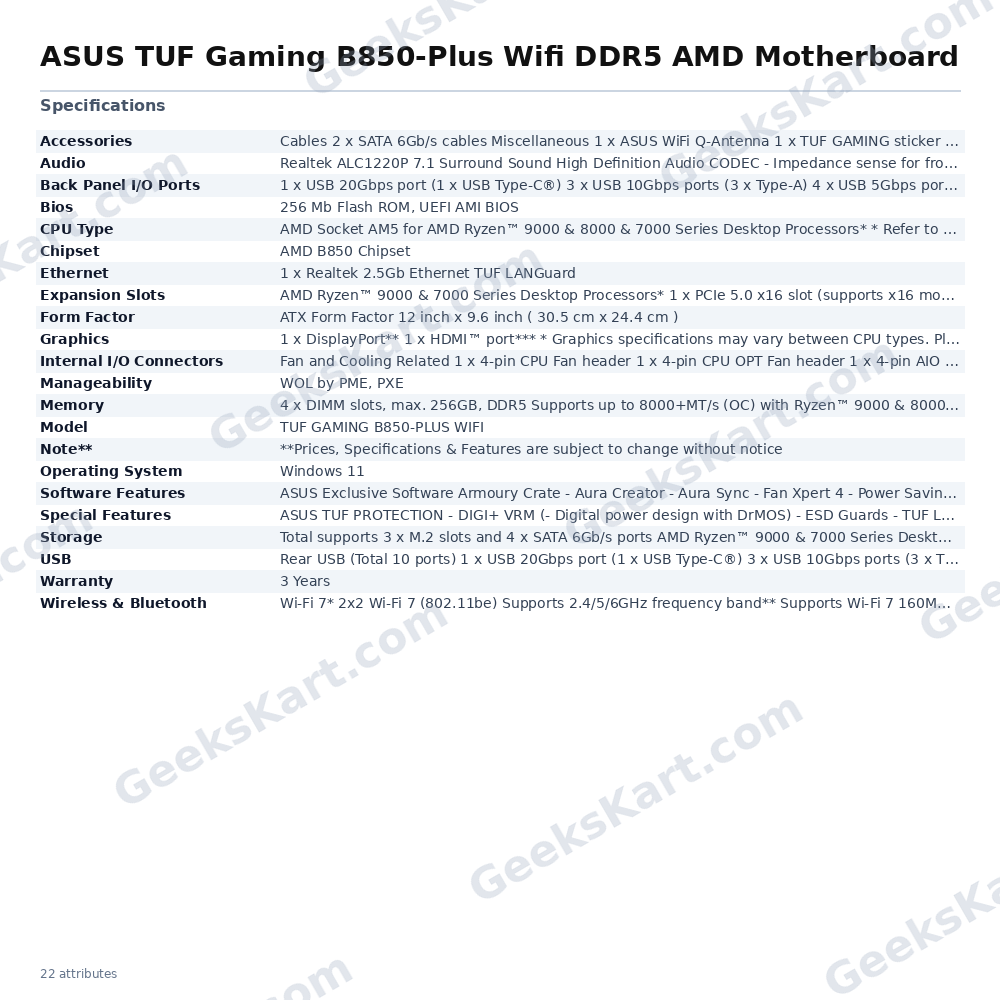

Additional information
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD B850 Chipset |
| CPU Type | AMD Socket AM5 for AMD RyzenTM 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list |
| USB | Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio |
| Model | TUF GAMING B850-PLUS WIFI |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Specifications vary by CPU types. ** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs. AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1 |

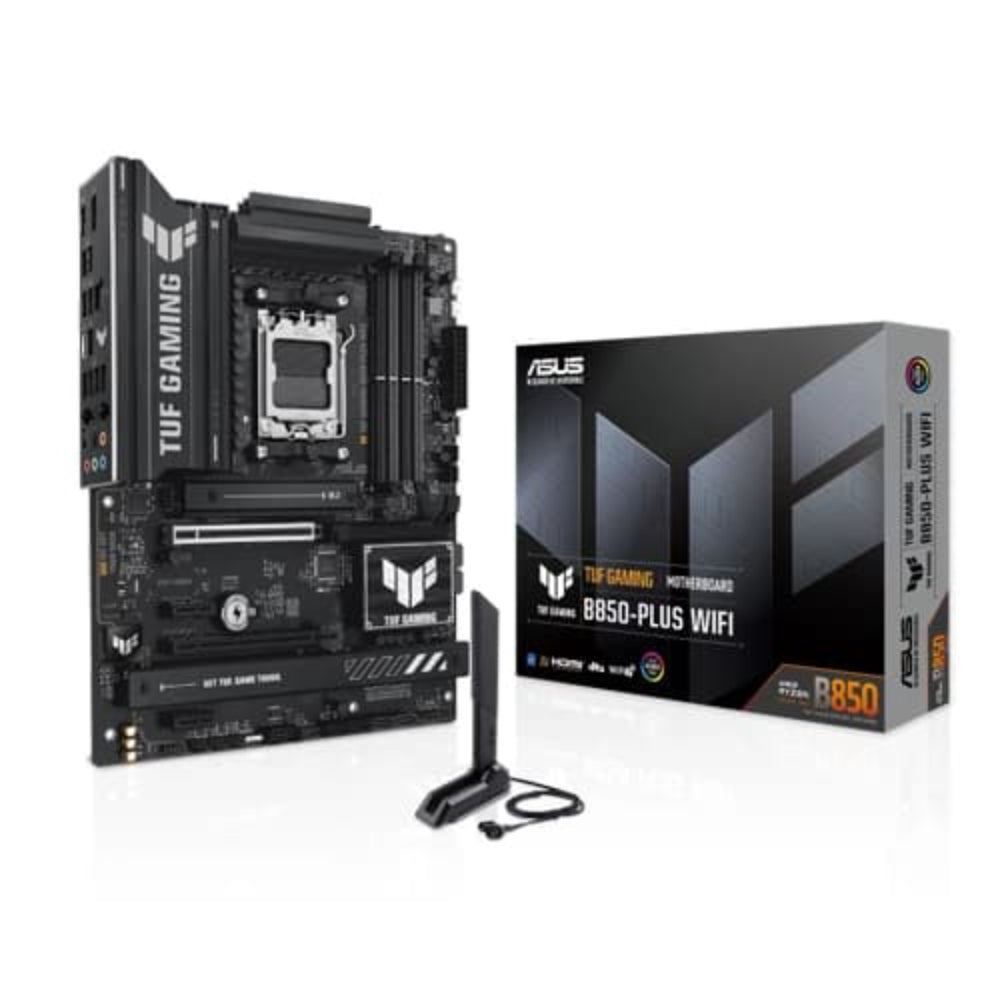

| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x TUF GAMING sticker 2 x M.2 rubber packages Documentation 1 x Quick start guide |
| Manageability | WOL by PME, PXE |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)*** 2 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. *** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| Operating System | Windows 11 |
| Special Features | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool – Pre-mounted I/O shield – SafeDIMM Aura Sync – Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey |

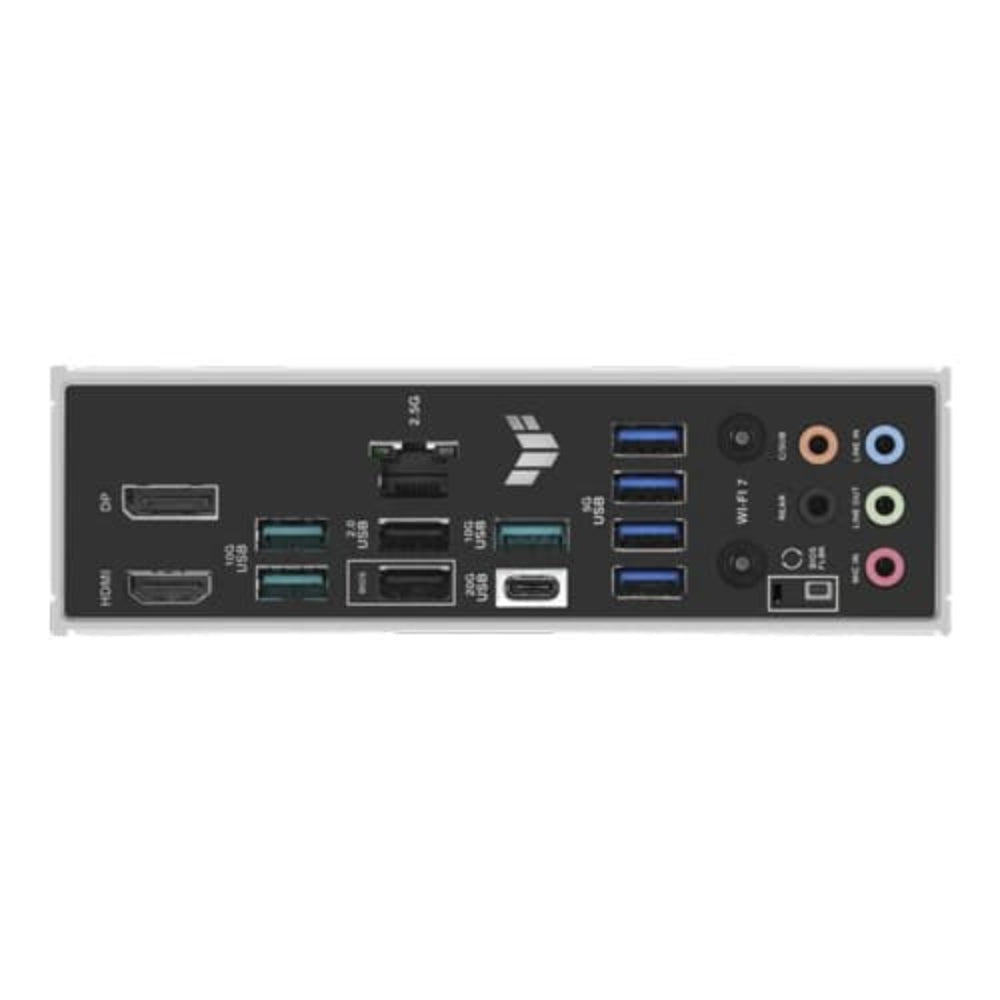

| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Wireless & Bluetooth | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth® v5.4*** * Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |
