ASUS TUF Gaming B860M-Plus DDR5 M-ATX Motherboard
MPN TUF-GAMING-B860M-PLUS · Brand ASUS · mATX
The ASUS TUF Gaming B860M-Plus is a Micro-ATX motherboard for Intel Core Ultra (Series 2) processors on the LGA1851 socket, featuring the B860 chipset, DDR5 support up to 256 GB at 8800+ MT/s, PCIe 5.0 for GPU and M.2, and a 17-phase 80A power design
Inclusive of GST · GST invoice available
Overview
The ASUS TUF Gaming B860M-Plus is a Micro-ATX motherboard built on the Intel B860 chipset, designed specifically for Intel Core Ultra Processors (Series 2) using the LGA1851 socket. It combines essential platform features with a robust power delivery system and TUF-grade durability for sustained gaming and productivity workloads. The power delivery architecture centres on a 14+2+1 phase design, with each stage rated at 80A, integrating high-side and low-side MOSFETs and drivers for efficient and stable CPU power delivery across varying workloads. Dual 8-pin ATX12V connectors and a 24-pin main power connector round out the power input options. Memory support spans up to 256 GB of non-ECC, unbuffered DDR5 across two DIMM slots in dual-channel configuration. The board supports DDR5 speeds up to 8800+ MT/s via Intel XMP and the exclusive ASUS Enhanced Memory Profile III (AEMP III), which automatically detects and applies optimised frequency, timing, and voltage profiles for PMIC-restricted modules. Storage connectivity is headlined by three M.2 Key-M slots, one of which supports PCIe 5.0 enabling sequential transfer rates up to 128 Gbps, with all M.2 slots supporting NVMe RAID. Four SATA 6 Gb/s ports offer additional drive capacity. The primary PCIe slot runs at PCIe 5.0 x16 for the graphics card, with a secondary PCIe 4.0 x4 slot from the B860 chipset for additional peripherals. A PCIe slot Q-Release lever simplifies GPU removal. Rear I/O includes one USB 20 Gbps Type-C port (with DisplayPort Alt mode), two USB 10 Gbps Type-A ports, four USB 5 Gbps Type-A ports, one USB 2.0 Type-A port, one DisplayPort output, one HDMI output, a Realtek 2.5 Gb Ethernet port, a Wi-Fi module connector, five 3.5 mm audio jacks, and one optical S/PDIF output. An internal USB 10 Gbps Type-C front-panel connector and a Thunderbolt (USB4) header expand front connectivity. Three Addressable Gen 2 RGB headers support Aura Sync lighting. Key Verified Specifications: - Socket: LGA1851 - Chipset: Intel B860 - Form Factor: Micro-ATX - CPU Compatibility: Intel Core Ultra Processors (Series 2) - Memory: DDR5, Dual Channel, up to 256 GB, up to 8800+ MT/s (XMP / AEMP III) - PCIe Slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (chipset) - M.2 Slots: 3x Key-M (1x PCIe 5.0, NVMe RAID supported) - SATA: 4x SATA 6 Gb/s - Rear USB: 1x USB 20 Gbps Type-C, 2x USB 10 Gbps Type-A, 4x USB 5 Gbps Type-A, 1x USB 2.0 Type-A - Networking: Realtek 2.5 Gb Ethernet, Wi-Fi module - Display Output: 1x DisplayPort, 1x HDMI, 1x USB Type-C (DP Alt mode) - RGB: 3x Addressable Gen 2 headers (Aura Sync) - Fan Headers: 1x CPU Fan, 1x CPU OPT, 1x AIO Pump, 3x Chassis Fan - Warranty: 3 Years

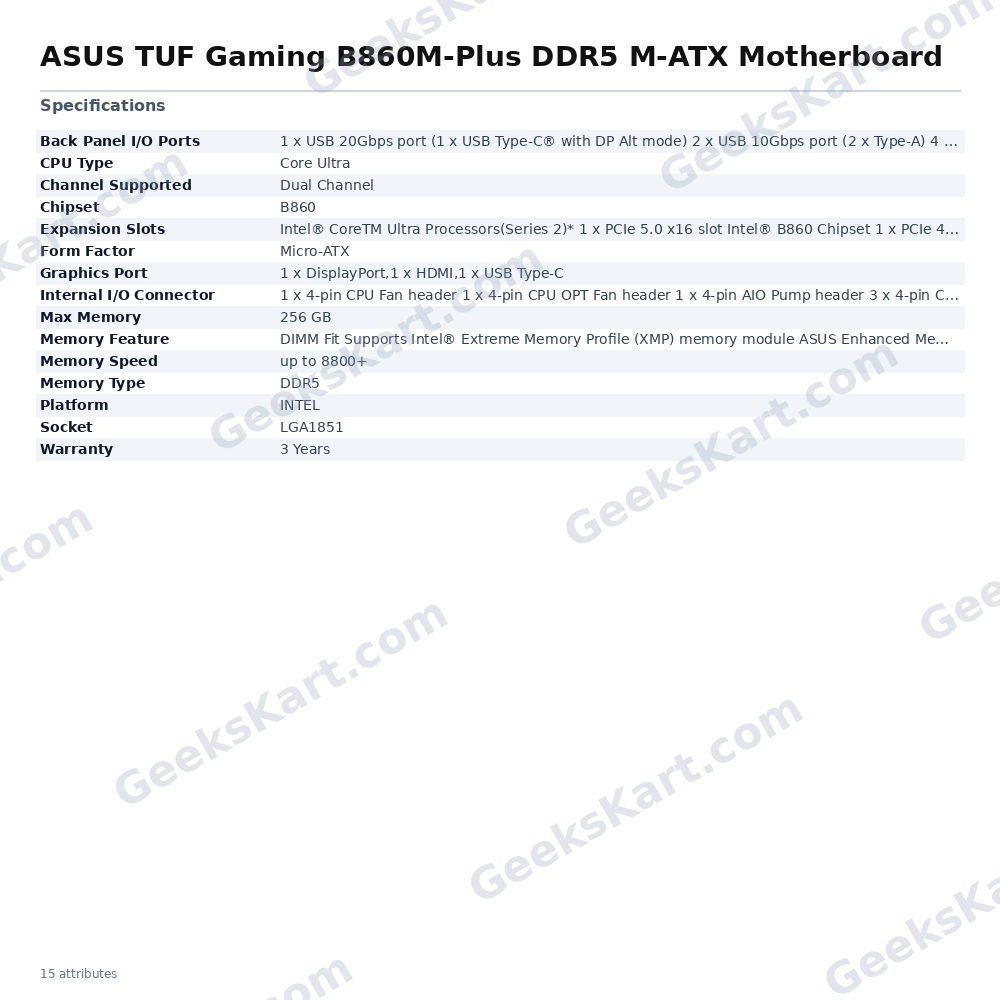

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B860 |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Max Memory | 256 GB |
| Memory Speed | up to 8800+ |
| Platform | INTEL |
| Graphics Port | 1 x DisplayPort,1 x HDMI,1 x USB Type-C |
| Memory Feature | DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information Brand Site. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Expansion Slots | Intel® CoreTM Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Intel® CoreTM Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot – To ensure compatibility of the device installed, please refer to Brand Site for the list of supported peripherals |
| Channel Supported | Dual Channel |
| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O Connector | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |
