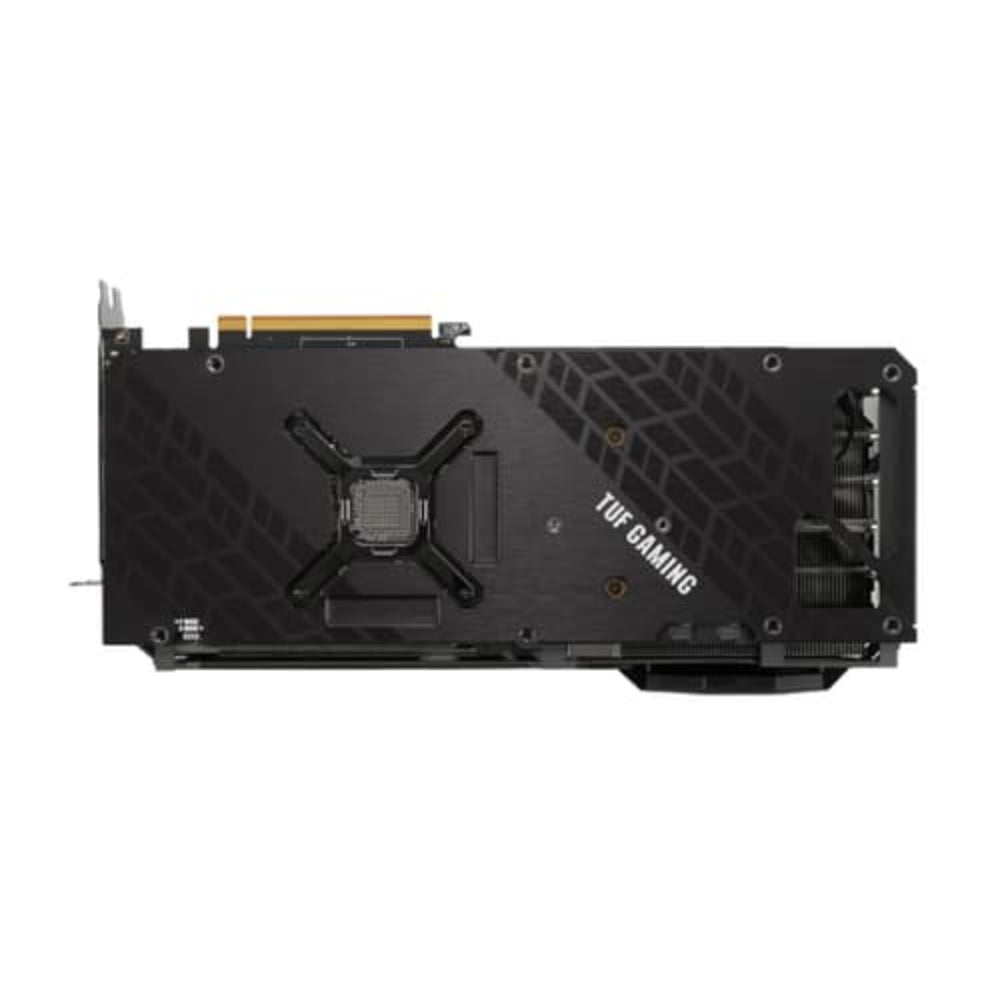

ASUS TUF Gaming Geforce RTX 3080 Ti 12GB NVIDIA Graphics Card
MPN ASUS-TUF-GAMING-RTX-3080-TI-12GB · Brand ASUS
Features of ASUS TUF Gaming Geforce RTX 3080 Ti 12GB NVIDIA Graphics Card NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency. 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance. 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsit
Inclusive of GST · GST invoice available
Overview
Features of ASUS TUF Gaming Geforce RTX 3080 Ti 12GB NVIDIA Graphics Card
- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.

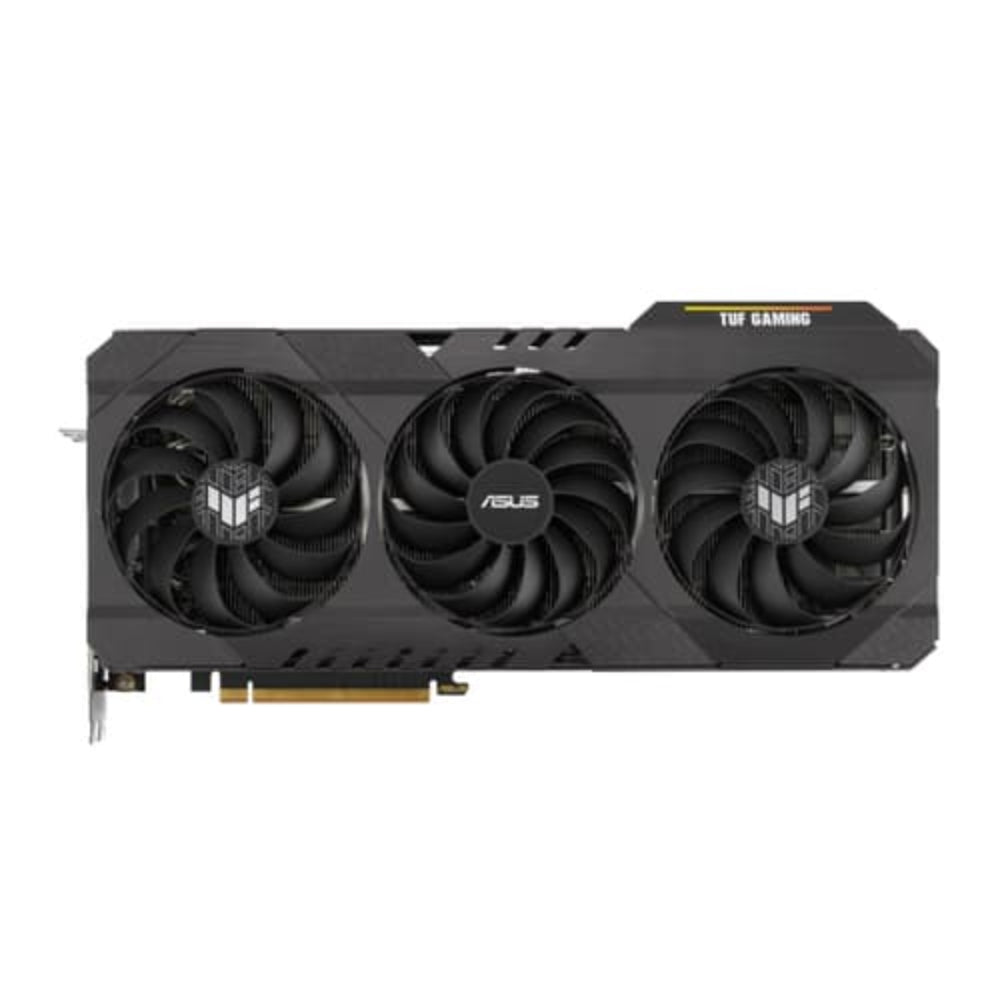

- Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.
- Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
- Military-grade Capacitors and other TUF components enhance durability and performance.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Specifications of ASUS TUF Gaming Geforce RTX 3080 Ti 12GB NVIDIA Graphics Card
| Model No | 90YV0GU0-M0AA00 |
| Model | TUF-RTX3080TI-12G-GAMING |
| Graphic Engine | NVIDIA® GeForce RTX™ 3080 Ti |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 12GB GDDR6X |
| Engine Clock | OC mode: 1695 MHz (Boost Clock) |
| Gaming mode: 1665 MHz (Boost Clock) | |
| CUDA Core | 10240 |
| Memory Speed | 19 Gbps |
| Memory Interface | 384-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

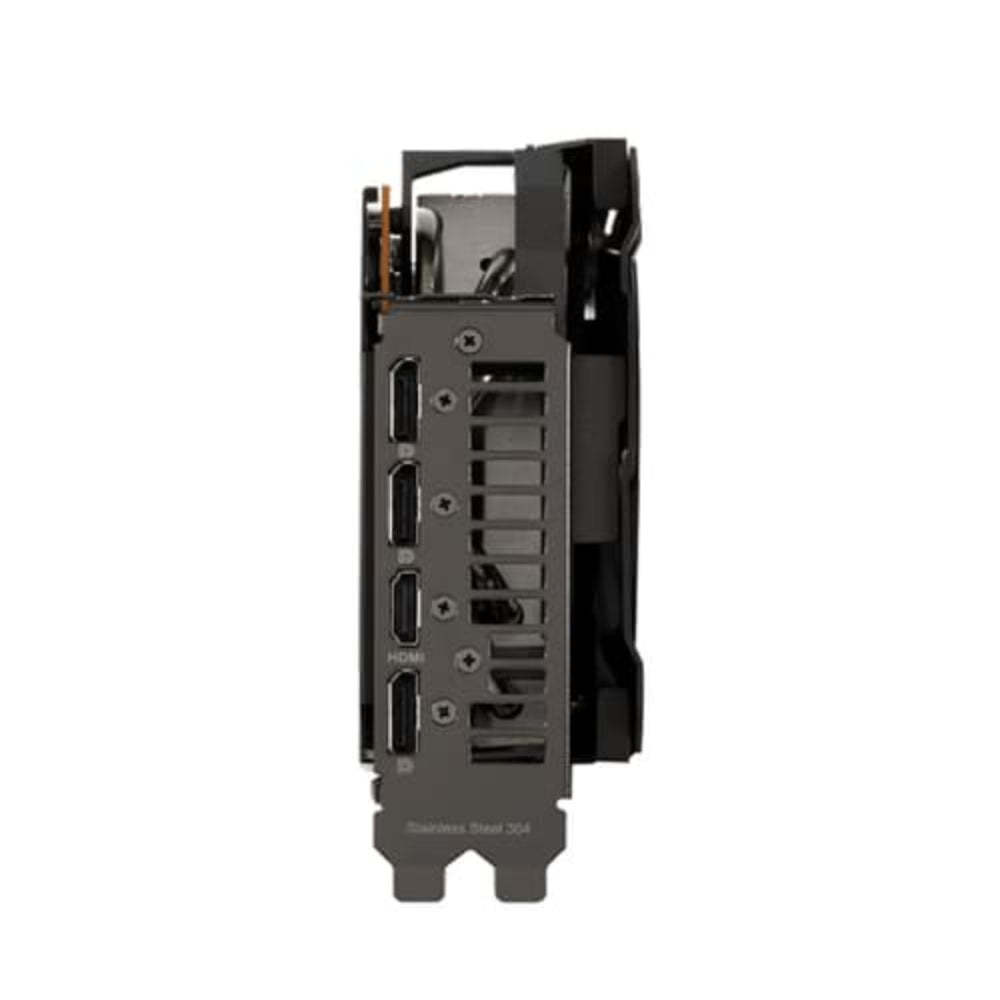

| Interface | Yes x 2 (Native HDMI 2.1) |
| Yes x 3 (Native DisplayPort 1.4a) | |
| HDCP Support Yes (2.3) | |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x TUF certificate of Reliability |
| 1 x Collection card | |
| 1 x Speedsetup Manual | |
| Software | ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 299.9 x 126.9 x 51.7 mm |
| 11.81 x 5 x 2.04 inch | |
| Recommended PSU | 850W |
| Power Connectors | 2 x 8-pin |
| Slot | 2.7 Slot |
Datasheet
| Slot | 2.7 Slot |
|---|---|
| Model | TUF-RTX3080TI-12G-GAMING |
| Opengl | OpenGL®4.6 |
| Software | ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site |
| Cuda Core | 10240 |
| Dimensions | 299.9 x 126.9 x 51.7 mm |
| Accessories | 1 x TUF certificate of Reliability |
| Bus Standard | PCI Express 4.0 |
| Engine Clock | OC mode : 1695 MHz (Boost Clock) |
| Video Memory | 12GB GDDR6X |
| Graphic Engine | NVIDIA® GeForce RTX™ 3080 Ti |
| Memory Interface | 384-bit |
| Power Connectors | 2 x 8-pin |
| Maximum Display Support | 4 |
| Nvlink/ Crossfire Support | No |
| Memory Speed | 19 Gbps |
| Interface | Yes x 2 (Native HDMI 2.1) |
| Recommended PSU | 850W |
| Resolution | Digital Max Resolution 7680 x 4320 |
