ASUS TUF Gaming X570-Plus Wifi DDR4 AMD Motherboard
MPN ASUS-TUF-GAMING-X570-PLUS-WIFI · Brand ASUS · ATX
The ASUS TUF Gaming X570-Plus WiFi is an AMD AM4 ATX motherboard featuring the X570 chipset, 12+2 Dr. MOS power stages, dual PCIe 4.0 M.2 slots, Intel Wi-Fi 5, and Realtek Gigabit LAN — built for stable, high-performance Ryzen gaming builds
Inclusive of GST · GST invoice available
Overview

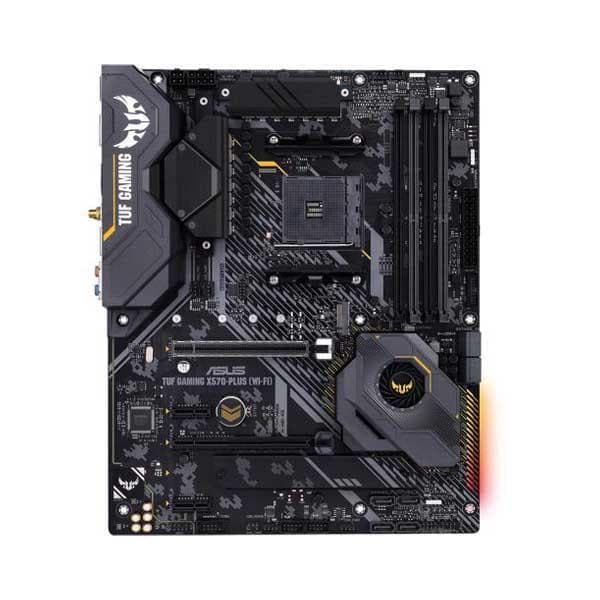

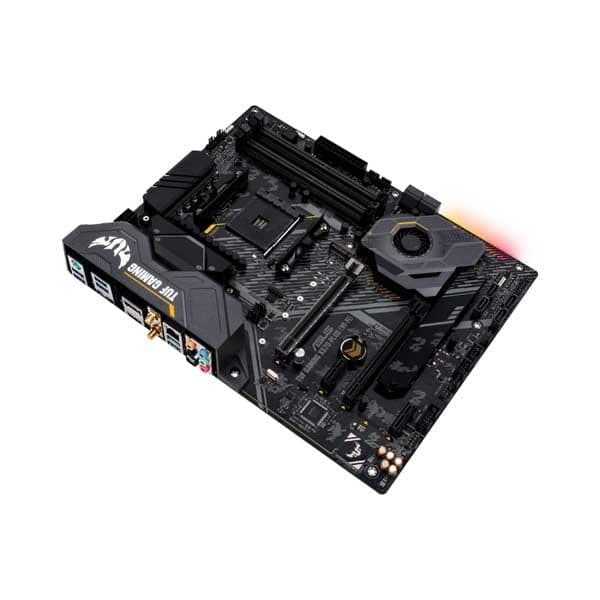

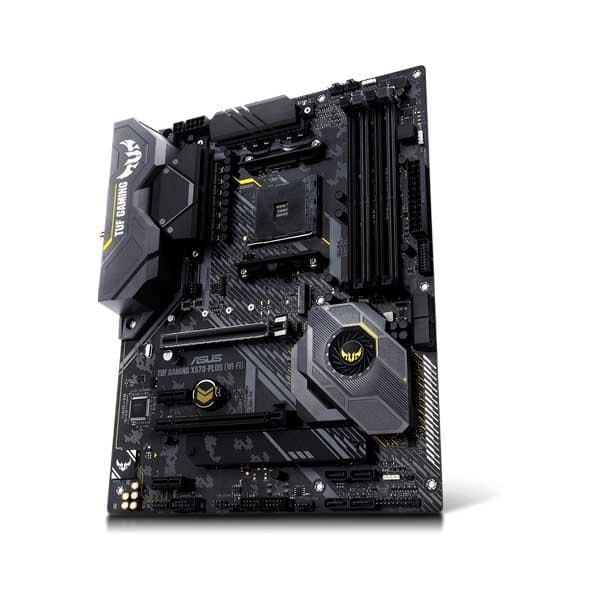

The ASUS TUF Gaming X570-Plus (Wi-Fi) is a full ATX motherboard built on the AMD X570 chipset and designed for the AM4 socket, supporting 1st, 2nd, and 3rd Gen AMD Ryzen processors as well as 1st and 2nd Gen AMD Ryzen processors with Radeon Vega Graphics. At its core is a 12+2 Dr. MOS power delivery system — combining high-side and low-side MOSFETs and gate drivers in a single package — paired with a 6-layer PCB, ProCool power connectors, and Digi+ VRM digital power control. This combination provides stable, efficient power delivery to high-core-count AMD CPUs during sustained workloads and gaming sessions. Storage and expansion options are extensive. With 3rd Gen Ryzen processors installed, the primary M.2 slot operates at PCIe 4.0 x4 speeds, while the second M.2 slot (chipset-connected) also supports PCIe 4.0 x4 and SATA modes. Eight SATA 6Gb/s ports and RAID 0, 1, and 10 support round out the storage stack. The primary PCIe x16 slot runs at PCIe 4.0 x16 with a 3rd Gen Ryzen CPU, falling back to PCIe 3.0 x16 with 2nd Gen processors. For memory, four DIMM slots accept up to 128GB of unbuffered DDR4 in dual-channel configuration. With 3rd Gen Ryzen, supported speeds reach DDR4-4400 (OC); with 2nd Gen Ryzen, up to DDR4-3600 (OC). Networking is handled by the Realtek L8200A Gigabit Ethernet controller, complemented by an Intel Wireless-AC 9260 module delivering Wi-Fi 5 (802.11ac) across dual 2.4/5 GHz bands with 2x2 MU-MIMO and 160 MHz channel support for wireless throughput up to 1.73 Gbps. Bluetooth 5.0 is also integrated. The Realtek ALC S1200A 8-channel HD audio codec delivers 108 dB SNR on stereo line-out and 103 dB SNR on line-in, supported by audio shielding, dedicated PCB layers for left and right channels, and Japanese audio capacitors. Back-panel I/O includes 4x USB 3.2 Gen 1 (5 Gbps), 2x USB 3.2 Gen 2 Type-A (10 Gbps), 1x USB 3.2 Gen 2 Type-C (10 Gbps), HDMI 1.4b, DisplayPort, optical S/PDIF out, and 5 audio jacks. Aura Sync RGB, two RGB strip headers, and one Addressable Gen 2 header enable lighting customization and ecosystem synchronization. Verified Specifications: - Chipset: AMD X570 - Socket: AMD AM4 - CPU Support: 1st/2nd Gen Ryzen with Radeon Vega; 2nd/3rd Gen Ryzen - Memory: 4x DIMM, max 128GB, DDR4 up to 4400 MHz (OC) with 3rd Gen Ryzen - Storage: 2x M.2 (PCIe 4.0 x4 / SATA), 8x SATA 6Gb/s, RAID 0/1/10 - Expansion: 1x PCIe 4.0 x16, 1x PCIe 4.0 x16 (x4 mode), 2x PCIe 4.0 x1 - LAN: Realtek L8200A Gigabit - Wi-Fi: Intel Wireless-AC 9260, 802.11ac, up to 1.73 Gbps, MU-MIMO - Bluetooth: 5.0 - Audio: Realtek ALC S1200A, 108 dB SNR line-out, 103 dB SNR line-in - Form Factor: ATX, 30.5 cm x 24.4 cm - OS: Windows 10 64-bit
Datasheet

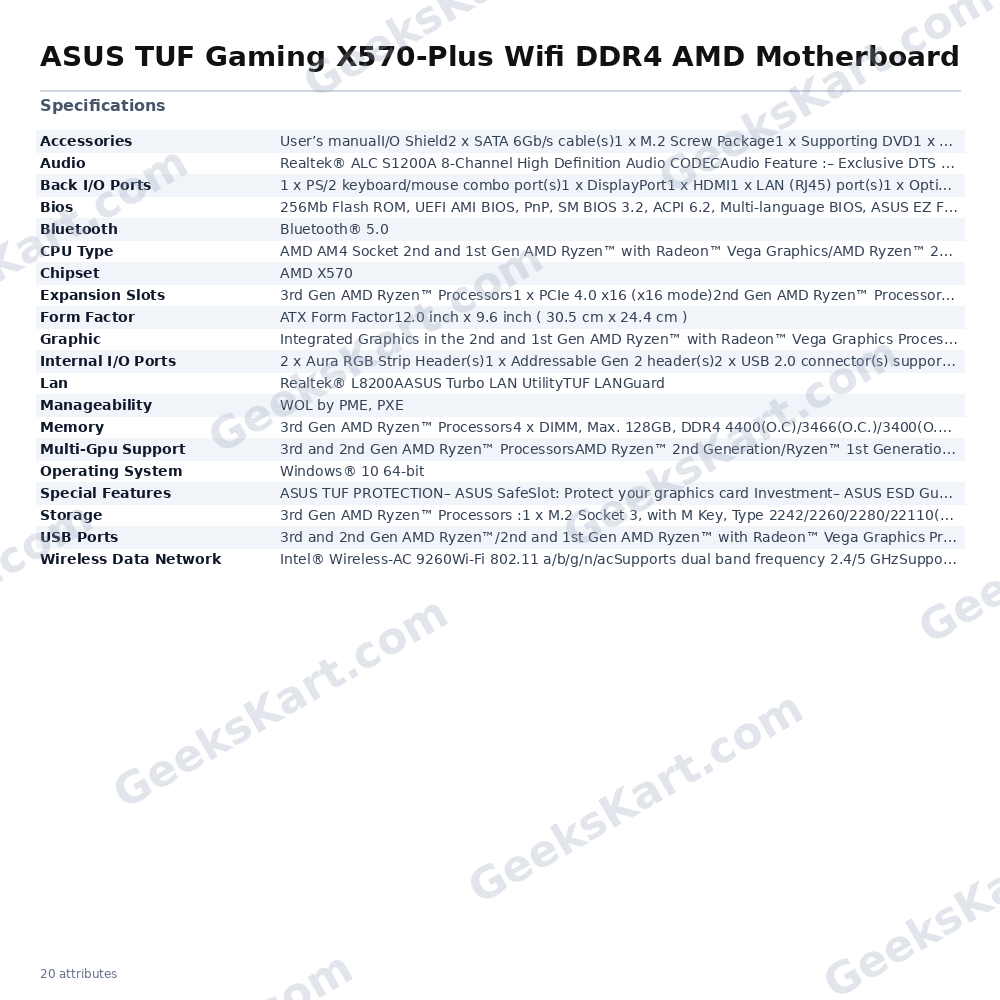

| Form Factor | ATX |
|---|---|
| Chipset | AMD X570 |
| CPU Type | AMD AM4 Socket 2nd and 1st Gen AMD RyzenTM with RadeonTM Vega Graphics/AMD RyzenTM 2nd Generation/3rd Gen AMD RyzenTM Processors |
| Lan | Realtek® L8200AASUS Turbo LAN UtilityTUF LANGuard |
| Bios | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Audio | Realtek® ALC S1200A 8-Channel High Definition Audio CODECAudio Feature :– Exclusive DTS Custom for GAMING Headsets.– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity– Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality |
| Memory | 3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory2nd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered MemoryDual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists) |
| Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics ProcessorsMulti-VGA output support : HDMI/DisplayPort ports– Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz– Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz |
| Storage | 3rd Gen AMD Ryzen™ Processors :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support2nd Gen AMD Ryzen™ Processors :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices supportAMD X570 chipset :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support8 x SATA 6Gb/s port(s)Support Raid 0, 1, 10 |
| Bluetooth | Bluetooth® 5.0 |
| USB Ports | 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :4 x USB 3.2 Gen 1 port(s) (4 at back panel, )AMD X570 chipset :3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM)AMD X570 chipset :2 x USB 3.2 Gen 1 port(s) (2 at mid-board)AMD X570 chipset :4 x USB 2.0 port(s) (4 at mid-board) |
| Accessories | User’s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)1 x TUF GAMING Sticker1 x TUF Certification card(s) |
| Manageability | WOL by PME, PXE |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)1 x Optical S/PDIF out5 x Audio jack(s)4 x USB 3.2 Gen 1 (up to 5Gbps) ports3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode)2nd Gen AMD Ryzen™ Processors1 x PCIe 3.0 x16 (x16 mode)2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x8 mode)AMD X570 chipset1 x PCIe 4.0 x16 (max at x4 mode)2 x PCIe 4.0 x1 |
| Operating System | Windows® 10 64-bit |
| Special Features | ASUS TUF PROTECTION– ASUS SafeSlot: Protect your graphics card Investment– ASUS ESD Guard: Enhanced ESD protection– ASUS Overvoltage Protection: World-class circuit-protecting power design– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!– ASUS DIGI+ VRM: Precision control for stable power– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!AURA :– Aura Lighting Control– Aura RGB Strip Headers– Addressable Gen 2 HeaderASUS Exclusive Features :– AI Suite 3– Ai ChargerASUS Quiet Thermal Solution :– Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink– ASUS Fan Xpert 4ASUS EZ DIY :– ASUS CrashFree BIOS 3– ASUS EZ Flash 3– ASUS UEFI BIOS EZ ModeASUS Q-Design :– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)– ASUS Q-Slot– ASUS Q-DIMMDIY Friendly Design– Procool– SafeSlot– Digi+ VRM– Highly Durable components– ESD Guards |
| Multi-Gpu Support | 3rd and 2nd Gen AMD Ryzen™ ProcessorsAMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation ProcessorsSupports AMD CrossFireX™ Technology |
| Internal I/O Ports | 2 x Aura RGB Strip Header(s)1 x Addressable Gen 2 header(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)1 x SPI TPM header8 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Clear CMOS jumper(s)1 x COM port header1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| Wireless Data Network | Intel® Wireless-AC 9260Wi-Fi 802.11 a/b/g/n/acSupports dual band frequency 2.4/5 GHzSupports MU-MIMOSupports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed |
