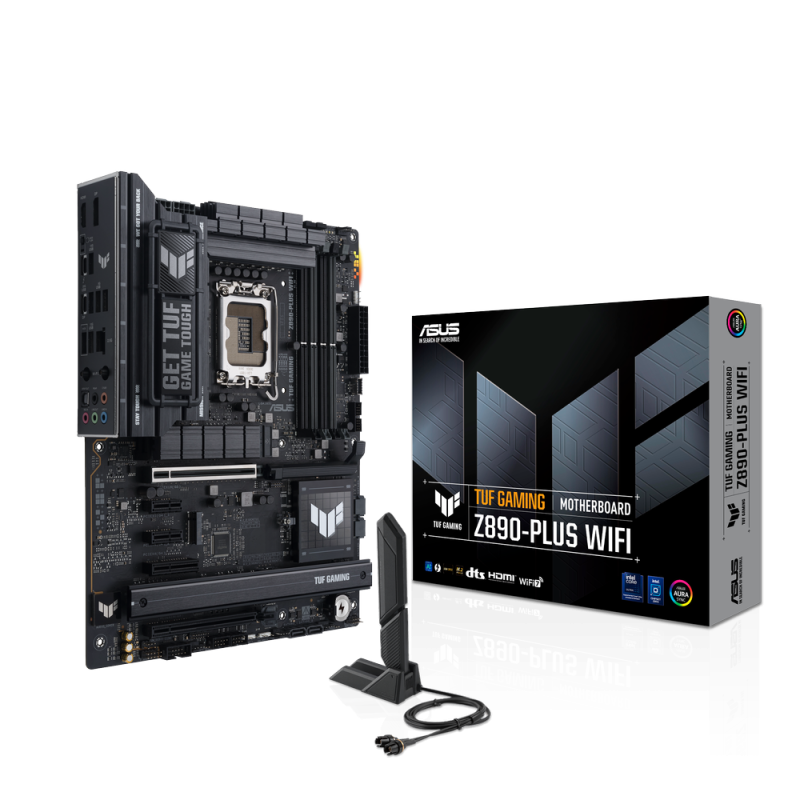

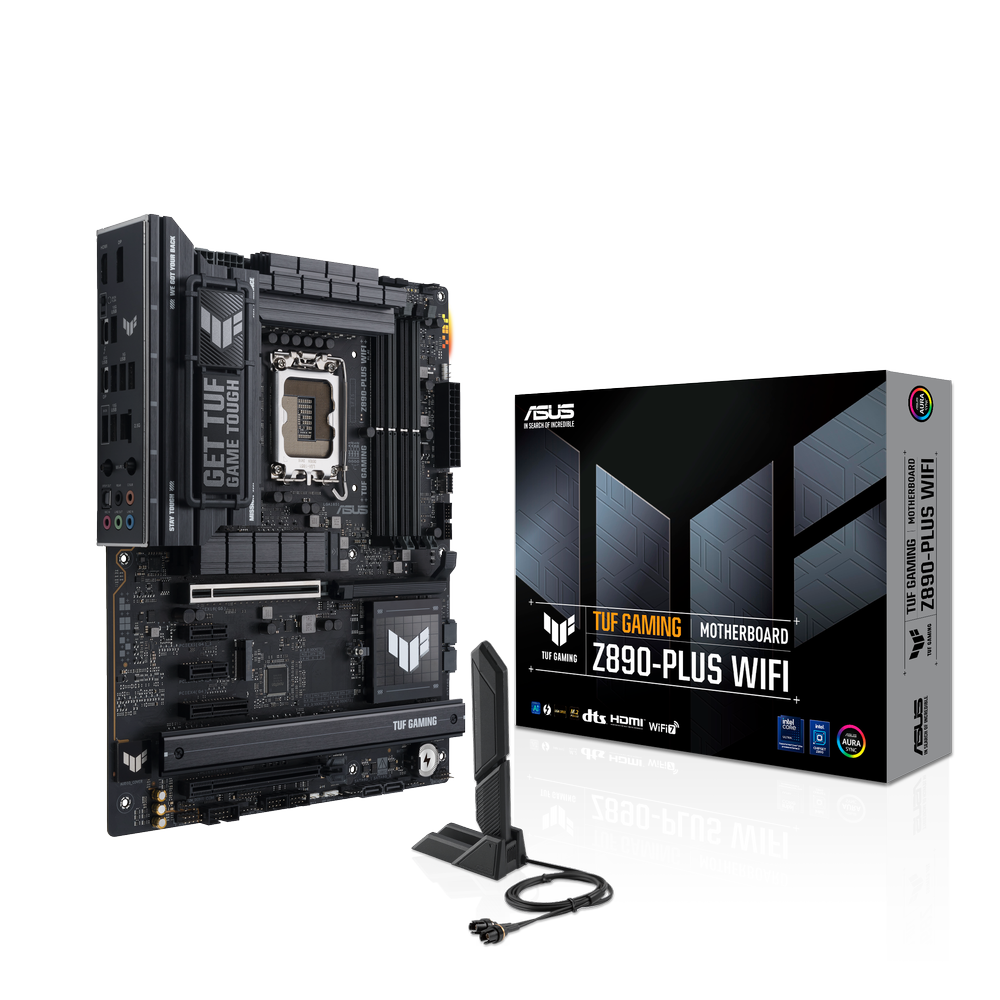

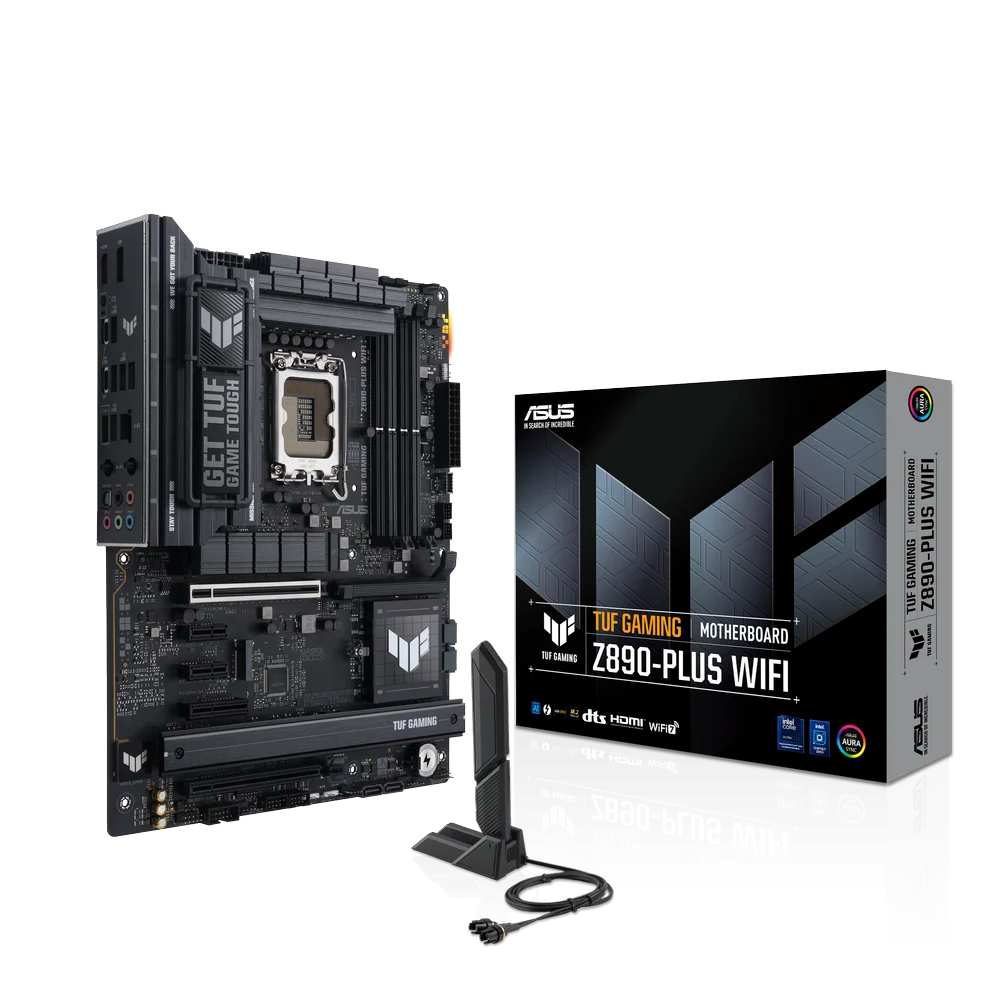

ASUS TUF GAMING Z890 PLUS WIFI DDR5 Intel Motherboard
MPN ASUS-TUF-GAMING-Z890-PLUS-WIFI-BLACK · Brand ASUS · ATX
The ASUS TUF Gaming Z890-Plus WIFI is an Intel LGA1851 ATX motherboard featuring the Z890 chipset, DDR5 support up to 192 GB, Wi-Fi 7, PCIe 5.0 M.2, and Thunderbolt 4 connectivity for Intel Core Ultra Series 2 builds
Inclusive of GST · GST invoice available
Overview

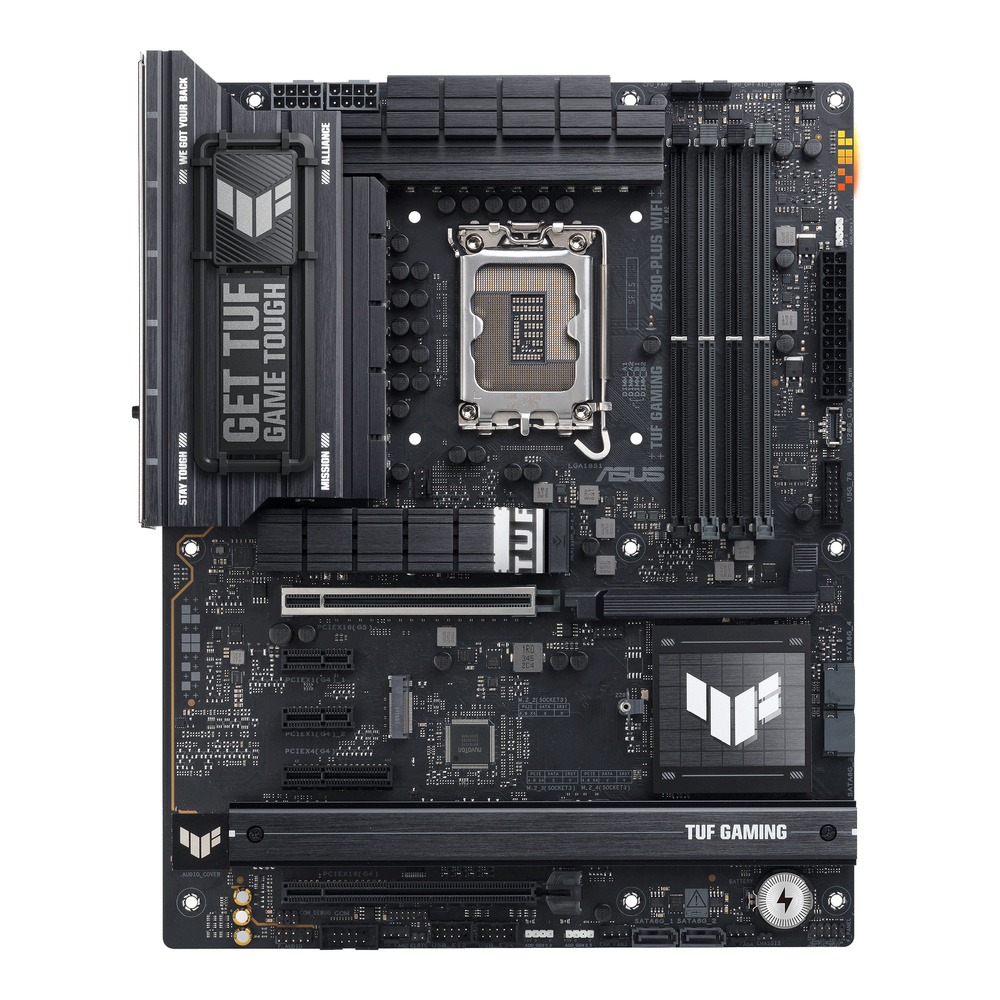

The ASUS TUF Gaming Z890-Plus WIFI is an ATX form-factor motherboard built on Intel's Z890 chipset and designed to work with Intel Core Ultra Processors (Series 2) in the LGA1851 socket. It pairs a robust power delivery architecture — featuring DIGI+ VRM with DrMOS — alongside a comprehensive thermal solution that includes a VRM heatsink, M.2 heatsinks, and an M.2 heatsink backplate, keeping critical components cool during extended workloads or gaming sessions. Memory support is a clear highlight: four DDR5 DIMM slots accommodate up to 192 GB of non-ECC, unbuffered DDR5 RAM, with overclocked speeds reaching 8600+ MT/s via XMP or ASUS's own Enhanced Memory Profile III (AEMP III). The DIMM Fit BIOS feature helps analyse individual memory modules for optimal compatibility and stability. For storage, the board provides four M.2 Key-M slots — the primary slot running at PCIe 5.0 x4 for up to 128 Gbps throughput — plus four SATA 6 Gb/s ports, supporting Intel Rapid Storage Technology RAID configurations across both PCIe and SATA devices. Connectivity is comprehensive: a 2x2 Wi-Fi 7 (802.11be) module covers 2.4 GHz, 5 GHz, and 6 GHz bands with up to 2.9 Gbps transfer rate, complemented by Bluetooth 5.4 and Intel 2.5 Gb Ethernet with TUF LANGuard protection. The rear I/O panel features a Thunderbolt 4 USB Type-C port, a USB 20 Gbps Type-C with DisplayPort Alt mode, three USB 10 Gbps Type-A ports, three USB 5 Gbps Type-A ports, HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz), and a BIOS FlashBack button for no-CPU BIOS updates. Audio is handled by a Realtek ALC1220P codec delivering 7.1 surround sound with 120 dB SNR stereo playback, backed by audio shielding, premium capacitors, dedicated PCB layers, and a rear optical S/PDIF output. Expansion slots include one PCIe 5.0 x16 (from the CPU), one PCIe 4.0 x16 (x4 mode, chipset), one PCIe 4.0 x4, and two PCIe 4.0 x1 slots. Three Addressable Gen 2 headers support ARGB lighting via Aura Sync. Verified Specifications: - Socket: LGA1851 | Chipset: Intel Z890 - Form Factor: ATX, 30.5 cm x 24.4 cm - Memory: 4x DDR5 DIMM, max 192 GB, up to 8600+ MT/s (OC) - Storage: 1x PCIe 5.0 x4 M.2, 2x PCIe 4.0 x4 M.2 (chipset), 1x PCIe 4.0 x4/SATA M.2, 4x SATA 6 Gb/s - Networking: Wi-Fi 7 (802.11be) 2x2, Bluetooth 5.4, Intel 2.5 GbE - Rear USB: 1x Thunderbolt 4 Type-C, 1x USB 20 Gbps Type-C, 3x USB 10 Gbps Type-A, 3x USB 5 Gbps Type-A - Audio: Realtek ALC1220P, 7.1 surround, 120 dB SNR playback, S/PDIF out - BIOS: 256 Mb Flash ROM, UEFI AMI - OS Support: Windows 11 (22H2 and later)

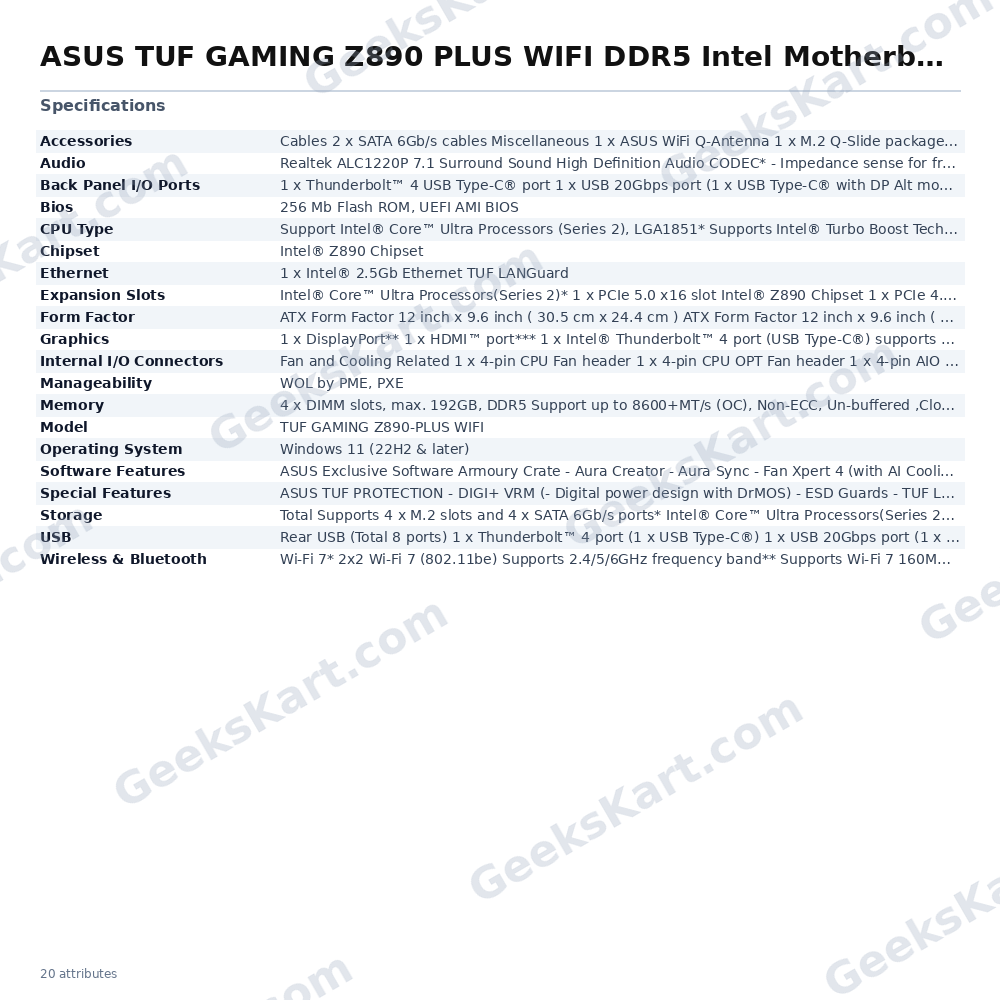

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | Intel® Z890 Chipset |
| CPU Type | |
| USB | Rear USB (Total 8 ports) 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio |
| Model | TUF GAMING Z890-PLUS WIFI |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Storage | Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5 |
| Ethernet | 1 x Intel® 2.5Gb Ethernet TUF LANGuard |
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs**** 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****** * Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. ***** In DP alt mode, supports up to UHBR20. ****** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ******* VGA resolution support depends on processors' or graphic cards' resolution. ********While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 Q-Slide package 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF GAMING sticker 1 x TUF GAMING removable nameplate Documentation 1 x Quick start guide |
| Manageability | WOL by PME, PXE |
| Expansion Slots | Intel® Core™ Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| Operating System | Windows 11 (22H2 & later) |
| Special Features | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeDIMM Aura Sync – Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey NPU Boost |

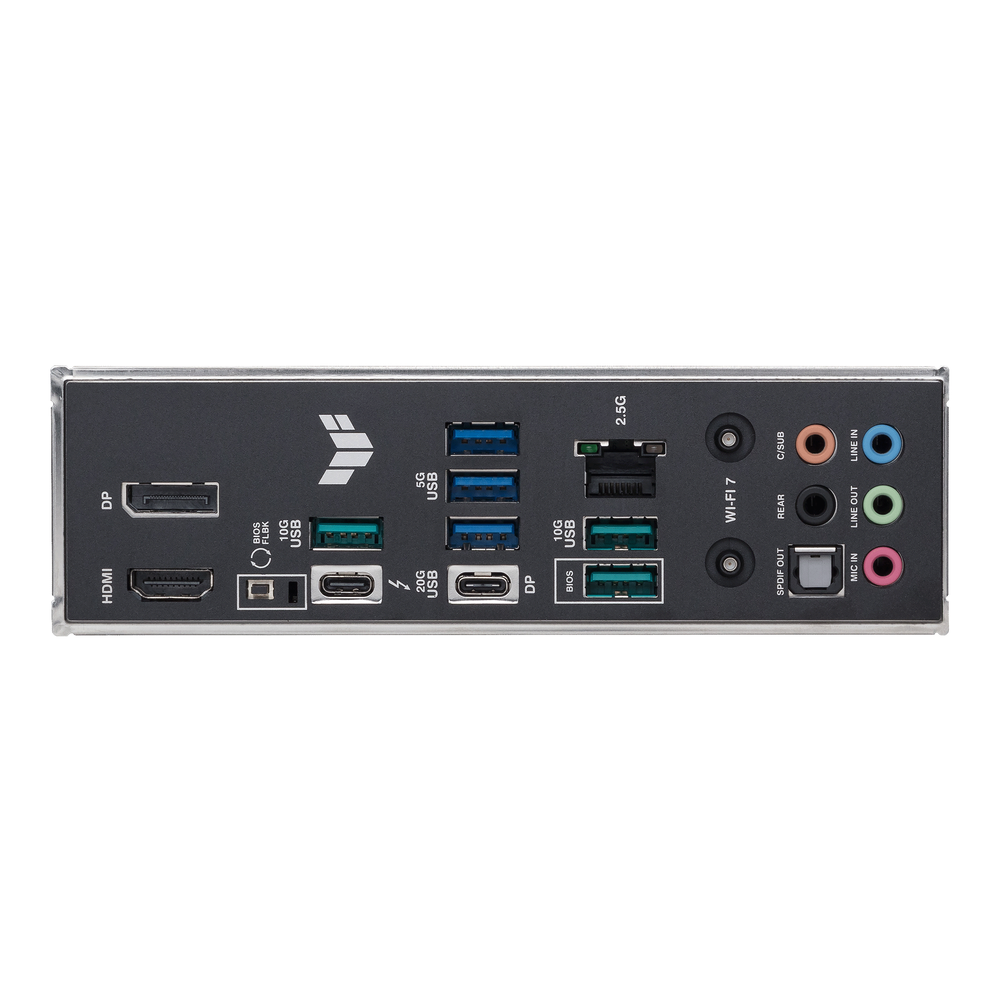

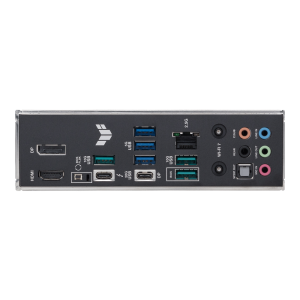

| Back Panel I/O Ports | 1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 3 x USB 10Gbps ports (3 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button |
| Wireless & Bluetooth | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |
