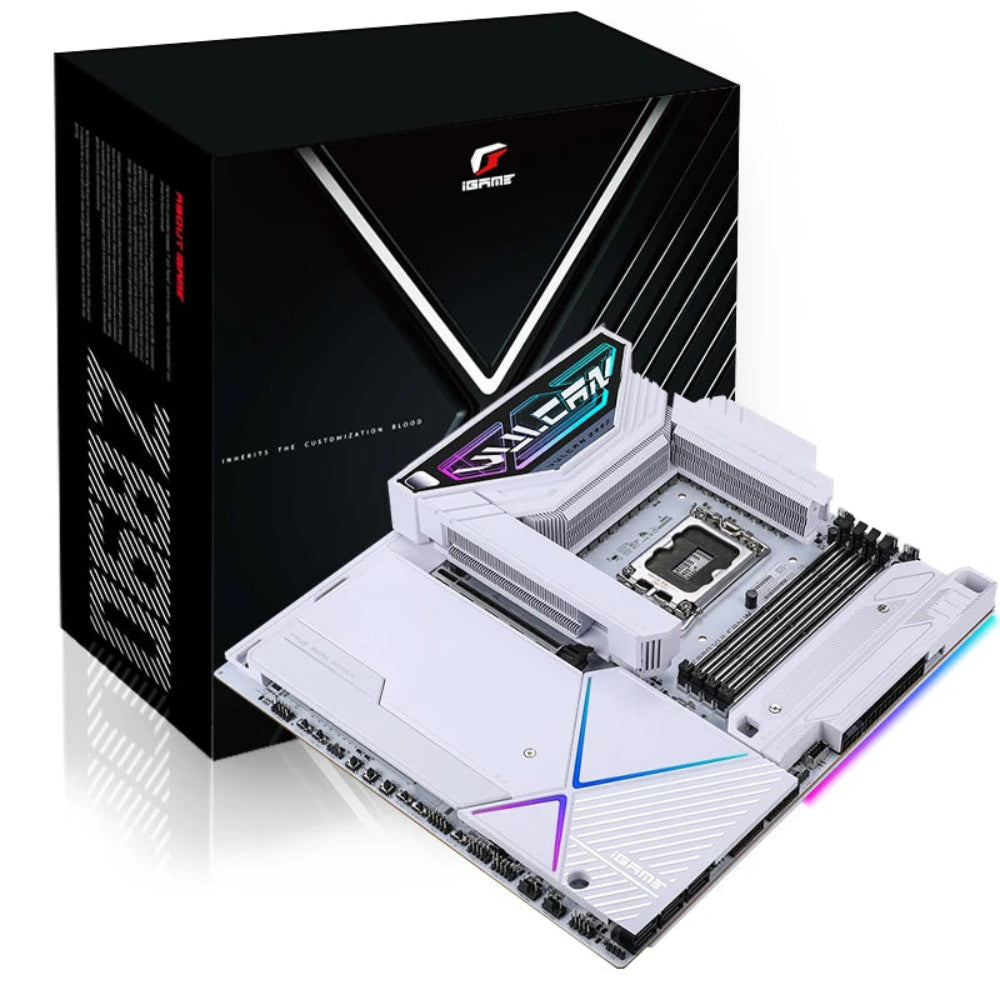

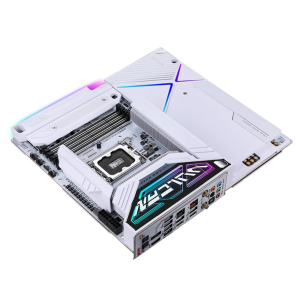

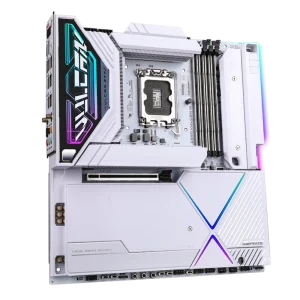

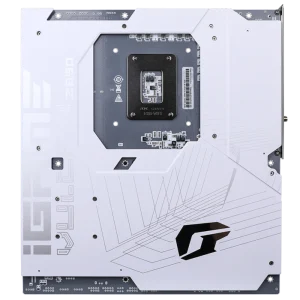

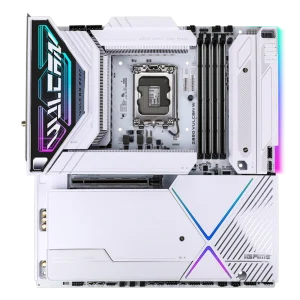

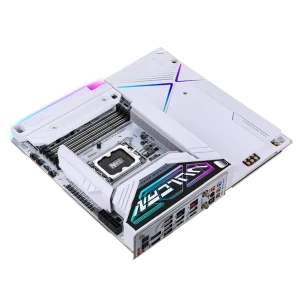

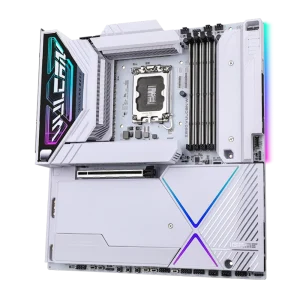

COLORFUL IGame Z890 Vulcan W V20 WIfi7 DDR5 Intel Motherboard

The Colorful iGame Z890 Vulcan W V20 is an E-ATX form-factor motherboard built on the Intel Z890 chipset, designed to seat Intel Core Ultra processors in the LGA 1851 socket. Its 20+1+1+1 phase power delivery uses Dr.MOS 105A components to supply clean, stable current to demanding processors during extended workloads. Memory support extends to four DDR5 DIMM slots accommodating up to 192 GB total capacity — up to 48 GB per slot — with speeds ranging from DDR5-4800 at native spec all the way to DDR5-8800 in overclocked mode. Intel XMP profiles and dual-channel operation are both supported out of the box. Storage builders will appreciate five M.2 slots: the primary slot (M.2_1) runs at PCIe 5.0 x4 via the CPU for maximum NVMe throughput, while M.2_2 adds a second CPU-direct PCIe 4.0 x4 lane. The remaining three slots route through the PCH. Six SATA 6 Gb/s ports round out the internal storage options, and RAID 0, 1, 5, and 10 arrays are supported across SATA and NVMe devices (SATA ports 5 and 6 excluded from RAID). Networking is a standout area: the board carries both a Realtek RTL8125BG 2.5 Gb wired controller and a Realtek RTL8126-CG 5 Gb wired controller simultaneously, complemented by an Intel BE200 wireless module delivering Wi-Fi 7 and Bluetooth 5.4. The rear I/O panel features six USB 3.2 Gen 2 (10 Gbps) Type-A ports, two USB4 40 Gbps Type-C ports with video output support up to 4K 60 Hz, a DisplayPort 1.4 output capable of 8K 60 Hz, an HDMI 2.0 port (4K 60 Hz), five 3.5 mm audio jacks, an S/PDIF output, and dedicated BIOS flash and CMOS-clear buttons. Onboard headers add a front-panel USB 3.2 Gen 2×2 20 Gbps Type-C connector with PD 3.0 at 60 W charging support. Audio is handled by a Realtek ALC1220 codec supporting up to 7.1-channel output. Expansion slots comprise one PCIe 5.0 x16 (runs at x8 when the secondary PCIe 5.0 x8 slot is populated), one PCIe 5.0 x8, and one PCIe 4.0 x4. Three 5 V ARGB headers, one 12 V RGB header, and iGame Center software allow synchronised lighting control across the heatsink, cooling fans, and compatible memory. board controls include power, reset, retry, safe-start, two BCLK adjustment buttons, an LN2 mode switch, a slow-mode switch, and a dual-BIOS selector — features oriented toward overclockers and enthusiast builders. Verified Specifications: Chipset: Intel Z890 | Socket: LGA 1851 | Form Factor: E-ATX, 305 x 277 mm | Memory: 4x DDR5, max 192 GB, DDR5-8800(OC) | M.2 Slots: 5 (1x PCIe 5.0 x4, 4x PCIe 4.0 x4) | SATA: 6x 6 Gb/s | PCIe: 1x PCIe 5.0 x16, 1x PCIe 5.0 x8, 1x PCIe 4.0 x4 | LAN: RTL8125BG 2.5G + RTL8126-CG 5G | Wireless: Intel BE200 Wi-Fi 7, Bluetooth 5.4 | Audio: Realtek ALC1220, 7.1-ch | Rear USB: 6x USB 3.2 Gen 2 Type-A + 2x USB4 40 Gbps Type-C | Video Out: DP 1.4 (8K 60Hz), HDMI 2.0 (4K 60Hz) | BIOS: 256 MB UEFI
