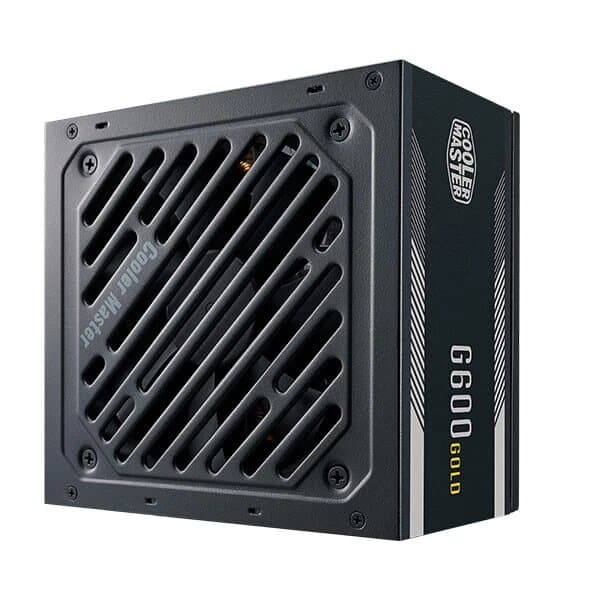

COOLER MASTER G600 600W 80+ Gold Non Modular ATX 2.0 Power Supply

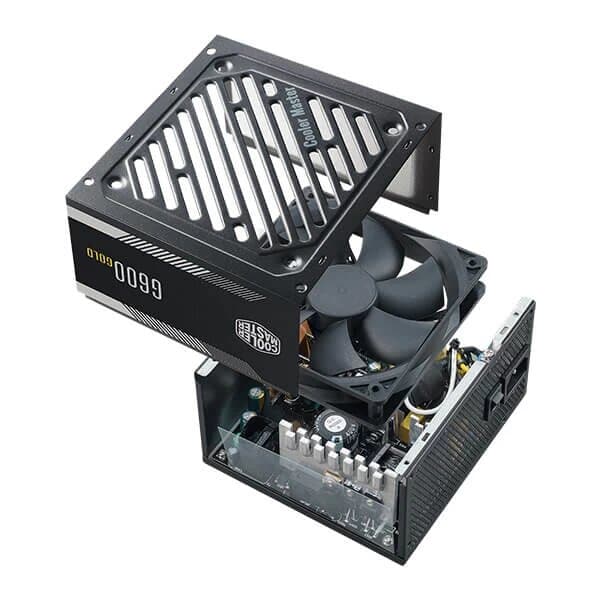

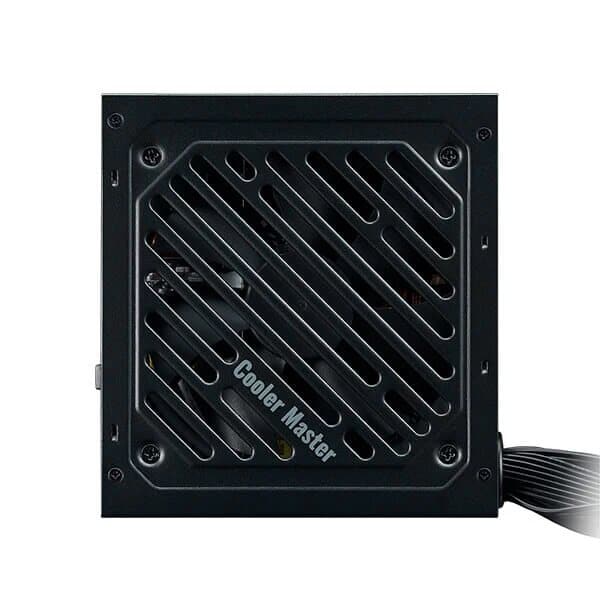

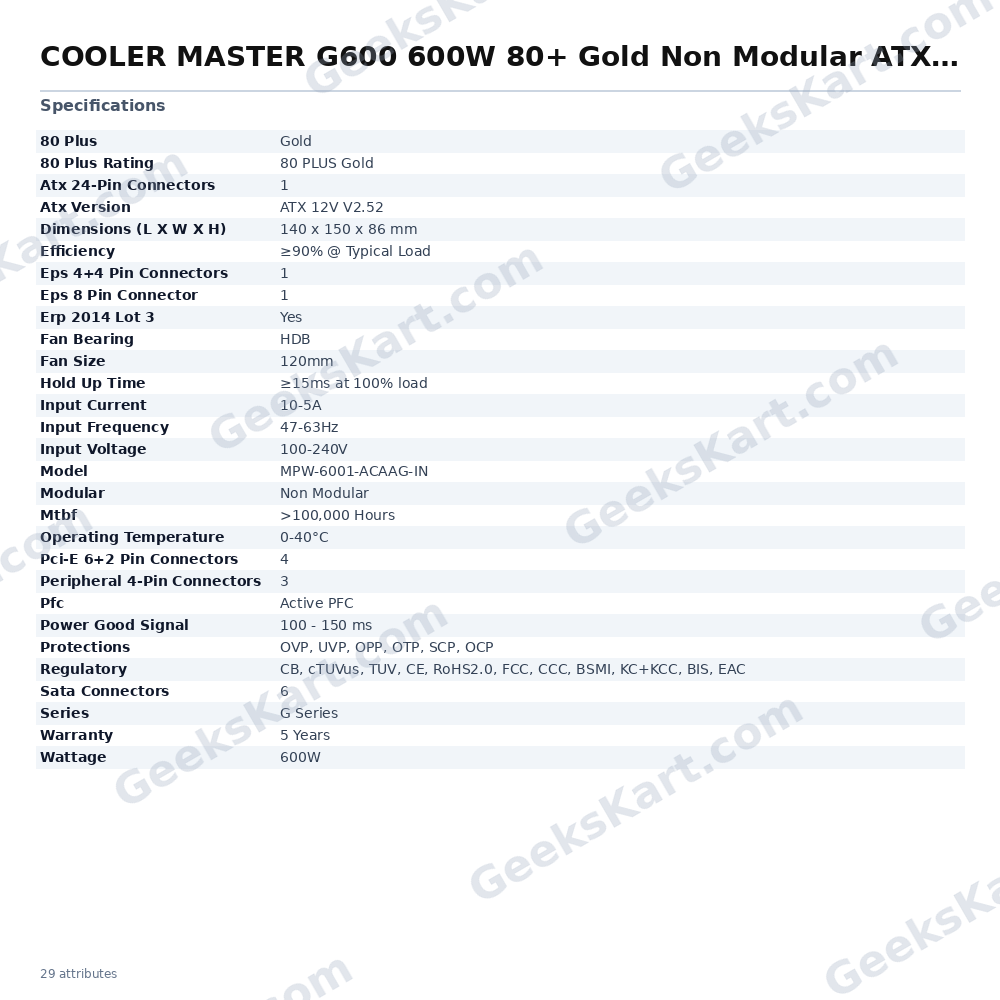

The Cooler Master G600 is a 600-watt ATX power supply from the brand’s G Gold Series, designed to deliver reliable and efficient power for entry-level and mid-range desktop builds. Carrying an 80 Plus Gold certification, the unit achieves efficiency of 90% or greater at typical load, which means less wasted energy and lower heat output compared to lower-rated alternatives. The non-modular cable design keeps the total cost down while providing all the connectors a standard ATX system requires. Cooling is handled by a 120 mm fan equipped with a Hydrodynamic Bearing (HDB), a design that combines the low noise of sleeve bearings with the longevity of ball bearings. The result is a quiet, long-lived cooling solution that keeps internal temperatures within the 0–40 °C operating range specified by Cooler Master. The unit complies with the ATX 12V V2.52 standard and carries ErP 2014 Lot 3 compliance for standby power efficiency. For system protection the G600 includes six independent safeguards: Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), and Over Current Protection (OCP). The rated Mean Time Between Failures (MTBF) exceeds 100,000 hours, and Cooler Master backs the unit with a 5-year warranty. The connector set covers a broad range of modern hardware without the need for adapters. Four PCI-e 6+2-pin connectors accommodate dual-GPU or single high-TDP GPU configurations, while six SATA connectors support a storage-dense build. Three peripheral 4-pin connectors handle legacy drives and accessories, and one EPS 4+4-pin plus one EPS 8-pin connector address CPU power needs. Verified Specifications: – Model: MPW-6001-ACAAG-IN – Wattage: 600 W – 80 Plus Rating: Gold (≥90% efficiency at typical load) – ATX Standard: ATX 12V V2.52 – PFC: Active PFC – Input Voltage: 100–240 V AC – Input Frequency: 47–63 Hz – Fan: 120 mm, HDB bearing – Operating Temperature: 0–40 °C – Dimensions (L × W × H): 140 × 150 × 86 mm – Hold-Up Time: ≥15 ms at 100% load – Power Good Signal: 100–150 ms – MTBF: >100,000 hours – Protections: OVP, UVP, OPP, OTP, SCP, OCP – ATX 24-pin: 1 | EPS 4+4-pin: 1 | EPS 8-pin: 1 – PCI-e 6+2-pin: 4 | SATA: 6 | Peripheral 4-pin: 3 – Warranty: 5 years – Regulatory: CB, cTUVus, TUV, CE, RoHS 2.0, FCC, CCC, BSMI, KC+KCC, BIS, EAC
